Y&H 1200W Grid Tie Inverter Power Limiter LCD Display DC55-90V Solar Input AC110V Pure Sine Wave Output for 48V60V Battery

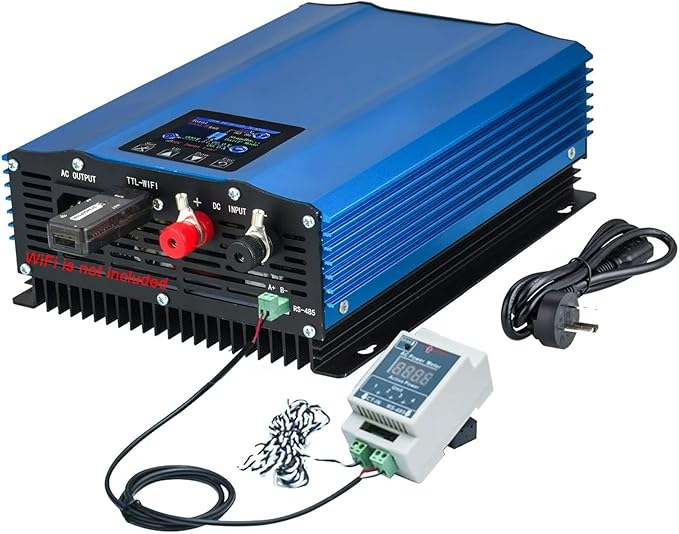

- Grid Tie Inverter with Limiter Sensor.Delivers only the power needed by the load. - Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency.fit for Solar panel open circuit voltage 76-90V (Voc) - The LCD displays the working status of the inverter, and can set the photovoltaic/battery mode. The fault working status information prompts. - The solar grid tie inverter is suitable for 48V/60V battery and has the function of battery constant power output. The battery power output (80-800W) can be set according to the user's required household power output power. In addition, it has battery low voltage protection to avoid battery capacity exhaustion, thereby better prolonging battery life. - DC overvoltage/overcurrent protection, AC overvoltage/overcurrent/overfrequency protection, over temperature protection, islanding protection.

Product description

Multiple inverters on the same line

It is normal to imagine that the fuse is damaged during the use of the inverter, when this happens to you, we can send you accessories which are simple to replace. All inverters on the market will have this problem, it's just that other businesses won't tell you.

In addition to the PV power generation mode, we have a battery energy storage grid tie power generation mode. During the daytime solar panels generate electricity for household loads, and excess electricity is stored in batteries. The inverter can still work normally at night. And you can set the battery low voltage to stop working to better protect the battery life

In the single-phase AC 110 grid, the inverter Dno’t need to distinguish between

the Neutral wire and the Live wire, respectively, the red wire and the blue wire can be connected, and

the yellow line is connected to the earth. Under the commercial power of the two-phase AC110

(double 110 Live wires), the red and blue wire are connected to the L1 and L2 wire respectively,

and the yellow wire is connected to the Earth wire.

When connecting solar panels, the inverter needs to be set to work in PV Mode

and the inverter will enable the internal MPPT.

When connecting the battery, you need to set the inverter to Bat Mode The inverter will

output according to the set power.

How to use the limiter：
