Wind Turbine 2000W AC 24V Home Use Horizontal Wind Generator Kits 3 Blades with MPPT Controller for Home Boat Marine Monitoring Street Lighting

- 1.Low start up speed, 3 Nylon blades at length of 105cm, high wind energy utilization - 2.Easy installation, tube or flange connection optional. - 3.Blades using new art of precision injection molding,matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output. - 4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely - 5.Patented permanent magnet ac generator with special stator,effectively reduce torque,well match the wind wheel and generator, and ensure the performance of whole system.

Product description

FLTXNY POWER 2000W Horizontal Wind Turbine Generator Kit with Charge Controller Off Grid System

Package Content:

Specifications:

Rated power: 2000W

Rated Output Voltage: 24V / 48V

Start wind speed: 3 m/s

Rated wind speed: 17m/s

Net weight above: 30 kg

Blade length: 95cm

Blade Material: Nylon Fiber

Generator: Three-phase permanent magnet AC synchronous generator

1x Wind generator

3x Blades

1 x Screws and Nuts Set

1x MPPT Charge Controller

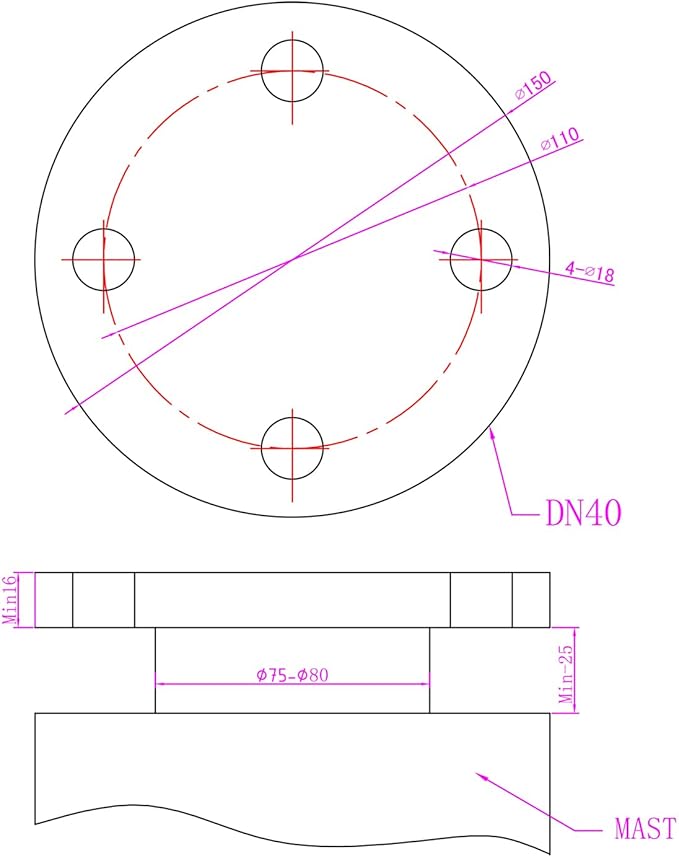

1x DN40 flange

(Mast is not included, suggest you prepare a 6-9m mast for the wind turbine)

1. The wind turbine should be installed where there is strong wind or no tall buildings and obstacles, If installing the wind turbines near the obstacles, the position is better as far as possible from obstructions, or the installation height should be 20Ft higher than the top of obstructions(As show), which can make full use of the wind power.

2. We can make use of the growth effect on the hills (As show). It’s a good place to set up

3. It's should avoid the cliff, the turbulent region.
