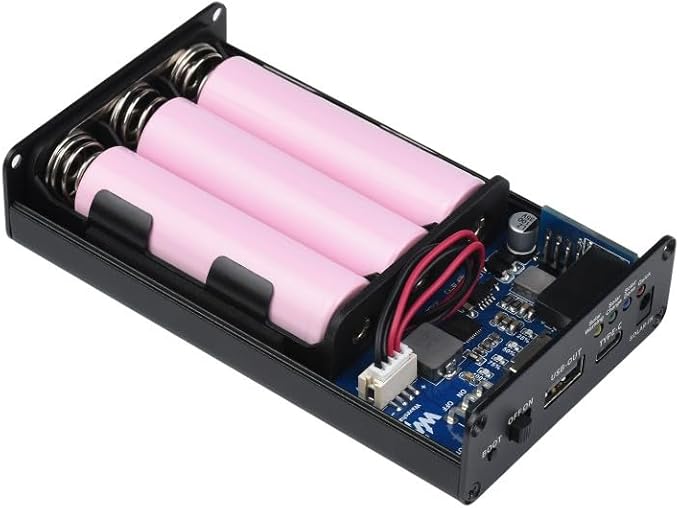

TUOPUONE Solar Power Manager (C) Compatible with General 6V-24V Solar Panels Supports 3X 18650 Batteries Multi Protection Circuits

- ?The Solar Power Manager (C) is compatible with general 6V~24V solar panels. It can recharge the 18650 rechargeable Li-ion batteries through solar panel or USB TYPE-C connection, and provides 5V / 3A regulated output (with multi protocols support including PD/QC/FCP/PE/SFCP). - ?The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep operating with high-efficiency, stability, and safety. It is suitable for solar powered, low-power IoT, and other environmental protection projects. - ?Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel.Compatible with 6V~24V solar panels, DC-002 jack input or screw terminal input - ?Onboard MPPT SET switch, select the level closed to input level to improve recharging efficiency.Onboard aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance - ?Several LED indicators, for monitoring the status of solar panel and battery.Multi protection circuits: over charge / over discharge / reverse-proof / over heat / over current, stable and safe to use

Product description

Solar Power Manager (C), Supports 3x 18650 Batteries, Multi Protection Circuits

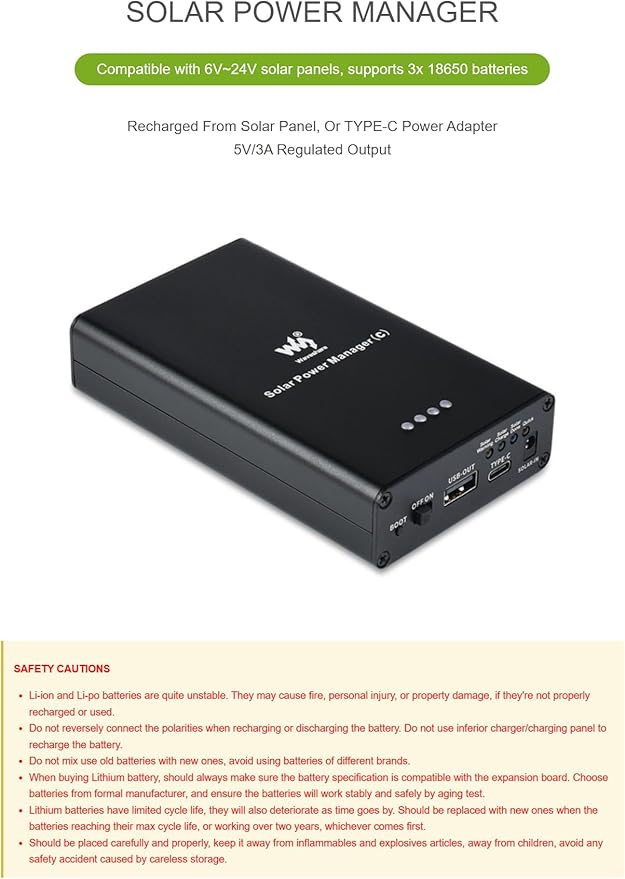

SAFETY CAUTIONS

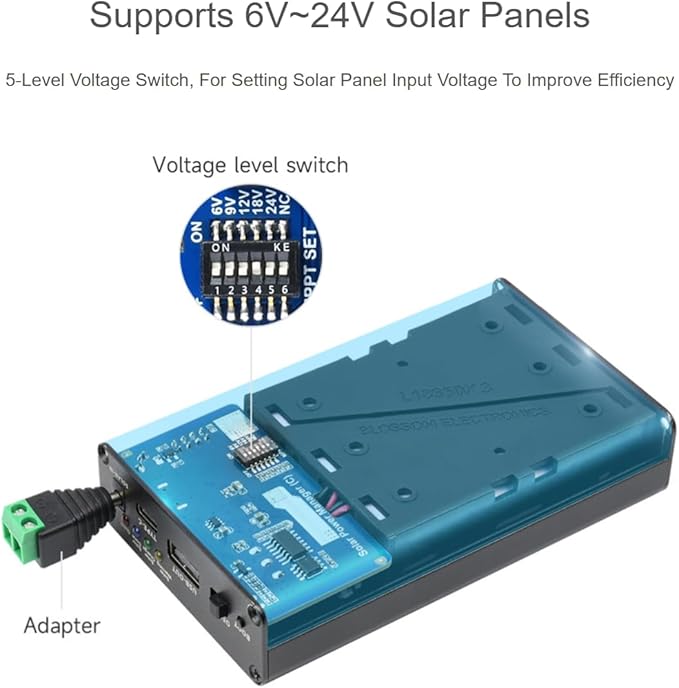

Supports 6V~24V Solar Panels

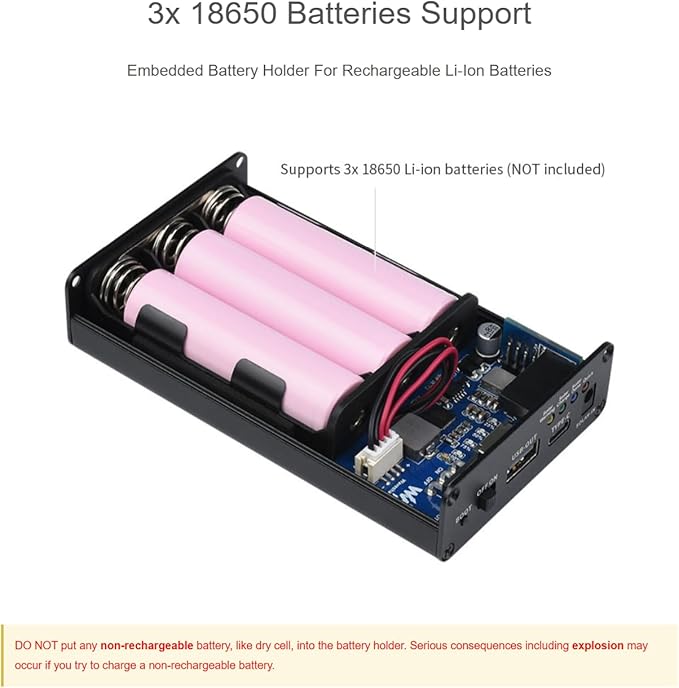

3x 18650 Batteries Support

Embedded Battery Holder For Rechargeable Li-Ion Batteries

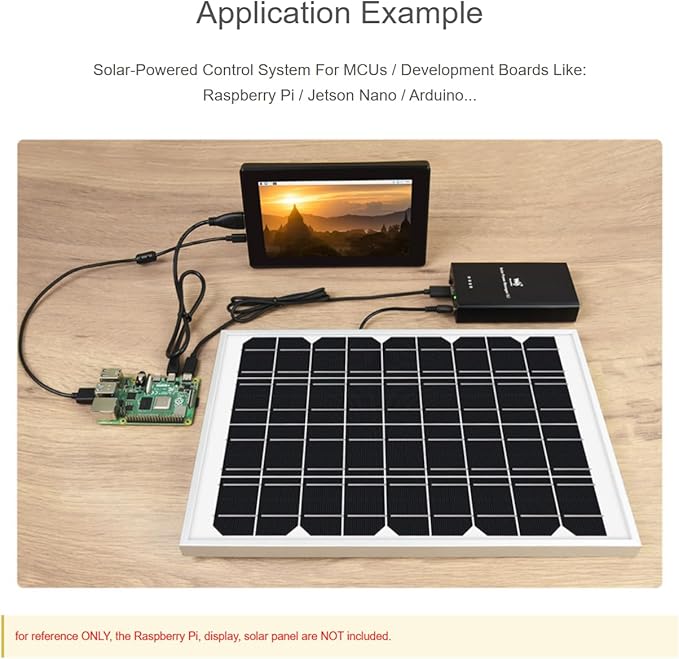

Application Example

Solar-Powered Control System For MCUs / Development Boards Like: Raspberry Pi / Jetson Nano / Arduino...

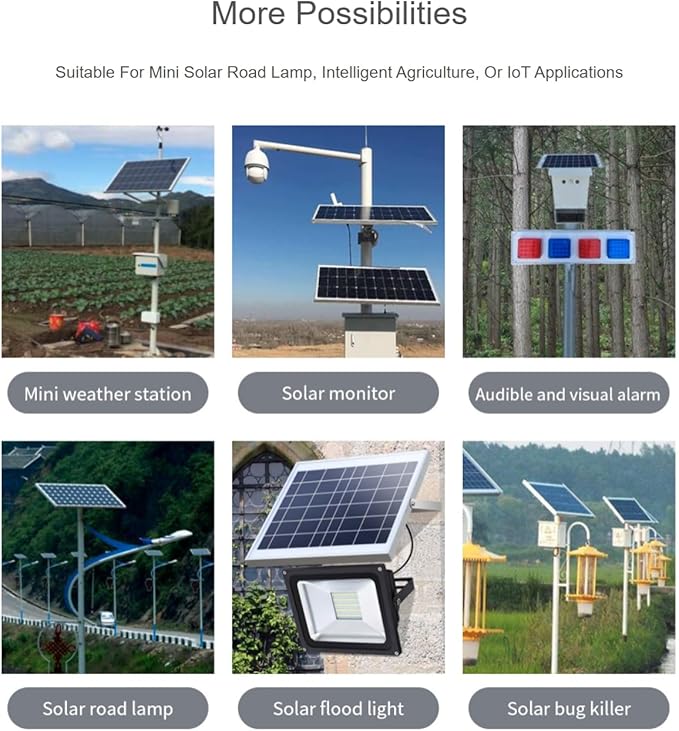

More Possibilities

Suitable For Mini Solar Road Lamp, Intelligent Agriculture, Or IoT Applications

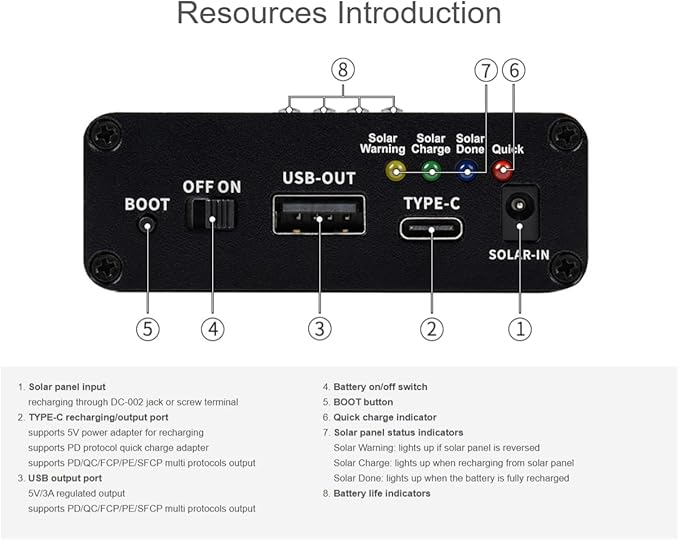

Resources Introduction

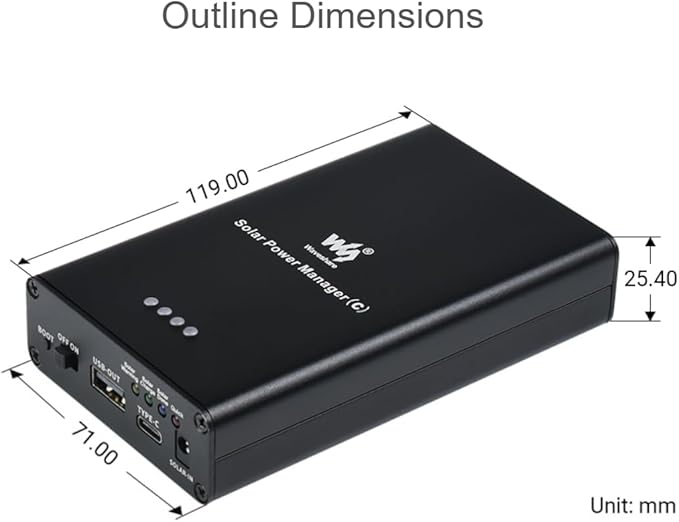

Outline Dimensions

Product Features

The Solar Power Manager (C) is compatible with general 6V~24V solar panels. It can recharge the 18650 rechargeable Li-ion batteries through solar panel or USB TYPE-C connection, and provides 5V / 3A regulated output (with multi protocols support including PD/QC/FCP/PE/SFCP).

The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep operating with high-efficiency, stability, and safety. It is suitable for solar powered, low-power IoT, and so on.

DO NOT put any non-rechargeable battery, like dry cell, into the battery holder. Serious consequences including explosion may occur if you try to charge a non-rechargeable battery.

for reference ONLY, the Raspberry Pi, display, solar panel are NOT included.

1.Solar panel input:recharging through DC-002 jack or screw terminal

2.TYPE-C recharging/output port

supports 5V power adapter for recharging

supports PD protocol quick charge adapter

supports PD/QC/FCP/PE/SFCP multi protocols output

3.USB output port:5V/3A regulated output

supports PD/QC/FCP/PE/SFCP multi protocols output

4.Battery on/off switch

5.BOOT button

6.Quick charge indicator

7.Solar panel status indicators

Solar Warning: lights up if solar panel is reversed

Solar Charge: lights up when recharging from solar panel

Solar Done: lights up when the battery is fully recharged

8.Battery life indicators
