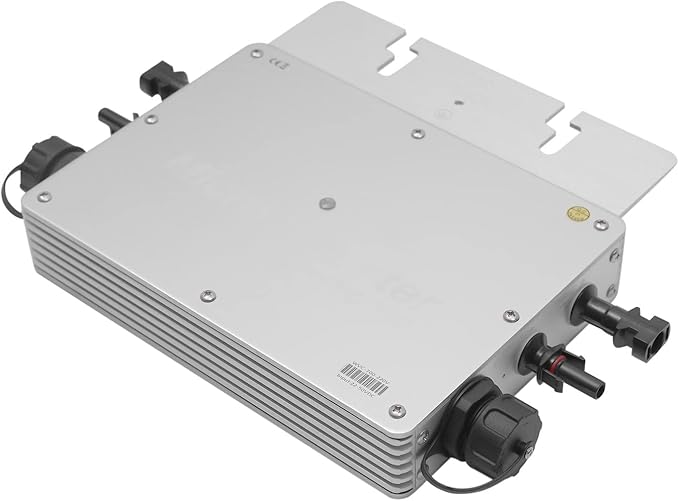

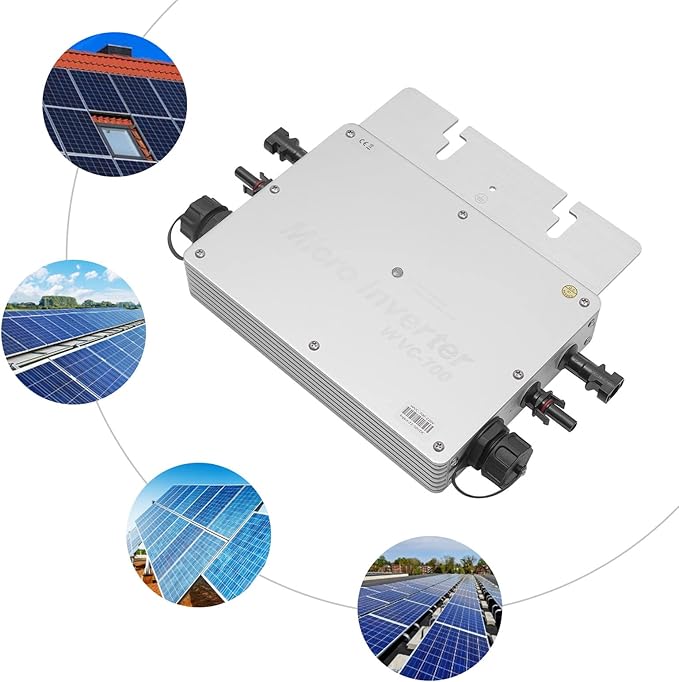

Solar Grid Tie Micro Inverter XJ-WVC-700W 700W 110V Waterproof Inverters Solar Powered Reversing Converter Aluminium Alloy Inverters w/AC Connection Cable for Schools Power Stations Homes

- Powerful MPPT Algorithm: The product's built-in MPPT (Max. Power Point Tracking) optimizes power collection from the solar panel and precisely captures and locks the maximum output power point to significantly increase power generation to more than 25%. - Reverse Power Transmission: The 99.9% efficient reverse power transmission technology transmits the power in the reverse direction in grid-connected output mode while automatically detecting the load in the circuit and prioritizing its use, which greatly improves transmission efficiency. - Pure Positive Sine Wave: The product uses SPWM to directly generate a pure positive sine wave with good waveform, low distortion, and low noise to make the radio and other communication devices feel better. - High Efficiency and Anti-interference: The inverter dial fast using high-frequency switching power supply technology and 32-bit DSP fully digital SPWM control technology provides the product with excellent anti-interference capability, high-speed computing capability, and intelligence. - Grid-connected and Stacking Mode: Inverters can be stacked in parallel with any number of units for both grid-connected use. After the main monitoring system sends the main control signal the inverter receives the main control signal for synchronous output.

Product description

Description

Specification

Key Features

Details

Application

Notes

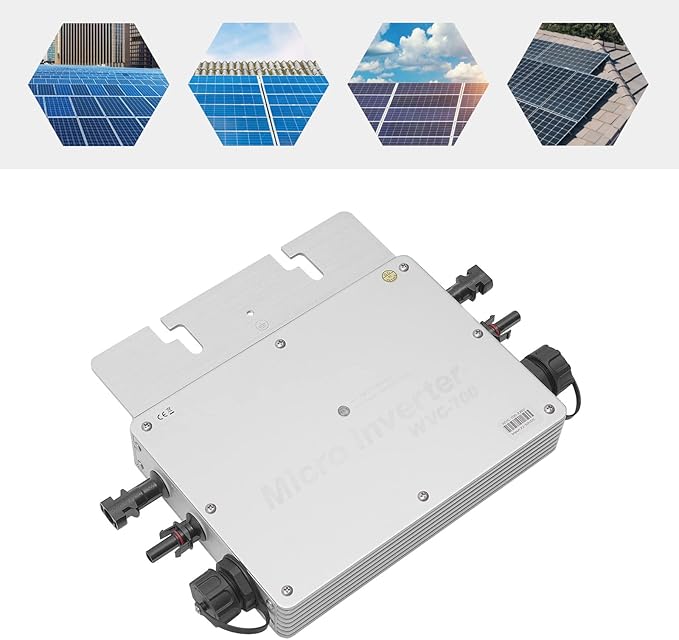

With a powerful MPPT algorithm and a 99.9% efficient transmission rate, this solar inverter can greatly improve conversion efficiency while providing stable AC power for home appliances. With high-quality materials and multiple protection features, this solar inverter can serve you for a long time.

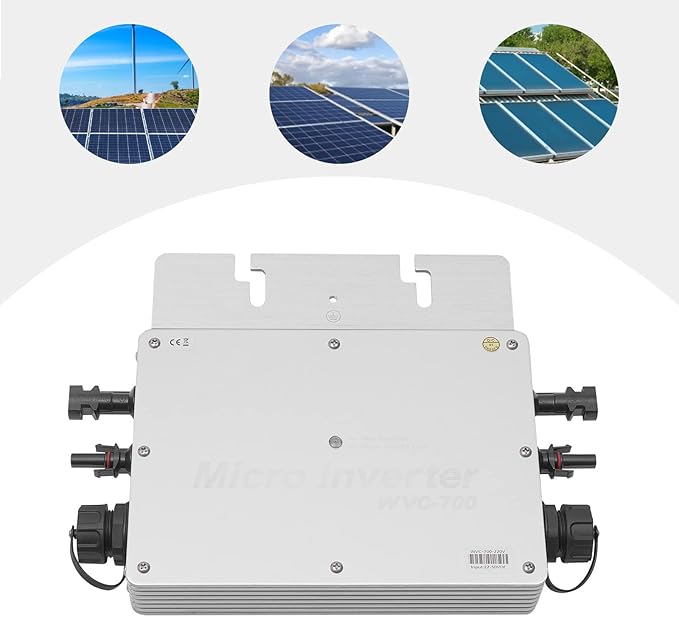

Material: Aluminum Alloy Color: Silver

Model: XJ-WVC-700W Plug: US Standard

Voltage: 110V Maximum Input Power: 2 × 350W

Recommended Solar Panel: Power 2 × 350W, Open Circuit Voltage 30-50V

Maximum Input DC Voltage: 54V

Peak Power Tracking Voltage: 22-45V

Operating Voltage Range: 17-50V

Minimum/Maximum Starting Voltage: 22-50V

Maximum DC Short Circuit Current: 40A Maximum Input Working Current: 30A

Output Voltage: 120V

Output Peak Power: 700W Rated Output Power: 650Watt Rated Output Current: 6.36A

Rated Voltage Range: 80-160VAC

Rated Frequency Range: 57-62.5Hz

Power factor: >99%

Number of Connections Per Series Circuit: 6 (Single-phase)

Output Efficiency: 120V

Static MPPT Efficiency: 99.5%

Maximum Output Efficiency: 91.2%

Power Loss at Night: <1W Total Wave Distortion: <5%

Waterproof Grade: IP65

Operating Temperature Range: - 40 ℃ to+60 ℃

Heat Dissipation Mode: Self Cooling

Electromagnetic Compatibility: EN50081.Part1 EN50082.Part1

Power Grid Disturbance: EN61000-3-2 Safety Regulation EN62109

Grid Detection: DIN VDE 1026 UL1741

Gross Weight: 2.45kg/5.4lbs

Net Weight: 1.8kg/3.96lbs

Package Size: 34*24*11.5cm/13.38*9.44*4.52in

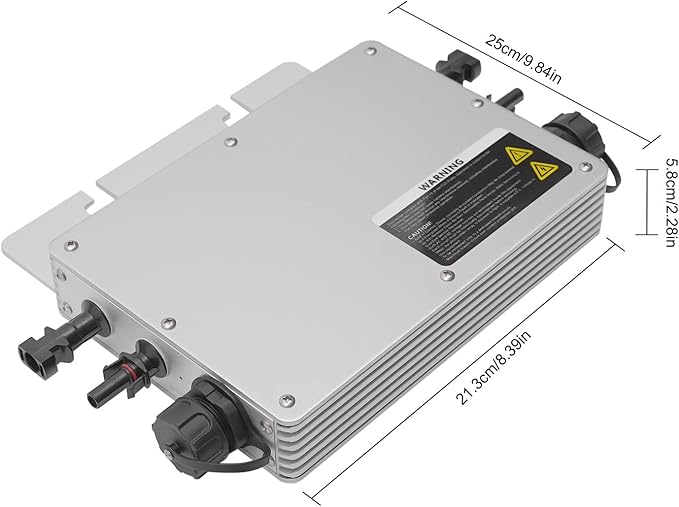

Product Size: 21.3*5.8*25cm/8.39*2.28*9.84in

The product's built-in MPPT (Max. Power Point Tracking) optimizes power collection from the solar panel and precisely captures and locks the maximum output power point to significantly increase power generation to more than 25%.

The 99.9% efficient reverse power transmission technology transmits the power in the reverse direction in grid-connected output mode while automatically detecting the load in the circuit and prioritizing its use, which greatly improves transmission efficiency.

The product uses SPWM to directly generate a pure positive sine wave with good waveform, low distortion, and low noise to make the radio and other communication devices feel better.

High Efficiency and Anti-interference: The inverter dial fast using high-frequency switching power supply technology and 32-bit DSP fully digital SPWM control technology provides the product with excellent anti-interference capability, high-speed computing capability, and intelligence.

Grid-connected and Stacking Mode: Inverters can be stacked in parallel with any number of units for both grid-connected use. After the main monitoring system sends the main control signal the inverter receives the main control signal for synchronous output.

Compact and Lightweight: The upgraded miniature design makes the product size only 8.39*2.28*9.84 inches and net weight only 3.96 pounds, which makes it easy to carry and install.

High-quality Material: The solar inverter is made of high-quality aluminum alloy, which is very strong, durable, and corrosion-resistant to be able to serve you for a long time.

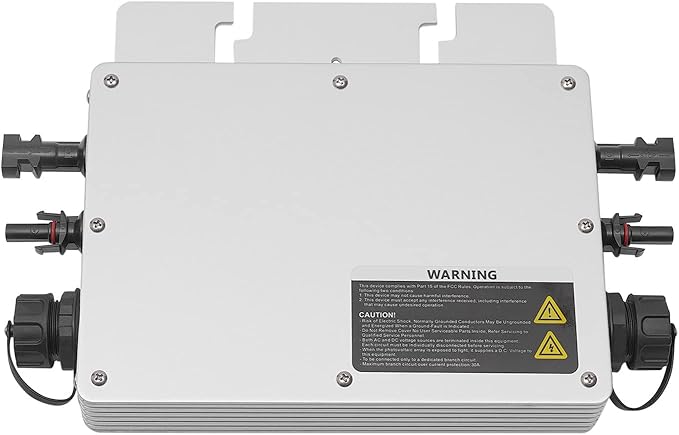

High Safety: The whole power distribution system is well insulated and the output of the system is completely electrically isolated from the input, which makes the use safer and more reliable. Over-temperature protection, under-voltage alarm, under-voltage protection, over-voltage protection, short-circuit protection, and overload protection protect the safety of use in all aspects.

Flexible Installation: Multiple inverters can be stacked arbitrarily, forming a single-phase parallel stacking system or a three-phase system to provide three-phase AC power conveniently. Flexible installation allows for a wider range of applications.

Easy Maintenance: The power station only needs to clean the dust on the PV panel regularly after installation, which makes it very convenient and quick.

Excellent Waterproof Performance: High-quality material and stable structure bring the product IP65 excellent waterproof performance so that it can effectively group the influence of dust and water, and can operate stably outdoors.

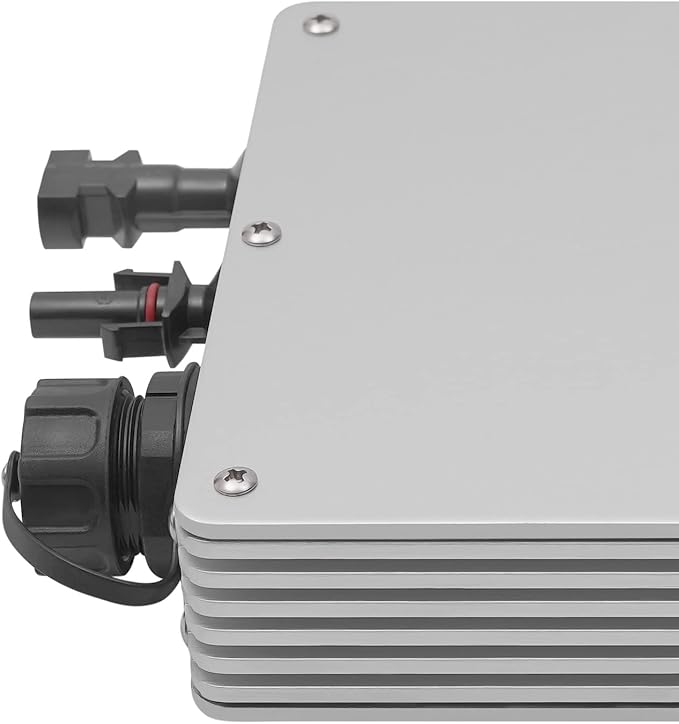

Rounded Corners: Rounded and smooth corners can protect hands from scratches for easy installation and portability.

Clear LED Display Lamp: Clear LED display lamp allows you to easily understand the status of the product for operation.

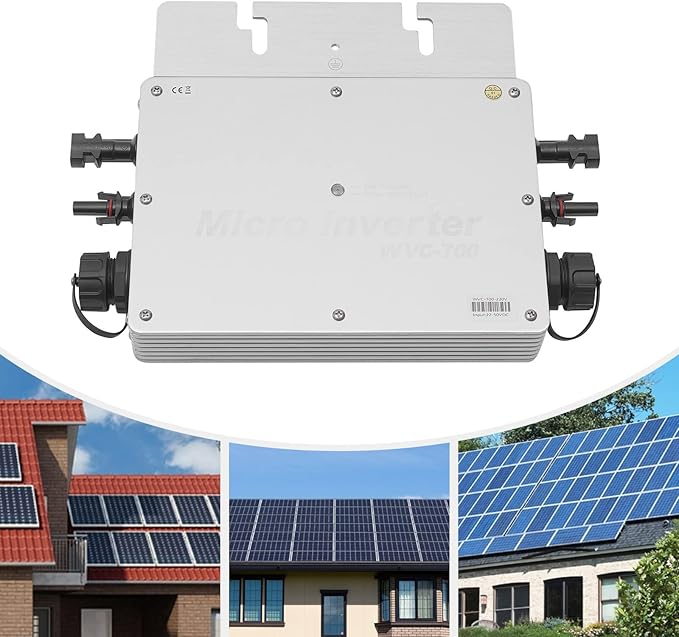

This solar inverter is mainly used for power stations, schools, and home grid connections.

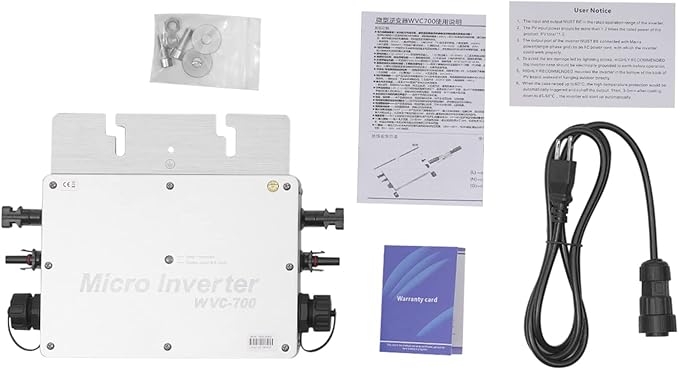

Installation

Step 1: Install the inverter on the bracket of the photovoltaic panel with the screws.

Step 2: Connect the positive and negative poles of the DC connection plug on the photovoltaic board to the DC input terminal of the inverter.

Step 3: Open the waterproof cover of the AC output connector of the inverter and connect the AC cable to the AC waterproof plug.

Step 4: Connect the AC output cable to the AC main cable;

Step 5: Repeat steps 1 to 3, install and connect all inverters;

Step 6: Connect the AC main cable to the utility grid to start your green energy journey.

1. Please correctly install the inverter according to the instructions. If you have any questions, please contact the relevant personnel.

2. Non-professional personnel are not allowed to disassemble the machine. Only qualified maintenance personnel can repair the product.

3. Please install the inverter in a place with low humidity and good ventilation to avoid overheating of the inverter, and remove flammable and explosive materials around.

4. When using this product, children should not touch or play to avoid electric shock.

5. Connect the solar panel and the DC input of the battery DC power supply cable.

6. Our product is grid-connected power generation. The AC output port must be connected to the home grid to achieve grid-connected power generation.

7. When using solar photovoltaic panels, the VOC voltage must be between 30-48V. It is recommended that the power configured for the solar panel be greater than 20% of the product power.

8. When using the battery, it is recommended that the battery voltage be 36V, and three 12V batteries can be connected in series. When connecting the product, the positive and negative polarity shall not be reversed. For 300W products, the recommended parameter of the battery is 36V/10mah. For 600W products, it is recommended that the battery parameter be 36V/20mah. 1200W product: it is recommended that the battery parameter be 36V/40-45mah.

9. The customer's configuration parameters, input, and output voltages are within the normal voltage range of the product so that the product can work normally and realize grid-connected power generation.

10. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.

(700W Micro Inverter Solar Grid Tie Microinverter IP65 Self Cooling 120V Automatic Identification Power Inverters)
