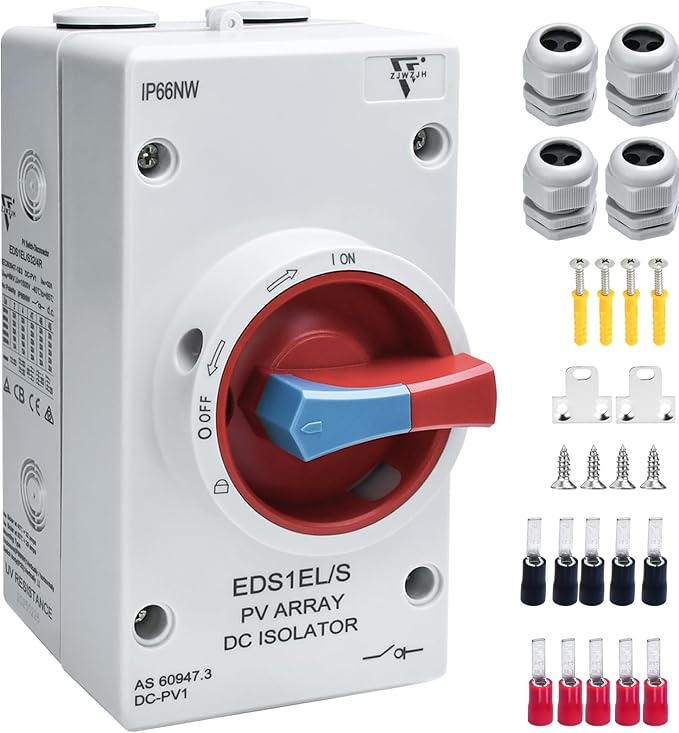

Solar Disconnect Switch 4-Pole DC1500 32A Isolator Solar Switch with Enclosure for Rooftop Solar Systems RVs and Boat Waterproof IP66 Red

- [ 32A, DC1500V; PV2 ] Ui: 1500V DC; Ith: 32 Amp; Uimp: 8000V; Icw: 1KA, 1S. PV2 rating, supports frequent switching - [ 4-Pole 2in 2out ] Red handle, 4-Pole. The PV switch disconnector has 4 separate circuits of 32 amps each, 64A max. for 2 circuits for high work safety. And the solar disconnect switch has a padlocked handle that locks in the closed position and is tamper-resistant. - [ Easy installation ] No need to damagethe box, mountingholes are already cutout. Double hole cable connector, suitable for 6-8mm connecting wires, safer to use. - [ RELIABLE & DURABLE ] ZJWZJH's solar pv isolator switches are made of high quality PC material, It has the advantages of UV-proof, flame retardant, water and dust prevention (IP66), Cold and heat protection (-40℉~+185℉), environmental aging and corrosion resistance, and long service life, perfect for outdoor and indoor installation. - [ WIDE APPLICATION ] Whether it's solar panels, solar charge controllers, solar inverters or solar modules, you can integrate our DC disconnect switches to connect and control them all. - [ Package ] 1 X Disconnector Switch; 4 X Screw; 2 sets of Wall Mounting Kit; 5 sets of connection terminals; 4 x Cable Connectors.

Product description

Solar Disconnect Switch 32 Amp DC1500V

IP66 Waterproot

IP66 Waterproof

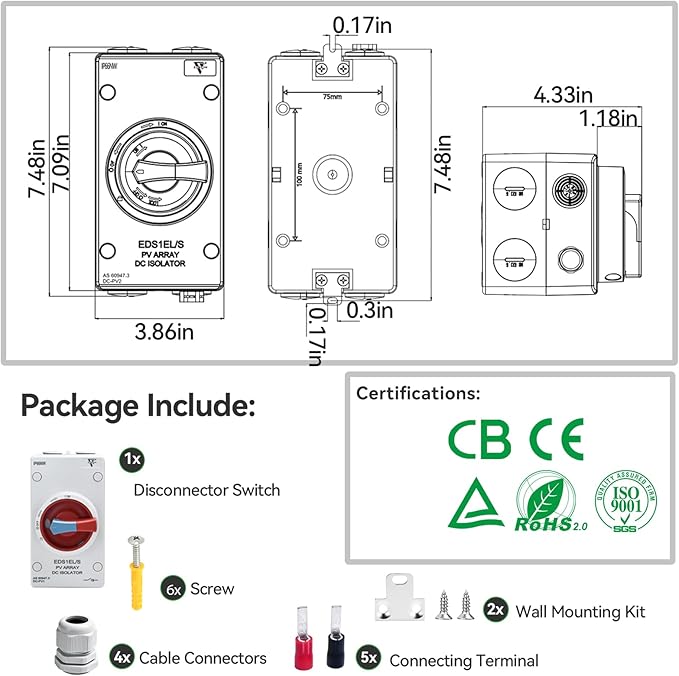

Product appearance

Product appearance

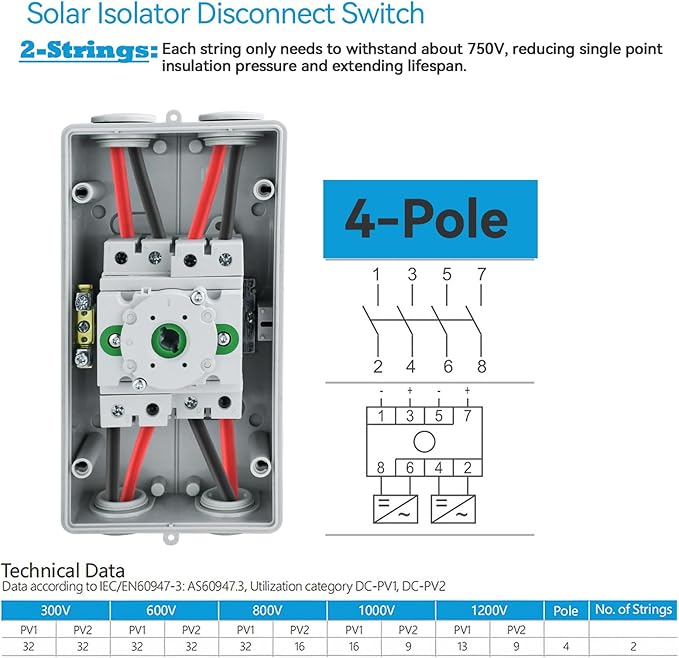

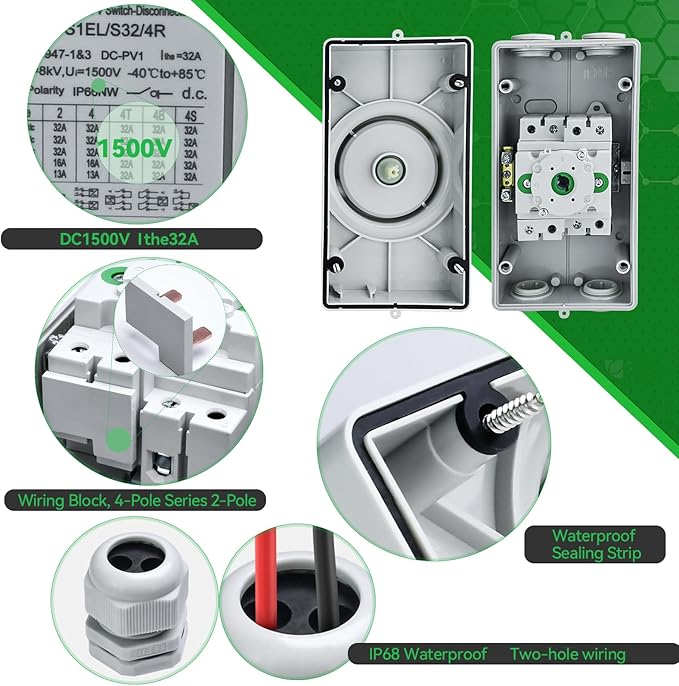

Internal structure of the product

Internal structure of the product

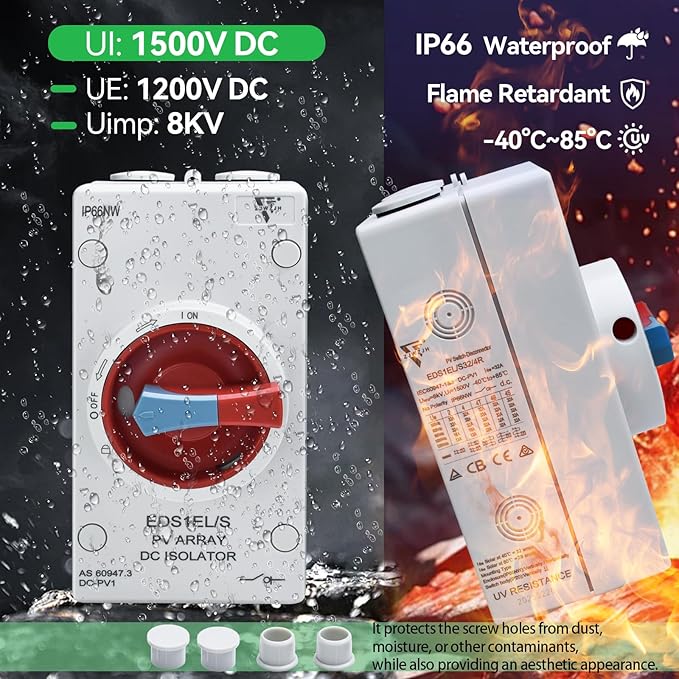

● IP66 degree of protection

● TUV/CE/CB; RoHs 2.0,ISO9001,IEC60947.3

● UV resistance and VO flame retardant material

● Contact Silver Plating, silver layer thickness up to the industry's highest standards

● Arcing Time in 3 ms; No Polarity ● Lockable at OFF position

PV2 Standard, 32Amp
