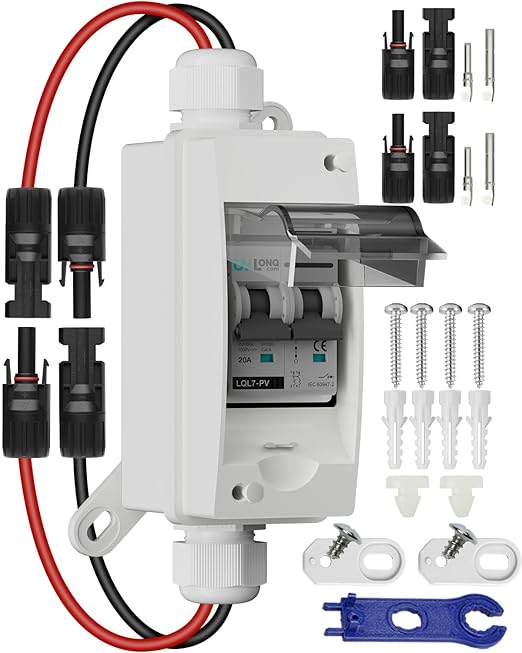

Solar Disconnect Switch 20A DC1000V Circuit Breaker 2P with PV Connector and IP65 Small Breaker Box and Wall Hooks for Outdoor PV Stystem Battery PV Array MCB

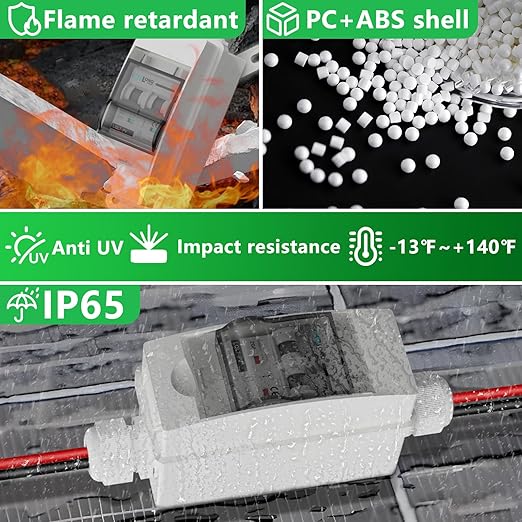

- 【1 In 1 Out Circuit Breaker Box】The housing is made of PC+ABS material, UV resistant and strong flame retardant. Typically used between solar panel arrays and inverters, this product provides overvoltage and overload protection and is capable of switching circuits. This effectively prevents damage to the circuitry due to overloads or short circuits, thus extending the life of the solar system - 【20 Amp DC Circuit Breaker】No Polarity, DC 1000V for + and - poles or - and + poles - 【IP65 Waterproof Box with Wall hook】The junction box has an IP65 waterproof rating and is suitable for indoor and outdoor use as well as for harsh weather conditions such as storms and dust - 【PV Extension Cable Solar Terminal】Fast installation, plug and play. The length of one side is about 8.66 inches, 14~10AWG cable is recommended - 【Wide range of applications】This PV disconnect switch is suitable for on-grid and off-grid solar panel systems, solar power systems, RV, Boat, Outdoor photovoltaic and wind energy

Product description

Why Choose Us

Customers who bought this item also bought

How is it wired?

How do I mount it on the wall?

Is the internal wiring safe and secure?

What are the certifications?

What are the advantages over similar models on the market?

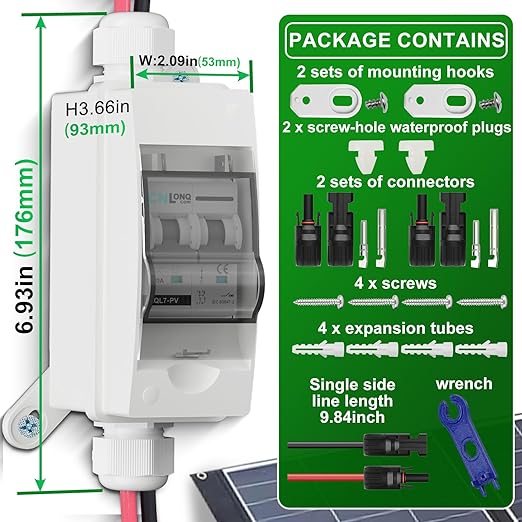

This LQX-HT2.H model comes with the MC-4 extension cable for plug and play. Also, a wall hook attachment has been added. There is no need to damage the housing or remove the cover when mounting on the wall. Simply install the wall hook in the pre-drilled hole on the back and mount on the wall.

How is it wired?

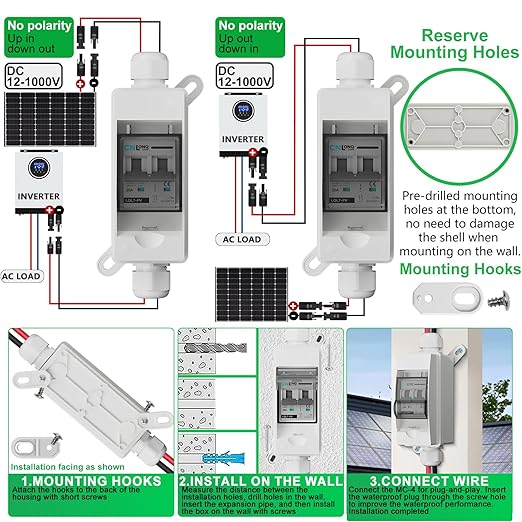

Non-polarized wiring, top in/bottom out or bottom in/top out, plug and play with MC-4 connector

How do I mount it on the wall?

Install the hooks at the bottom, then according to the distance between the holes on the two hooks, punch holes in the wall to insert the expansion tubes, and then install the box on the wall through the hooks. (Without damaging the box)

Is the internal wiring safe and secure?

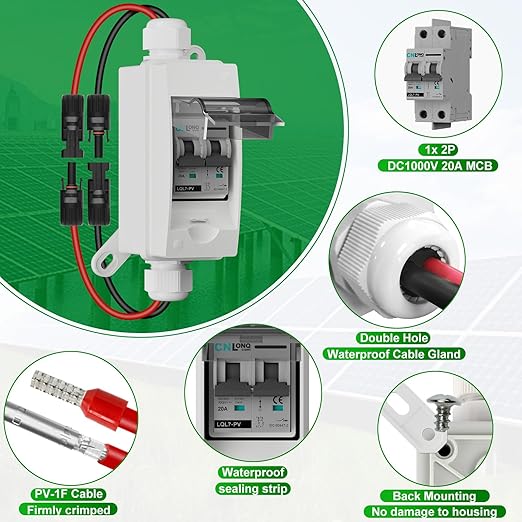

The internal terminals are crimped using a terminal machine, and the crimping screws have passed the salt spray test for firmness, reliability and long life.

What are the certifications?

CE, IP65, ROHS, ISO9001 certificates have been obtained and more will be obtained in the future.

What are the advantages over similar models on the market?

We are the source factory and they are the trading intermediary, so we can control all aspects of the product (such as material, crimping, assembly, etc.) to provide better products and more cost-effective prices.
