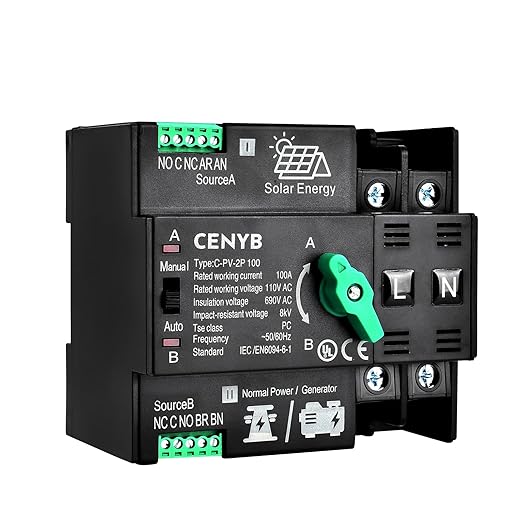

PV - Dedicated Automatic/Manual Transfer Switch Mini ATS Solar Auto Dual Power Switch 2P 100A AC110V Uninterrupted Power Supply DIN Rail Mount Toggle Changeover Module

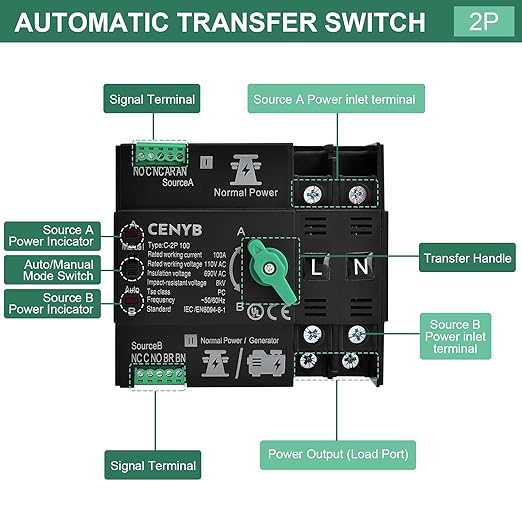

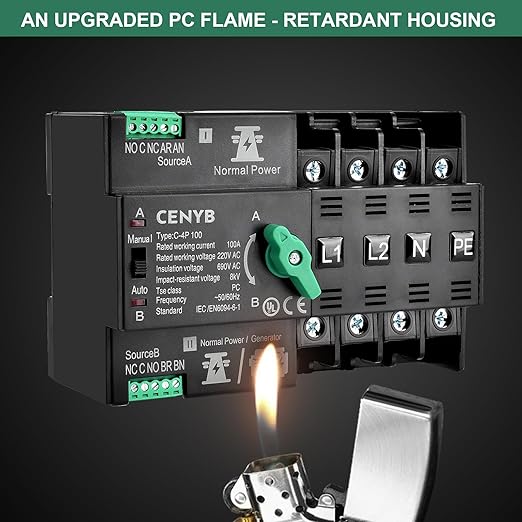

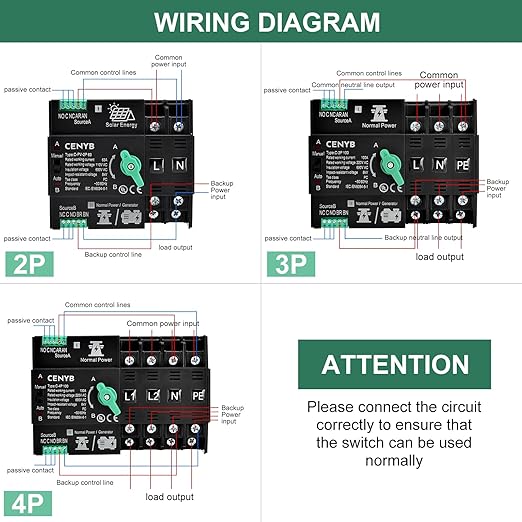

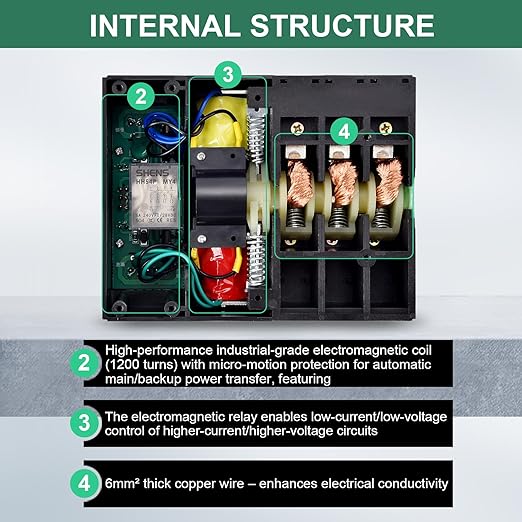

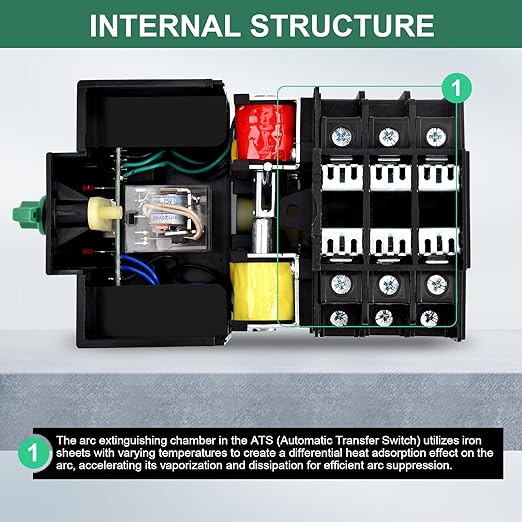

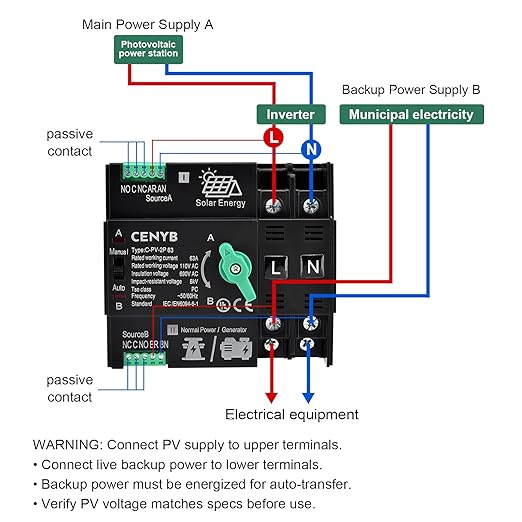

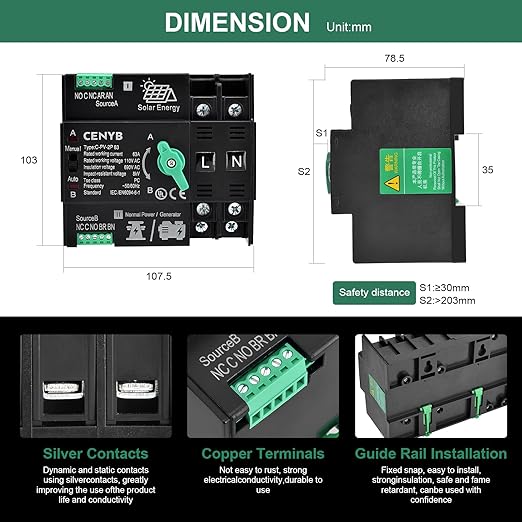

- 【Precautions】Photovoltaic ATS Wiring Guide: Connect PV supply to upper terminals and continuously energized backup power to lower terminals. Ensure backup power is live for auto-transfer function and verify PV input voltage matches rated specs. Maintain voltage within ±15% of rating and current ≥5A to prevent coil damage.L1 and L2 denote live wires; N denotes the neutral wire; PE denotes the protective earthing wire - 【Product Description】 Dual-Power ATS Core Functionality Quickly switches loads to backup power upon main power failure,Supports automatic/manual transfer between two power sources with real-time status monitoring. If main power (A) fails, backup power (B) activates within 0.03 seconds and automatically reverts once main power recovers.Operating Voltage:2P AC 110V 100amp, 50/60 Hz Dimensions: 5.67 x 5.5 x 4.5 inches Weight: 1.3 lbs Installation Rail Mounting: Compatible with standard DIN rails - 【Product Features】Mini ATS features an upgraded flame-retardant PC housing for safety, a precision-wound 1,200-turn electromagnetic coil with 6mm² copper braiding for reliability, and travel limit microswitches to prevent internal displacement. Its advanced arc chute uses differential temperature iron plates to absorb heat and accelerate arc extinction via gasification. The durable magnetic knob withstands 2,000+ electrical cycles and 5,000+ manual operations, ensuring extended lifespan. - 【Automatic Mode】 Automatic Mode: For 110V AC ATS in auto mode, set left switch to "Auto" and green handle to "Source A". When normal power A works, A (red) stays on; if A fails, it switches to backup B within 0.04s (A red off, B red on), and reverts when A recovers. - 【Manual Mode】 For cenyb ATS in manual mode, set left switch to "Manual". Choose A: turn right green handle to "Source A" (A red on). Choose B: turn handle to "Source B" (B red on).

Product description

NOTE

Q1：Can I use a PV inverter as normal power or reserve power?

Answer: Yes. For photovoltaic (PV) type automatic transfer switches, please select models prefixed with "PV", such as PV 3P 100A.

Q2: Will household appliances lose power when this ATS transfer?

Answer: No. Since the transfer only takes 8ms?a remarkably fast speed?household appliances will not lose power.

Q3: Will this ATS give the generator a start signal to automatically turn it on?

Answer: Yes.

Q4:Can we use 110V to connect this ATS?

Answer:Please select the 110V model of the ATS

Q5:What is the installation method of this ATS?

Answer:Rail mounting (refers to installation on a standard DIN rail)

The voltage of the common and backup power supplies must be within 85%?110% of the rated voltage, and the current must not be less than 5A; otherwise, the coil may overheat or even get damaged.

Suitable common and backup power sources for this product include stable municipal power, photovoltaics, generators, etc. They must be alternating current (AC); otherwise, the product will not switch automatically.
