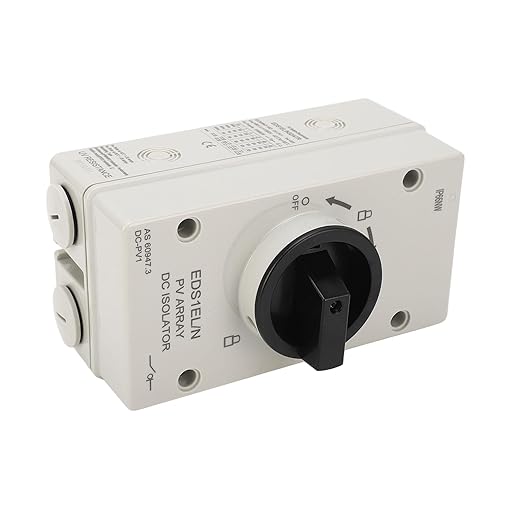

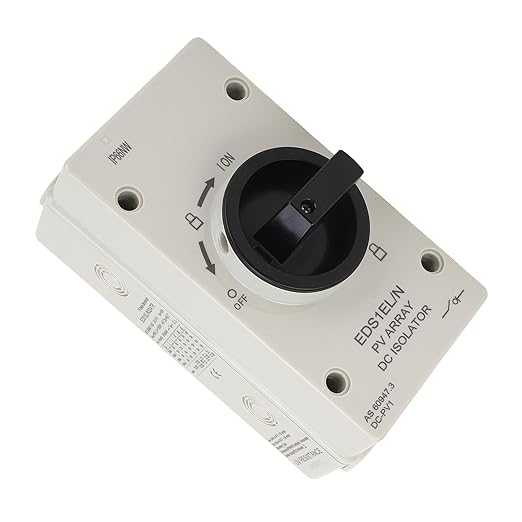

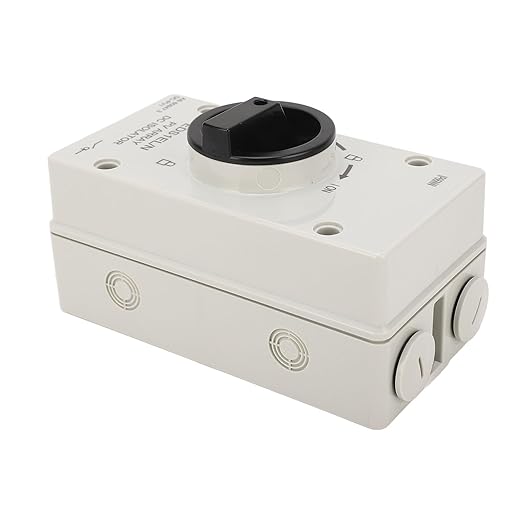

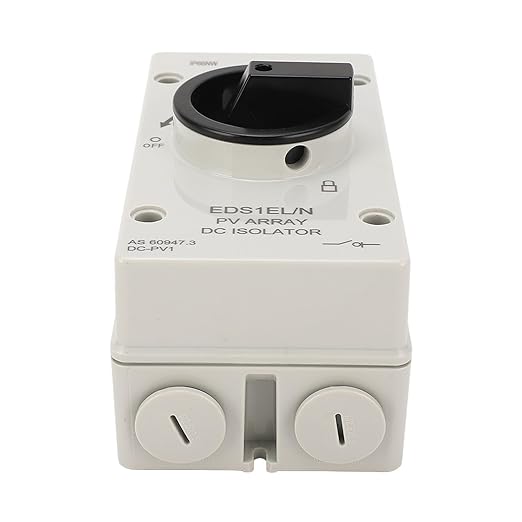

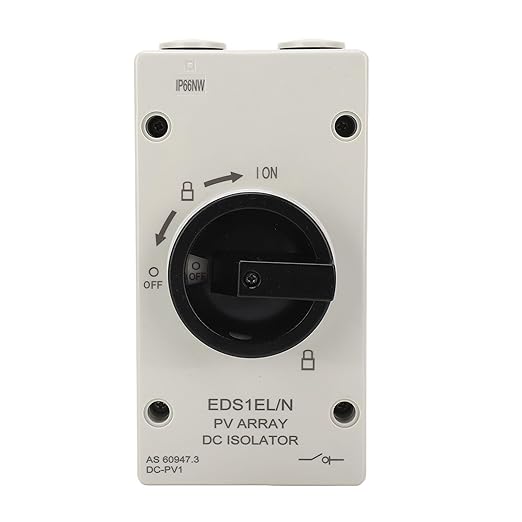

PV DC Isolator Switch 32A IP66 Rated Flame Retardant Photovoltaic Quick Switch for Solar and Wind Power Systems

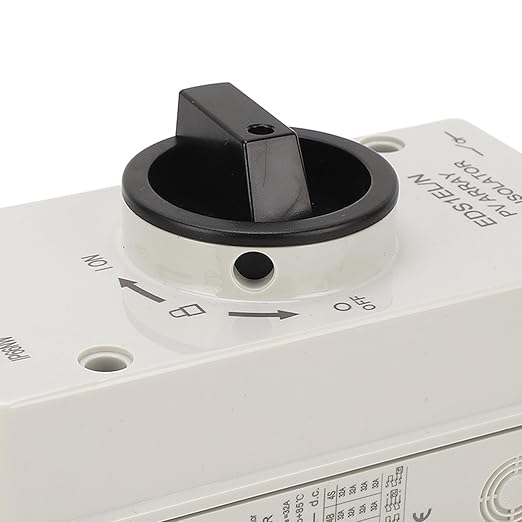

- High safety: Featuring IP66 box design, using UL94V 0 PC flame retardant material, this isolator switch is highly for use, with sufficient internal space and good heat dissipation effect. - Quick response: Switch knob has three lockable positions to prevent misoperation. Switching mechanism adopts energy storage spring, can quickly achieve switching. The maximum on-off switching time is less than 5ms. - arc extinguishing: Adopting arc extinguishing method of magnetic arc extinguishing and arc extinguishing grid arc extinguishing, this PV DC disconnect switch could effectively suppress arc. - Multiple uses: Widely used for solar power system RC, boats, on-grid solar system, off-grid living supplies, household solar systems, commercial solar systems. - Flexible installation: Wall mounted design, without the need for shell installation, this photovoltaic isolator is flexible to install and adapt to different specifications of cable joints or connectors.

Product description

PV DC Isolator Switch, PV DC Isolator Switch 32A IP66 Waterproof Flame Retardant Photovoltaic Quick, Solar & Wind Power Parts & Accessories

Dual arc extinguishing: Adopting dual arc extinguishing method of magnetic arc extinguishing and arc extinguishing grid arc extinguishing, this PV DC disconnect switch could effectively suppress arc.

High safety: Featuring IP66 waterproof box design, using UL94V 0 PC flame retardant material, this isolator switch is highly for use, with sufficient internal space and good heat dissipation effect.

Multiple uses: Widely used for solar power system RC, boats, on-grid solar system, off-grid living supplies, household solar systems, commercial solar systems.

Specification:

Item Type: PV DC Isolator Switch

Material: PC

Waterproof Grade: IP66NW

Flame Retardant Grade: UL94V-0

Standard: IEC/EN 60947-1 IEC/EN 60947-3

Rated Voltage: 1000V

Rated Current: 32A (40℃), 29A (60℃)

Uimp (Rated Impulse Withstand Voltage): 8KV

Ui (Rated Insulation Voltage): 1500V

Environmental Temperature: -40℃ to +85℃

packing list:

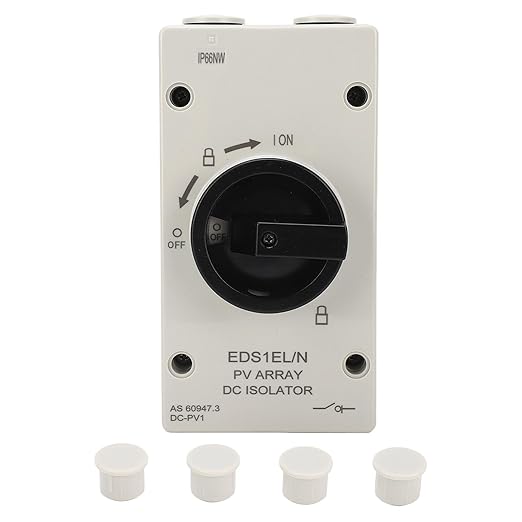

1 x PV DC Isolator Switch

4 x Screw Cover
