PowMr MPPT Solar Charge Controller 30AMP for 12V/24V Auto MAX 75V 780W Input w/LCD Display for Lead-Acid Lithium Battery

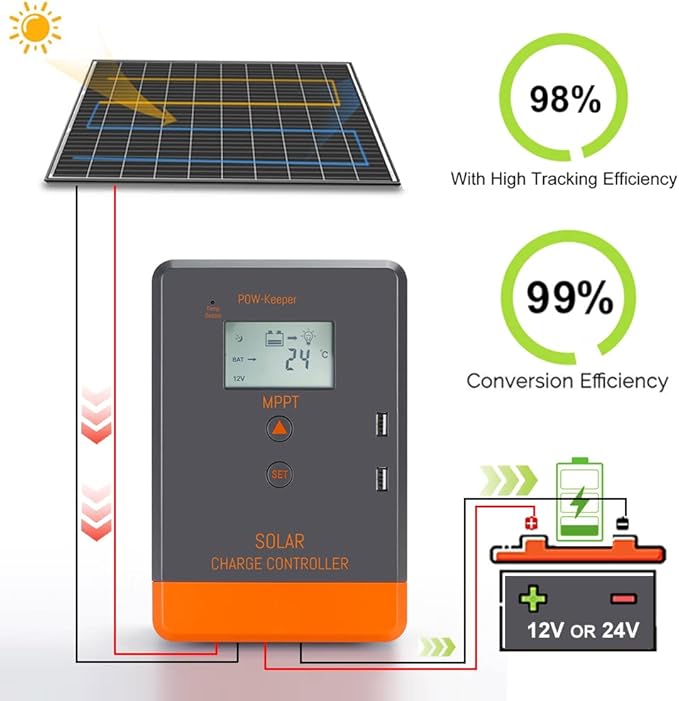

- 30A solar Charge controller, 12V24V Auto, support 60-720W solar pane, Max VOC of Solar panel is 75V; - Solar Regulator 20a, work with 60W~720W Solar power, Max input 720W 75V;Max input 240W Solar Power when battery is 12V, Max input 720W 75V when battery is 24V. - Controller Work with 12V 24VLithium or lead-acid battery charging parameter preset, Advanced MPPT maximum power point tracking technology design solar charge controller 30amp, 30A controller tracking efficiency is no less than 99.5%. - Controller Rated charge current 30A, the charging maximum conversion efficiency can reach 97 %. - Solar controller 30amp with Excellent heat sink design and Multiple load control modes: 24Hours Working, Light Control, Light+Time Control

Product description

Keeper 30A solar charge controller mppt(12V/24V Auto)

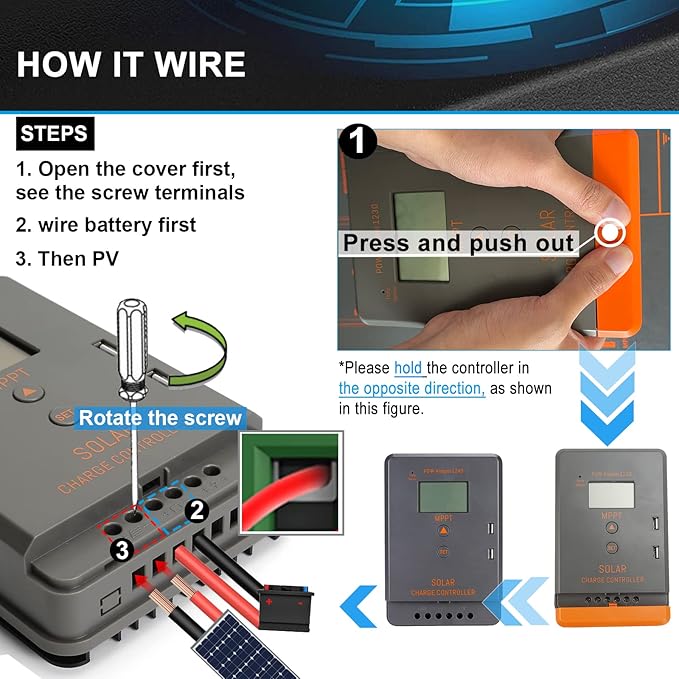

WIRING

30amp solar charge controller's parameter

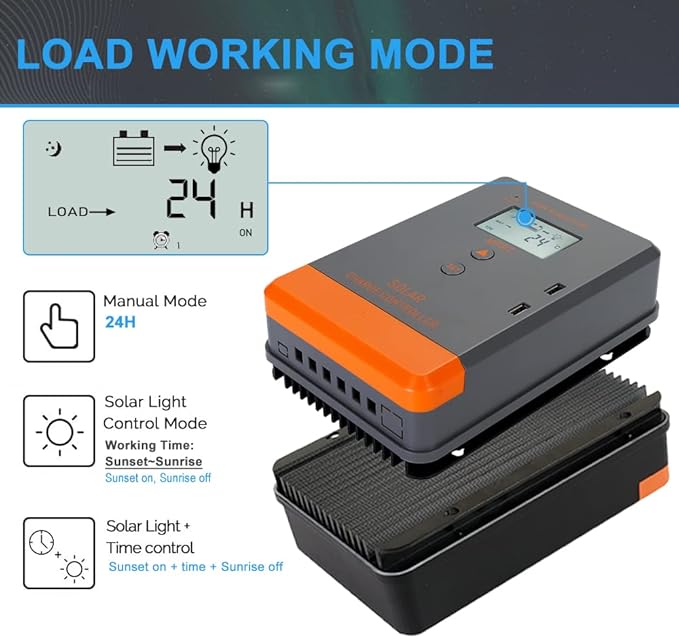

3 modes load working design:

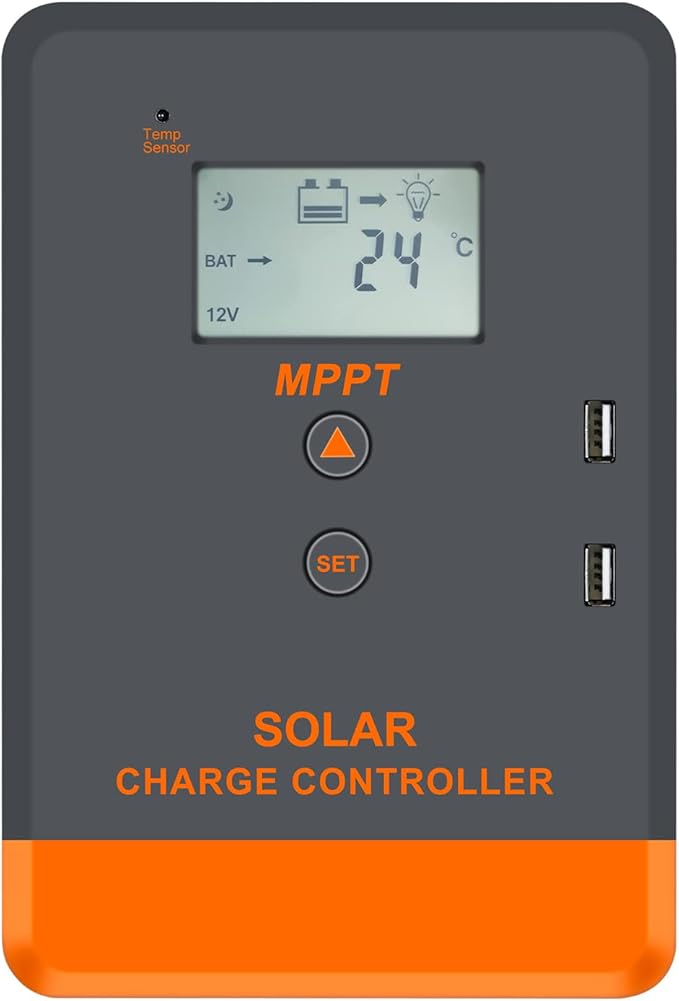

Detail LCD

Clear display and Simple wiring to use

Wiring tips

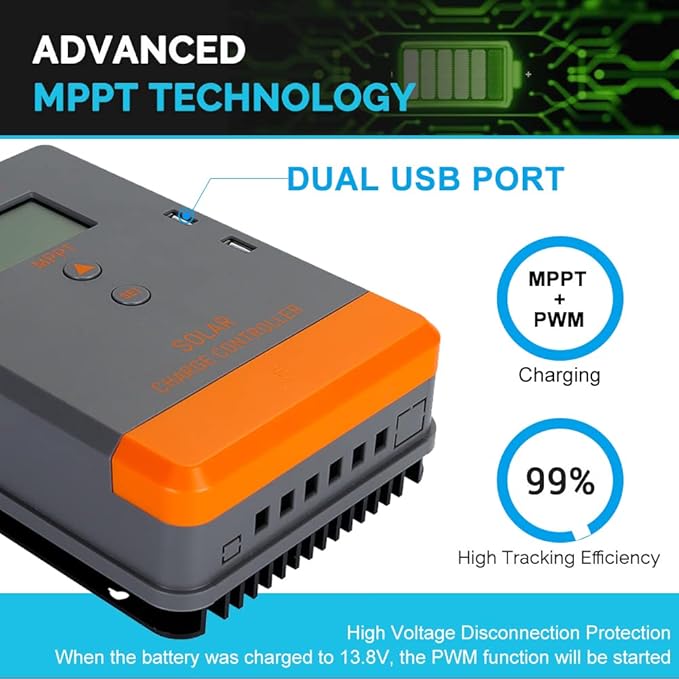

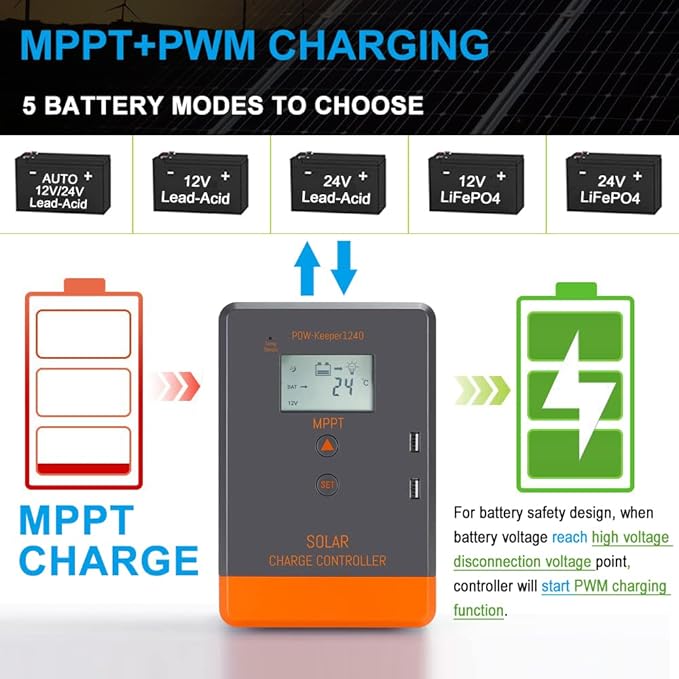

NOTE: This mppt 30a controller will start PWM function at high voltage disconnection (HVD) voltage point, which limited voltage rising to protect battery.

NOTE: This mppt 30a controller will start PWM function at high voltage disconnection (HVD) voltage point, which limited voltage rising to protect battery.

1. For Safety, When install your battery and PV cable, Please make sure your Breaker is on Open position, which means cable has no power go through the cable.

2. After PV and battery cable installed, Close Battery's Breaker first, let controller read your battery and power on.

3. Close PV breaker let PV power enter controller to charge your battery.
