Pikasola MPPT Wind Turbine Charge Controller 12V/24V Auto Match IP67 Waterproof Suitable for 400W/600W Wind Turbine

- 1. ( MPPT Boost Charge Function): This controller adopt boost MPPT technology, which make it charge continuous and efficiently than PWM charger. In low wind speed, wind generator input voltage under than battery, Mppt function can help to resolve this issue. - 2. ( Full Protection ): Mppt wind charge controller can be used for 0-600w wind turbine. It helps to control wind generator charge battery automatically. When the battery is fully charged, brake can be taken effect automatically. The fully waterproof protection which grade reach into IP67 above. Also including Lightning protection, automatic over-voltage braking, battery reverse connection and open protection. - 3.(Automaticity): Wind turbine controller can auto match 12/24 battery. Voltage and current limiting are be controlled during recharging to ensure the best charging effect. Meanwhile, it provides the maximum protection to the wind turbine and battery. - 4.(Good heat dissipation): Wind generator charge controller use Aluminum alloy shell and Therming Dissipine Structure with good Heat Dissipation. The rectification and brake circuit part has adopted integrated module design, whatever heat dissipation or reliability, all further advanced than the traditional design. - 5.( Clear Led Indicator ): There Led indicators clear to look wind charge controller working status. If wind turbine and Mppt charge controller working all right, two green led indictor light on. Otherwise, the red indictor light on.

Product description

MPPT Wind Turbine Controller

Wiring Instructions:

Wire specification: AWG15 (1.5mm²)

Power: 400W/12V, 600W/24V

Working Voltage: 12V/24V Auto match battery

Battery charge breaking voltage: DC14.5V±0.3V(12V) / 29V±0.3V(24V)

Floating charge voltage: DC13.5V±0.3V(12V) / 27.5V±0.3V(24V)

Static power consumption: 15mA

Waterproof grade: IP67

Applicable Battery: Lead Acid/ Gel Battery/ LifePO4 battery

Material: Aluminum Alloy

MPPT charge controller can charge continuous and efficiently than PWM charger. The wind generator hard to charge battery in low wind speed. Because generate voltage under than battery voltage. Mppt technology can help to remedy this issue and make wind generator to charge more smoothly.

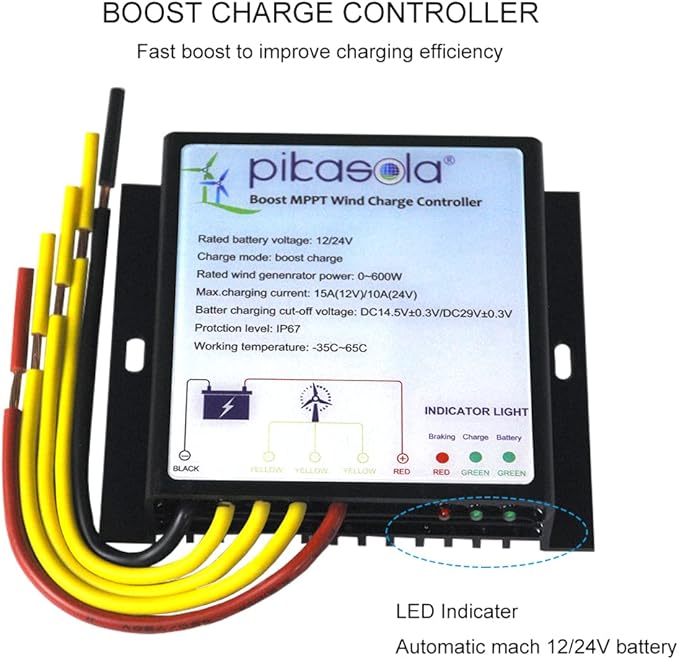

Wind turbine controller has 3 LED indicators. First Green indicator on after connect battery, Middle green light on indicates wind turbine start to work. Final Red indicator on means barking or issue.

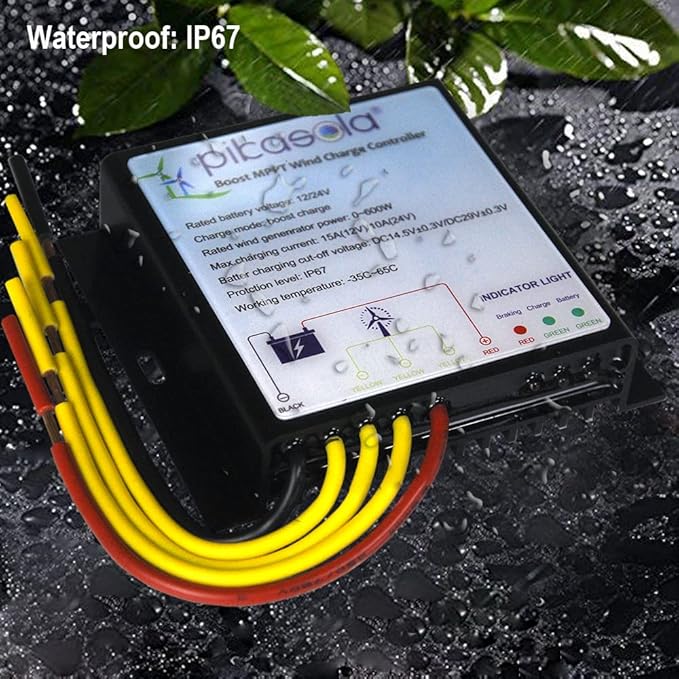

The waterproof grade of the controller is IP67, which can be used outdoors.

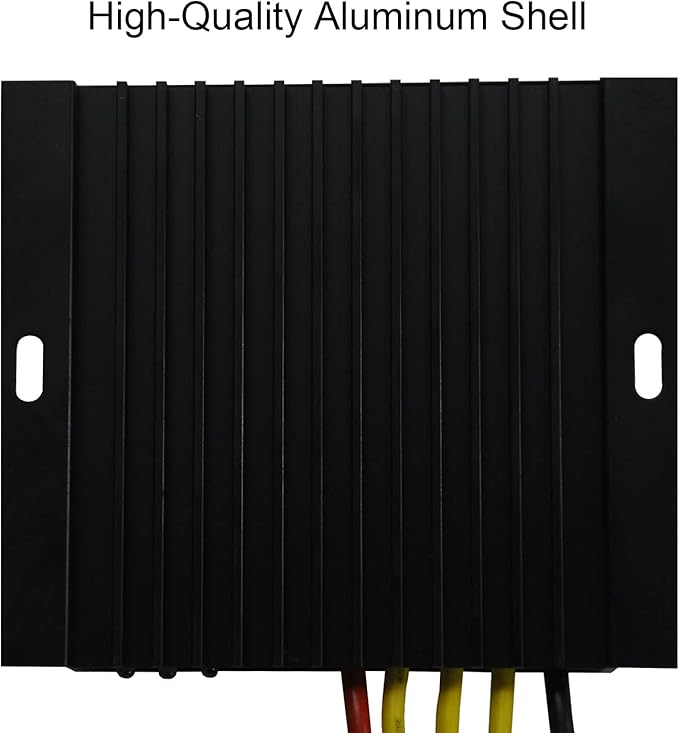

Full aluminum alloy shell and thermal structure design with good heat dissipation.

Front View

Right Side View

Back Side View

Left Side View

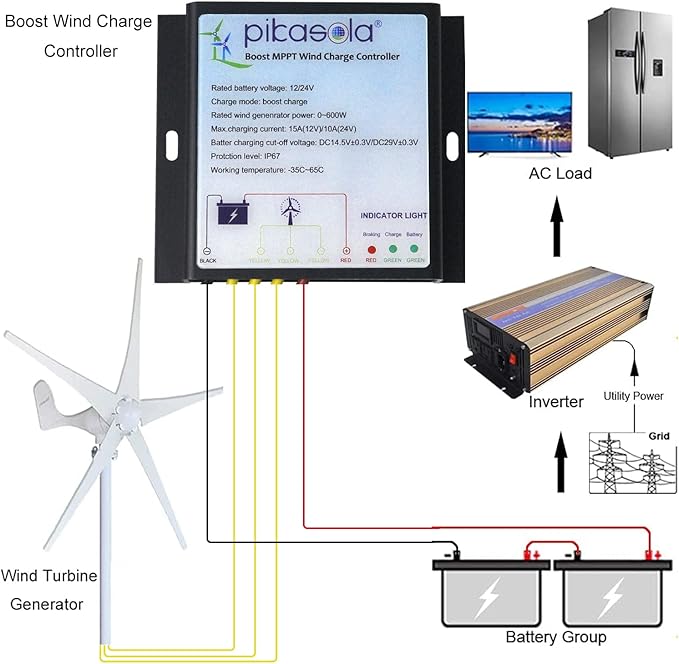

Connect the red wire of the controller to the positive electrode of the battery; The black wire is connected to the negative electrode of the battery; And the three yellow wires on the controller are connected to the three wires of the wind generator (Three wires can be connected arbitrarily). As shown in the figure.

NOTE: Do not reverse the positive and negative poles to avoid burning the controller.
