PIKASOLA 1400W Off Grid with Unloader Hybrid Wind Solar Controller Auto 12/24V Battery MPPT Charge Boost Float of max 800w Wind Turbine Generator 600w Solar Panel Home Street Light Controller

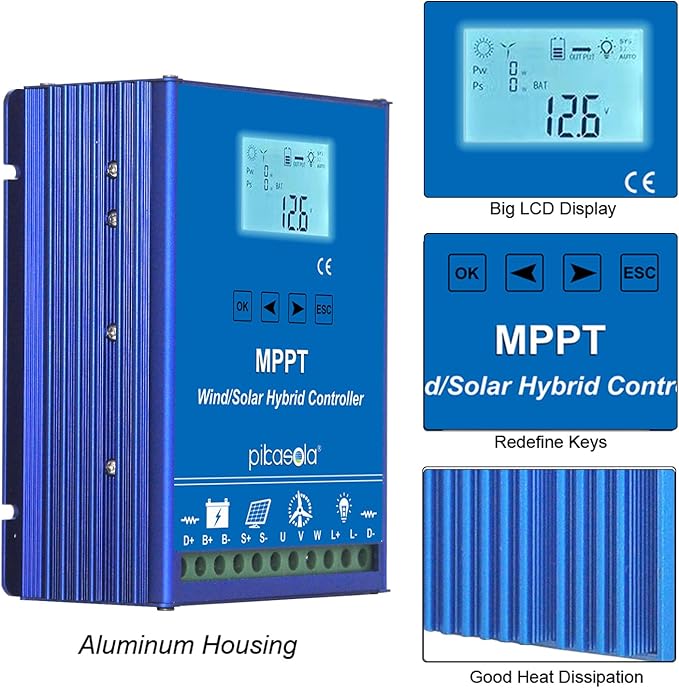

- 1.(-Scope of use-): This Hybrid charge controller match all 12/24v battery, including Lithium Battery. Suit max 800w wind generator and max 600w solar panels for wind solar complementary system for home, boat, street light. - 2.(-Operational system-): The wind turbine charging part adopts booster MPPT technology, which make it charge continuous and efficiently even in low wind speed. Stepless unloading function including an external dump-load resistance. Solar panel charging use PWM technology by MOS tube in series. - 3.(-Intelligent&stable system-)：The parameter will be set prefect auto after choose battery type. User also can adjust by own requirement. This system has been updated into more intelligent to can control charge voltage stable absolutely. - 4.(-Display&DC Load mode-): Bigger LCD screen which easy to browse and handle. DC Load (output) with 3 output modes and each one can be set different model. - 5.(-Protection function-): Reversed charging Protection of solar, over charge voltage/under voltage & Over load voltage Protection, battery reverse connects and open circuit protection, Lightning Protection, etc.

Product description

Feature

Technical Parameters

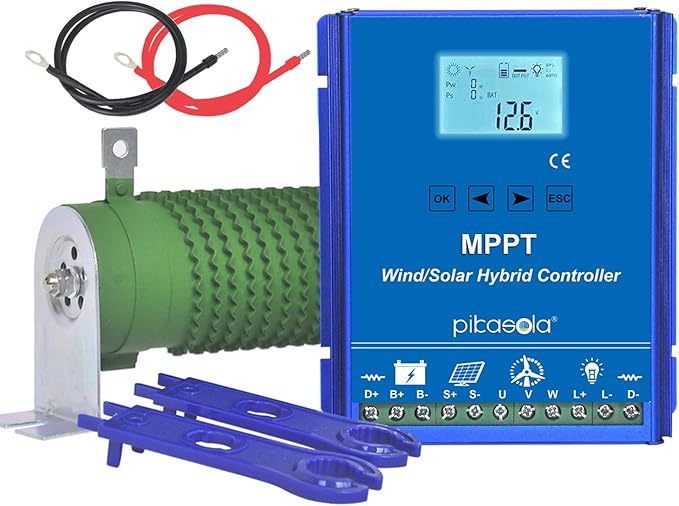

In the high wind speed or the wind generator power beyond the scope of the battery capacity, the controller launches the unloading function by dump load resistor, protect the controller and battery.

1.Boost charge: Flexible independent step-up circuits. Wind turbine charging mode is MPPT and Solar panel charging mode is PWM.

2.Battery type: Lithium Battery can be connected with this controller. Inluding all other battery type.

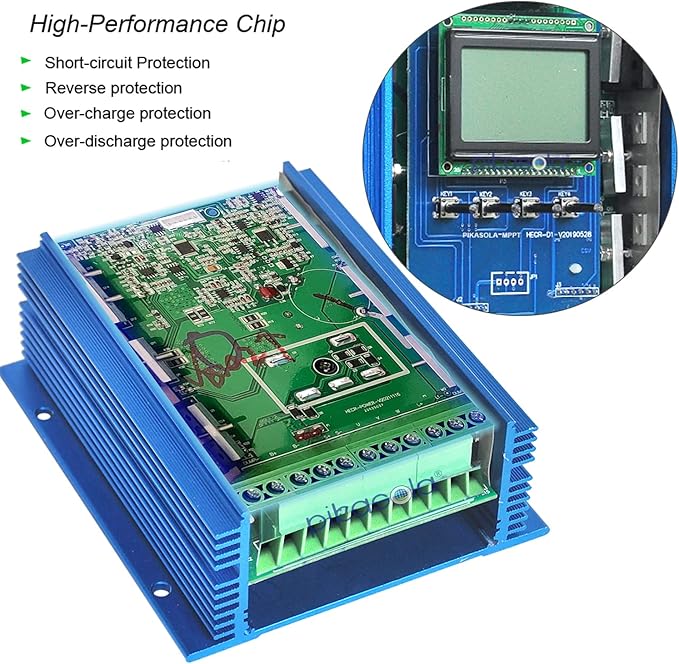

3.Protection: Reversed charging Protection of solar, over charge voltage/under voltage & Over load voltage Protection, battery reverse connects and open circuit protection, Lightning Protection, etc.）

Note:

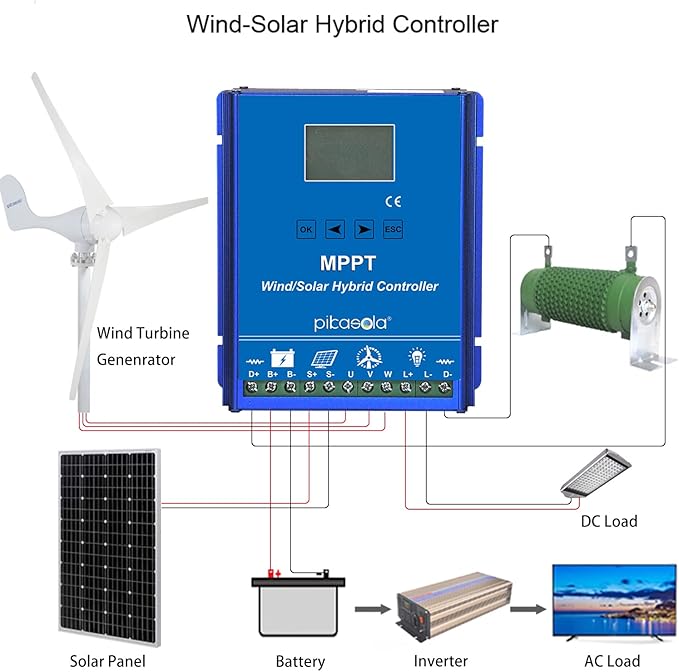

1. Correct connection sequence:

1) pls connect the wires between battery and controller

2) pls connect the wires between wind/solar panels and controller

2. Usable battery:

This model is used for GEL ,lead-acid and lithium battery.
