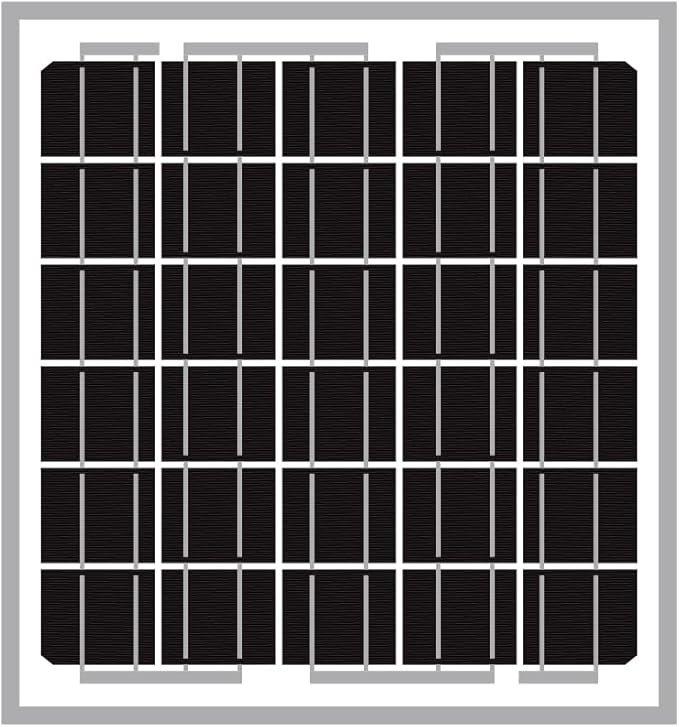

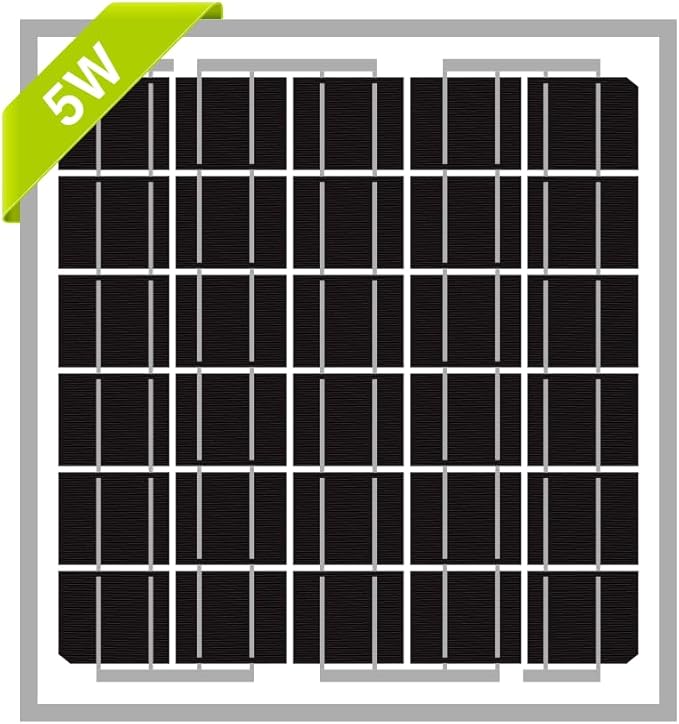

Newpowa 5W(Watts) 12V(Volts) 5W Monocrystalline 10BB Solar Panel Battery Maintainer High-Efficiency PV Module Power for Battery Charging of Boat RV Gate Opener Fences

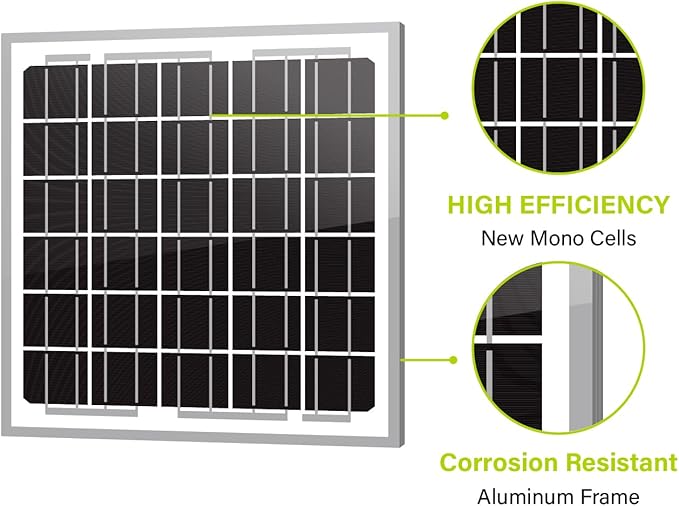

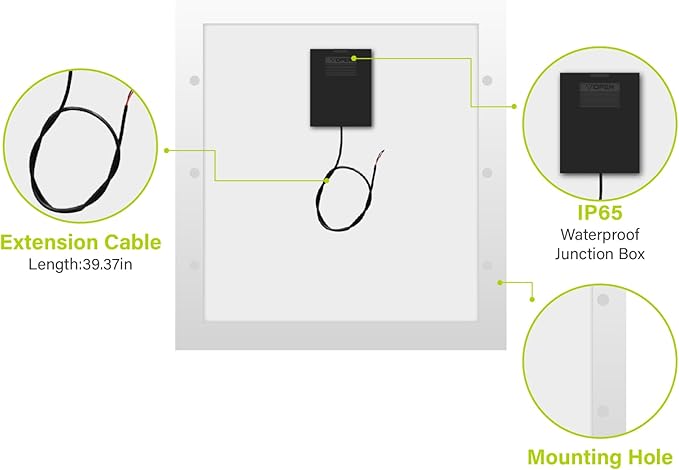

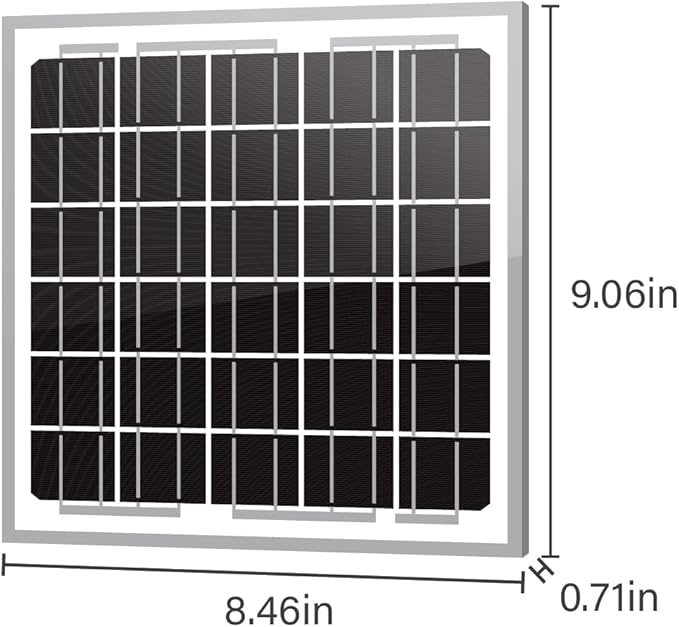

- New Design: Smaller in size, same output, higher cells effciency compare to most other brands - Dimension:9.06×8.46×0.71inch. High winds (2400PA) and snow loads (5400PA) - Maximum power (Pmax): 5W voltage at Pmax (Vmp):17.2V Current at Pmax (Imp): 0.3A - Pre-attached 3ft wire with bare ends - After-sales Service: With a 2-year material and parts workmanship assurance.10 years of power output is greater than 90%, 25 years of power output is greater than 80%.

Product description

FAQ

1: Does a Solar Panel produce full power?

A: In most cases, it is normal for a solar panel to not be able to provide its full nominal power.

Factors affecting the performance of solar panels:

Peak Sun Hours， Sunlight Angle， Operating Temperature， Installation Angle， Panel Shading， Adjacent Buildings Etc...

2: How to test a solar panel?

A: The ideal conditions: Test in the noon, under a clear sky, panels should be at 25 degrees tilted towards the sun, and the battery is at a low state/less than 40% SOC. Disconnect the solar panel from any other loads, using a multimeter to test the panel's current and voltage.

3: How does temperature affect solar panel efficiency?

A: Solar panels are generally tested at about 77°F/25°C and are rated to perform at peak efficiency between 59°F/15°C and 95°F/35°C. Temperature going up or down will change the efficiency of the panels. For example, if the temperature coefficient of power is -0.5%, then the panel maximum power will be reduced by 0.5% for every 50°F/10°C rise.

4: How to install our solar panels using different brackets?

A: There are mounting holes on the panel frame for easy installation using a variety of brackets. Most compatible with Newpowa's Z-mount, tilt-adjustable mount, and pole/wall mount, making panel mounting suitable for a variety of applications.

5: Can I connect different solar panels together?

A: Though mixing different solar panels is not recommended, the mismatch can be achievable as long as each panel’s electrical parameters (voltage, current, wattage) are carefully considered.
