Nature's Generator Power Pod Elite-AGM Sealed Lead Acid in 100Ah with 12V DC Port and 35in Expansion Cable to Extend Nature's Generator Elite's Using Time HKNGPDEL

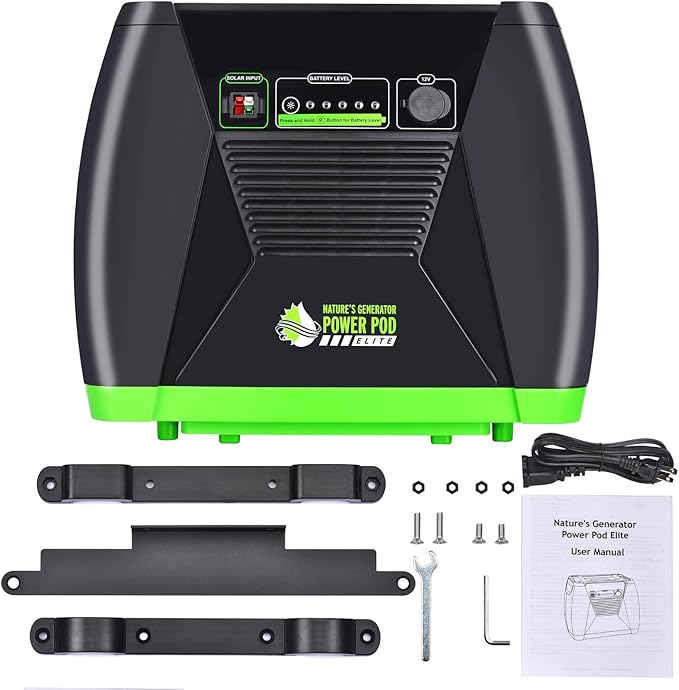

- ?? Dimensions and Weight:18 x 12 x 15 inches;92Ib.We have provided accessory box to install your Nature's Generator Power Pod Elite on top of Nature’s Generator Elite. - ?? Two Ways to Recharge: You can recharge from Solar Panel and Nature's Generator Elite.The LED lights do not run while Nature's Generator Power Pod Elite is recharged from Nature’s Generator Elite, but you can press the LED Light Button to check battery level. - ?? How to Connect to Nature's Generator Elite:There is an expansion cable in the top cover of the Nature's Generator Power Pod Elite.Connect the expansion cable to the expansion port which on the back of the Narture's Generator Elite. - ?? How to Maintain and Store Nature’s Generator Power Pod Elite:Please recharge your Nature's Generator Power Pod Elite once every four months and store in a ventilated, cool and dry location. If possible, please connect your Nature's Generator Power Pod Elite to the solar panel while in storage to top off the battery voltage. - ?? What You Can Get:1×Nature's Generator Power Pod Elite;1×Accessory Box;1×35 inches expansion cable( in the top cover of the Nature's Generator Power Pod Elite);1×User Guide.We also provide One Year Limited Warranty.

Product description

Get to Know Your Nature’s Generator Elite

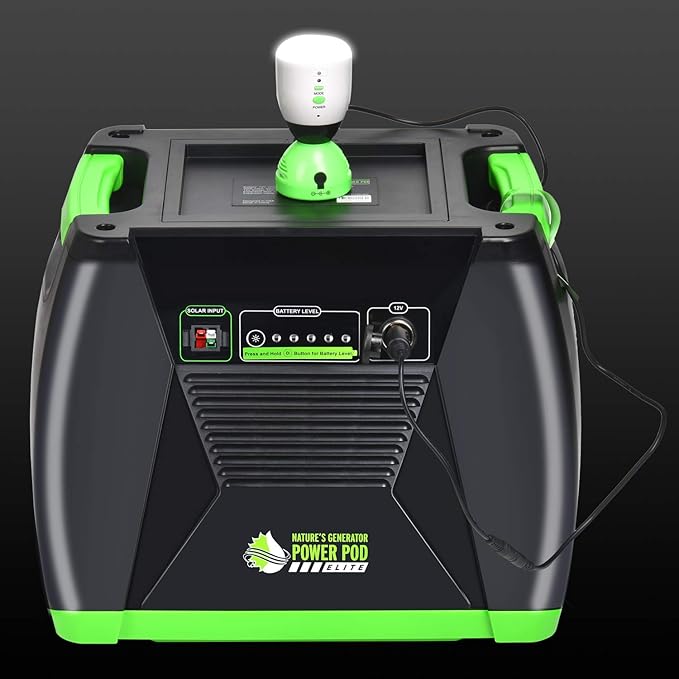

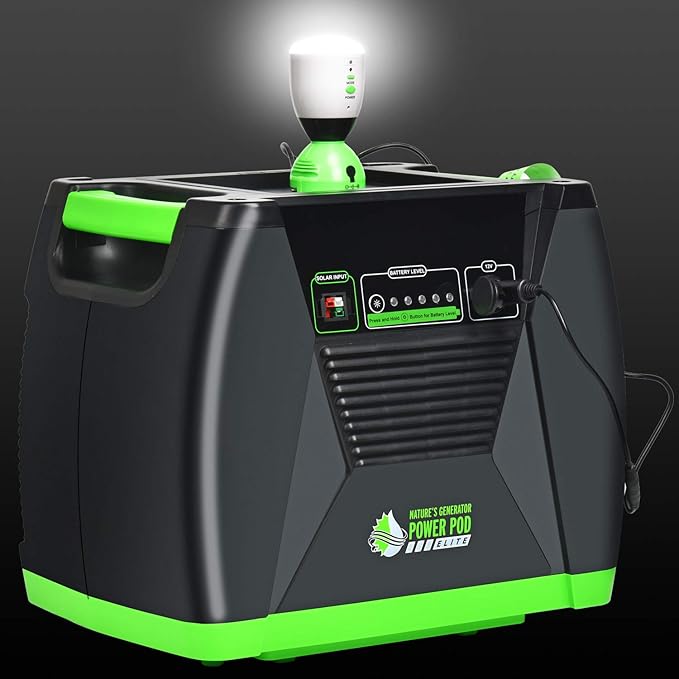

Get to Know Your Nature's Generator Power Pod Elite

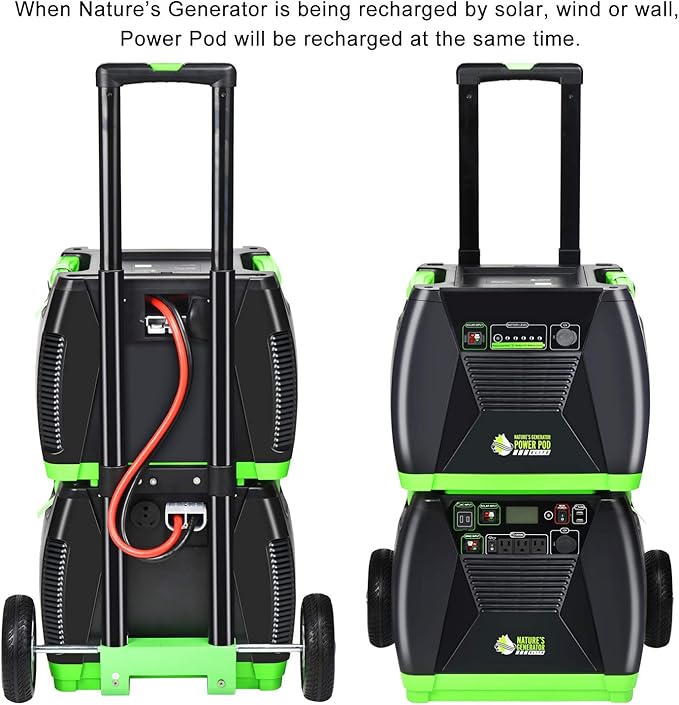

How to Connect Your Nature's Generator Power Pod Elite to Nature’s Generator Elite

Get to Know Your Solar Panel

You need to install the cart by yourself.

We have placed all the installation tools in the package.

AGM Sealed Lead Acid with 100Ah (1200Wh).

Recommend to recharge every 4 months.

18 x 12 x 15 inches without cart;

23 × 17 × 22 inches with cart,

120 lbs with cart.

LCD Display: LCD display shows the information of the system.

LCD Display Button: Press it to light up LCD display for 30 seconds.

AC Outlets Switch: Turns on or off the front AC outlets and the 30amp AC outlet on the back of the generator.

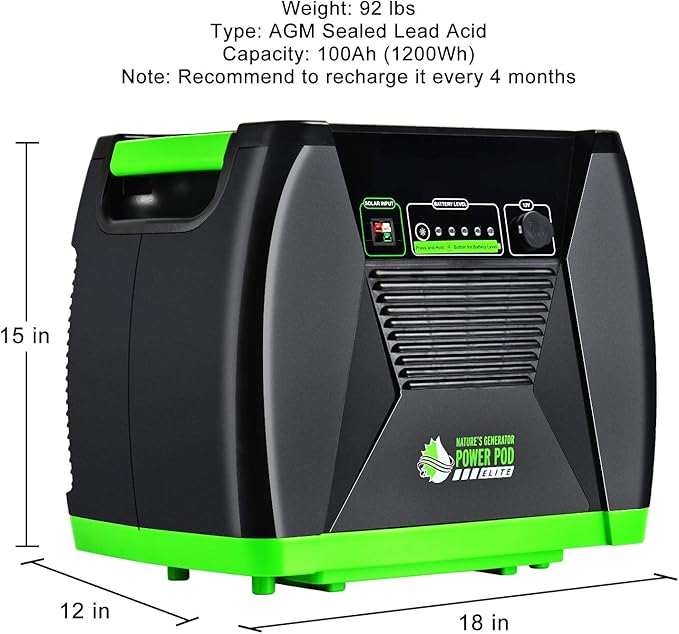

Dimensions: 18 x 12 x 15 inches;

Weight: 92Ib

Battery Capacity:1200W

Recommend to recharge every 4 months.

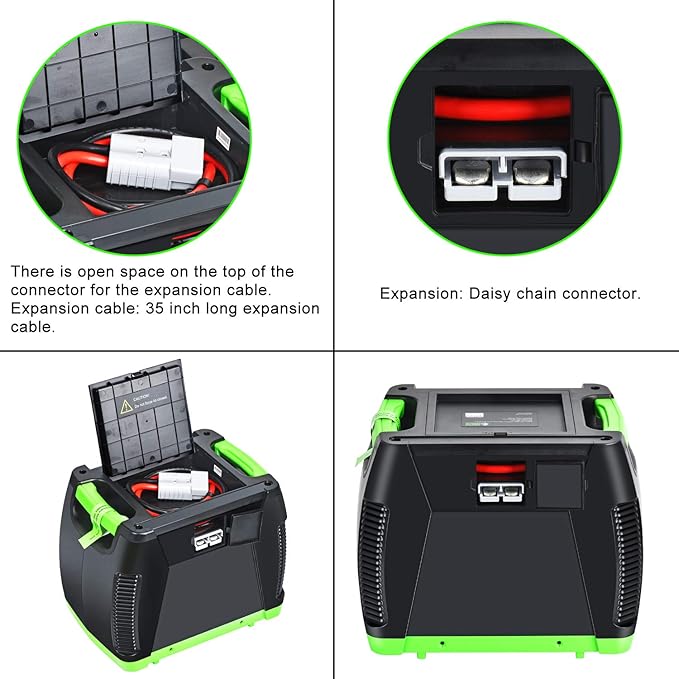

There is an expansion cable in the top cover of the Nature's Generator Power Pod Elite.Connect the expansion cable to the expansion port which on the back of the Narture's Generator Elite.

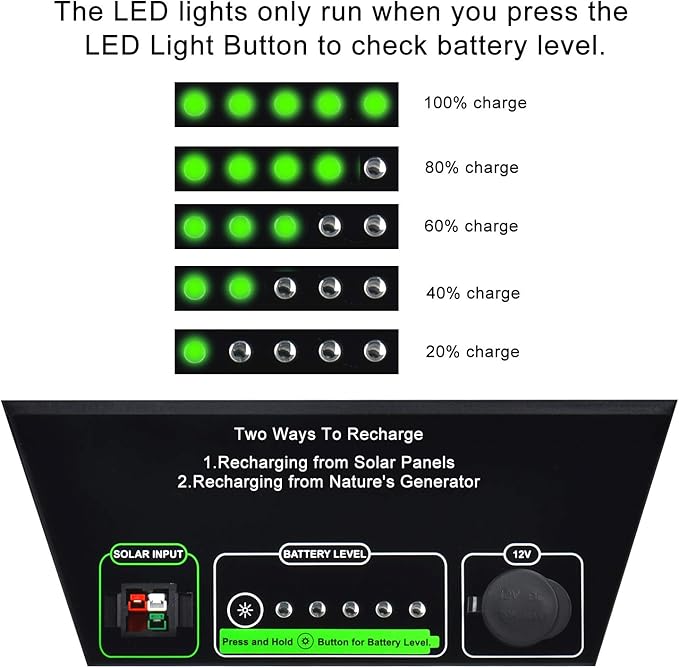

The first light will show green,which indicates 20% charge. The second light will show green, which indicates 40% charge, the third light will show green which indicates 60% charge and the fourth light will show green which indicates 80% charge and finally the fifth light will show green which indicates a 100% charge.

1. Open the top cover of the Nature's Generator Power Pod Elite, locate the expansion cable, and run the expansion cable out of Nature's Generator Power Pod Elite through the opening on the back of the Nature's Generator Power Pod Elite.

2. Locate expansion port on the back of your Nature’s Generator Elite and open the rubber cover.

3. Connect the expansion cable to the expansion port. Due to the amount of voltage running between the Nature's Generator Elite and Nature's Generator Power Pod Elite, this is a very tight fit to ensure no electrical shock while connecting.

4. The Expansion (chain link) Icon will be illuminated on the display of Nature’s Generator Elite to indicate Nature's Generator Power Pod Elite is connected.

35 x 29 x 3 inches;34Ib.

Using lightweight anodized aluminum frame with cable management system and wheels for easy transport.

1.You can use the four eyebolts to

anchor the solar panel to the ground.

2.You can turn star knob clockwise

to stop the wheel or countercolockwise to release.

Solar panel have three angles that can be adjusted to take full advantage of sunlight.
