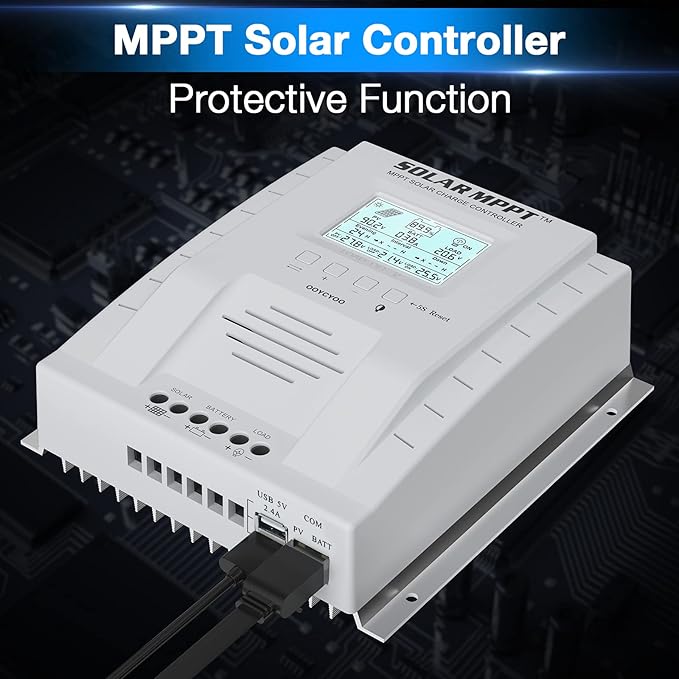

MPPT Charge Controller 60 amp 12V/24V Auto 60A Solar Panel Charge Regulator with Blacklight LCD Display Max 100V for Lead-Acid Sealed Gel AGM Flooded Lithium Battery

- AUTOMATICALLY DETECTS 12V/24V（Max 100V）DC SYSTEMS,Dual USB give your electronic product MAX 5V 2.4A.Support sealed,Gel,Flooded Lead-acid battery and lithium battery.Three stages(constant current, constant voltage, floating charge) - POSITIVE GROUND MPPT CONTROLLER - The solar panel charge controller is equipped with high tracking efficiency up to 99%, hardly wasting the energy from solar panels.with three load Timer:ON/OFF mode,PV&Time control mode,PV voltage control mode,Dual Time control mode. - MULTIFUNCTIONAL LCD DISPLAYS - All the Various Real-time data shown on the same one display, it's convenient for users to check the data. And the MPPT charge controller 60 amp supports manual switch load and 5 seconds to restore the factory settings.LED shows if solar panels and battery are really connected to the controller.Lightning protection function.Convenient to check. - MULTI-PROTECTION AND MULTI-STAGE CHARGING - Built-in intelligent protection against reverse polarity, reverse discharge, overload, short-circuiting, under voltage and reverse current. Multi-stage charging includes constant current, constant voltage and floating charge, and temperature compensation increase your battery life and improve your system's performance. - 360 DAY SATISFACTORY GUARANTEE - We offer a 360 Day 100% SATISFACTORY warranty for our customers.Contact us if you have any question.

Product description

OUR FACTORY WORKING CONDITIONS

Feature

OOYCYOO MPPT SOLAR CHARGE CONTROLLER

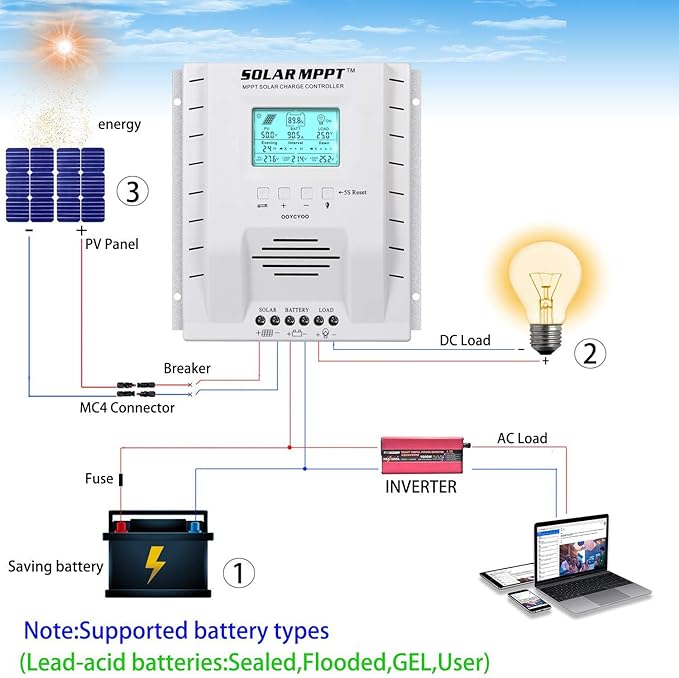

HOW TO WIRE YOUR SOLAR CONTROLLER?

IMPORTANT NOTE:

Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99%.

High quality components, perfecting system performance, with maximum conversion efficiency of 98.5%.

Ultra-fast tracking speed and great tracking efficiency.

Wide MPP operating voltage range.

12/24VDC automatically identifying system voltage.

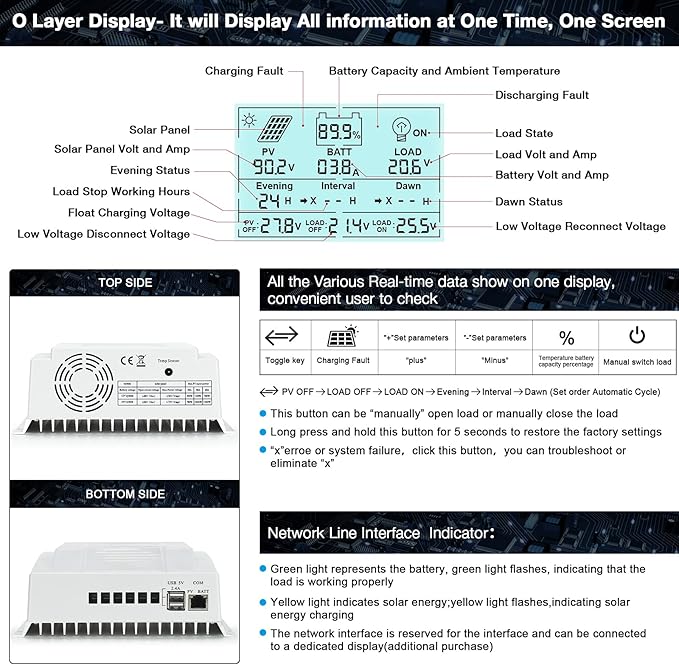

LCD panel display design, dynamically displaying tool?s operating data and working condition.

Support 3 charging lead-acid battery options: Sealed, Gel, Flooded.

Battery temperature compensation function.

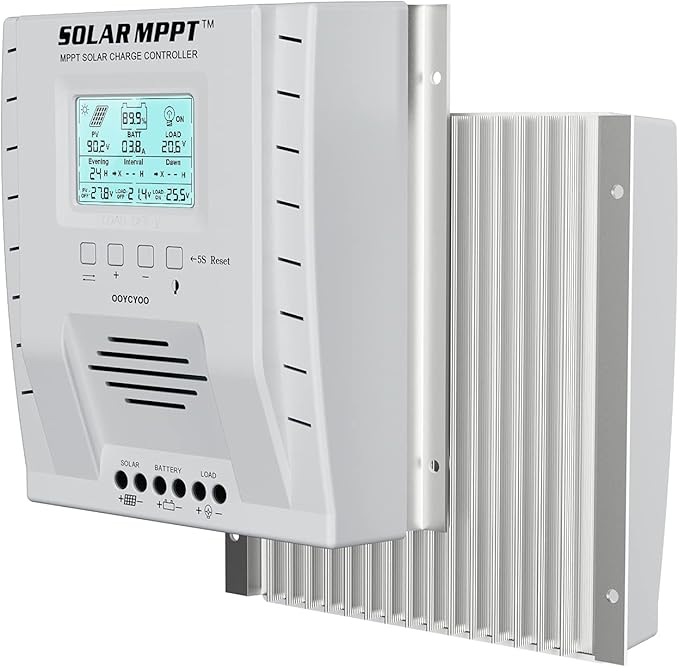

The OOYCYOO 40A/60A/80A/100A P/K series MPPT Charge Controller is an intelligent positive ground controller. Built with protections against reverse polarity, short-circuiting, overheating, and more, this MPPT controller is also capable of self-diagnosing itself in the event of an error.

The solar panel charge controller is equipped with high tracking efficiency up to 99%, hardly wasting the energy from solar panels.with three load Timer

Automatically detect 12V or 24V DC system voltages

Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%

Deep cycle Sealed, Gel, Flooded and Lithium (12.8V LFP) battery option ready

Charges over-discharged lithium batteries

Electronic protection: Overcharging, over-discharging, overload, and short circuit.

Reverse protection: Any combination of solar module and battery, without causing damage to any component

Customizable charging voltages

Positive ground charge controller

Turn the adjusting screw counterclockwise until the plate moves downward.

Please peel off the coating of the cable tip by about 8 to 10 mm，Then Insert the wire into the new opening between the plate and the "top" of the terminal hole.

When turning the adjuster clockwise, the plate moves upward and crushes the wire in the hole of the terminal.

Make sure all connections going into and from the controller are tight.

Make sure your battery must be atleast 60% charged prior to connecting to controller.

Always connect your battery first

Never connect your solar panel array to the controller without a battery.

Careful your input power and voltage does not exceed the max.
