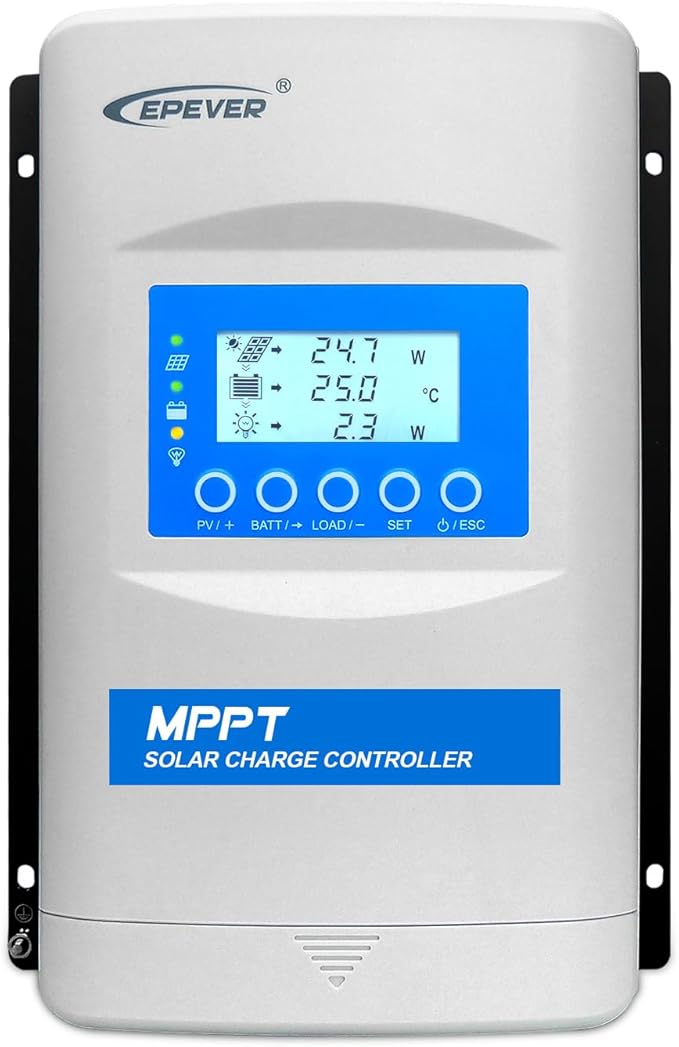

EPEVER MPPT Solar Charge Controller 40A 12/24/36/48V Auto Max PV 150V XTRA4415N-G3 Solar Panel Regulator for Gel Sealed Flooded Lithium User
EPEVER MPPT Solar Charge Controller 40A 12/24/36/48V Auto Max PV 150V XTRA4415N-G3 Solar Panel Regulator for Gel Sealed Flooded Lithium User
- EPEVER MPPT solar charge controller 40A, Max PV 150V, 12V/24V/36V/48V auto, Upgraded G3 version XTRA4415N add new function: Independent voltage regulation constant voltage output function, namely, the controller’s battery terminal can be connected to loads directly when there is no battery. It is friendly to various lithium batteries, avoiding the instability output voltage caused by the internal protection of the lithium batteries. The low self-consumption design significantly reduces the static power consumption and extends system standby time - Support multi battery types: Sealed, Gel(AGM), Flooded, LiFePO4, Li(NiCoMn)O2, User. Equipped with a stable self-activation function for the lithium battery. Battery temperature compensation. Upgraded ultra-quiet design solves the problem of sharp noise from previous versions of the device - Comprehensive electronic protections: Protection Built-in Against Reverse Polarity, Overcharging, Over-discharging, Overload, Short-circuiting, and Reverse current. Charging power reduction automatically for over-temperature. Limit the charging power & charging current to no higher than the rated value. Operation at full load without charging power reduced in the working temperature range - Advanced MPPT technology: ultra-fast tracking speed, tracking efficiency is up to 99.5%. Maximum DC/DC transfer efficiency is as high as 98.5%; full load efficiency is up to 97.2%. Wider MPP(maximum power point) running voltage to optimize PV utilization. Real-time energy statistics function - Monitor and Set parameters: Three different color LED indicators and LCD display show your PV/Battery/Load working Status more intuitive; Five buttons easy set working mode and check parameters; RS485 communication interface with optional BLE or WiFi adapter for remote monitoring to set paramters by EPEVER APP, or program via PC software, remote meter MT50/MT52. Wide range applications such as communication base station, home system, street lighting system, marine system, RV solar system, and site monitoring system
Product description
EPEVER 40A MPPT Solar Charge Controller XTRA4415N G3 New Version

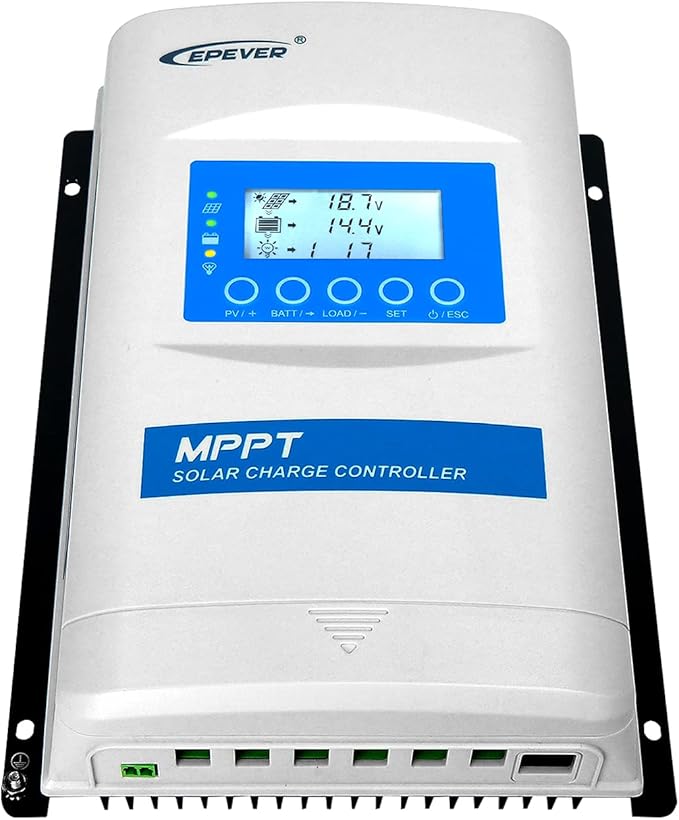

EPEVER MPPT solar charge controller XTRA4415N G3

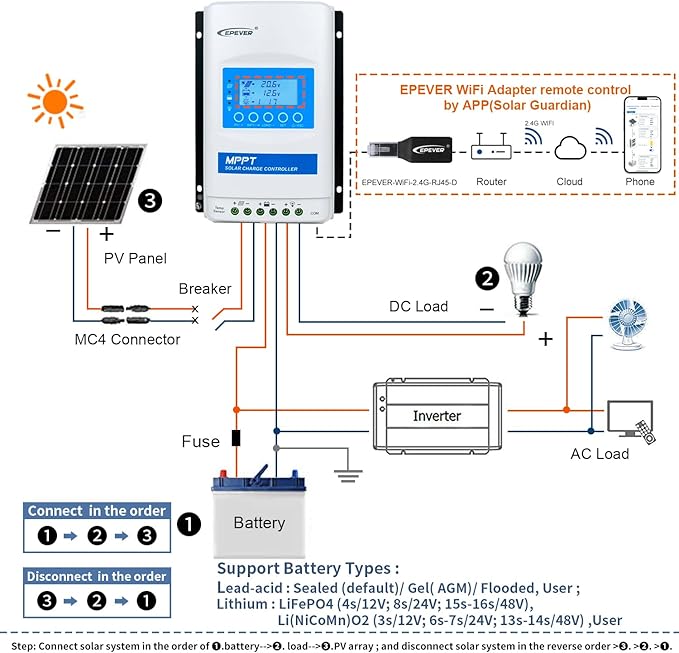

Connect solar system in the order of 1.battery > 2. load > 3.PV array
What battery types does this MPPT controller work with?
How to adjust parameters for the 40A MPPT solar charge controller ?

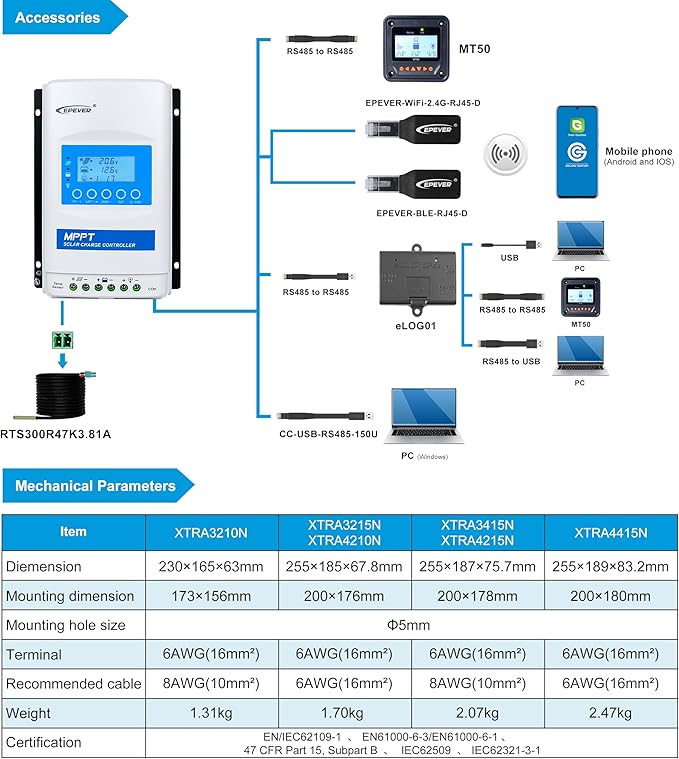

EPEVER accessories optional, please check and purchase them separately

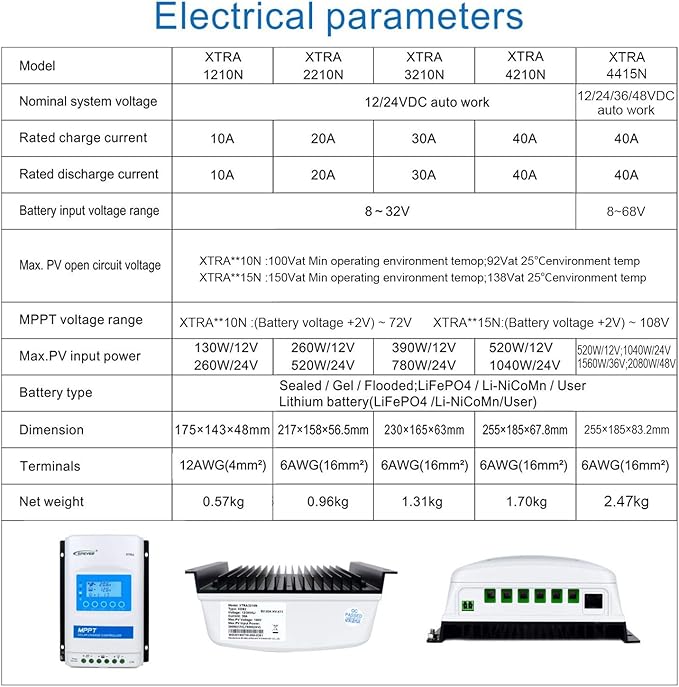

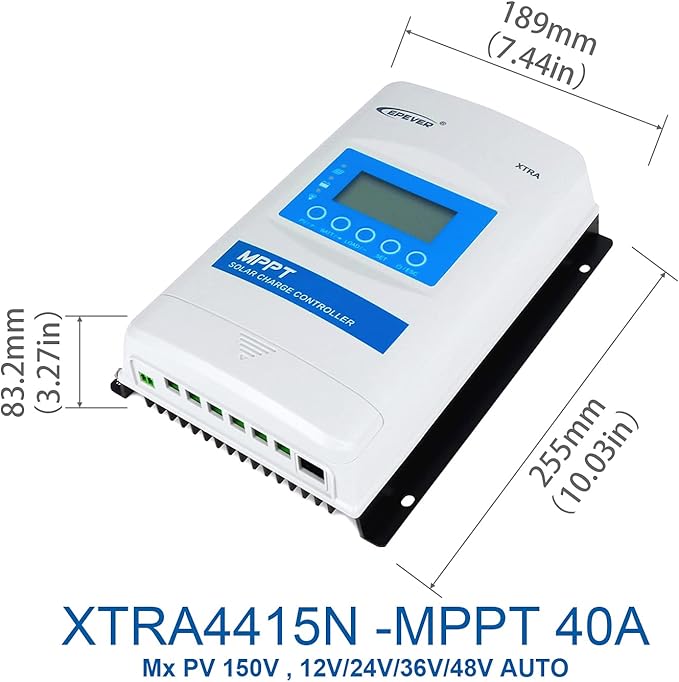

EPEVER MPPT Solar Charge Controller 40A,12V/24V/36V/48V DC auto work, Solar Panels Max PV 150V, Max input Power 520W/1040W/1560W/2080W. Common negative grounding. Applicable battery types : Sealed, Gel(AGM), Flooded, LiFePO4, Li[NiCoMn]O2 and User-defined
Package List:

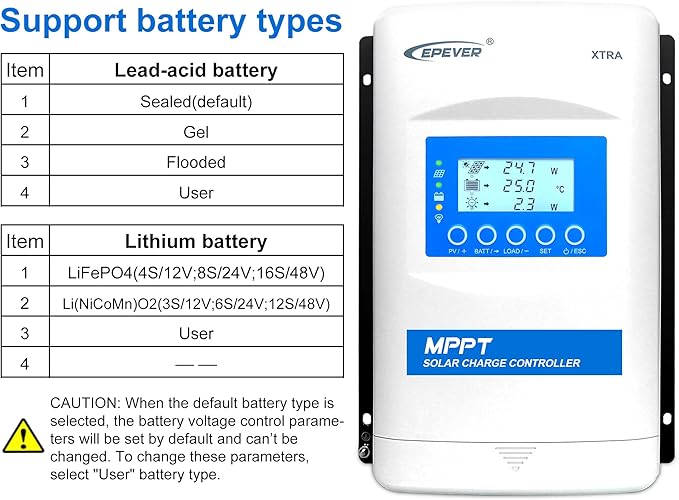

What battery types does this MPPT controller work with?
Capable with Lead Acid,Sealed, GEL(AGM), Flooded, LiFePO4, Li(NiCoMn)O2 Battery, user mode support custom battery parameters manually to solve the voltage matching common issue of multiple battery.
How to adjust parameters for the 40A MPPT solar charge controller ?
Adjust parameters by controller five buttons or Opition accessories : Bluetooth/WiFi module supports connecting APP to realize the communication function and parameter setting.
