ECO-WORTHY 5000W UL1741 Solar Off-Grid Split-Phase AIO Inverter 48Vdc to120Vac 5500W@500V PV Input

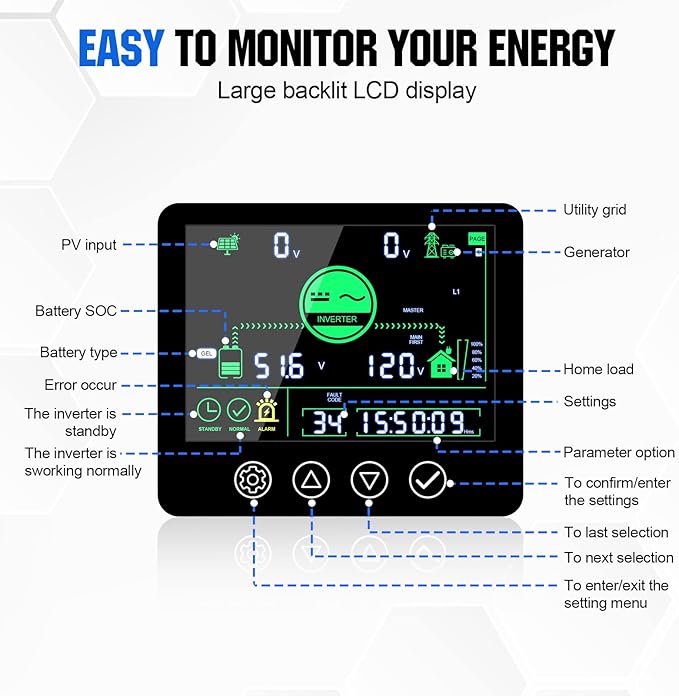

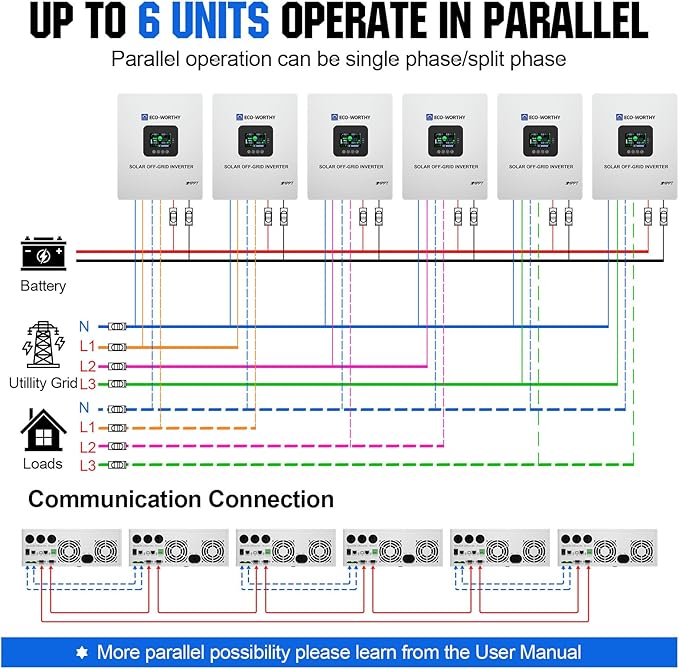

- Parallel Supportable: Parallel support up to 6 units-30kw Max. It can be single phase or separate phase parallel.The output voltage of one inverter is 120v, and more than two inverters can output 120v/208v/240v in parallel. (Two units MINIMUM have to be in parallel to achieve 220V power.) - Battery-Free Running: It can work without battery power input. Keep the load running continuously in the battery-free state and use PV DC current to power the inverter. - Segmented Charing/Discharging: 3 output modes: mains priority and, battery priority, PV priority; uninterrupted power supply. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging. Set a flexible time period for mains charging/discharging according to the local mains condition, and help you save the mains. - Technical Specifications: Max.PV input power: 5500W, PV input voltage range: 120-500V DC, Max.MPPT Charging Current: 80A, Rated Output Power: 5000W, Max.Peak Power: 10000W, Rated OutputVoltage: 120/240Vac.（split phase/single phase) - Easy & Safe Use: LCD display to monitor all data anytime. Multiple intelligent protections, such as PV input current/power limiting protection, PV input over-voltage, PV night reverse current protection, multiple cooling fans to prevent over-heat issue, etc.

Product description

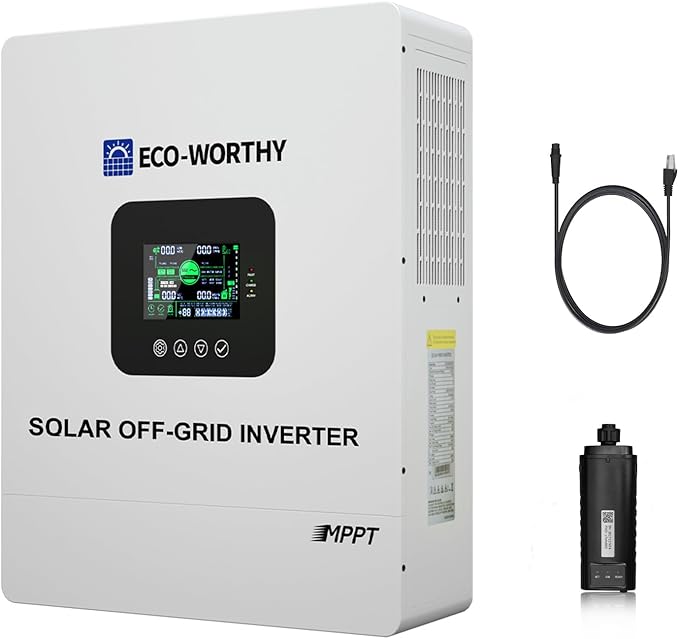

ECO WORTHY Inverter 5000W UL1741 With WIFI Modle for Home/Shed/Off Grid

48V Solar Inverter

5000W

Rated Output Power

10000W

10000W

Max. Peak Power

20000W

5500W

Max. PV Charge Power

11000W

500V

Max. OCV

500V

120-450V

MPPT Voltage Range

125-425V

100A

Max. PV Charge

200A

40A

Max. AC Charge

120A

5000W

Rated Output Power

3500W

10000W

Max. Peak Power

6000W

5500W

Max. PV Charge Power

4400W

500V

Max. OCV

145V

120-450V

MPPT Voltage Range

60-115V

100A

Max. PV Charge

80A

40A

Max. AC Charge

40A
