DSE701 Generator Controller Auto/Manual Start with Keys DSE 701K-AS 701 701K

- DSE701K - DSE701AS is available in automatic start versions, offering an excellent range of engine monitoring and protection features - The module has been designed to monitor low oil pressure, high engine temperature, over speed and a user defined auxiliary input. - The DSE701 module includes a remote start signal input. This input allows the module to be started from a pre-defined remote location - Multiple engine parameters are monitored simultaneously. - Hours counter provides accurate information for monitoring maintenance and warranty periods.

Product description

DSE701 Generator Controller Auto/Manual Start with Keys DSE 701K-AS DSE701AS 701K

Features:

Descriptions:

The DSE701AS is available in automatic start versions, offering an excellent range of engine monitoring and protection features.The module has been designed to monitor low oil pressure, high engine temperature, over speed and a user defined auxiliary input. The DSE701 module includes a remote start signal input. This input allows the module to be started from a pre-defined remote location.

This generator controller is microcomputer control.

The generator controller is started and stopped automatically.

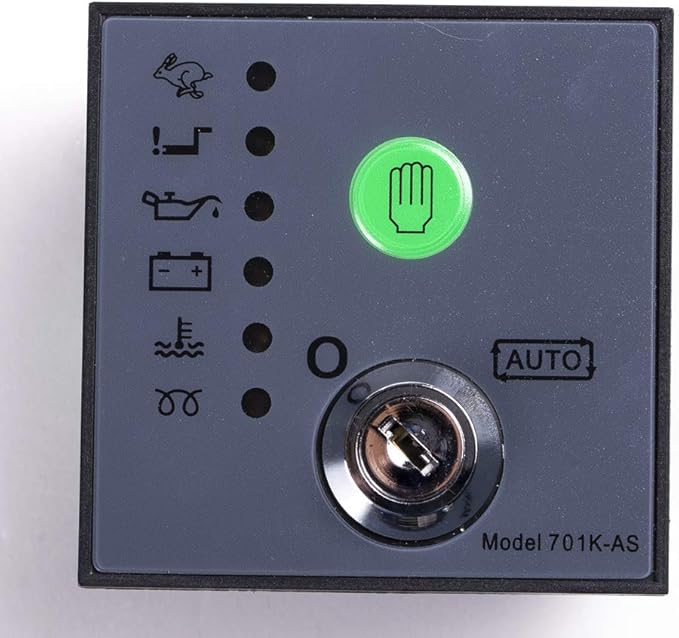

With the function of LED indicating fault information.

With LCD running accumulative time.

With lubricating oil low pressure protection, the module has been designed to monitor low oil pressure.

It also has the capability to monitor battery charging by utilizing the WL terminal on the charge alternator.

When the module detects a fault condition it automatically shuts down the engine.

With cool water temperature protection.

With engine overspeed protection

The key needs to be permanently left in "palm" the position The module is powered up by the remote start signal The pre-heat function is automatically carried out and then the engine is started To stop the engine the remote switch is turned to the"off"position

Hours counter provides accurate information for monitoring maintenance Multiple engine parameters are monitored simultaneously.

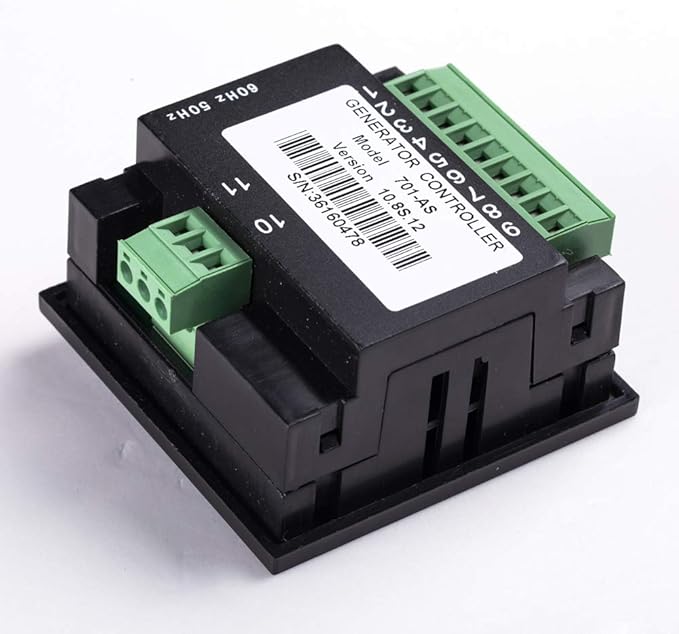

The engine over speed trip setting can be calibrated at the rear of the module for 50Hz or 60Hz nominal operation (57Hz or 68Hz trip respectively). During engine cranking and for the first 10 seconds after the engine starts running, all alarm conditions are suspended (overspeed is enabled) to allow the engine to reach its optimum running speed
