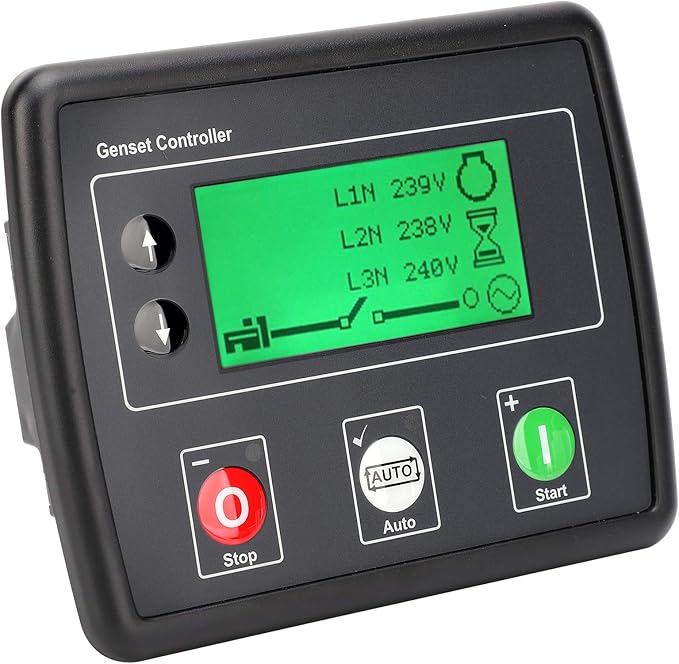

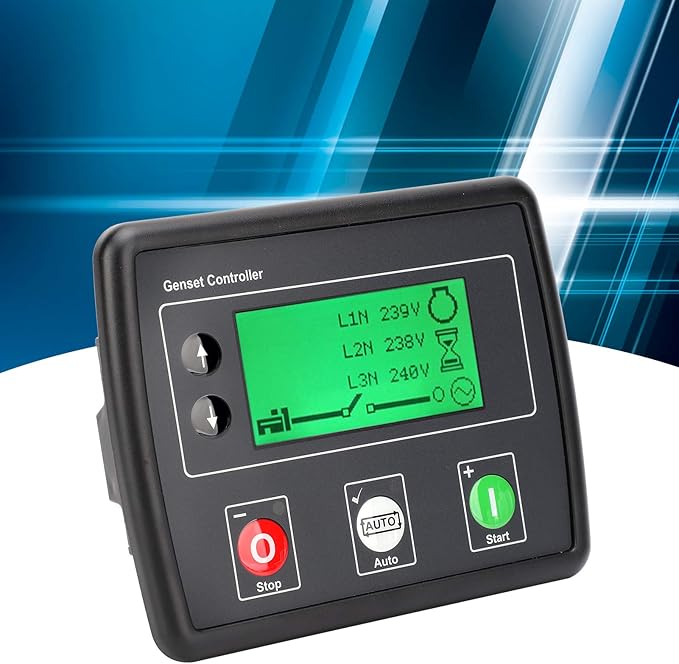

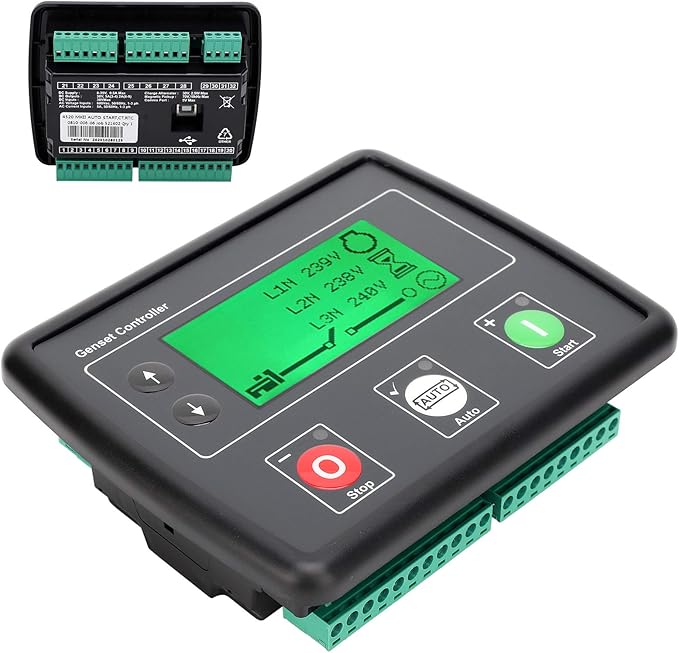

DSE4520 Automatic Mains Failure Control Module Generator Controller Auto Start LCD Display for Diesel Genset

- identification: This car power failure control module is convenient for users to connect, and icons are used on the back to identify terminal functions. - WITH BACKLIT LCD DISPLAY---Monitor multiple parameters simultaneously, and these parameters are clearly displayed on the largest backlit display in its class. - Realize automatically switches between mains and generators. - Product overview: Monitor multiple parameters simultaneously, and these parameters are clearly displayed on the largest backlit display in its class. Come with user-friendly settings and button layout, easy to use. - Advantages: The generator engine controller module automatic start controller 4520 has the function of an automatic grid (utility) fault control module, which can monitor the incoming grid current (utility) and indicate that the generator set is not available on the grid (utility) time to start.

Product description

DSE4520 Auto Mains Failure Control Module, Self?Starting LCD Controller for Renewable Energy Controllers

MAIN FUNCTIONS---Silicon gaskets can improve the sealing between the module and the panel. Before installing in the panel, install on the module correctly to maintain the integrity of the sealing.

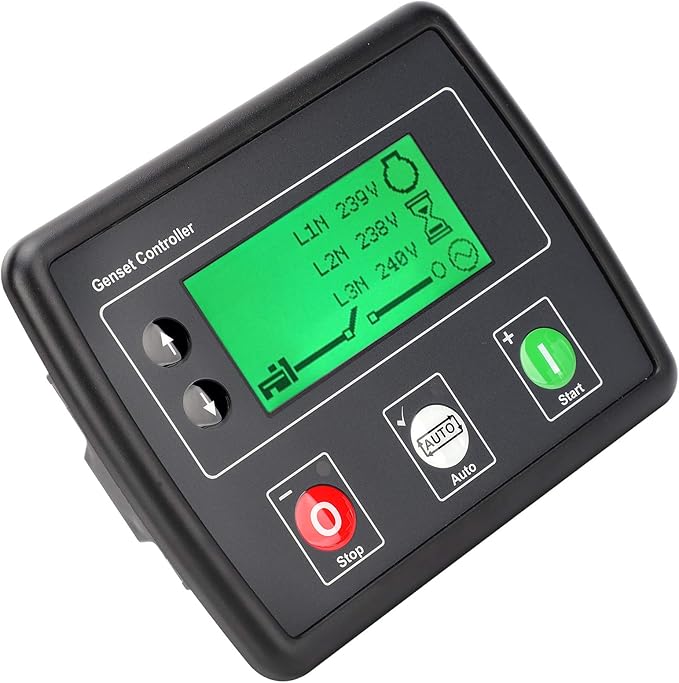

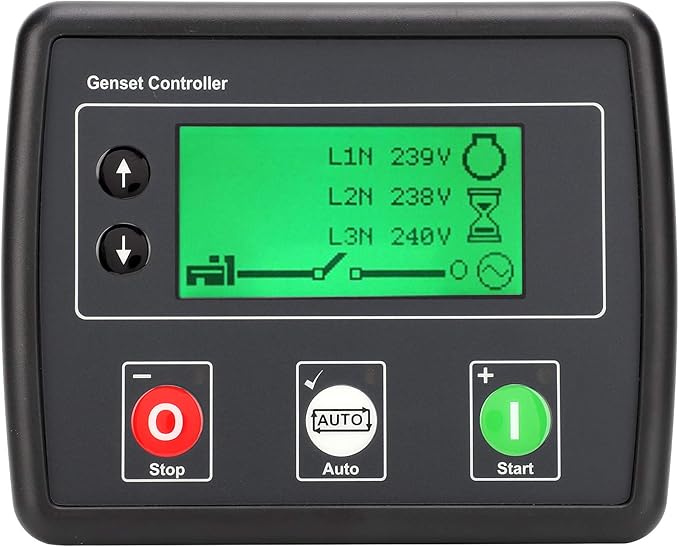

WITH BACKLIT LCD DISPLAY SCREEN---Monitor multiple parameters at the same time, and these parameters are clearly displayed on the largest backlit display in its class.

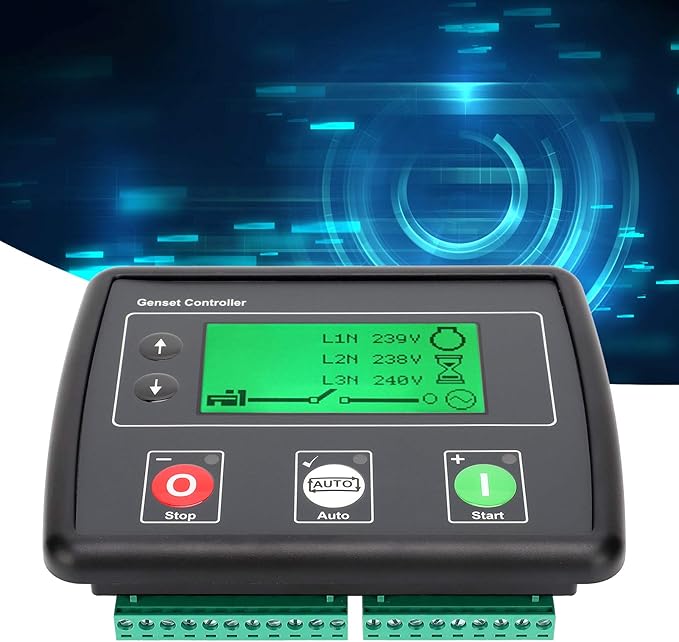

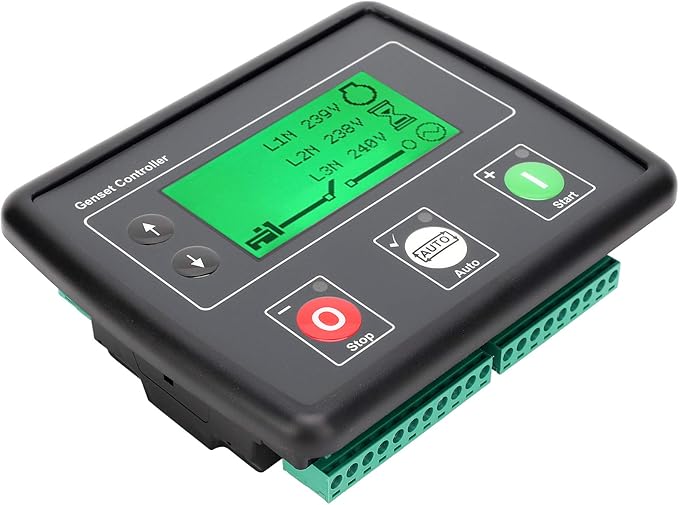

WITH ICONS IDENTIFY---To help users connect, icons are used on the back of the module to help identify terminal functions.

Specification:

Item Type: Auto Mains Failure Control Module

The generator engine controller module automatic start control unit 4520 has the function of an automatic mains (utility) fault control module, which can monitor the incoming mains (utility) power and indicate that the generator set is not available on the mains (utility) time to start. All modules include a series of intelligent control, monitoring and functions for standard and electronic engine generator set applications

Main Feature:

Support 0-10V and 4-20mA oil pressure sensor.

Heating display options.

Three-phase generator detection.

Generator/load current monitoring and .

Configurable analog/digital input (9).

Configurable DC, no voltage and graded load output (6).

CAN, MPU and alternator speed sensing (according to the motivation type selection).

For Tier 4ECO engine support includes exhaust fluid and filters.

Configurable event log (100).

For DSE Configuration Suite PC software.

Fuel and start output (configurable on CAN).

J1939-75 meter output can be configured with CAN meter and alarm.

Start with low battery.

Enhanced alarm function.

Low load alarm.

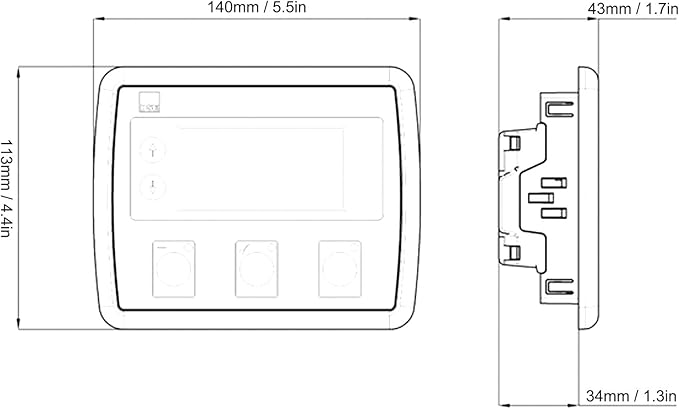

Size: Approx. 113 x 140mm / 4.4 x 5.5in

43 x 34mm / 1.7 x 1.3in

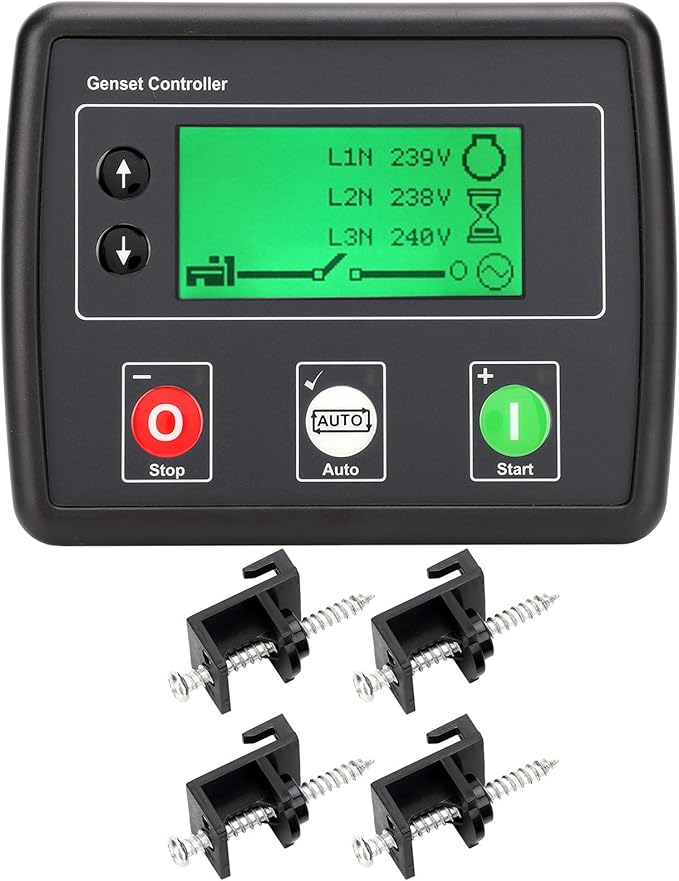

Package List:

1 x Host

2 x Installation Buckle

1 x User Manual
