Boost MPPT Solar Controller 600W 26-63V Input LED Display Solar Panel Regulator Step Up Solar Controller for 48V / 60V / 72V and Lithium Battery
Boost MPPT Solar Controller 600W 26-63V Input LED Display Solar Panel Regulator Step Up Solar Controller for 48V / 60V / 72V and Lithium Battery
- Boost MPPT Solar Controller
Product description

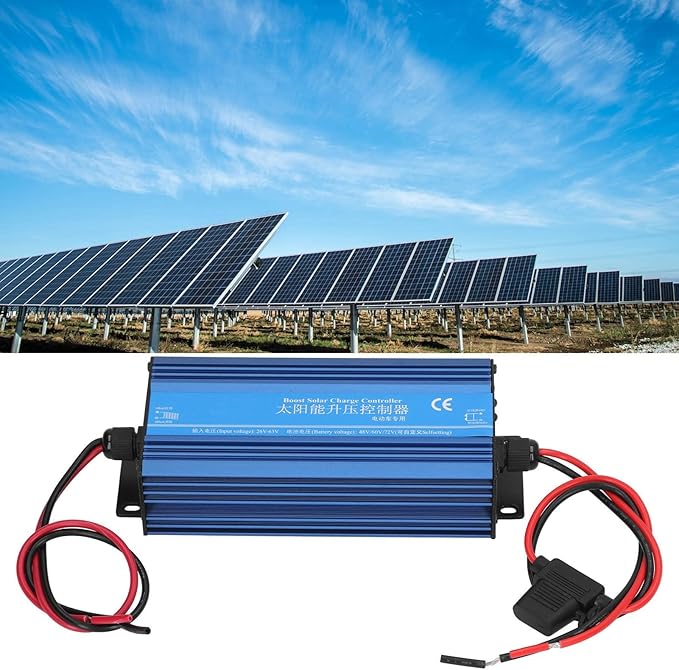

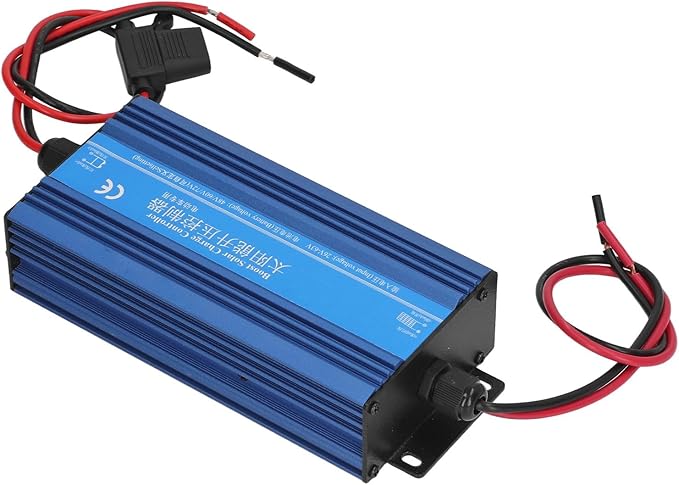

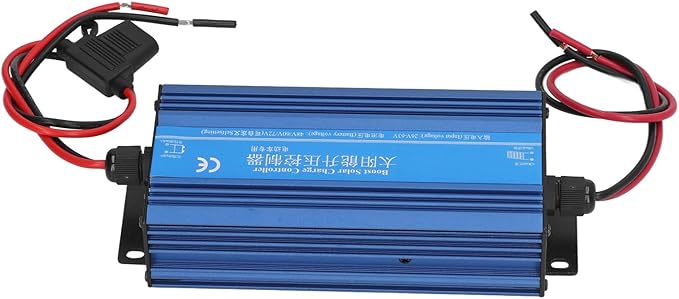

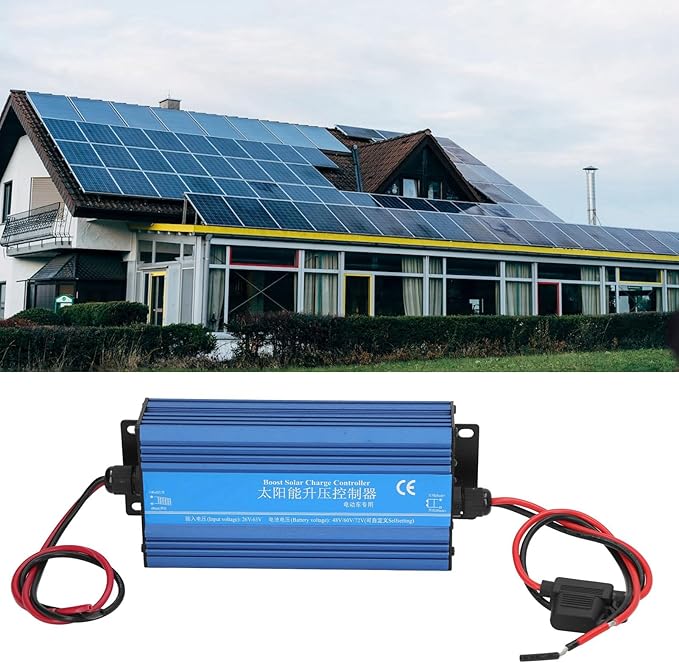

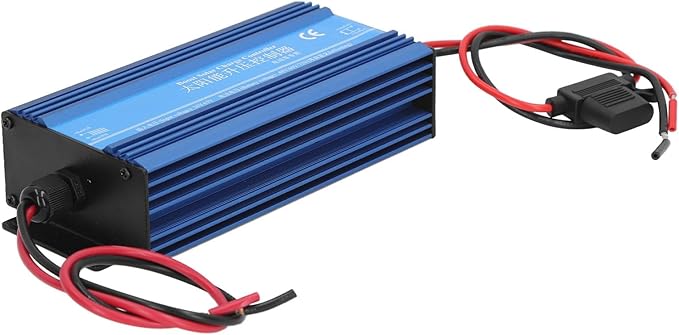

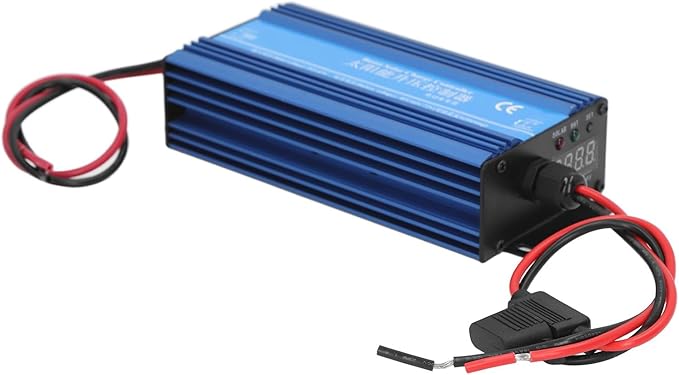

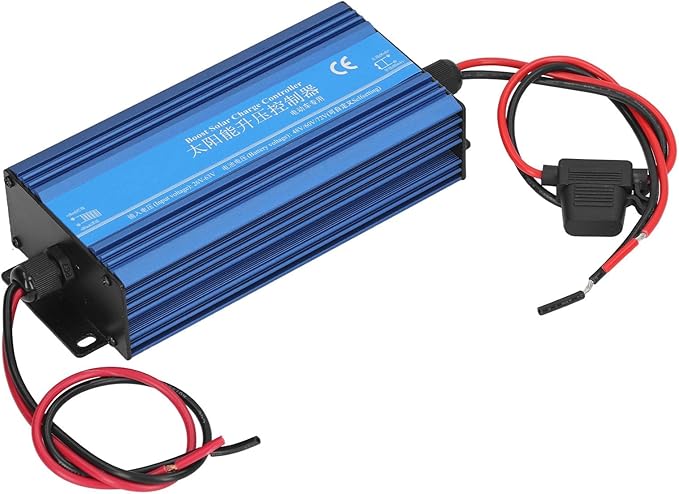

Boost MPPT Solar Controller, 600W 26-63V Input LED Display Solar Panel Regulator

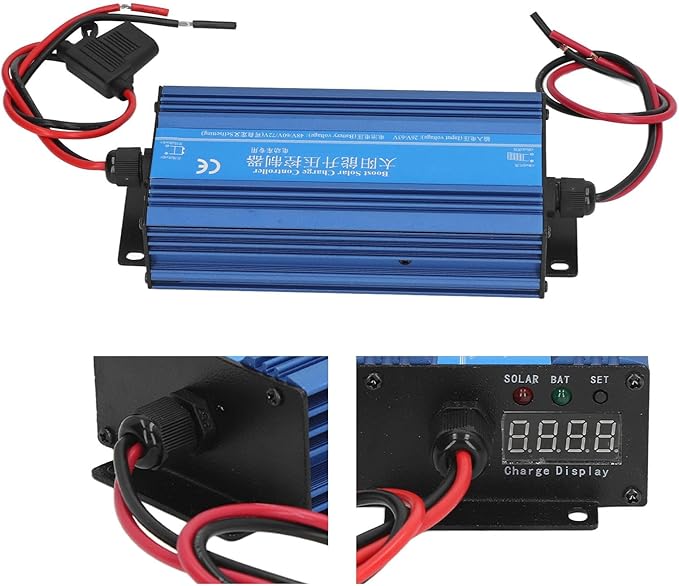

MPPT Technology: Advanced MPPT power point tracking technology, with maximum tracking efficiency of 98%, effectively saving battery panel energy.Digital Display: 4 digit digital tube display design, real time display of battery panel voltage, charging current, battery voltage, etc., clear and intuitive.Energy Saving: Solar panel power technology, low standby power consumption, system power consumption is all from the panel, does not work at night.Safe Operation: Equipped with a child lock function to prevent wrong charging caused by touching the button by mistake and provide good protection.

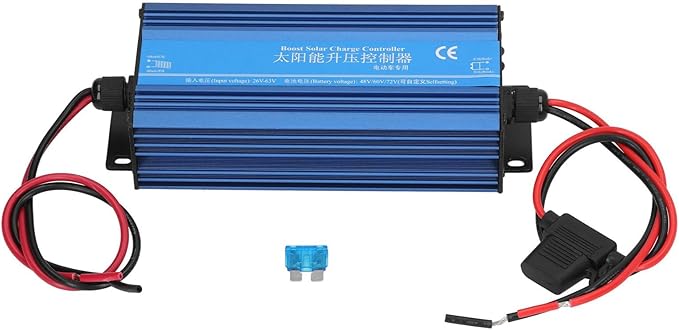

Material: Aluminum AlloyOvervoltage: 57.6V (48V), 72.0V (60V), 86.4V (72V), self settingPower: ≤600WReverse Connection Protection: The reverse connection of the battery will blow the fuseMPPT Efficiency: ≥99%Overall Efficiency: ≥95%Working Temperature: -35-65℃Insulation Resistance: AC1KV, 5min test ≥20MΩWaterproof Grade: IP54
Safe Operation: Equipped with a child lock function to prevent wrong charging caused by touching the button by mistake and provide good protection.
Applicable Battery: Used for lithium battery, lithium iron battery, acid battery, etc. (battery voltage 48V 60V 72V), users can set parameters through the SET key.
High Efficiency: Ultra fast maximum power point tracking speed, while ensuring tracking efficiency, wide photovoltaic array operates at the maximum power point.
How to UseChild Lock Description: Open the four screws on the side of the controller with the digital display tube, and you can see a 2 bit dial switch. The ON position is for the child lock to open, and the 1 2 position is for the child lock to cancel. The factory default is that the child lock is cancelled, that is, the user can set it according to his needs.After the installation, setting and debugging of the controller is completed, the installer should turn the dial switch to the ON position, that is, open the child lock, to prevent incorrect charging caused by touching the button by mistake. If you need to set it next time, you can turn it back to position 12 to cancel the child lock.
