Automatic Transfer Switch ATS Controller IP54 LED Display 30-300V for Reliable Power Transfer and Generator Backup Systems

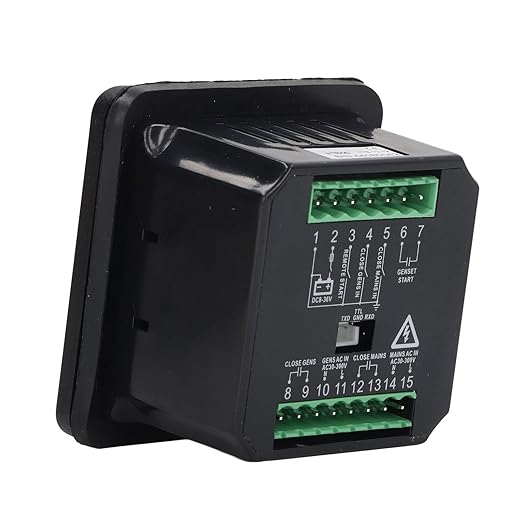

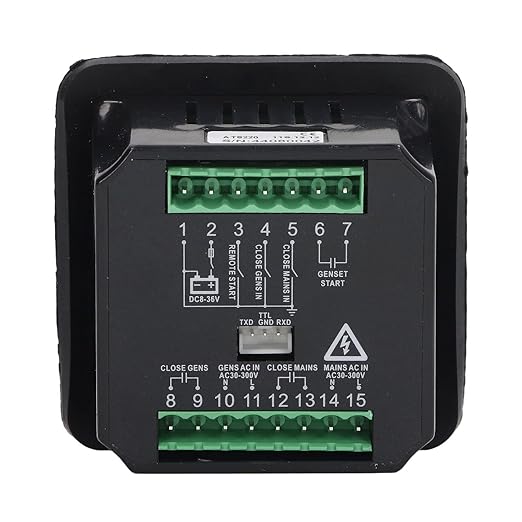

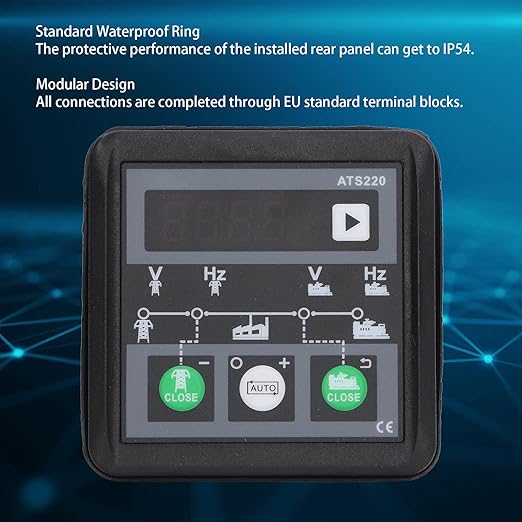

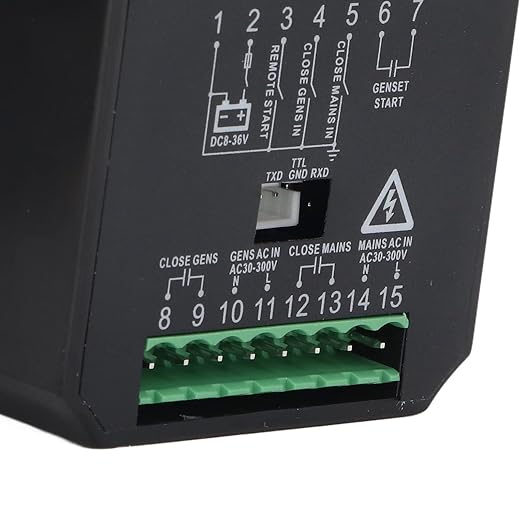

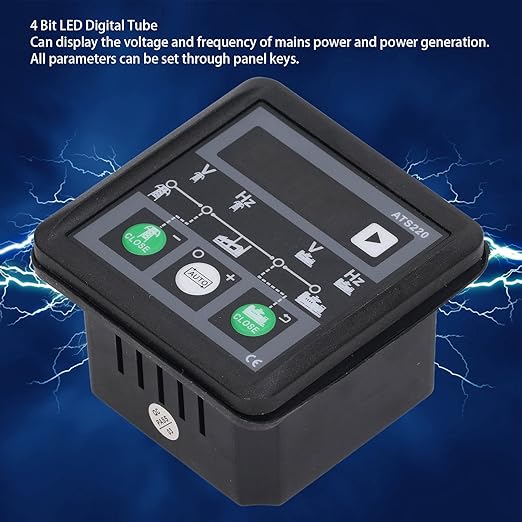

- Smart for Setting: All parameters can be set through the panel keys, and the ATS controller supports both manual and automatic - Stable Controller: Has the function of simulating mains power, and can flexibly select the starting conditions of the unit, very useful. - Design: Standard ring, the protective performance of the panel after installation gets to IP54, ideal for outdoor. - Better in Display: Equipped with 4 bit LED digital tube, it can display the voltage and frequency of mains power and power generation. - Modular Structure: All connections are completed through EU standard terminal block thanks to the modular design, very easy to install.

Product description

Automatic Transfer Switch Controller IP54 LED Display Power ATS Controller 30?300V

Specification:

Item Type: Automatic Transfer Switch Controller

Model: ATS220

Material: ABS

Function: For power switching control.

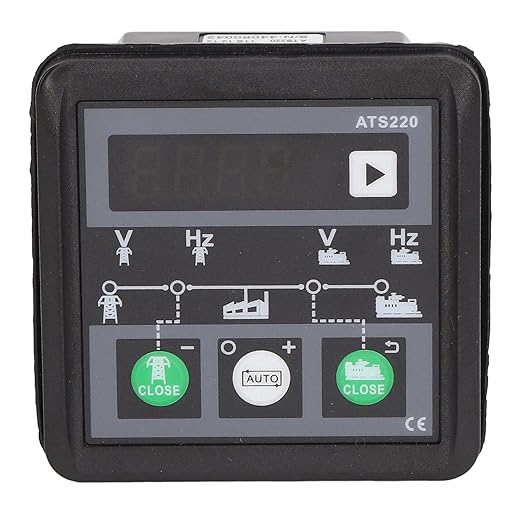

Display: LED

Power Generation and Mains Voltage: 30-300V

Normal Mains Power Delay: 0-6500s, Default Value: 10s.

Abnormal Mains Power Delay: 0-6500s, Default Value: 5s.

Normal Power Generation Delay: 0-6500s, Default Value: 10s.

Start Up Delay Of Generator Set: 0-6500s, Default Value: 1s.

Shutdown Delay Of Generator Set: 0-6500s, Default Value: 5s.

Closing and Opening Pulse Width: 1.0-10.0s, Default Value: 10.0s.

Conversion Interval Delay: 0-3600.0s, Default Value: 1.0s.

Overconversion Delay: 0-20s, Default Value: 20s.

Low Voltage Tripping Value of Mains Supply: 55-330V, Default Value: 184V.

Low Voltage Return Value of Mains Power: 55-330V, Default Value: 207V.

Mains High Voltage Tripping Value: 55-330V, Default Value: 276V.

High Voltage Return Value of Mains Power: 55-330V, Default Value: 253V.

Generator Over Frequency Alarm Value: 40-80.0Hz, Default Value: 57.0Hz.

Generator Underfrequency Alarm Value: 0-70.0Hz, Default Value: 40.0Hz.

Generator Overvoltage Alarm Value: 0-360V, Default Value: 264V.

Generator Undervoltage Alarm Value: 0-360V, Default Value: 192V.

Enabled Closing Status Input: 0 - Disable

Mains Voltage Indication: The indication is currently displayed as mains voltage E. When the load is switched to mains voltage, the mains voltage will be automatically displayed.

Mains Frequency Indication: The indication is the current displayed parameter value is mains frequency.

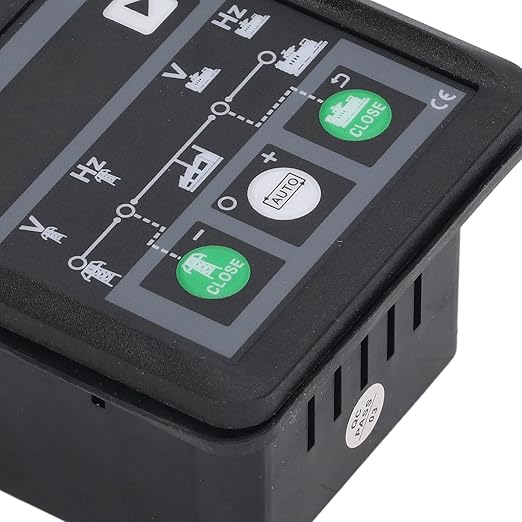

How to Use:

1. CLOSE: Mains power on or parameter decrease.

2. AUTO: Automatic or manual switching of parameter increase.

3. CLOSE: Power generation close or return.

4. : Screen change or OK.

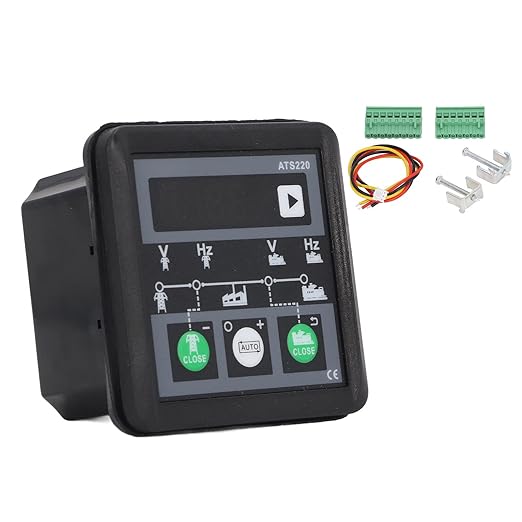

Package List:

1 xAutomatic Transfer Switch Controller

2 x Wire Terminal

2 x Fixing Screw

1 x
