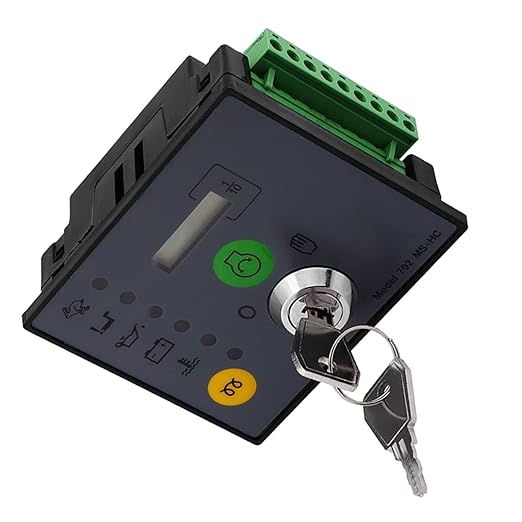

702 Generator Controller Board – DSE702 MS HC Manual Start Control Panel for PTO Generators Compatible with Diesel & Gas Generators

- The DSE701 module includes a remote start input. This input allows the module to be started from a pre-defined remote location. - The user turns the key to the palm position, the engine pre-heat button is then pressed for the required time, the start button is then pressed to start the engine, to stop the engine the key needs to be turned to the off position. - With the function of LED indicating fault information. - The 702 MS-HC is available in manual start versions, offering an excellent range of engine monitoring and features. - 702 MS-HC Generator controller is microcomputer control,it has the function of LED indicating fault information and the LCD running accumulative time.

Product description

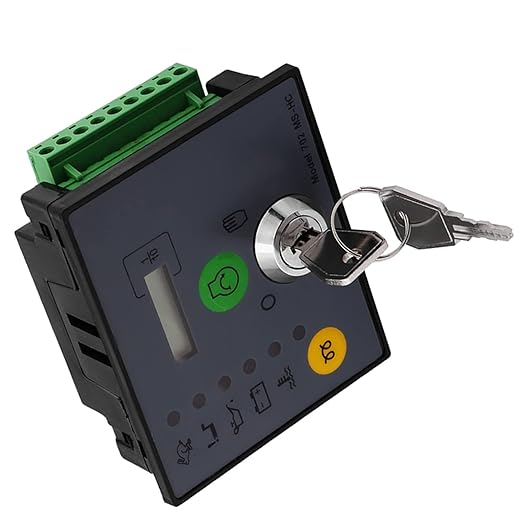

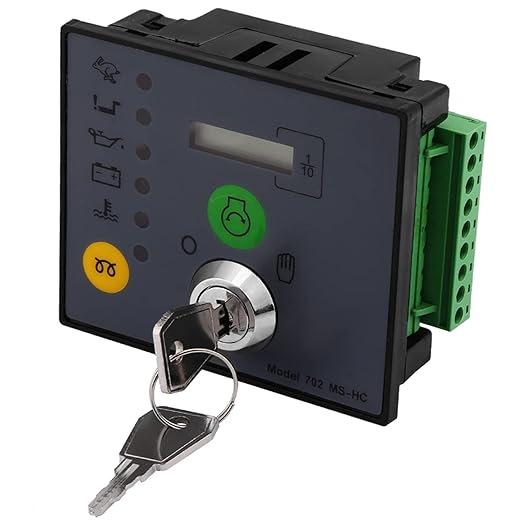

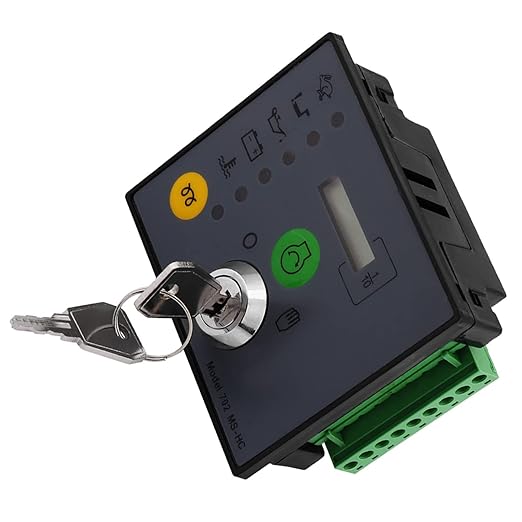

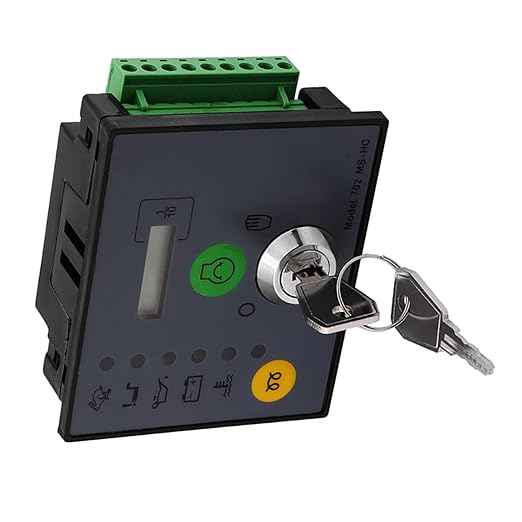

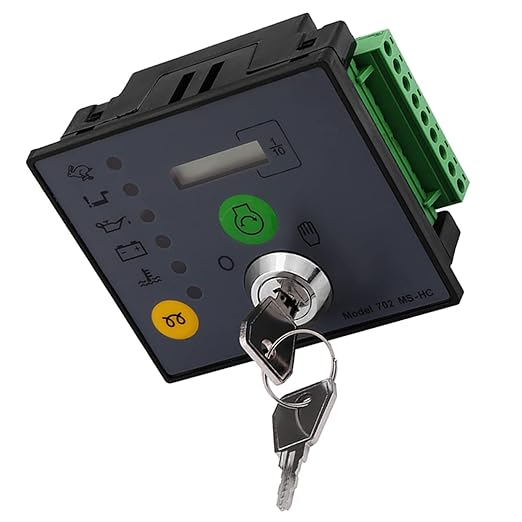

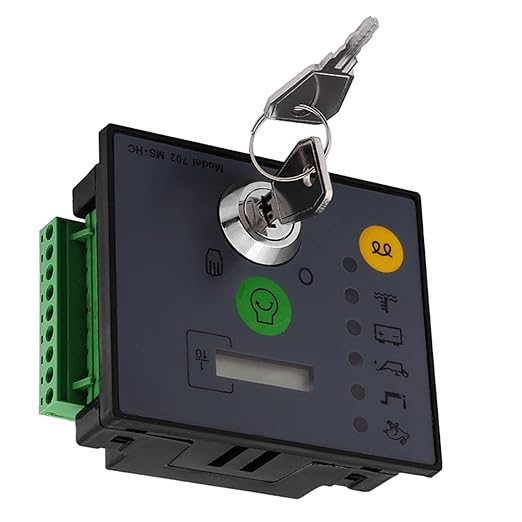

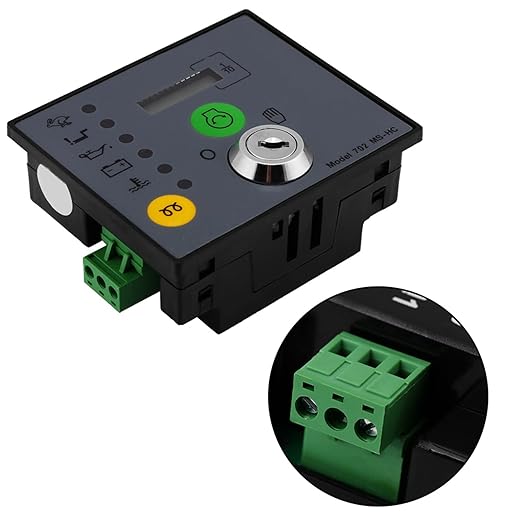

702 Generator Controller 702 MS HC Manual Start Generator Controller Board Panel DSE702 Module Pto Generators

702 MS-HC Generator controller is microcomputer control,it has the function of LED indicating fault information and the LCD running accumulative time.

With the function of LED indicating fault information.

The user turns the key to the palm position, the engine pre-heat button is then pressed for the required time, the start button is then pressed to start the engine, to stop the engine the key needs to be turned to the off position.

Specifications: Model: 702 MS-HC

Size: 8.5 x 7 x 3.8cm/3.45 x 2.76 x 1.50inch

Weight:157g

:

Hours counter provides accurate information for monitoring maintenance and periods

Multiple engine parameters are monitored simultaneously.

Manual Mode Operation: 1.The module is started using the on-board key/buttons

2.The user turns the key to the palm position

3. The engine pre-heat button is then pressed for the required time

4. The start button is then pressed to start the engine

5. To stop the engine the key needs to be turned to the off position

Overspeed :

The engine over speed trip setting can be calibrated at the rear of the module for 50Hz or 60Hz nominal operation (57Hz or 68Hz trip respectively).

During engine cranking and for the first 10 seconds after the engine starts running, all alarm conditions are suspended (overspeed is enabled) to allow the engine to touch its running speed.

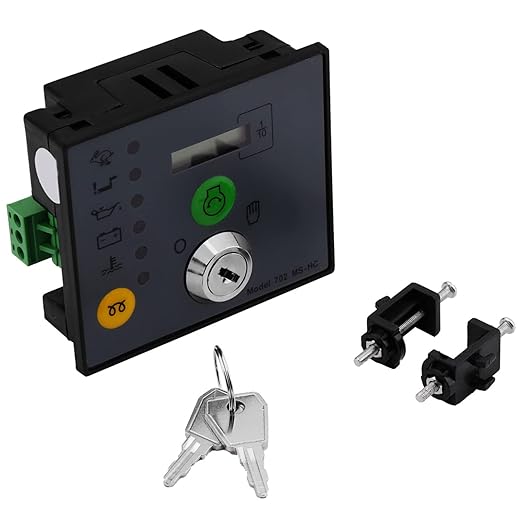

Package Included:

1 x 702 MS-HC Generator Controller

2 x keys

2 x screws
