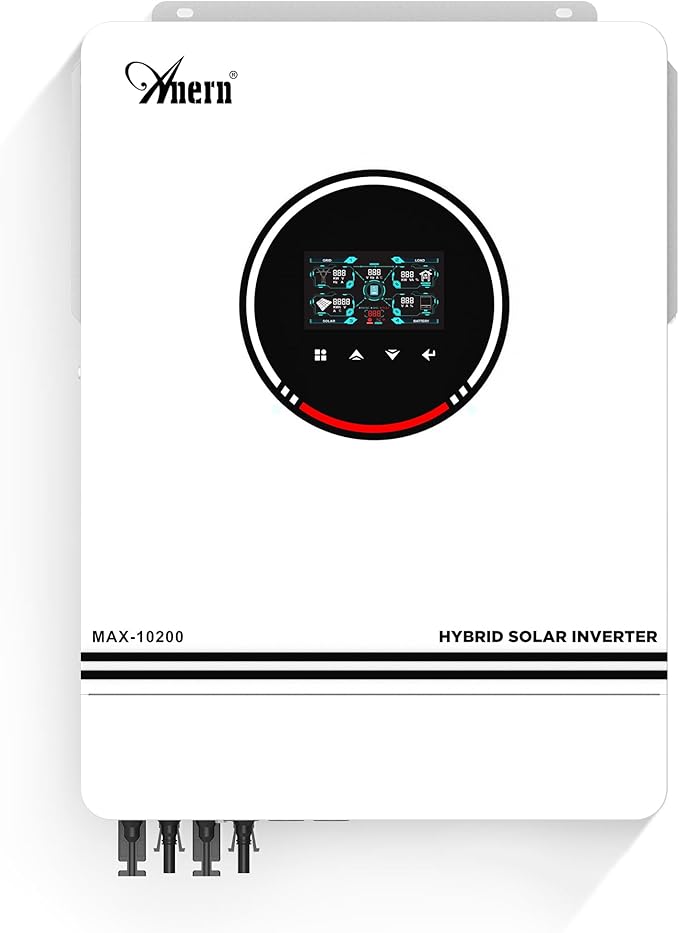

10.2KW Hybrid Solar Inverter All in One 48V to 220V-230VAC for Home RV Backup Off-Grid Living Pure Sine Wave Inverter with 160A MPPT Charge Controller Works with Lead-Acid & Lithium Battery

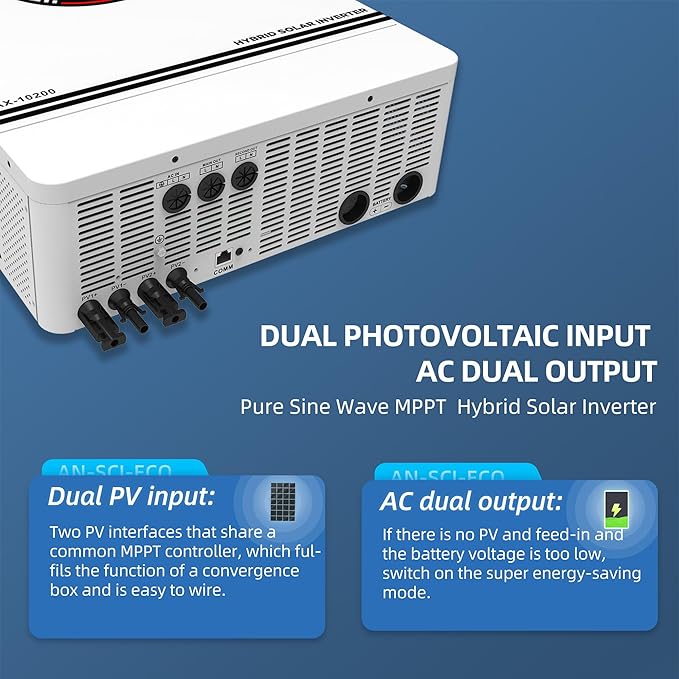

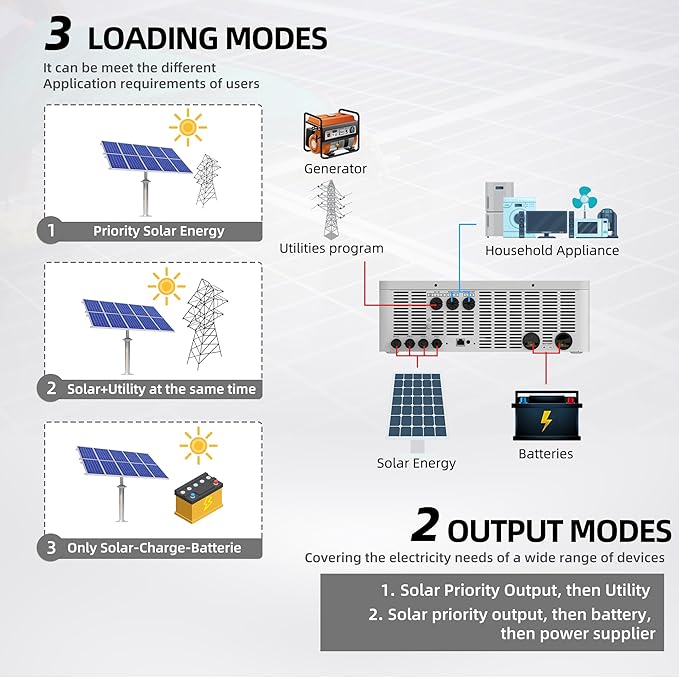

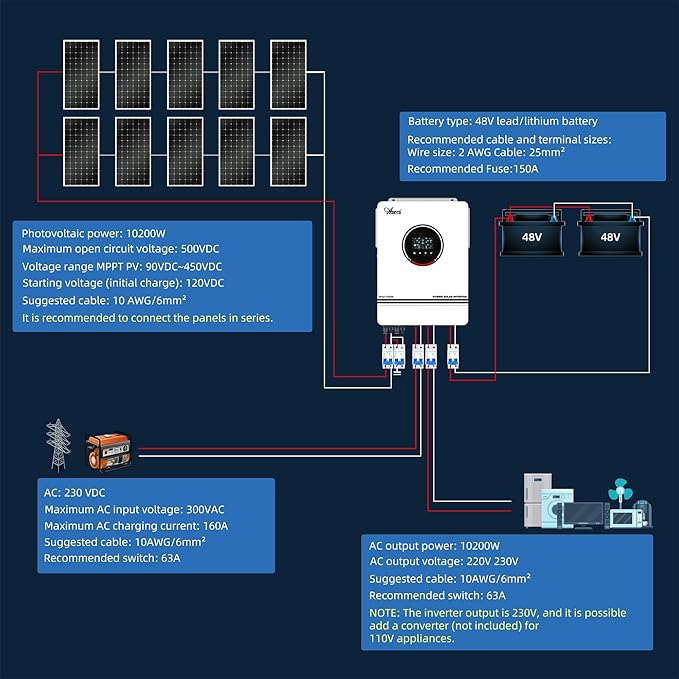

- 【All in one solar inverter】Combines a 10.2KW pure sine wave inverter, a 160A MPPT solar charge controller, and a 160A AC battery charger in one unit. Supports dual PV input up to 10200W (90-450VDC range, max 500VOC) and dual AC output for uninterrupted power. Compatible with 48V Lead-Acid (Seal, AGM, Gel, Flooded) and Lithium batteries?ideal for home backup, off-grid cabins. - 【Dual PV Input & Dual AC Output】48V Hybrid Inverter Harness more solar energy with dual PV inputs (up to 10200W total). Dual AC outputs deliver stable 220V-230V power to run multiple appliances simultaneously?ovens, rice cookers, refrigerators, TVs, fans, and power tools. Auto-restart when grid power recovers, ensuring seamless operation for RVs, boats, homes, or job sites. - 【RGB Light Mode】Solar Inverter At-a-glance system status with RGB lighting: Purple (PV mode), Red (Battery mode), Blue (Utility mode). The backlit LCD screen lets you browse and adjust settings easily. One-click restore instantly reverts to default settings if errors occur, preventing misconfiguration damage. - 【Multiple Charging & Output Modes】Choose from Solar First, Solar+Utility, or Solar Only charging modes. Select Solar First, Utility First, or SBU Priority output modes to match your energy needs. Prioritize solar during peak hours to reduce bills, or switch to utility backup when needed?intelligent power management for any scenario. - 【Comprehensive Protection】solar hybrid inverter with an anti-dust kit and three cooling fans for efficient heat dissipation. Cold start function (46VDC) ensures reliable operation in low-light conditions. Multiple protections include overload, over-temperature, and short circuit?backed by smart battery charging to extend battery life. - 【Not applicable for 120V】This solar hybrid inverter in some parts of the US does not support parallel operation, nor does it support split phase operation! (Single phase/hot leg 230V output, not 110V AC output) For 110/120V US home appliance equipment, you can simply add a converter (not included) to step down the 220/240V AC power to 110/120V AC power, then your 110V home appliances can also be used at the same time.

Product description

Hybrid Solar Inverter

Suitable for Various Batteries

THIS INVERTER NOT APPLICABLE FOR 120V

Does it support two-phase or parallel connections?

Are the dual inputs of the MAX 10200W/8200W two MPPTs?

How can the inverter be connected to the grid to supply power to the company?

WIFI Notes / Unable to connect to WIFI.

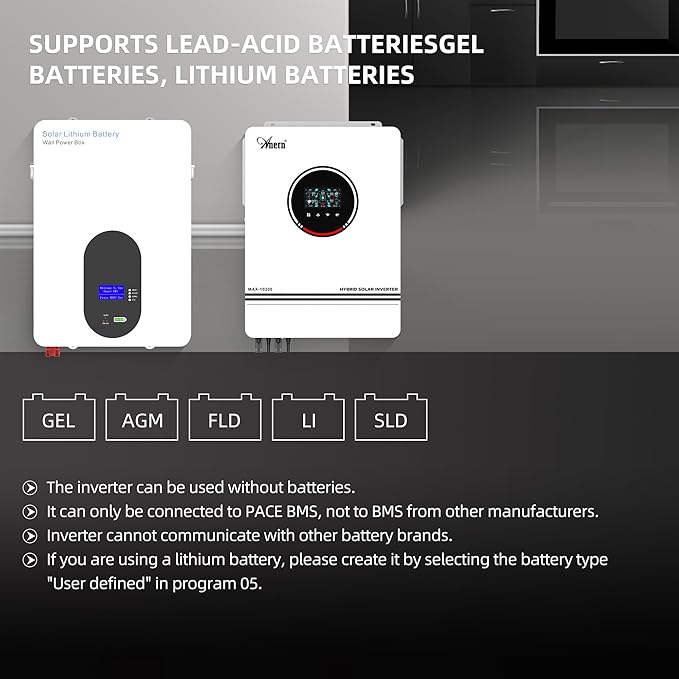

Can the inverter communicate with batteries?

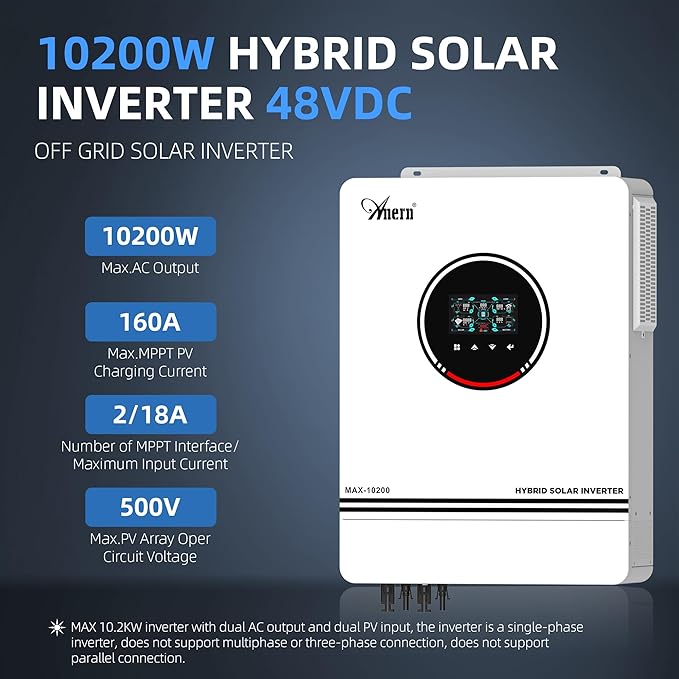

The MAX 10.2KW inverter has two AC outputs and two PV inputs, a new colour display for easier operation, the inverter is single-phase, does not support multi-phase or three-phase inverters, and does not support parallel connection.

Does it support two-phase or parallel connections?

The MAX 8.2/10.2kw inverter is single-phase, it does not support two-phase, three-phase or parallel connections.

Are the dual inputs of the MAX 10200W/8200W two MPPTs?

All devices have two photovoltaic inputs, 10.2 kW for two independent MPPTs with 18 A each and 8.2 kW for one MPPT with a total output of 27 A.

How can the inverter be connected to the grid to supply power to the company?

When hybrid mode is selected, grid connection must be requested from the local authority, otherwise power cannot be supplied to the grid.

WIFI Notes / Unable to connect to WIFI.

*You must select the local node at the time of registration, do not select nodes abroad.

*The collector only supports 2.4G/HZ band, not 5G/HZ band;

*The router IP must be set to dynamic IP.

Can the inverter communicate with batteries?

Incompatible with other brands of BMS batteries and cannot communicate with other batteries. The inverter has only one communication interface (WIFI and communication with lithium batteries).
