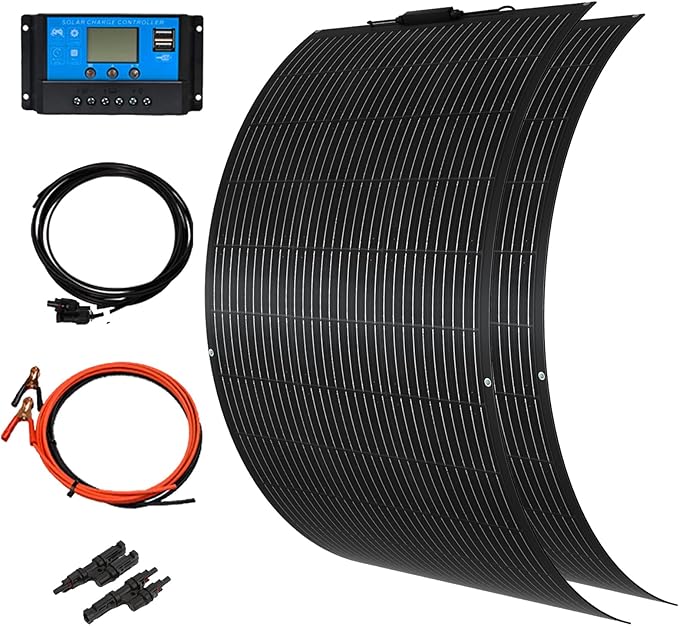

XINPUGUANG Flexible Solar Panel 100W200W 12V Solar Panel Kit Monocrystalline Module20A Charge Controller Extension CableAlligator Clip Cable for Outdoor Off Grid Boat rv Trailer (200W)
XINPUGUANG Flexible Solar Panel 100W200W 12V Solar Panel Kit Monocrystalline Module20A Charge Controller Extension CableAlligator Clip Cable for Outdoor Off Grid Boat rv Trailer (200W)

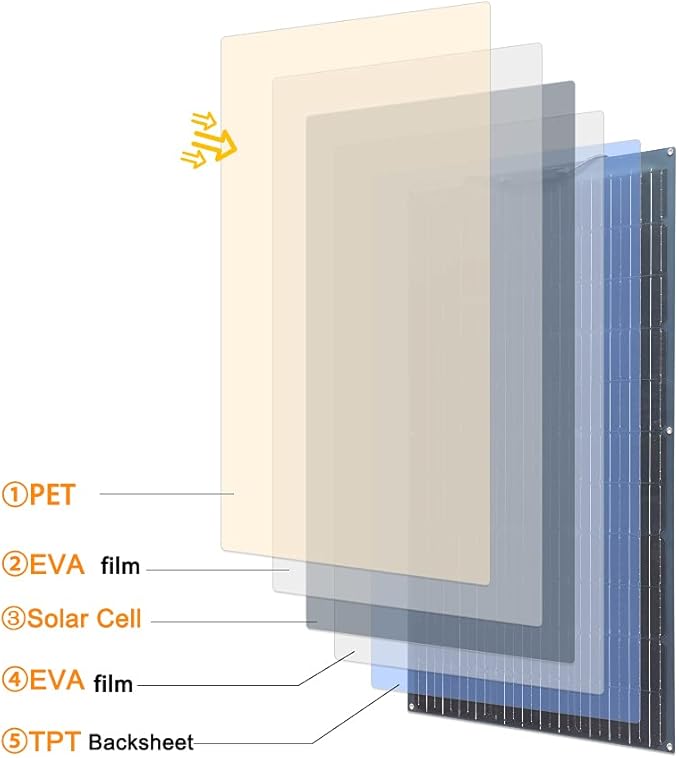

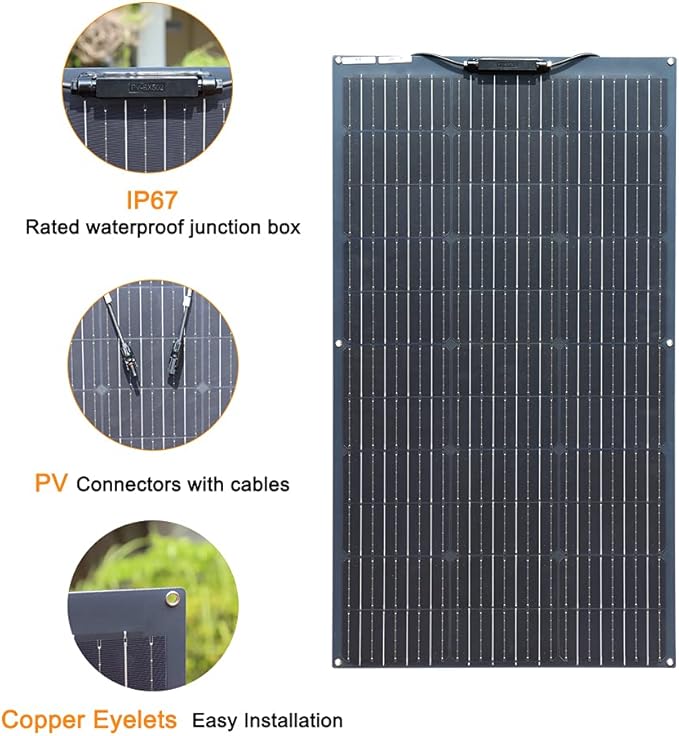

- High Efficiency: solar panels use new Perc solar monocrystalline cells, up to 23% conversion rate, 100w solar panels are smaller, lighter and more portable - Semi-Flexible: The plastic back sheet can be curved to a maximum 30 degree arc and mounted on RV, boat, cabin, tent, car, trucks, trailers or any other irregular surface - Thin & Lightweight：100W solar panel weighs approximately 4lb,Thickness is 0.1in， weighs 70% less than conventional solar panels, making transportation and installation a breeze - Practicality: Light energy converts electricity, Practical and suitable for use in areas where electricity is not available and where the city cannot reach, such as mountains, marine, deserts, and remote areas - Nice Details: The component contains a bypass diode, and the circuit uses input over current protection and reverse protection design.The solar panel has 6 grommet mounting holes are available to attach fasteners，and can also be installed with silicone and adhesive tape
Product description
Solar Panel Specification
Connection Diagram

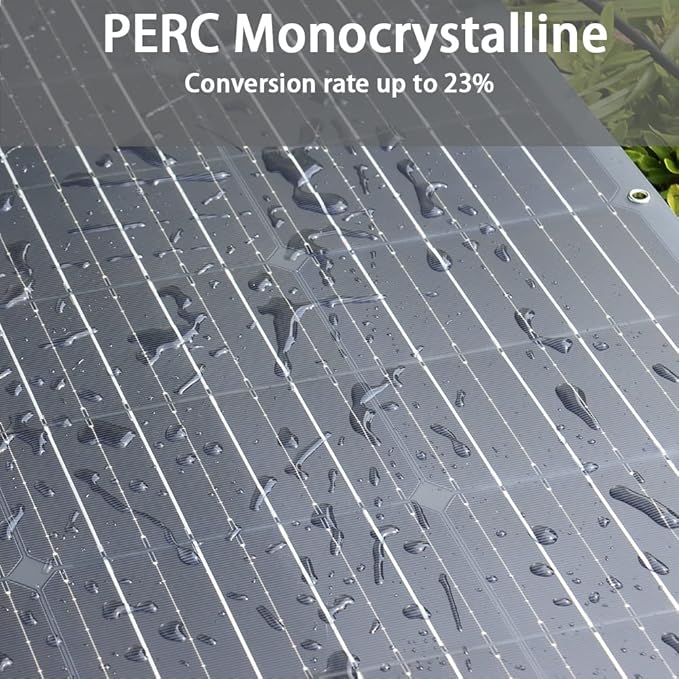

The XINPUGUANG 100Watt flexible solar panel is made of PERC Monocrystalline cell with a conversion rate of 23%. The weight is 1.85kg（4lb）, which is 20% of the traditional solar panels.Size is 41.73x20.86x0.11 in. The lightweight nature of flexible solar panels makes solar panels more effective for use in RVs, caravan，boats, tents, trailers, cabin, etc. Portable, easy to install, plug and play.
Maximum power(Pmax) ：100W
Open circuit voltage(Voc) ：21.6V
Short circuit current(Isc)：6.11 A
Maximum power voltage(Vmp)： 18V
Maximum power current(Imp)：5.55A
Temperature range： -40℃～+80℃
Maximum system voltage ：700V DC
Weight ：1.85kg(4 lb)

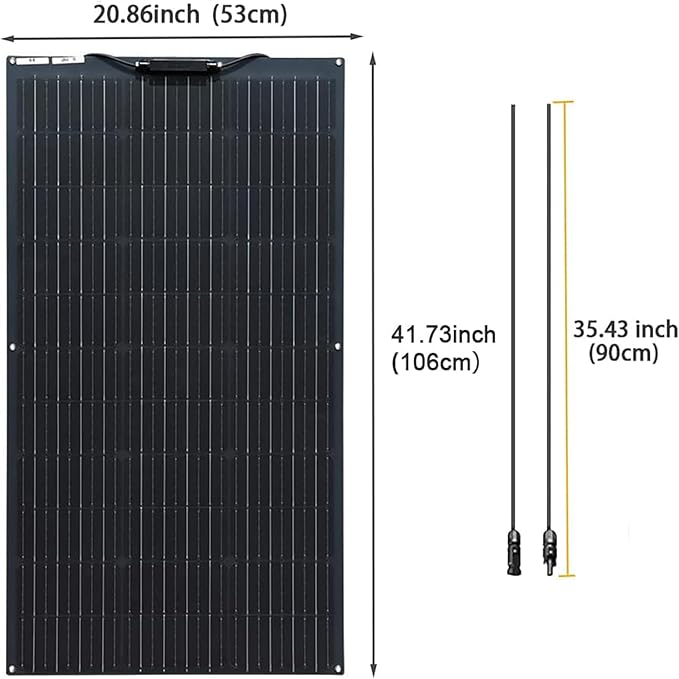

Size：41.73x20.86x0.11 in
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
Note: Please follow the instructions for installation and connection.
