XINPUGUANG 100W Flexible Solar Panels 400w 12V Solar System Kit Monocrystalline Cell Module 40A Controller for Off Grid Solar Battery Charge for RV Boat Trailer Cabin(400W)

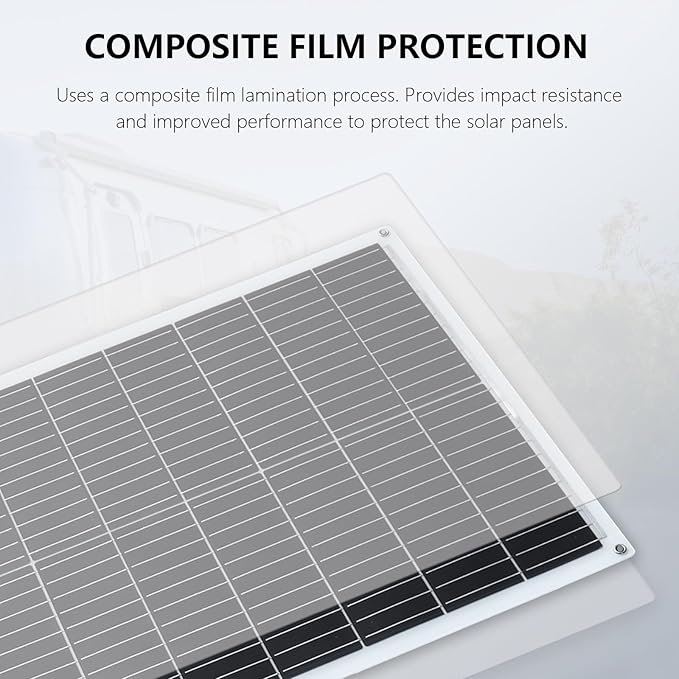

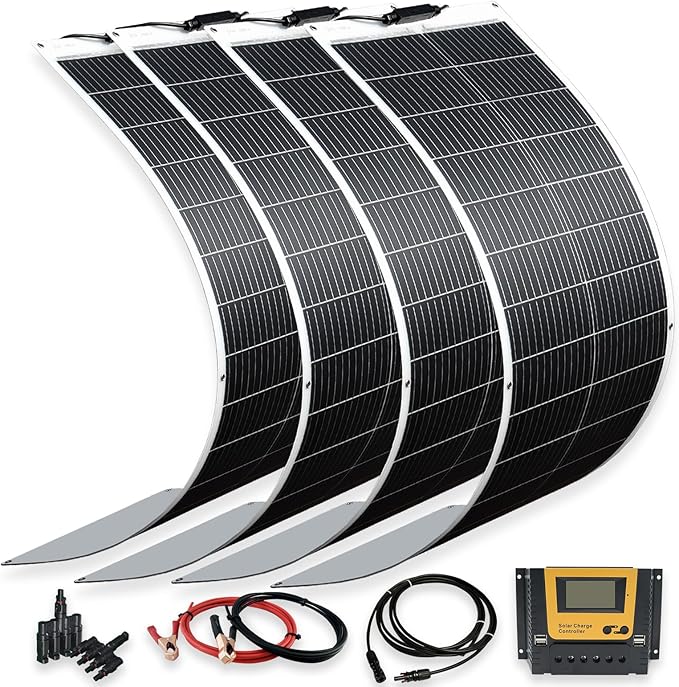

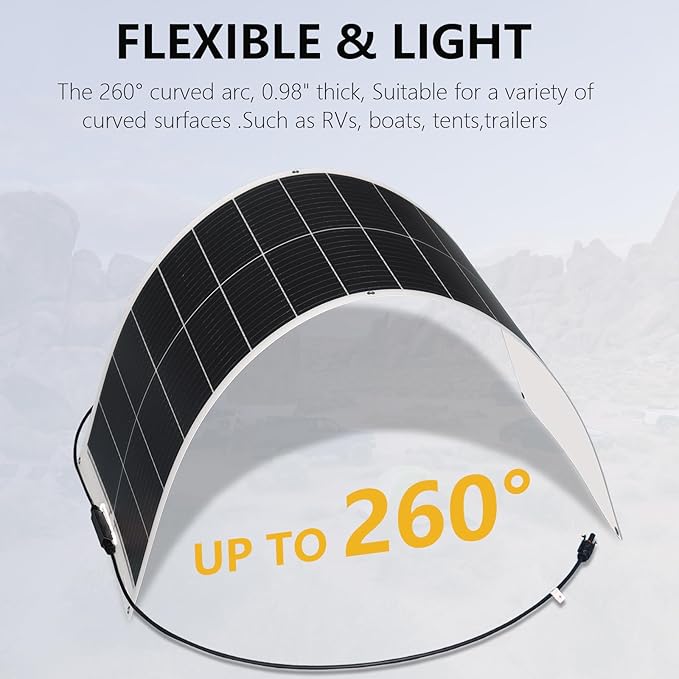

- MONO silicon+PET - Practicality: This solar panel kit can be used as a 12V off-grid system.suitable for use in areas where electricity is not available and where the city cannot reach, such as mountains, marine, deserts, and remote areas - Easy Installation: The solar panel has 6 grommet mounting holes are available to attach fasteners，and can also be installed with silicone and adhesive tape - Flexible: This panel is a good choice for curved surfaces of RV, boat,yacht,truck, car, cabin, camper , tent , trailer, golf cart or any other irregular surface - Reliable: Advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide a long service life - What you get: 100W*4 pcs flexible solar panel, 1 piece 30A solar controller, 1*3M cable with PV Connector,1*3M cable with alligator clip，4 in 1 in parallel connector

Product description

Controller Specification

installation

Application

Solar panels and accessories are sent separately, if you receive one of the packages, do not worry.

Solar Cell：Monocrystalline

Maximum power：100w

Maximum power voltage：16.5V

Maximum power current：6.06A

Open circuit voltage：23.7v

Short circuit current：6.66A

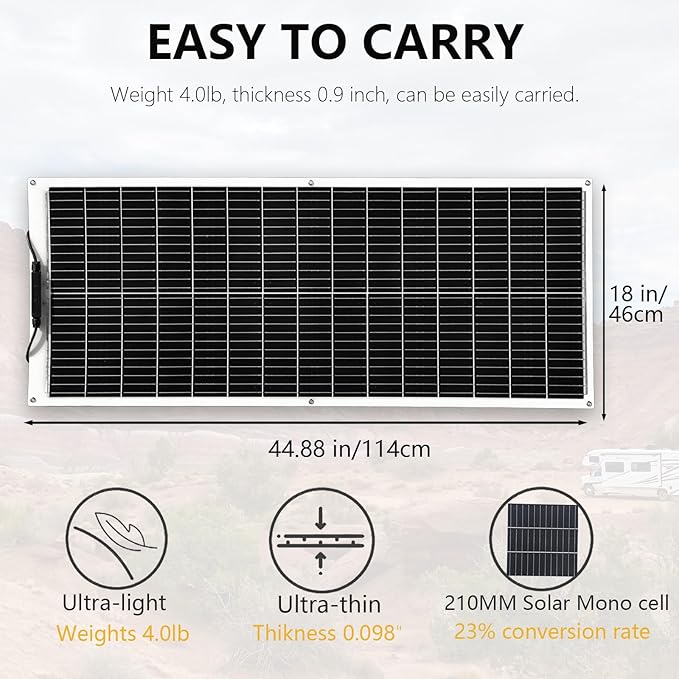

Size of module：1140X460X3mm(44.88X218.11X0.11in)

Weight per piece：2kg（4.4lb）

Temperature Range：-20- +60 ℃

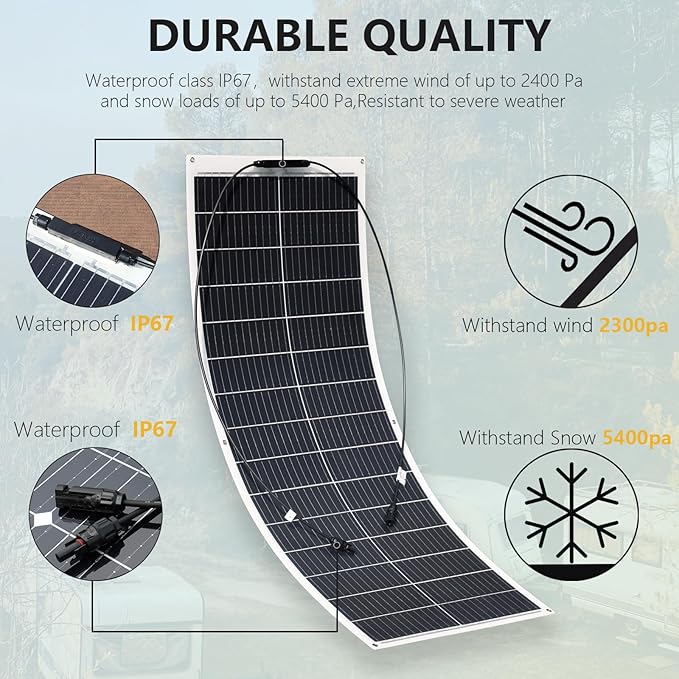

Junction Box Type：IP65

Length of Cables： 90cm

Cell Efficiency： > 23%

Standard Test Conditions：AM=1.5 1000mw/cm2 25 ℃

System voltage of battery 12V/24V/36V/48V automatic recognition;

Intelligent 4 stages PWM charging: Bulk, Absorption, Equalize, Float;

LCD display with Back-lighting shows device’s operating data and working condition; Humanized simple button operation;

Adjustable charge-discharge control parameters;

Support more kinds of battery: Lead-acid battery (Sealed, Gel, Flooded) and Lithium battery (LiCoMnNiO2, LiFePO4);

Multiple load control modes: 24Hours Working Control, Light Control, Light and Dual Time Control; Automatic temperature compensation and accumulated function of charge and discharge KWH;

Double USB output 5V/2A;

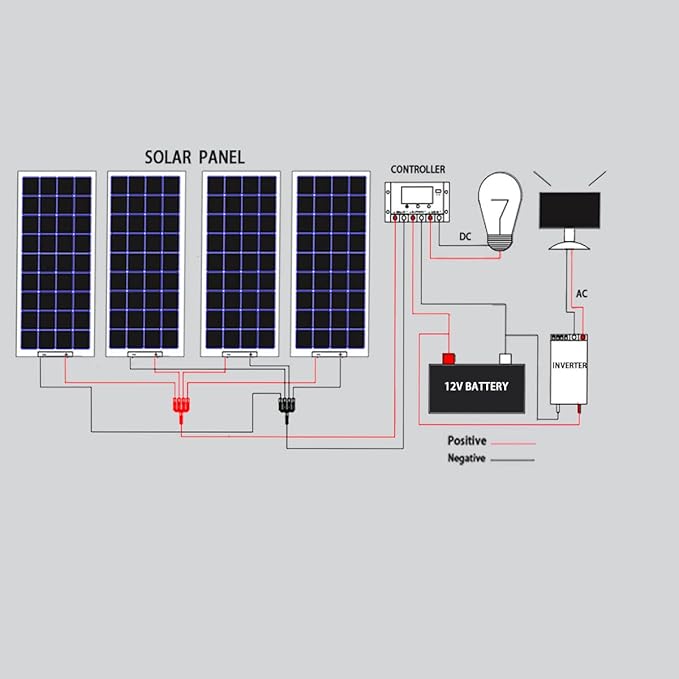

1. The solar kit connection is divided into parallel connection and serial connection. The controller must first connect the battery, and then connect the solar panels.

2. solar panels connected in series or in parallel, attention should be paid to the highest PV input voltage of the controller. The voltage connected in parallel to the controller after the series connection cannot exceed the maximum input voltage of the controller.

3. The total input power of the solar panel cannot be greater than the rated power of the controller, otherwise, there is a risk of burning the controller.

4. The cable is connected to each component, the connection should be stable and there should be no looseness.

5. The positive and negative poles of the controller and battery should be checked clearly. Do not reverse the positive and negative poles.

6. When the power rating of one controller is insufficient to meet all solar panels, multiple controllers can be simultaneously connected to the battery.
