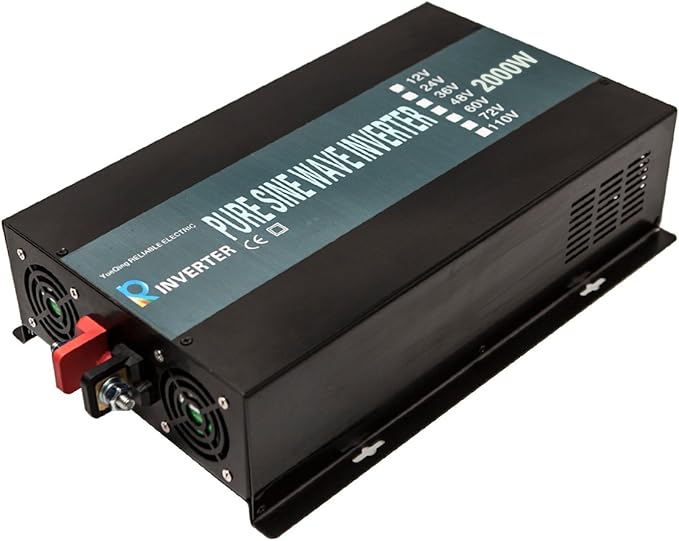

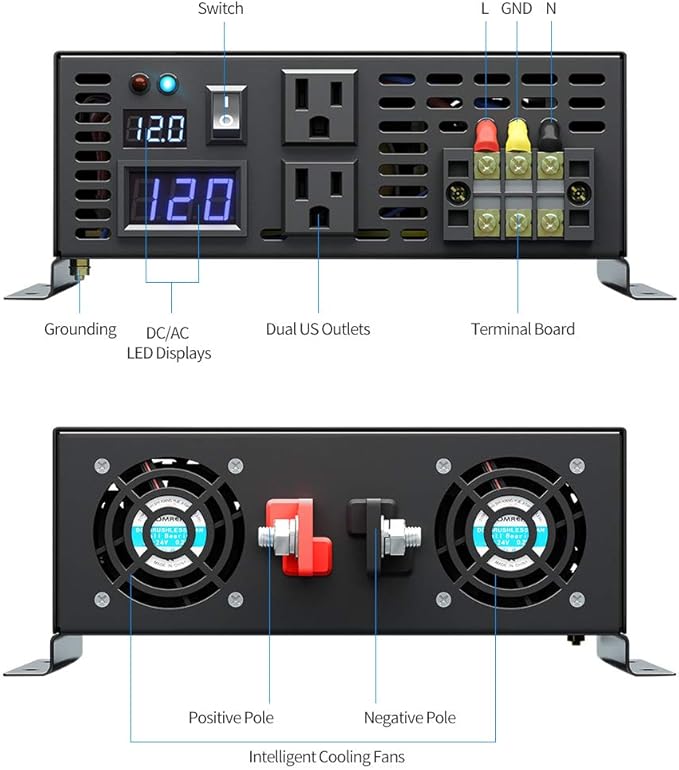

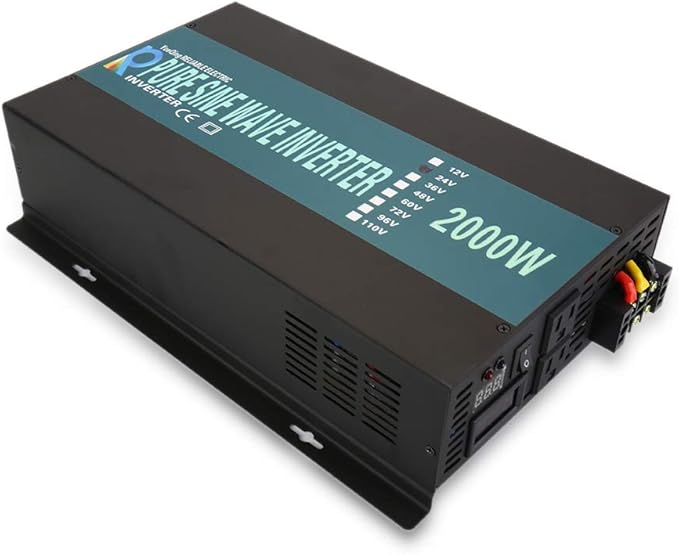

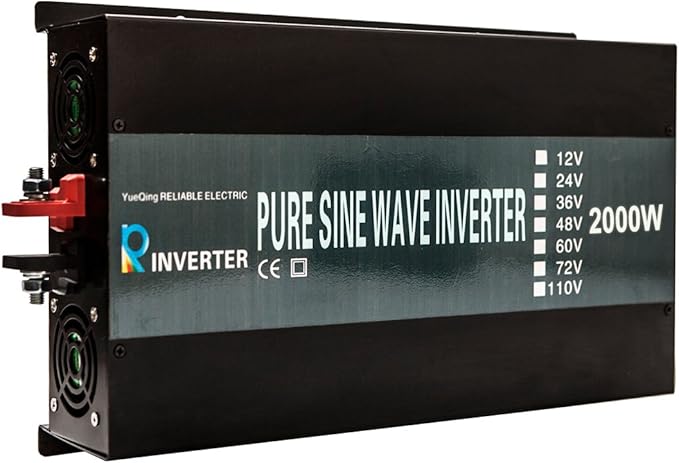

WZRELB Full Power Strong Capacity 2000W 12V Off Grid Pure Sine Wave Solar Power Inverter Black (RBP200012B1)

- Continuous power: 2000W surge power: 4000W input DC volt: 12VDC output AC volt: 120VAC wave form: pure sine wave frequency: 60Hz socket Type: USA socket and wiring Row - High quality pure copper inductance, filter the wave form, ensure the true pure sine wave AC output, safeguard your equipment. All big imported mosfets with strong driving capacity. - Over load cut off protection short circuit cut off protection extreme low volt cut off protection extreme high volt cut off protection over heat protection - Soft Start low volt buzz alarm high volt red light indication - The PCB thickness is 2.00mm, allow the stronger current floating on the circuit, increase the load capacity. High frequency transformer to transfer DC to AC, ensure the stable and full AC output. - Free and clean energy used as marine power inverter, vehicle power inverter and industrial power inverter and so on. Compact and portable for camping, road trip and ideal use in cars, vessels, and for power failure emergencies.

From the manufacturer

WZRELB 48VDC PURE SINE WAVE INVERTER

Specifications

FAQ-Quick Know WZRELB PURE SINE WAVE INVERTER

WZRELB is an original factory who aims to produce high quality products.

Q: What kind of the inverter is suitable for your appliances?

A: Pls know that load is divided into resistive load and inductive load .If you need the inverter to run the resistive load (like laptop, TV, electric cooker,LED light), please choose the inverter with continuous power higher than the appliance's rated power. And it is best to use 80% of the rated power. If you use microwaves,water pumps, air conditioners and other appliances with motors or compressors ,please choose the inverter whose continuous power is 3-7 times higher than your appliances.If you want to power up a refrigerator, we suggest you use 10 times higher power inverter

Q: Why the inverter can't be turned on ?

A: Pls fully charge the battery before installing the inverter . There are some large capacitors built into the inverter, so it may be in the low-voltage protection or even unable to turn on when the battery power is low

Q: Why does the inverter automatically shut down when running loads ?

A:1). Pls check if there is a fuse or breaker installed in your system .Generally,we recommend that a 62.5Amp fuse be installed between the inverter and the battery for the 2500watt 48volt dc version.

2). Pls check if use standard cables all . If 4 cables, please use them all, or the output will only be about a half.

Tip: There is a voltage drop between the battery and the inverter. The thinner and longer the cable, the greater the voltage drop

3). Pls check if the battery capacity is too small .When the DC LED reading drops while the load is running, it is likely that your battery capacity is too small to supply power to the load. Recommend connecting to a battery system ≥ 62.5AH for a 2500 watt 48vDC inverter.
