WZRELB 5000W 48V Pure Sine Wave Inverter48 Volt DC to AC 120V 240V Split Phase Power Inverter15ft LCD Remote Panel2*AC Hardwire Terminal10KW Surge

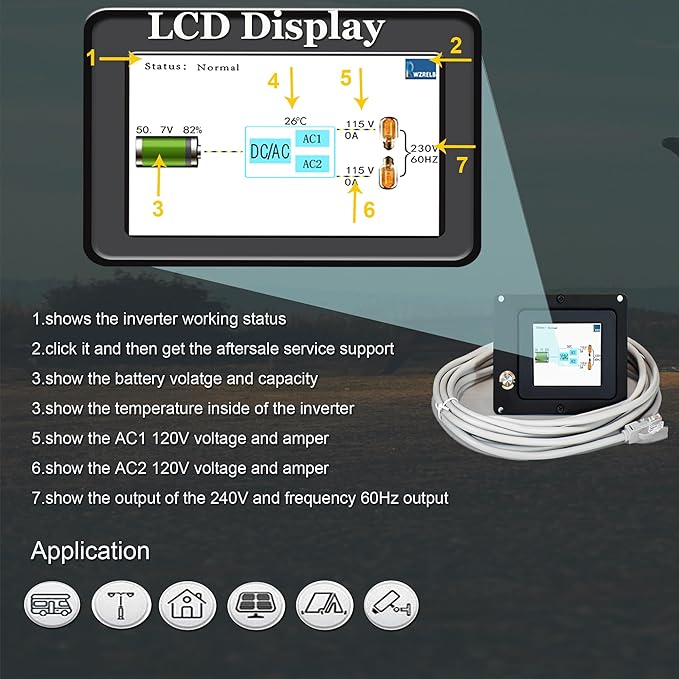

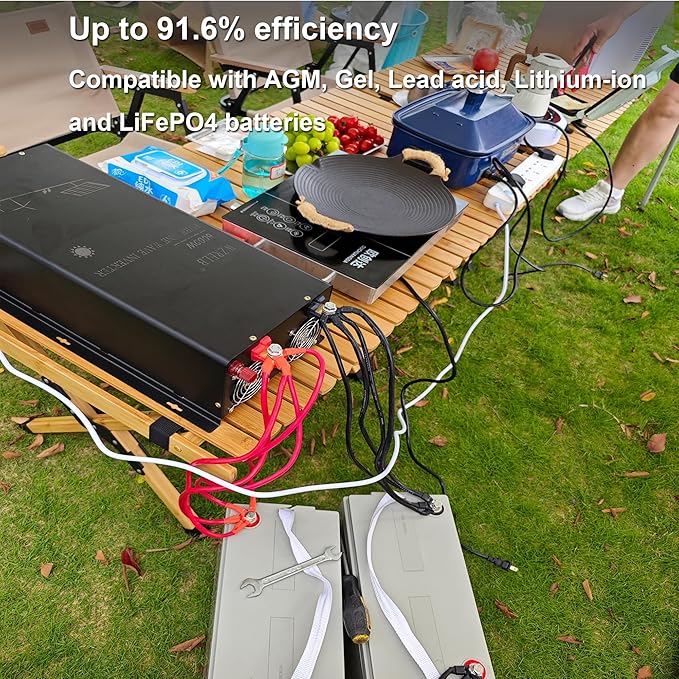

- POWERFUL: 5000 watts continuous, 10000 watts peak power, 48 volt DC to 120V 240V AC split phase true sine wave inverter, built-in soft starter, high frequency design with high surge capability to power demanding loads like air conditioner, refrigerator, power tools, and more - FEATURES: 2pcs dual 120V outlets with max 2500W each, 1*240VAC hardwire terminal(3-wire) with 5000W max (L+N=240V) and a hardwire terminal(4-wire) with Multi-mode (L1+L2=240V, L1+N=120V, L2+N=120V ),support 120VAC and 240VAC output at the same time,up to 91.6% efficiency - LCD DISPLAY & REMOTE CONTROLLER: Easily access to running parameters with battery status, working temperature, 120V 240V output voltage status,etc,Keep track of the working stutas in real time and 15ft remote control for distant operation without leaving your cozy zone - PROTECTIONS: Temperature-controlled cooling fan, low and high voltage alarmutdown,multi-protections against overload, short circuit, over temperature, high voltage, low voltage, internally fused, battery reverse etc - APPLICATIONS: a must for off-grid live and Power Failure Emergency , compatible with AGM, gel, flooded, lead-acid and lithium-ion batteries, , ideal for home, cabin, mobile business, RV, trailer, semi-truck, boat, and more

From the manufacturer

Inverter Specification

Professional & Reliable

FAQ-Quick Know WZRELB PURE SINE WAVE INVERTER

WZRELB 5000watts split phase pure sine wave power inverter 48V DC to 120V 240V AC provides household power on the go! Free and clean energy used as marine power inverter, vehicle power inverter and industrial power inverter and so on. Compact and portable for camping, road trip and ideal use in cars, vessels and for power failure emergencies and power back-up for home.

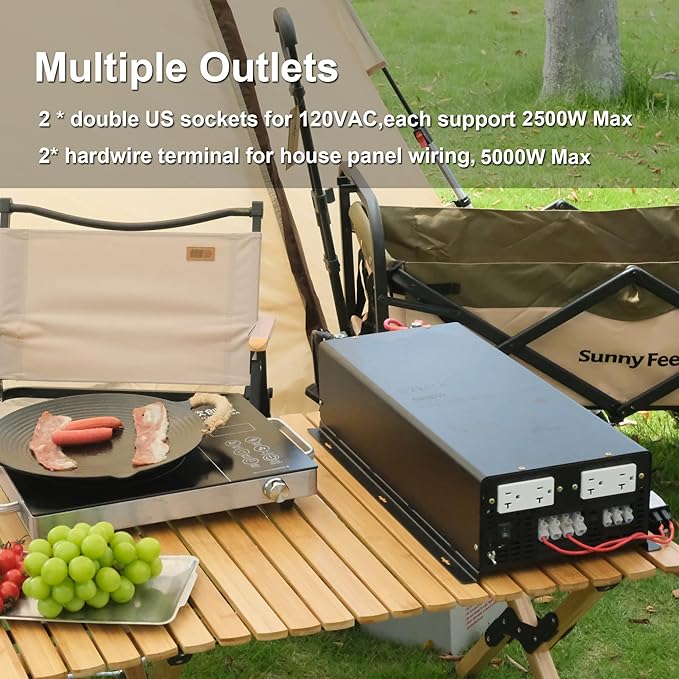

PURE SINE WAVE POWER INVERTER- 5000W Continuous power/10000W Peak power, 48V DC to 120V 240V AC with LCD displays for DC AC voltages. 4× US outlets ,2× hardwire terminal for output.

FULL SAFETY - Covered by over-voltage protection, low-voltage protection, overload protection, short-circuit protection, over-heat protection, polarity reverse protection& GND protection from leakage of electricity .

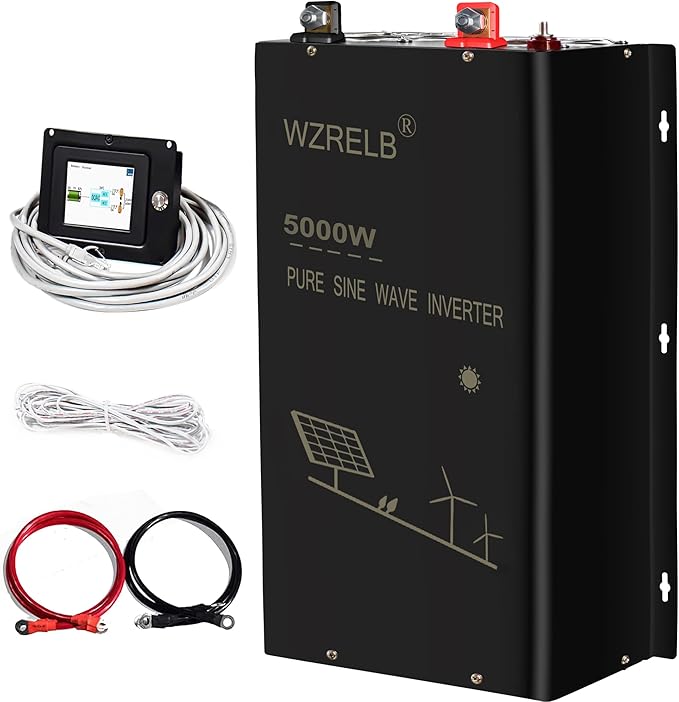

PACKAGE CONTENT - 1x 5000W Power Inverter ,1x remote controller,1x set of battery cables (5AWG),1xUser Manual,fuse

NOTE: Loads are divided into resistive loads and inductive loads.For some inductive loads, their instantaneous power in startup phase is 6-7 times ,or even 10 times bigger as it’s working power,so if use microwaves,water pumps, air conditioners and other appliances with motors or compressors ,please choose the inverter whose continuous power is 3-7 times higher than your appliances.If wanna to power up a refrigerator, we suggest you use 10 times higher power inverter

Q: Why the inverter can't be turned on ?

A: Fully charge the battery before installing the inverter . There are some large capacitors built into the inverter, so it may be in the low-voltage protection or even unable to turn on when the battery power is low

Q: Why does the inverter automatically shut down when running loads ?

A:1). Check if there is a fuse or breaker installed in your system .Generally,it is recommended that a 125Amp fuse is installed between the 5000W 48VDC inverter and the battery.

2). Check if use standard cables all . If 4 cables, please use them all, or the output will only be about a half. If use your own cables, make sure that the cable specification is larger than AWG 5, and if it exceeds 24 inch, thicken the cable .

Tip: There is a voltage drop between the battery and the inverter. The thinner and longer the cable, the greater the voltage drop

3). Check the battery capacity .When the DC LED reading drops while the load is running, it is likely that your battery capacity is too small to supply power to the load. Recommend connecting to a battery system ≥ 125AH for a 5000 watt 48VDC inverter.

1.AC1 120V output with 2500W Max

2.AC2 120V output with 2500W Max

3.ON/OFF switch

4.Ground wire connector

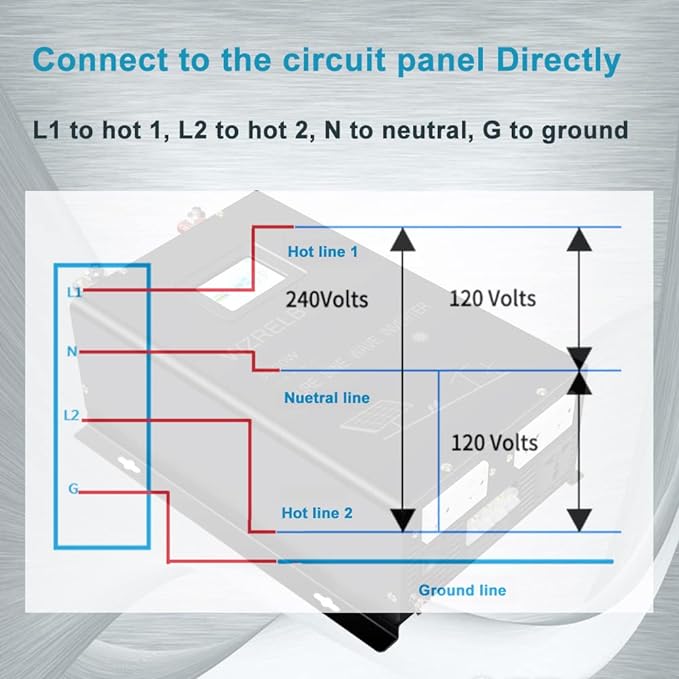

5.Hardwire terminal for AC output: L1 for live, N for neutral, L2 for live, G for ground

6. Hardwire terminal(3-wire): L for live, N for neutral, G for ground , L+N=240Vac ( 5000W Max)

Continuous Output Power: 5,000 Watts

AC Output: 120/240V (60Hz)

L1+N=120Vac ( 2500W Max)

L2+N=120Vac ( 2500W Max)

L1+L2=240Vac (5,000W Max)

Note: 120VAC and 240VAC can be used simultaneously！

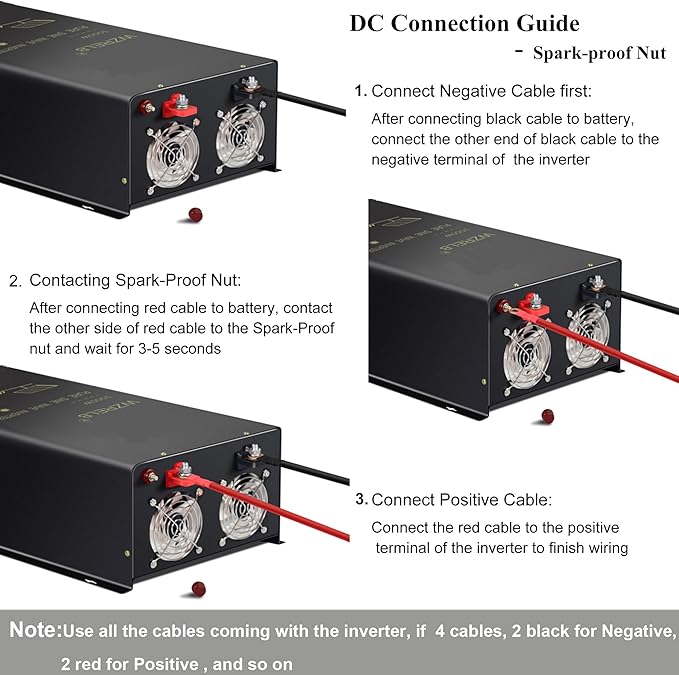

Red binding post for positive, black binding post for the negative

Use the cable we send in the package to connect the battery and inverter, otherwise, the full output power will not be guaranteed
