WZRELB 3500W 36V Pure Sine Wave Inverter36 Volt DC to AC 120V 240V Split Phase Power Inverter 7KW Surge5 AC OutletsAC Hardwire Terminal16.6ft LCD Remote Panel

- POWERFUL: 3500 watts continuous, 7000 watts peak power, 36 volt DC to 120V 240V AC split phase true sine wave off grid inverter, built-in soft starter, high frequency design with high surge capability to power demanding loads like air conditioner, refrigerator, power tools, and more - FEATURES: 2pcs dual 120V outlets with max 1750W each, 1* heavy-duty 240VAC Universal plug with 3500W max and a hardwire terminal(4-wire) with Multi-mode (L1+L2=240V, L1+N=120V, L2+N=120V ),support 120VAC and 240VAC output at the same time,up to 91.6% efficiency - LCD DISPLAY & REMOTE CONTROLLER: Easily access to running parameters with battery status, working temperature, 120V 240V output voltage status,etc,Keep track of the working stutas in real time and 16.6ft remote control for distant operation without leaving your cozy zone - PROTECTIONS: Temperature-controlled cooling fan, low and high voltage alarmutdown,multi-protections against overload, short circuit, over temperature, high voltage, low voltage, internally fused, battery reverse etc - APPLICATIONS: a must for off-grid live and Power Failure Emergency , compatible with AGM, gel, flooded, lead-acid and lithium-ion batteries, , ideal for home, cabin, mobile business, RV, trailer, semi-truck, boat, and more

From the manufacturer

Inverter Specification

Professional & Reliable

WZRELB 3500watts spilit phase pure sine wave power inverter 36V DC to 120V 240V AC provides household power on the go! Free and clean energy used as marine power inverter, vehicle power inverter and industrial power inverter and so on. Compact and portable for camping, road trip and ideal use in cars, vessels and for power FAILURE emergencies and power back-up for home.

PURE SINE WAVE POWER INVERTER- 3500W Continuous power/7000W Peak power, 36V DC to 120V 240V AC with LCD displays for DC AC voltages. 4× US outlets ,a Universal scokts and a hardwire terminal for output.

FULL SAFETY - Covered by over-voltage protection, low-voltage protection, overload protection, short-circuit protection, over-heat protection, polarity reverse protection& GND protection from leakage of electricity (lightning stroke).

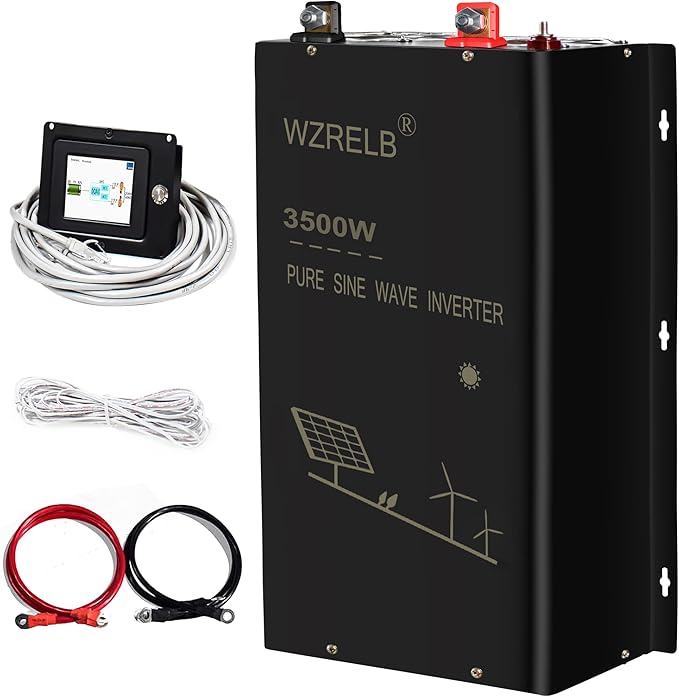

PACKAGE CONTENT - 1x 3500W Power Inverter ,1x remote controller,1x set of battery cables (7AWG),1xUser Manual,fuse

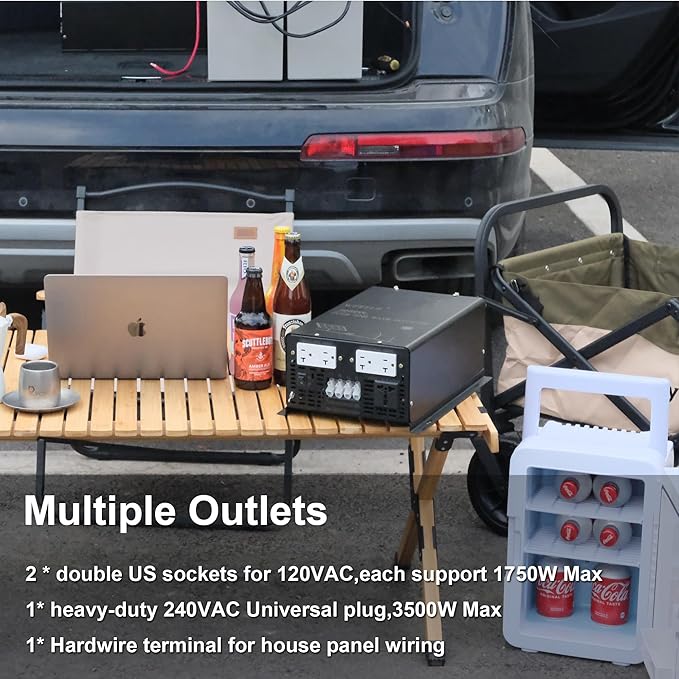

1.AC1 120V output with 1750W Max

2.AC2 120V output with 1750W Max

3.ON/OFF switch

4.Ground wire connector

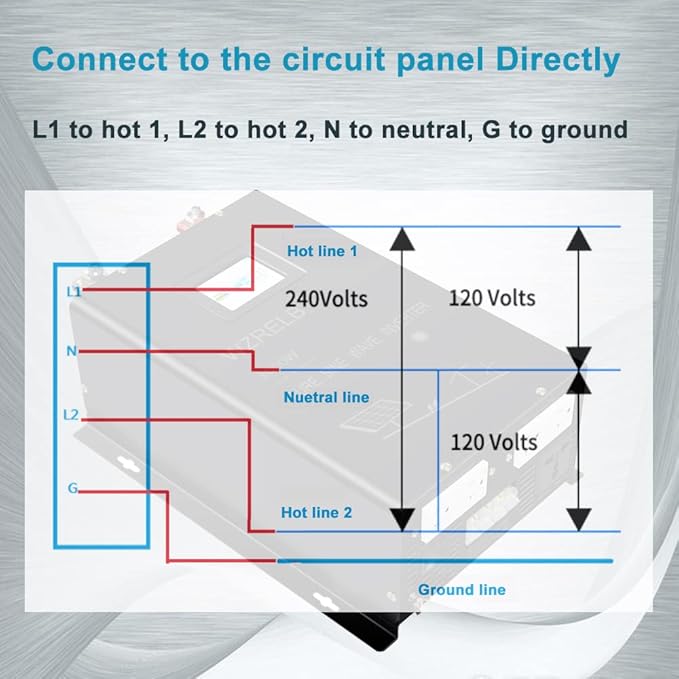

5.Hardwire terminal for AC output: L1 for live, N for neutral, L2 for live, G for ground

6. Universal Scoket for 240VAC output,3500W MAX

Continuous Output Power: 3500 Watts

AC Output: Pure Sine 120/240V (60Hz)

L1+N=120Vac ( 1750W Max)

L2+N=120Vac ( 1750W Max)

L1+L2=240Vac (3500W Max)

Note: 120VAC and 240VAC can be used simultaneously！

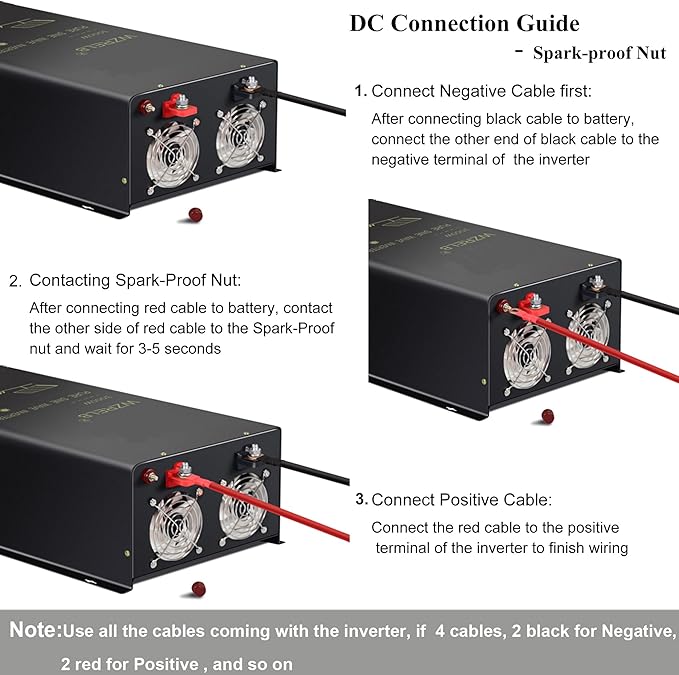

Red binding post for positive, black binding post for the negative

Use the cable we send in the package to connect the battery and inverter, otherwise, the full output power will not be guaranteed
