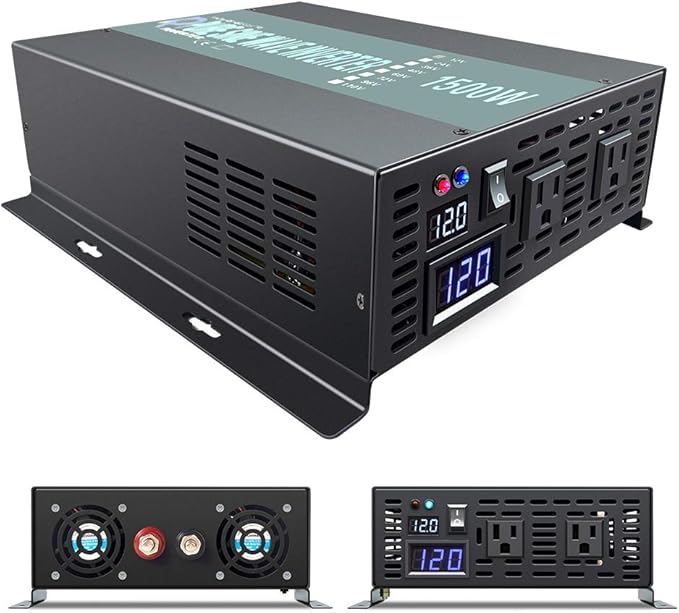

WZRELB 1500W Continuous Pure Sine Wave Inverter DC 12V to AC 120V Car Power Inverter with Dual AC Outlets
WZRELB 1500W Continuous Pure Sine Wave Inverter DC 12V to AC 120V Car Power Inverter with Dual AC Outlets

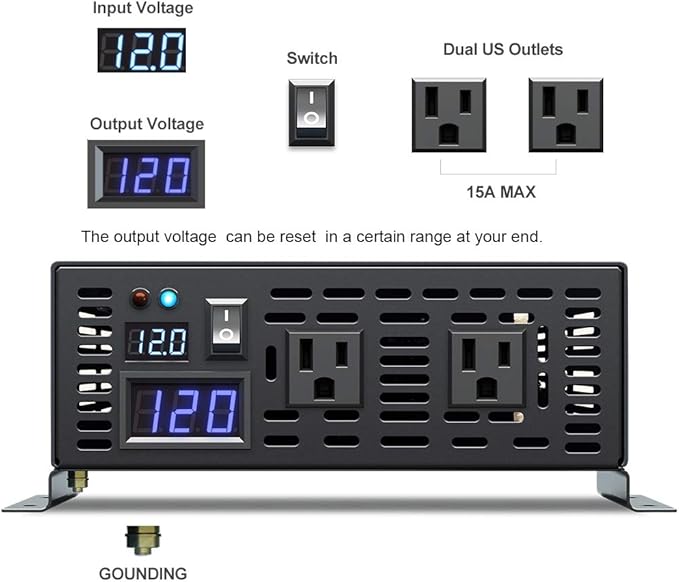

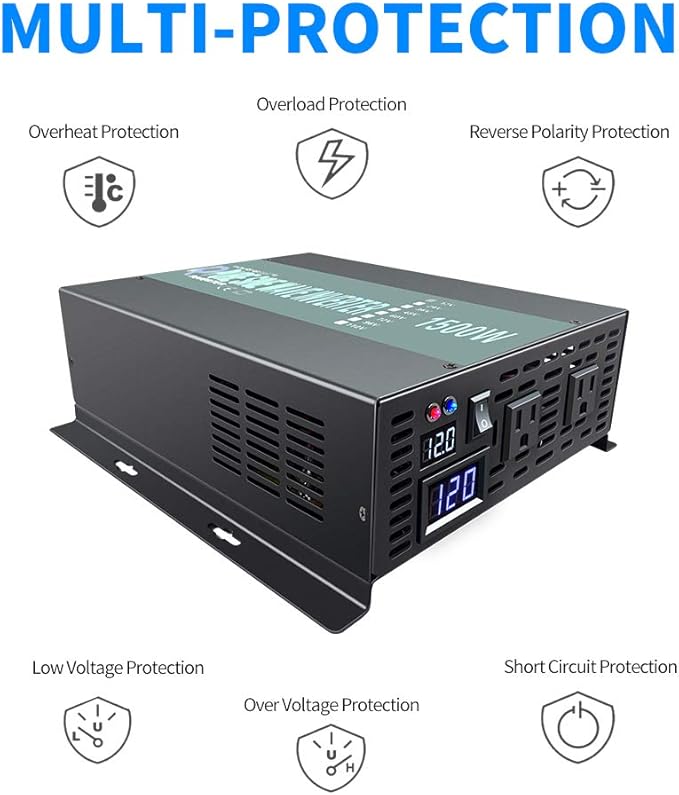

- WZRELB 1500W 12V DC to 120V AC pure sine wave inverter generator, as good as Grid power, 1500W continuous power, with LED displays for DC AC voltages. Dual us outlets.During use, due to the influence of the load, the output voltage may be too high or too low. Please kindly know that the output voltage can be reset in a certain range at your end. If necessary, please contact us for adjustment. - Fully safety protections: over voltage, low voltage, overload, short circuit, over heat, polarity reverse protection(fuse), ground protection from leakage of electricity. - Build-in intelligent cooling fan works according to temp and not load. Prolongs battery life. It is fairly quiet and only cycles on when the temp is over 50 degree Celsius. - Monitor power usage with no effort -- LED Display for both DC volt and AC volt which makes the power usage clear for users. - High quality pure copper inductance, filter the wave form, ensure the true pure sine wave AC output, safeguard your equipment. All big imported mosfets with strong driving capacity. - During use, due to the influence of the load, the output voltage may be too high or too low.Pls kindly known that the output voltage can be reset in a certain range at your end. Refer to the PDF attached below in Product guides and documents for manual
From the manufacturer
Power Inverter for Off-Grid System

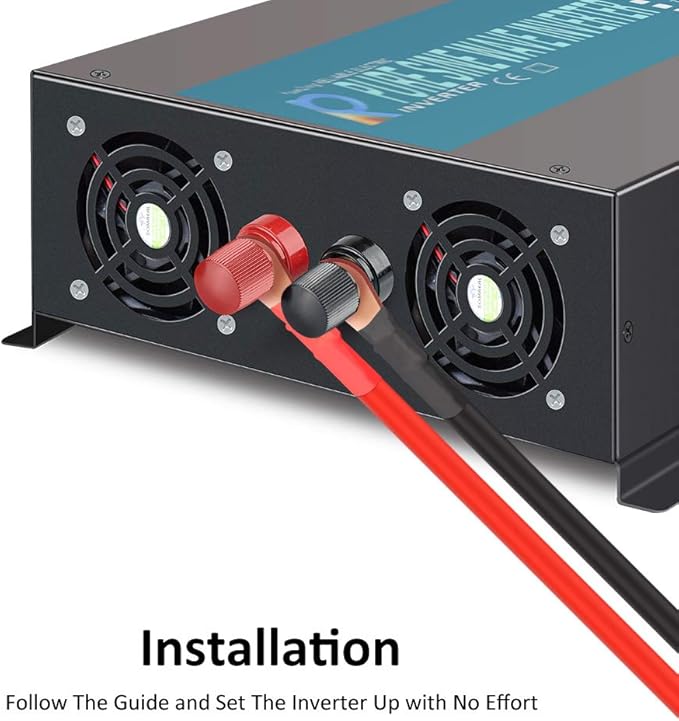

Installation Guide
Please check the table below for the max carrying capacity of each inverter for different appliances
Input: 12VDC Output: 120VAC Frequency: 60Hz
DC input range: 10V-15V
Low Voltage Alarm:9.5V-10.5V
Low Voltage Shut Down: 9V-10V
Over Load: shut off, recover manually
Over Voltage Shut Down:15.5V
Socket:15a USA type
No Load Current Draw: <15W
Efficiency:85%-90%
AC Regulation:3%
Over Thermal: Shut Off Output Automatically, Over voltage protection

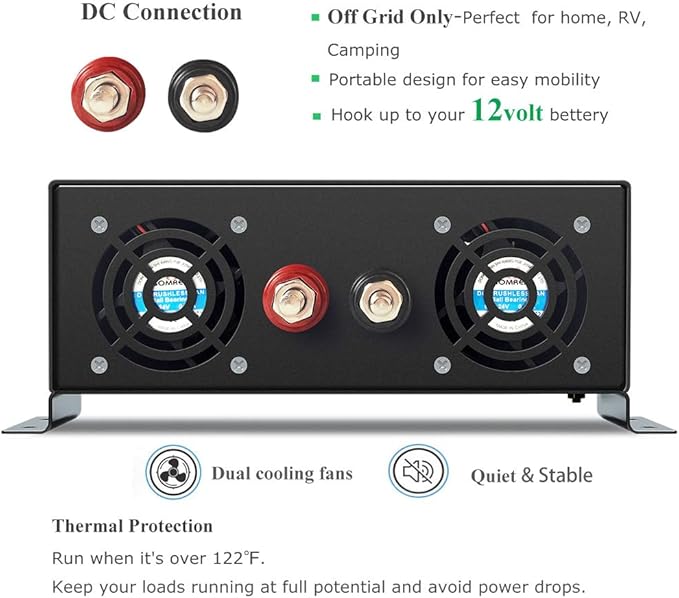

Cooling Ways: Cooling Fan will run when the temperature is over 50 degree
FAQ FOR WZRELB PURE SINE WAVE INVERTER
Q: What kind of the inverter is suitable for your appliances?
A: Pls know that load is divided into resistive load and inductive load .If you need the inverter to run the resistive load (like laptop, TV, electric cooker,LED light), please choose the inverter with continuous power higher than the appliance's rated power. And it is best to use 80% of the rated power. If you use microwaves,water pumps, air conditioners and other appliances with motors or compressors ,please choose the inverter whose continuous power is 3-7 times higher than your appliances.If you want to power up a fridge, we suggest you use 10 times higher power inverter
Q: Why the inverter can't be turned on ?
A: Pls fully charge the battery before installing the inverter . There are some large capacitors built into the inverter, so it may be in the low-voltage protection or even unable to turn on when the battery power is low
Q: Why does the inverter automatically shut down when running loads ?
A:1). Pls check if there is a fuse or breaker installed in your system Generally,we recommend that a 150Amp fuse be installed between the inverter and the battery for the 1500watt 12volt dc version.
2). Pls check if use standard cables all .If you use your own cable, please make sure that the cable specification is larger than AWG 7, and if the length exceeds 24inch, please thicken the cable .
Note that there is a voltage drop between the battery and the inverter. The thinner and longer the cable, the greater the voltage drop
3). Pls check if the battery capacity is too small .When the DC LED reading drops while the load is running, it is likely that your battery capacity is too small to supply power to the load. Please try to add other batteries to your previous battery system.
WZRELB is an original factory who aims to produce high quality products.
Extra-Thick PCB Board of 2.0mm is applied to increase the load capacity.
High-Quality Copper Inductances ensure the pure sine electronic wave of AC output and safeguard your equipment.
High Frequency Transformer transfers DC to AC, which ensures a stable and full AC output.
Load is divided into resistive load and inductive load .If you need the inverter to run the resistive load (like laptop, TV, electric cooker,LED light), please choose the inverter with continuous power higher than the appliance's rated power. If you use microwave,Water pump, air conditioners and other appliances with motors or compressors ,please choose the inverter whose continuous power is 3-7 times higher than your appliances.If you want to power up a refrigerator, we suggest you use 10 times higher power inverter
