SUNGOLDPOWER UL1741 3000W Solar Inverter 24Vdc to 120Vac All in One Inverter 60A MPPT(MPPT Voltage Range:30-90Vdc) and 40A AC Battery Charger Pure Sine Wave for Off Grid System

- 【All in One Solar Inverter】：SUNGOLDPOWER 3000W DC 24V hybrid solar inverter combined with 60A MPPT solar charger (MPPT voltage range:30-90Vdc) and 40A AC battery charger.You can enjoy stable power from the sun and the utility grid to keep your appliances powered under any circumstances - 【Charging different batteries】：3KW solar inverter can charge 24Volt AGM/Sealed,Gel,Flooded,Lithium batteries and a User Mode for custom inputs to work with virtually all battery types. Lithium battery activation by PV solar or mains,allowing access of lead-acid battery and lithium battery;Maximum AC charge current(can be set)0-40A,DC charge voltage range 20-30Vdc - 【Characters】:SUNGOLDPOWER 3000W Inverter SPH302460A provides:four charging modes: AC Priority, Solar Priority ,Only Solar and Mains & Solar hybrid charging;Designed with LCD/LED dynamic display of system data and operating status. Three output modes: mains priority,PV priority ,inverter output, uninterrupted power supply,optional WiFi/GPRS remote monitoring(extra cost） - 【Uninterruptible Power Supply】: If main/generator disconnected or the solar charging insufficient, the Inverter Charger takes over the battery supply to the alternative option within 10ms, which will not let your electronics shut down - 【What you get】: UL1741 3000 Watt 24V Solar Inverter SPH302460A (MPPT Voltage range:30-90V) 1set;SUNGOLDPOWER is professional manufacturer in inverter business for over 10 years, customer services of Sungoldpower inverter are in USA,warranty time 24 months, lifetime technical support

Product description

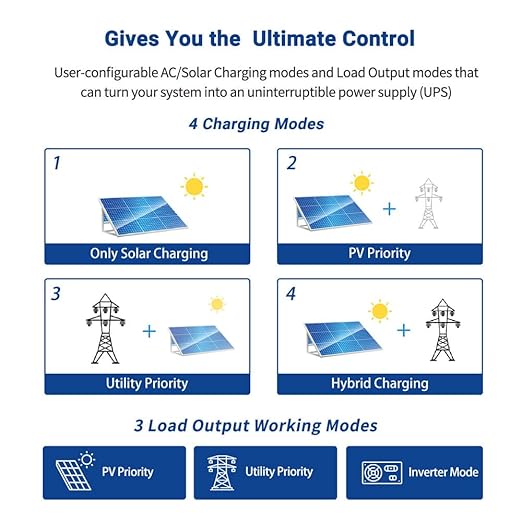

Three Output Modes:

Warnings:

PV priority mode:

Switch to mains supply when the PV charging fails. This mode maximizes the use of solar energy while maintaining battery power, suitable for use in the areas with relatively stable grid.

Mains priority mode:Switch to inverter only when the mains fails (when there was mains power, switch to mains power for charging and power supply). Then, the unit is equivalent to a backup UPS, suitable for areas with unstable grid. Switching does not affect PV charging.

Inverter priority mode:

Switch to mains supply only when the battery discharge under voltage is lower than the set point (item 04). When the charging battery is higher than the set point of (05 setting item), switch to the battery discharge mode. This can cycle the battery charge and discharge. This mode maximizes the use of DC power and is used in the area with stable grid. Switching does not affect PV charging.
