Stanbroil 60 by 6-Inch Linear Trough Drop-in Fire Pit Pan and Burner 304 Stainless Steel Large Fire Pit for Natural Gas & Propane BTU 108000 Max

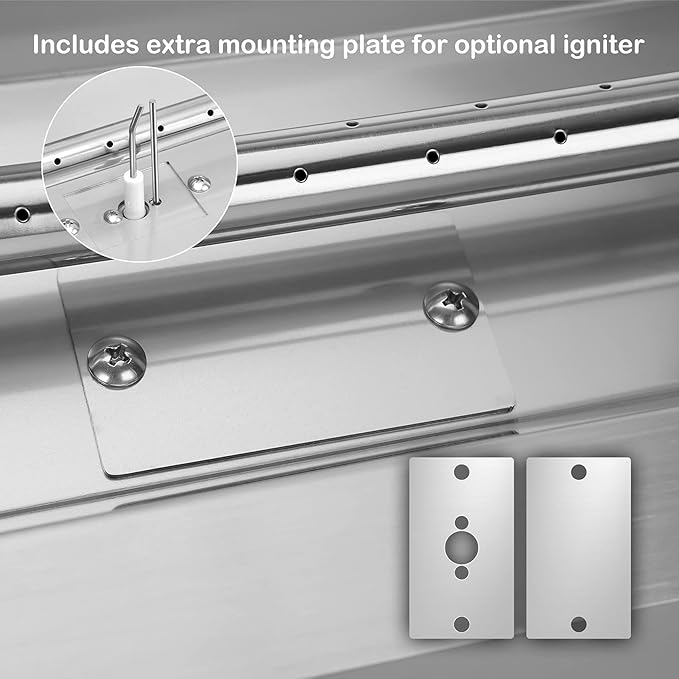

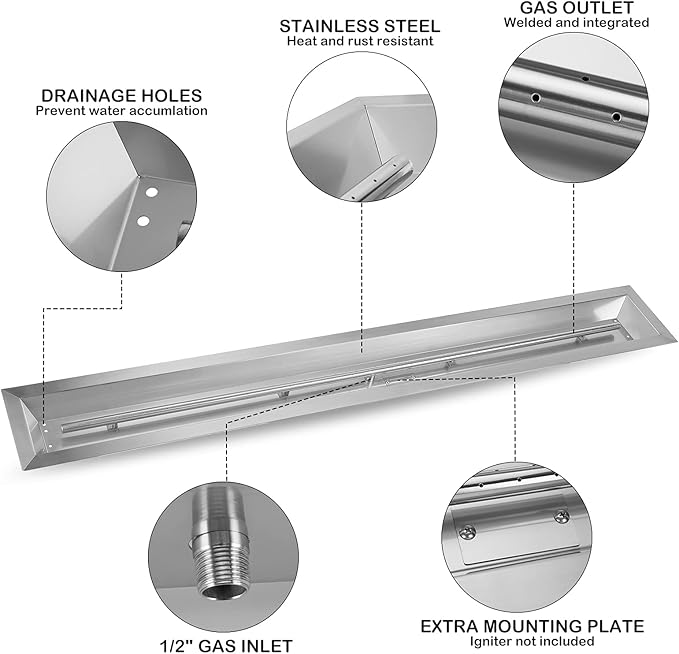

- Dimension: 60" x 6"-inch Rectangular Bowl Drop-In Fire Pit Pan - Material: Fire Pit Pans are made from 100% Stainless Steel #304 with a 1 1/4" top flange - Design: Welded Linear Burner, male 1/2 Inch Gas Inlet, 108,000 BTU/Hour rating maximum - Applicability: Natural Gas; Propane (LP) - Package Contents: 56" Linear Burner; 60"x 6" Pan, Includes extra mounting plate for optional igniter (igniter not included)

Product description

Stanbroil Fire Pit Burner Pans Come in Various Shapes & Sizes to Suit Any Type of Fire Pit

Planning & Design

CALCULATE THE AMOUNT OF FIRE GLASS NEEDED FOR YOUR FIRE PIT

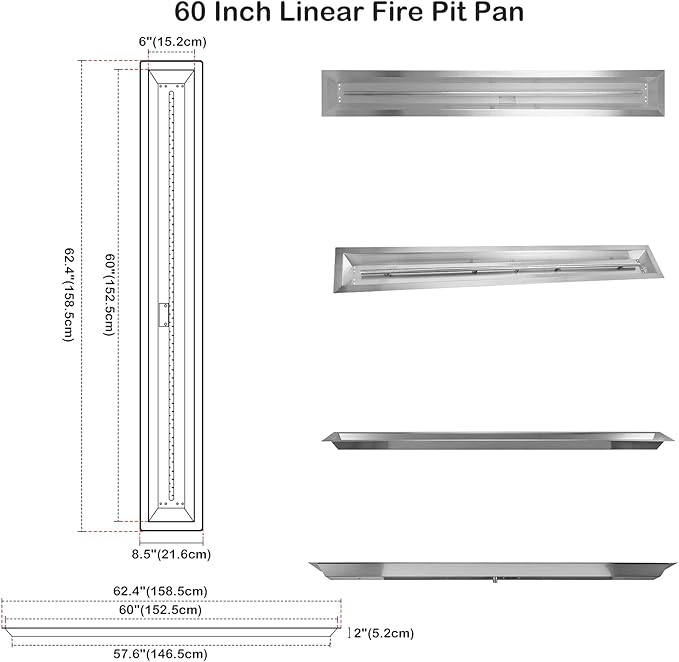

Stanbroil Stainless Steel Drop-in Fire Pit Burner Pan Drop-In Fire Pit Pans are the quickest and most economical way to build a fire pit. Create the feeling of a world class resort in your own back yard with this Fire Pit Burner. Enjoy the dancing warmth of a dramatic and luminous campfire flame while gathering around your fire pit with family and friends. To install this burner pan, you simply drop it into your fire feature’s opening, where it will rest against a built in or added ledge. Once installed, your fire media will rest on the pan to be easily visible. By having the pan at the top of the fire feature, the space below is left empty, which greatly improves air flow. This is especially helpful for propane fueled fires, which require oxygen to keep their flames burning. This empty space also means less spending for you, as you are not required to use fillers, such as sand or lava rock, to ensure your beautiful fire media rests at the top of your fire feature where it can best be seen. Dimensions: Pan opening: 60" x 6" Pan Lip: 1.2" Pan depth: 2" 56" Linear Burner Available in natural gas or propane gas Come with built-in weep holes to prevent water accumulation

Our selections include: Round Flat Pans/Round Drop-In Pans Rectangular Flat Pans/Drop-In Pans Linear Drop-In Pans Our size includes: Round: 13*13 inch/ 19*19 inch/ 25*25 inch/ 31*31 inch Rectangular: 24*8 inch/ 30*10 inch/ 36*12 inch/ 48*14 inch Linear: 30*6 inch/ 36*6 inch/ 48*6 inch/ 60*6 inch/ 72*6 inch

Calculator for Circular or Rounded Fire Pits or Fire Bowls Diameter X Diameter X Depth, divided by 24 = pounds of fire glass needed. We recommend a minimum 2” of fire glass depth for most installations. For example, a 25" diameter fire pit at the recommended 2” of fire glass depth: 25 X 25 X 2, divided by 24 = 52 lbs. Calculator for Square or Rectangle Fire Pit Width X Length X Depth, divided by 19 = pounds of fire glass needed. We recommend a minimum 2” of fire glass depth for most installations. For example, a 48" X 14" fire pit at the recommended 2” of fire glass depth: 48 X 14 X 2, divided by 19 = 70 lbs.

Lounge Fire Pit

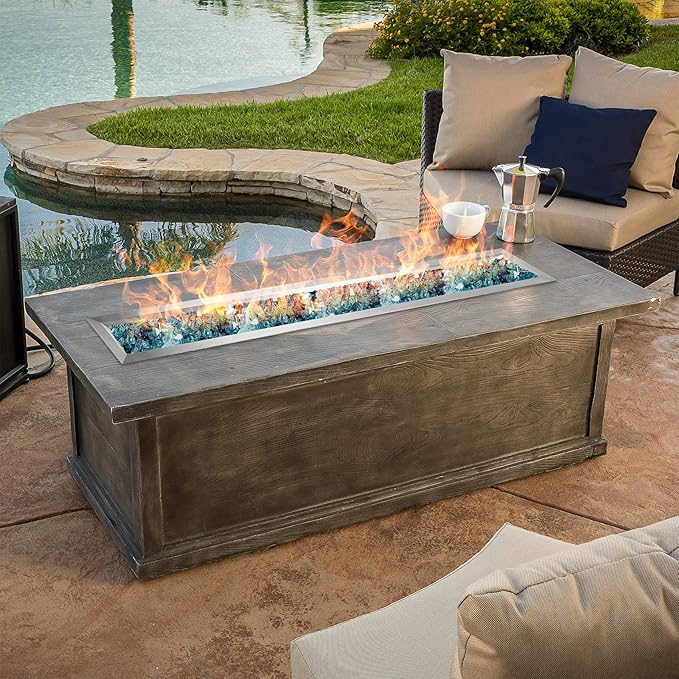

Fire Pit next to Pool

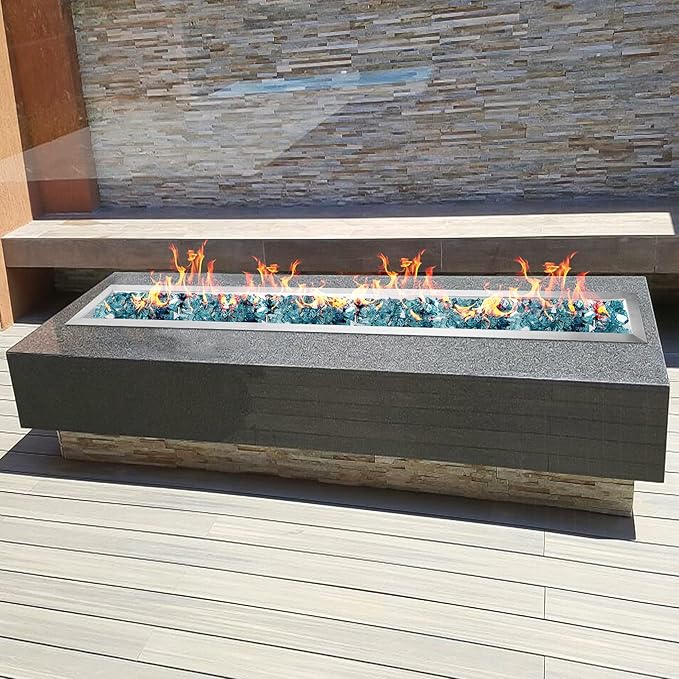

Back Yard Fire Pit
