Solar 4 String PV Combiner Box with Lightning Arreste 15A Rated Current Fuse and 2P 63A Circuit Breakers for On/Off Grid Solar Panel System (4 String PV Combiner Box)

- With 15A fuse and lighting arreste,lighting protection,reverse-current protecting,rain proof - With longpo PV Combiner Box, each photovoltaic does not exceed 15A/250Vdc. Up to 720W in 12V system, 1440W in 24V system, 2880W in 48V system. The solar combiner box works with photovoltaic grid-connected and off-grid power generation systems. Compatible with any brand of solar panel and solar connector. - Easy installation, with mounting buckle, no key needed to open and close the box, very easy to use. Suit for any regular surface - Easy, fast and safe wiring for residential and commercial photovoltaic grid-connected and off-grid power generation systems. Each panel have its own fused connection which provide over-voltage and over-current protection. - The high-voltage lightning arrester prodive lighting surge protection for both positive and negative poles. - The circuit breaker protect the circuit from short circuit - Quick connect/disconnect made it easy to work with panels and get them back in service

Product description

Product Description

Upgraded Design

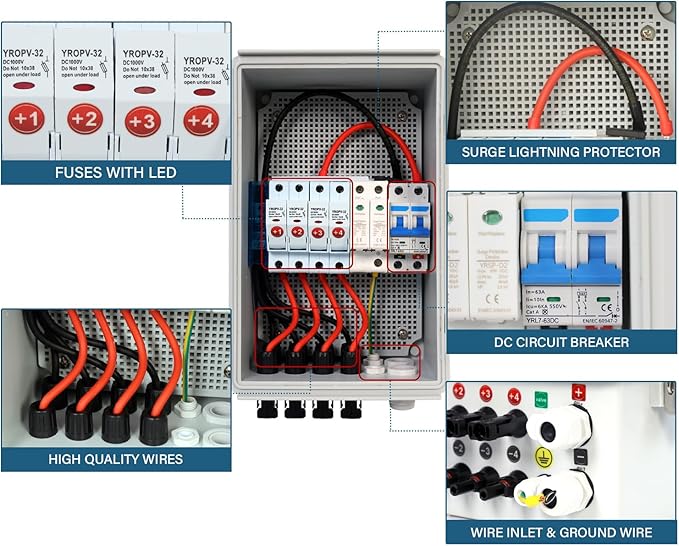

Upgraded designed with Led light on each fuse, the light would be off if the fuse works. It is easy to tell if the fuse works or not with a glance which sets your mind at ease.

Easy, fast and safe wiring for residential and commercial photovoltaic grid-connected and off-grid power generation systems.

Each panel have its own fused connection which provide over-voltage and over-current protection.

The high-voltage lightning arrester prodive lighting surge protection for both positive and negative poles.

The circuit breaker protect the circuit from short circuit

Quick connect/disconnect made it easy to work with panels and get them back in service

Specification

Number of Max PV array: 4

Max Input Current of Single PV Array: 15A

Max Input Voltage of single PV array: 250V

Total input current of PV array: 60A

Max Output Voltage: 250V

Waterproof Grade: IP65

Operational Environment Temperature: -30℃~+70℃

Relative Humidity: 0-95%

Surge Lightning Protection: Yes
