Renogy ShadowFlux Solar Panels N-Type Anti-Shading Panels for 12V/24V Systems with 25% High-Efficiency PV Modules 200W 4-Pack ShadowFlux N-Type Panels

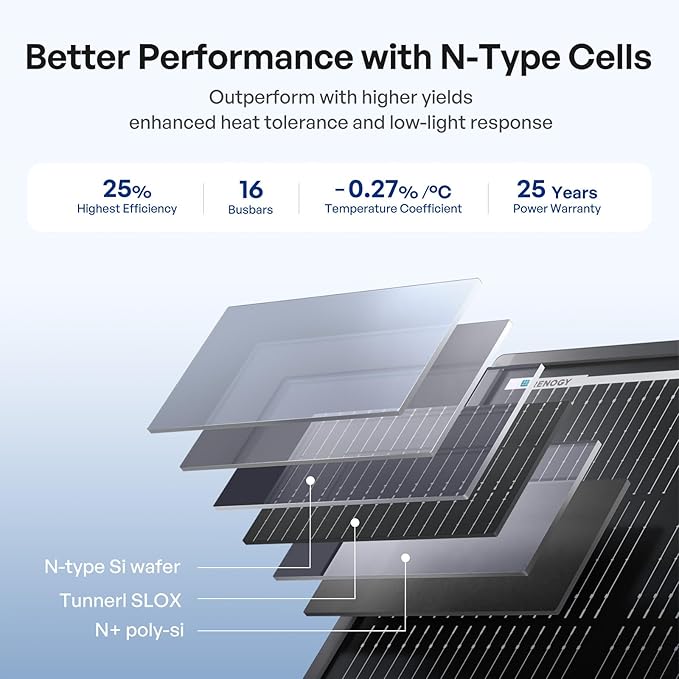

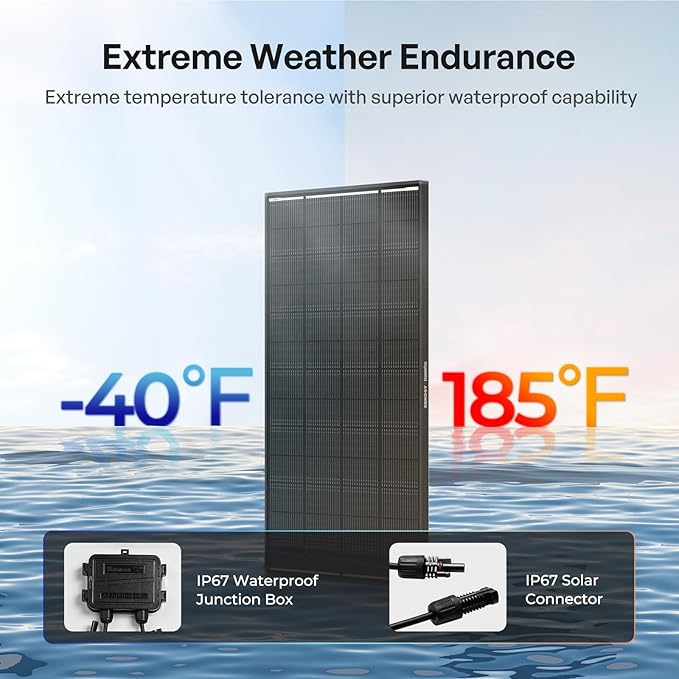

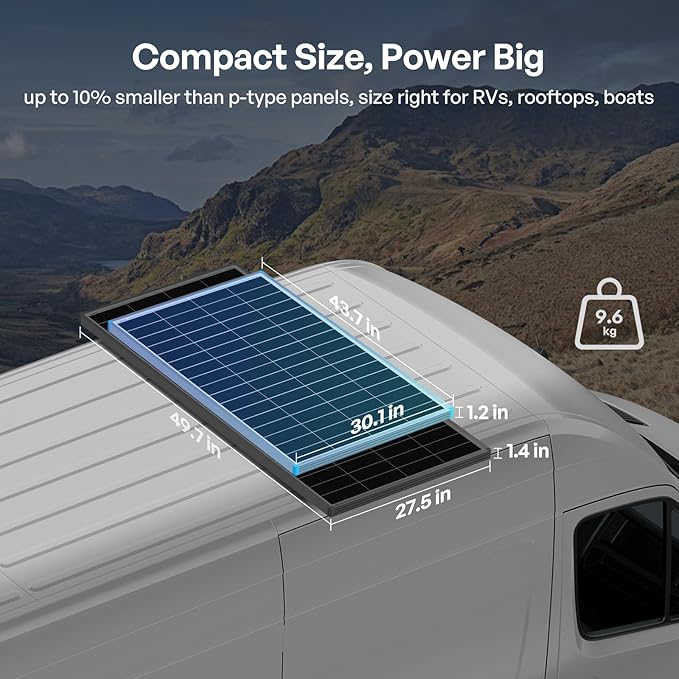

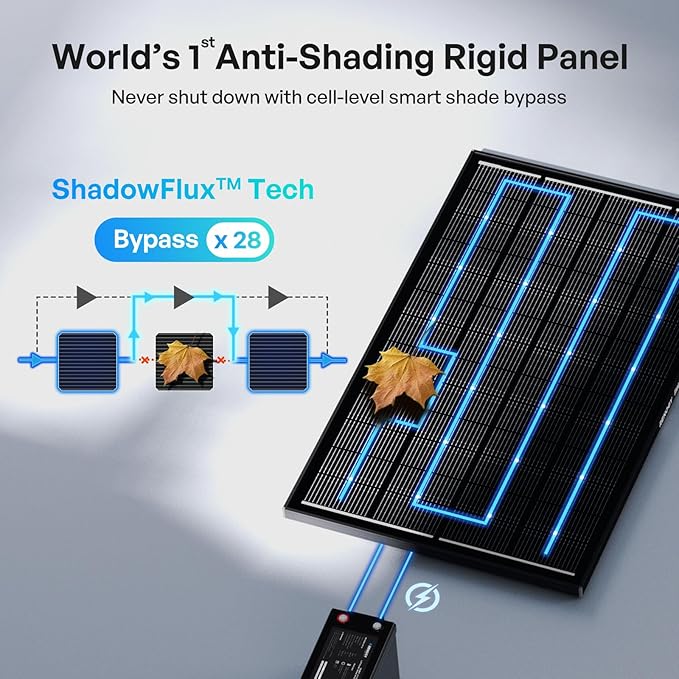

- ShadowFlux Anti-Shading Technology - Renogy shadowflux technology delivers enhanced power generation even in shaded areas caused by buildings, plants, or stains. This 400w solar panel innovative shadowflux anti-shading tech significantly reduces hot-spot risks, ensuring reliable power output and peace of mind. - Unmatched Cell Efficiency - Featuring advanced N-Type solar cells with 16BB technology, renogy shadowflux solar panels achieve 25% efficiency. The 800 watt solar panel enhances photoelectric conversion while reducing hot spots and micro-cracks, ensuring longer lifespan and superior performance. - Compact and Lightweight Design - Renogy 200 watt solar panels are 7% smaller and 10% more compact than PERC solar panels, making it an ideal choice for space-saving applications. - Superior Environmental Endurance - With an ≥ IP67 rating, renogy solar panels are built to endure extreme weather conditions, from snow and rain to small hail. Its advanced encapsulation material enhances water vapor resistance, providing long-term durability. - Long-Term Reliability - The 4PCS shadowflux solar panels 200 watt is backed by a 5-year on materials and craftsmanship, complemented by a 25-year output ensuring 80% power output.

Product description

Specifications

Is ShadowFlux designed for a 12V or 24V system?

What kind of charge controller do I need for ShadowFlux?

How ShadowFlux outperforms under real-world shadows?

What kinds of shading is ShadowFlux designed for?

What do I need to complete my off-grid solar power system?

Which Solar Panel Is Right for You?

Is ShadowFlux designed for a 12V or 24V system?

ShadowFlux features a high open-circuit voltage of 36.5V and is compatible with both 12V and 24V battery systems. However, in partially shaded conditions(from trees, debris, or boat masts), a 12V system provides much better stability and reliability.

What kind of charge controller do I need for ShadowFlux?

Use an MPPT charge controller for best performance. MPPTs are more efficient and use full panel voltage even in low light. Some PWM controllers may fail, so MPPT is safer.

Recommended specs:

Max Input Voltage: ≥ 50V

Charging Current: > 10A

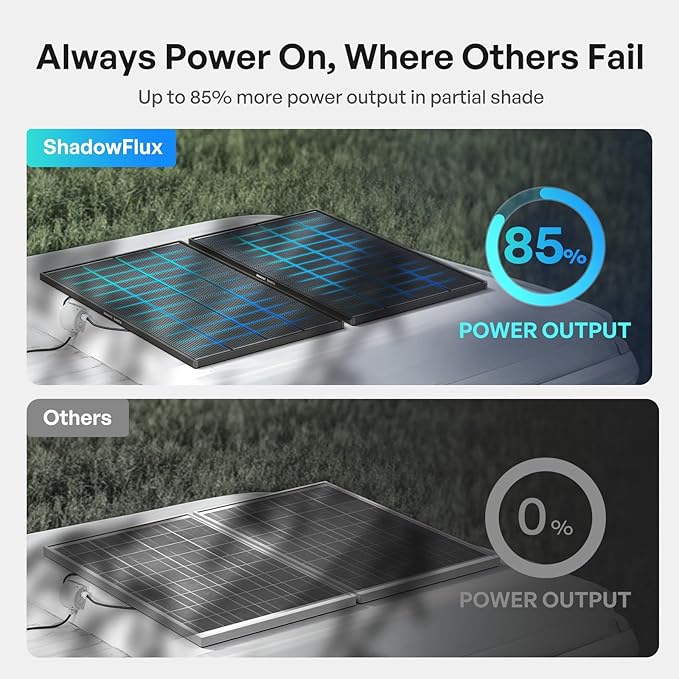

How ShadowFlux outperforms under real-world shadows?

Traditional solar panels can lose all power from just one shaded cell. ShadowFlux is built to handle real-world shadows, keeping you generating when others can’t. It delivers much higher output with far less power loss under the same shading.

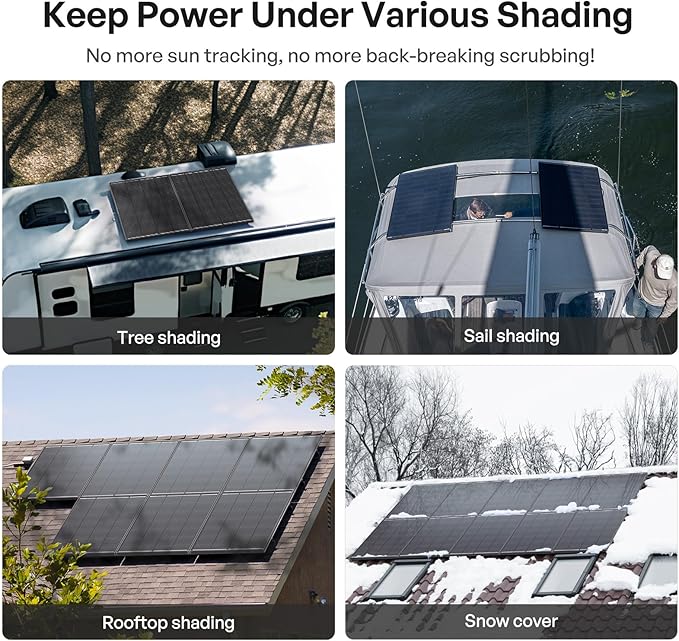

What kinds of shading is ShadowFlux designed for?

ShadowFlux’s advanced cell tech cuts power loss in all common shading cases: small spots (Bird droppings,leaves,mud), lines (wires,rigging), patches (vents,branches), and moving shadows. For best results, keep over half the panel in direct sunlight.

What do I need to complete my off-grid solar power system?

To set up an off-grid solar system, you need a solar panel, a charge controller to regulate current, and a battery to store power. Also, use adapter kit cables for connections and tray cables for the deep-cycle battery.
