Renogy Boost 10A 36V/48V Auto DC Input MPPT Solar Charge Controller LCD Display Solar Panel Regulator fit for Sealed Flooded AGM GEL LFP USER Battery for Golf Carts and Electric Vehicles Rover 10A

- 【Boost Charging】Boosts the voltage of 12V or 24V solar panels to charge 36V or 48V batteries - 【Wide Range Applications 】Increasing driving distance includes: electric vehicles, golf carts, scooters, trikes, and more - 【99% MPPT Charging Efficiency】Advanced MPPT Technology with minimum 99% tracking efficiency and 90% charge conversion efficiency for 4-stage battery charging (Bulk, Boost, Float, and Equalization) with charging - 【4 Preset Battery Charge】AGM/Sealed, Gel, Flooded, and Lithium. User mode also available for customizing charging - 【Multiple Electronic Protections】 Protect your battery, controller, and solar?including over-charge protection, reverse polarity protection, and more! - 【Bluetooth monitoring 】Add a Renogy Bluetooth Module (sold separately) and download the Renogy DC Home App for remote monitoring and customization.

From the manufacturer

A Reliable Optimization System That Is Worth Using with Trust.

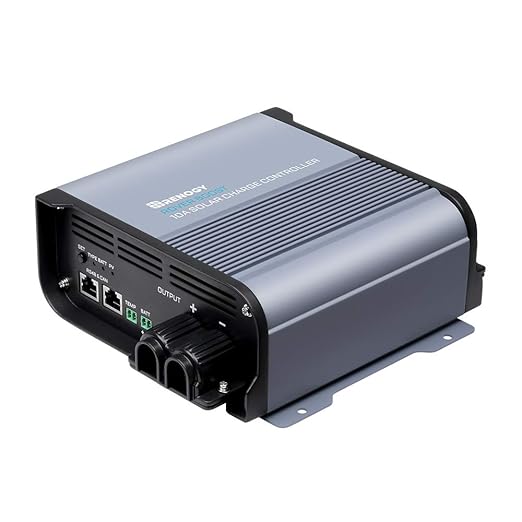

Renogy Rover Boost-36V/48V MPPT Solar Charge Controller

Two modes introduction

High Efficiency: The all-new Rover Boost controller is a 10Amp Maximum Power Point Tracking (MPPT) charge controller engineered to charge a 36V or 48V battery bank from voltage typically found in only 1-2, 36-cell solar modules.

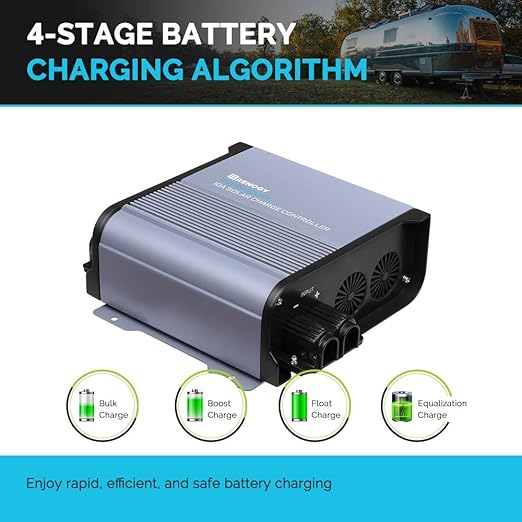

Multi Compatibility: Featuring 4-stage battery charging (Bulk, Boost, Float, and Equalization), the Rover Boost is pre-set to be compatible with AGM, Gel, Flooded, and Lithium batteries, and even includes custom battery settings.

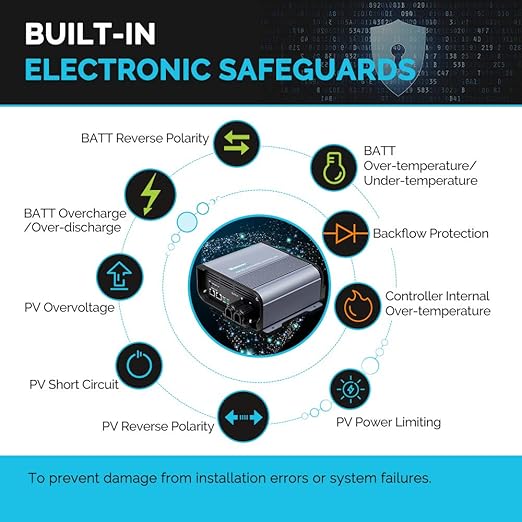

Multiple Protection: The Rover Boost is packed with numerous battery banks, controllers, and solar electronic protections for peace of mind and an optimized system you can trust.

The 10A Rover Boost charge controller is a unique solution that allows you to charge 36V or 48V battery banks with 12V or 24V low voltage solar panels?specially designed for golf carts and electric vehicles. Increase your driving mile range and battery life using the power of solar and the Rover Boost.

Advanced MPPT Technology with minimum 99% tracking efficiency and 90% charge conversion efficiency for 4-stage battery charging (Bulk, Boost, Float, and Equalization) with charging.

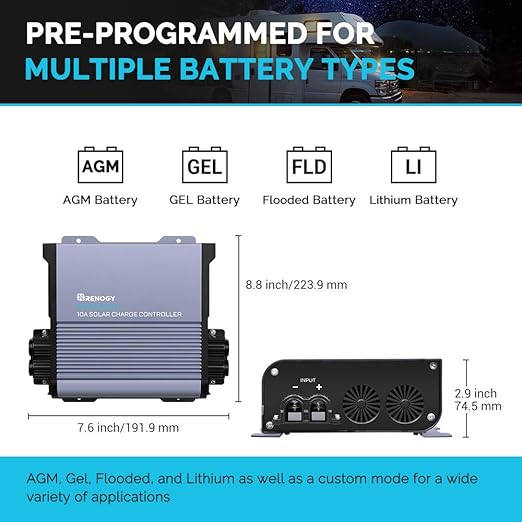

4-preset battery charge profiles for AGM/Sealed, Gel, Flooded, and Lithium. User mode allows you to customize charging parameters for a wide variety of applications.

*Please note that automatic system recognition does not apply to lithium batteries.

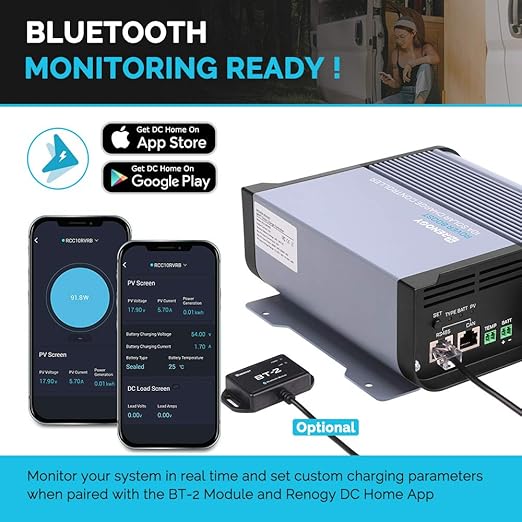

Add a Renogy Bluetooth Module (sold separately) and download the Renogy DC Home App for remote monitoring and customization.

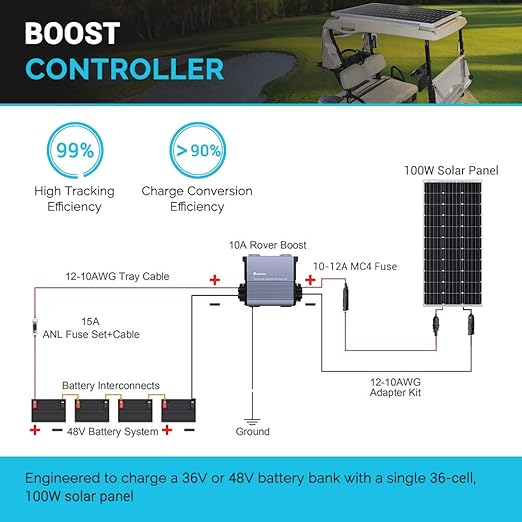

48V 100Ah Wiring

Wiring Tips for 3 X 12V100Ah Battery System

NOTE: The M3 screws have a recommended torque of 0.5~0.8 N-m / 0.4~0.6 lb. ft.

The M6 screws have a recommended torque of 4.1~5.0 N-m1 / 3~3.7 lb. ft.
