Renogy 200 Watts 12 Volts Monocrystalline RV Solar Panel Kit with Adventurer 30A LCD PWM Charge Controller and Mounting Brackets for RV Boats Trailer Camper Marine Off-Grid Solar Power System

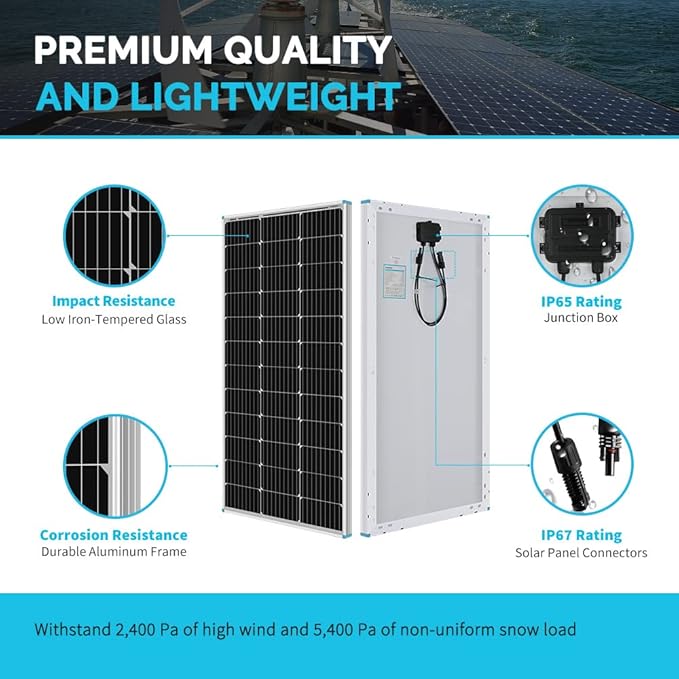

- [Wide Application] 800Wh daily output depends on the 4 hours sunlight availability; suited for applications that require a smaller footprint, making it a favorite for those with RVs, campers, caravan, boat, Green house and more - [Excellent Performance] 22% High solar cell efficiency; Corrosion-resistant aluminum frame for outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa) - [Multiple Protection] The Renogy Adventurer-Li 30A PWM charge controller is designed for aesthetically clean flush mounting on RV or camper walls; Protection against: overcharging, overload, short-circuit, and reverse polarity - [Easy Installation] Pre-drilled holes and Plug&Play cables on the back allow for fast mounting, and it supports lithium batteries, lead-acid batteries, gel batteries; 3 pairs of Y branch connectors are newly added to meet your parallel requirements - [Warranty] 5 year warranty and 24/7 technical support team.

From the manufacturer

Renogy RV Solar Kit

Renogy 200 Watt RV Solar Kit

Package includes

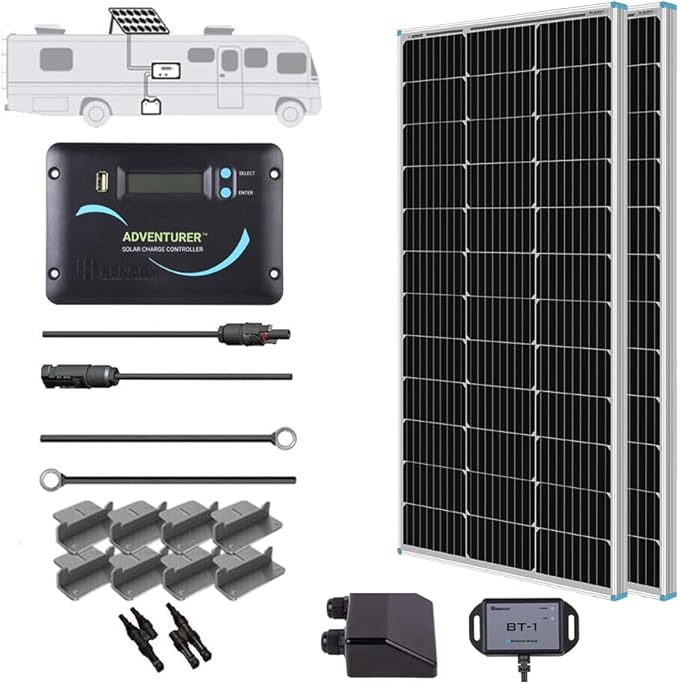

Renogy RV Solar Kits are carefully arranged to meet your RV needs. This kit includes two 100W Solar Panels, an Adventurer 30A PWM Charge Controller, a 30FT 10AWG Male and Female Connectors Adapter Kit, a 16FT 10AWG Tray Cable, and one Renogy Cable Entry Housing. The choice between one set of Z Brackets or one set of Corner Brackets are also given.

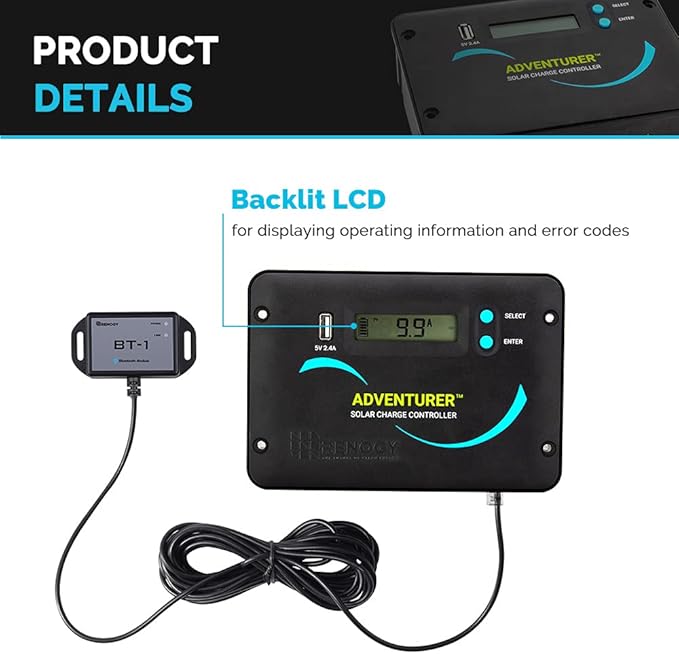

The Adventurer 30A PWM Charge Controller is specifically designed for RV applications as it allows for aesthetically clean flush mounting on walls and is negative-grounded for battery compatibility. It also features an LCD screen for displaying system operating information and allows for full control of parameter settings. The control is embedded with self-diagnostics and electronic protection functions that prevent damage from installation mistakes or system faults.

Nominal System Voltage: 12 VDC/ 24 VDC

Recognition Rated Battery Current: 30A

Equalization Voltage: Sealed: 14.6 V; Gel: None; Flooded: 14.8 V

Boost Voltage: Sealed: 14.4 V; Gel: 14.2 V; Flooded: 14.6 V; Lithium: 14.2 V Float Voltage: 13.8 V

USB Output: 5V, 2.4A Max

Max. PV Input Voltage: 50 VDC

Max. PV Input Power: 12V(400W) / 24V(800W)

Dimensions: 6.56 x 4.50 x 1.90 inches

Weight: 0.6 lbs

To pair charge controllers with Renogy's remote monitoring app, Renogy DC Home.

Available for smartphones and tablets, Renogy DC Home allows for remote monitoring and parameter changes directly via the app.

Material: UV-resistant ABS Plastic

Weight: 7.9 oz

Recommended Adhesive: Sikaflex 252 or alike

Dimensions (L x W x H): 4.7 x 3.9 x 2.0 in

Cable Gland Diameter Range: 6mm ? 12mm

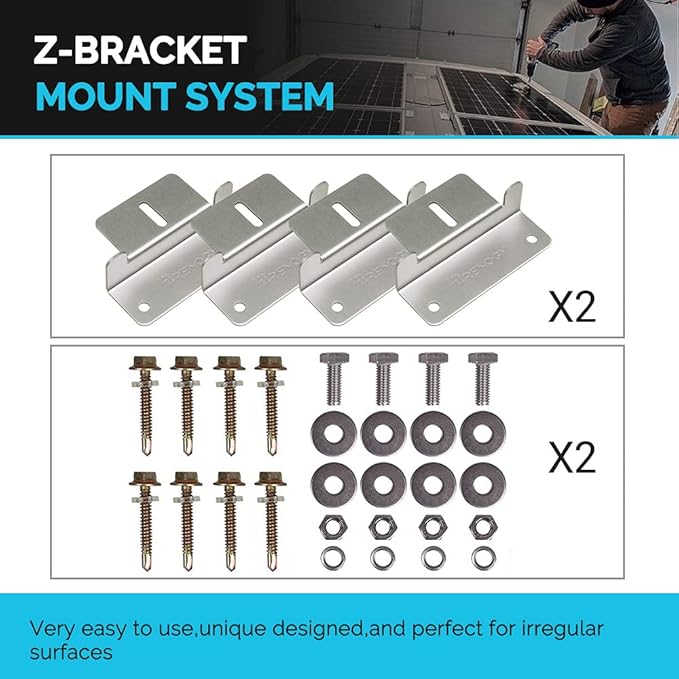

8 x Z Brackets

8 x M6-16 Hex Cap Bolt

8 x M6 Split Lock Washer

8 x M6 Hexagonal Nut

16 x M6 Flat Washer

16 x #11 Self-Drilling Cap Bolt and Plastic Retaining Ring

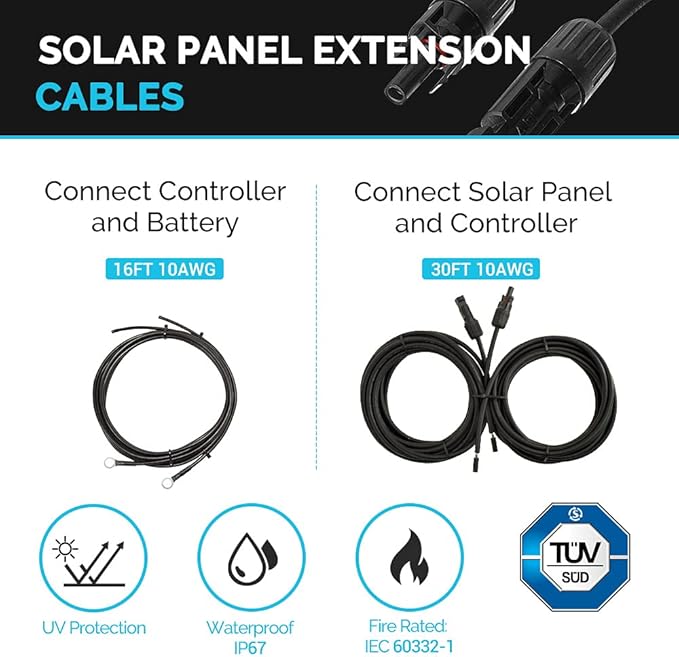

Renogy 30ft 10AWG Male and Female Connectors Adaptor Kit x One Pair

Renogy 16ft 10AWG Tray Cables x One Pair

Renogy Solar Y Branch Connector x One Pair (for 200W-400W Kits)
