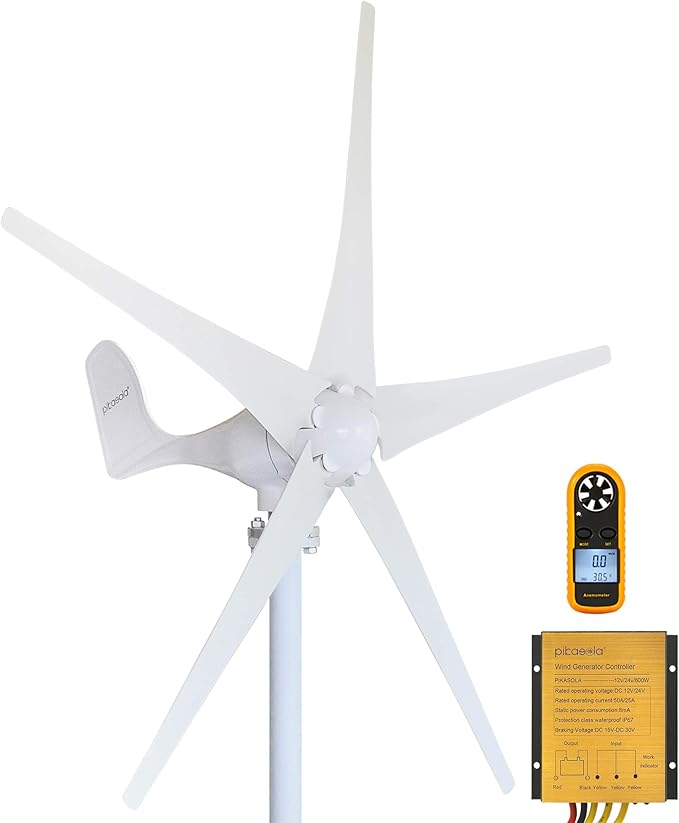

Pikasola Wind Turbine Generator Kit 400W 12V with 5 Blade with Charge Controller Wind Power Generator for Marine RV Home Windmill Generator Suit for Hybrid Solar Wind System

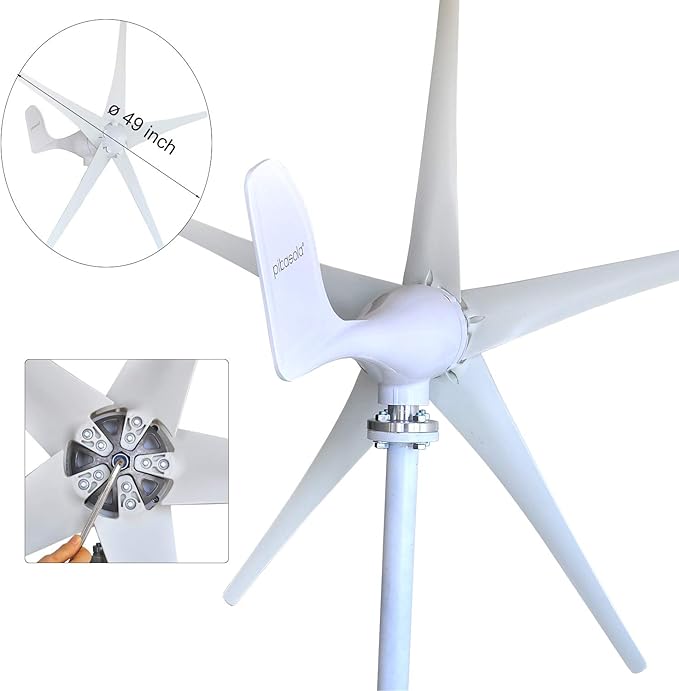

- ★ Feature: Starting with 2.5m/s Low wind speed; Low vibration during working; High wind energy efficiency. Wind turbine kit suitable for boat, RV, cabin, home, etc. - ★ Wind Blade: 23.8 inch in length, the longer blade will generate more power. The blades are made of Nylon carbon fiber which special on waterproof, corrosion resistant, lightweight. - ★Wind Generator: Three-phase permanent magnet synchronous motor. Efficient and compact ac generator with high performance NdFeB permanent magnet. - ★Rotating Aluminum Alloy Body: With yaw adjustment system, the wind direction position is automatically read and the rotor position is adjusted to capture the maximum wind energy. The tail fin is designed according to the aerodynamic principle. - ★Real Parameter, Not False: Our product parameters are Real & Actual, not False. Base on designed after repeated experimental testing. Pls remember to contact us if you have any questions after received wind turbine. We should take charge of our product.

Product description

Specifications:

Feature:

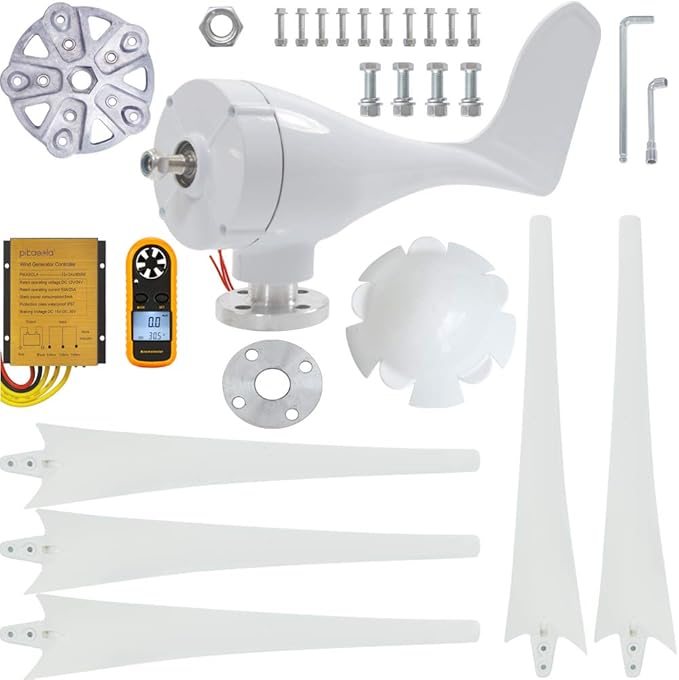

Wind Turbine x 1

Blades x 5

Controller x 1

Nose Cone x 1

Set Screws and Nuts x 1

Installation Notes x 1

Anemometer x 1（no battery）

Note:Without tower tube

(We recommend：steel pipes or iron pipes, diameter :50±2mm)

Rated power:400 W

Maximum power:410 W

Number of blades:5

Rated voltage:12 V

Start-up wind speed:2.5 m/s

Rated wind speed :13 m/s

Working speed:3-25 m/s

Survival wind speed:40 m/s

1. Three-phase permanent magnet synchronous motor. Efficient and compact ac generator with high performance NdFeB permanent magnet.

2. An intelligent wind charge controller can shut down auto when the battery is fully charged.

Which can adjust current and voltage effectively.

3. The unique magnetic circuit design makes the starting torque very small, which can effectively ensure the wind turbine's breeze starting ability.

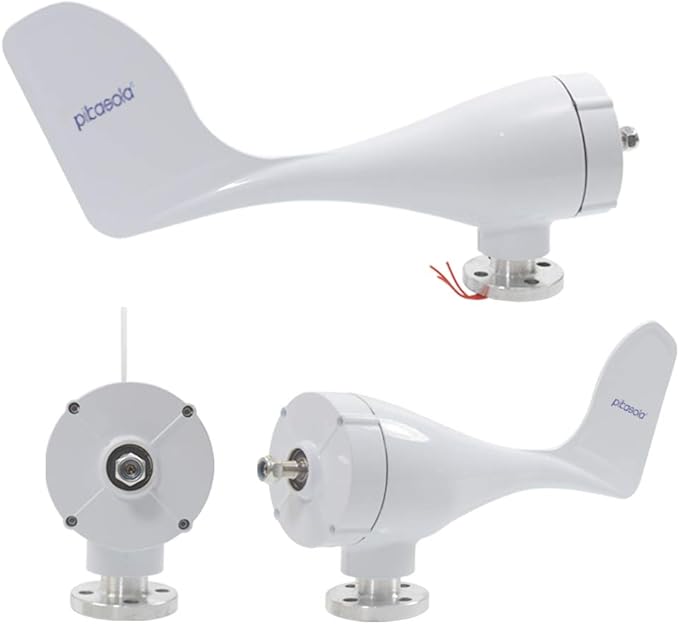

1.The wind turbine is made entirely of high quality aluminum and stainless steel fittings. It is not only lightweight, small in size, but also compact in shape.

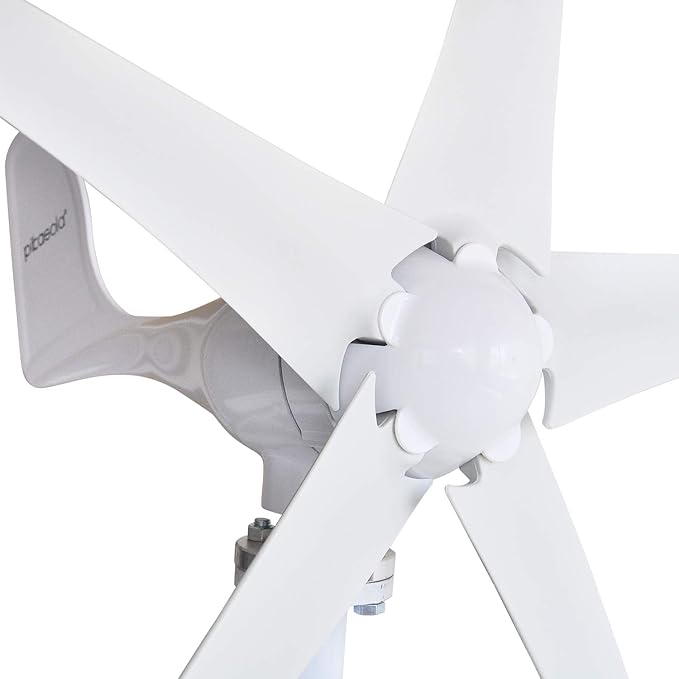

2.The blade material is made of high-strength plastic with 30% carbon fiber and anti-UV anti-corrosion material, which is both beautiful and durable.

3.The surface of the wind turbine is coated with a special process that provides excellent resistance to oxidation and corrosion under any harsh conditions, as well as excellent corrosion resistance, water resistance and sand resistance.

1.Take out the wind turbine, put the wind turbine on the tower and align it with the flange hole. Mount the four flat gaskets on the four bolts, then insert the bolts into the holes corresponding to the flange. Tightening the screws by hex key.

2.The three wires of the wind turbine are connected to the transmission cable, each pair of wires is not less than 30 mm, and the tape at the connection end is at 100 mm.

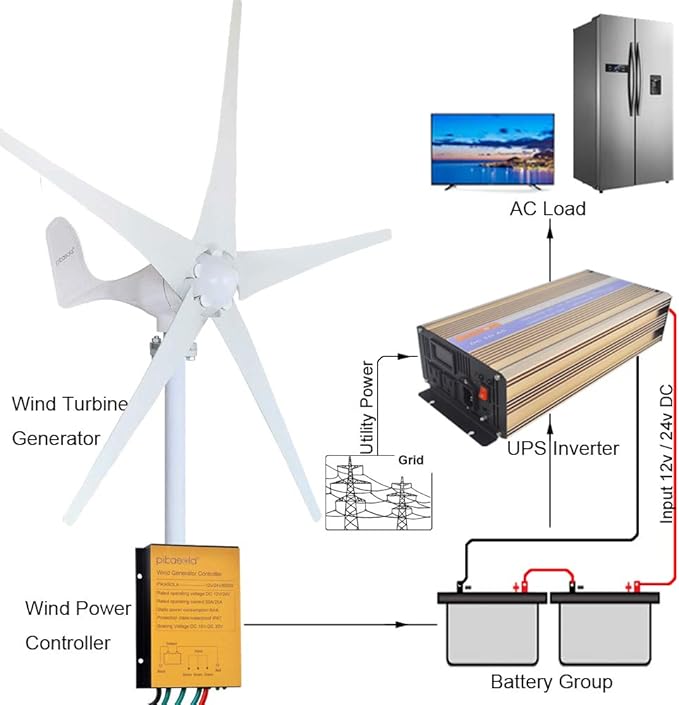

3.Connect the wind turbine's cable to the controller and the battery must be connected to the controller before wiring.

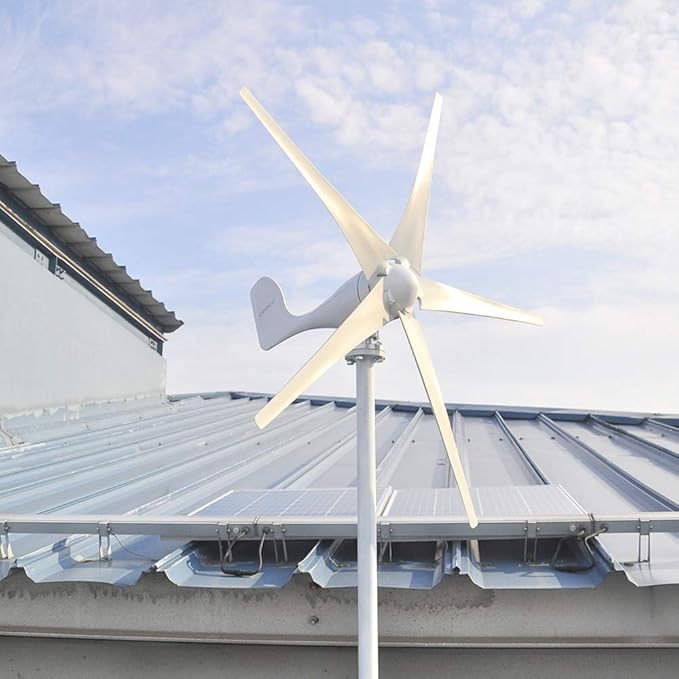

1. The wind turbine should be installed where there is strong wind or no tall buildings and obstacles, If installing the wind turbines near the obstacles, the position is better as far as possible from obstructions, or the installation height should be 20Ft higher than the top of obstructions(As show), which can make full use of the wind power.

2. We can make use of the growth effect on the hills (As show). It’s a good place to set up

3. It's should avoid the cliff, the turbulent region.

1. Wind Turbine starting with low speed; high wind energy utilization; beautiful appearance; low vibration on operation.

2. Wind generator Blade adopt reinforced fiber nylon which more durable and strong ability of Anti-wind. With optimized aerodynamic shape and structural design, has a High wind energy utilization.

3. Our wind turbine adopting patented permanent magnet rotor alternator, with a special kind of stator design, decrease resistance torque of the generators efficiently.

4. Being installed by human design and easy for installation, maintenance and repair.
