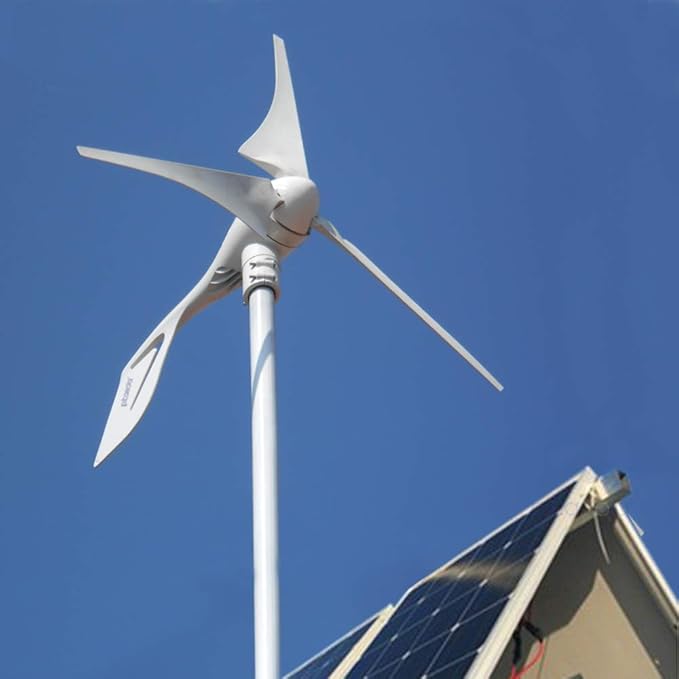

PIKASOLA Wind Turbine Generator 12V 400W with a 30A Hybrid Charge Controller. As Solar and Wind Charge Controller which can Add Max 500W Solar Panel for 12V Battery.

- ★ Feature: Starting with Low Speed; high wind energy utilization; low vibration on operation, high efficiency. - ★ Wind Blade: 23.4inch in length, made of nylon carbon fiber. The longer the blades are, the more kinetic energy generate and more power they produce. Nylon material waterproof, corrosion resistant, lightweight. - ★Wind Generator: Three-phase permanent magnet synchronous motor. Efficient and compact ac generator with high performance NdFeB permanent magnet. - ★Rotating Body: With yaw adjustment system, the wind direction position is automatically read and the rotor position is adjusted to capture the maximum wind energy. The tail fin is designed according to the aerodynamic principle. - ★Solar&Wind Charge Controller: Match a 30A Hybrid Charge Controller which can extend Max 500W solar panel for 12V wind and solar power system. The controller can help to charge battery intelligently and protect automatically.

Product description

Specifications:

Parameter

Wind wheel diameter

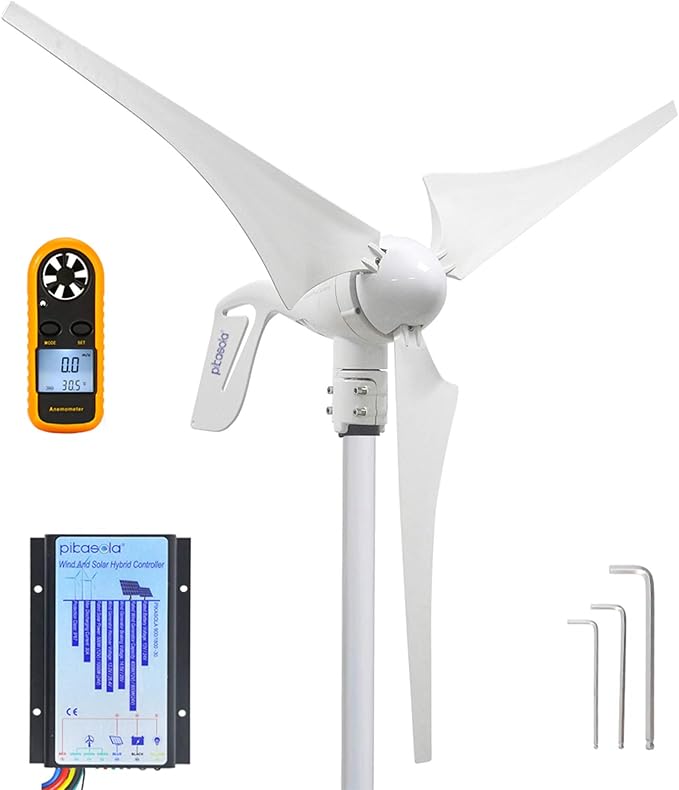

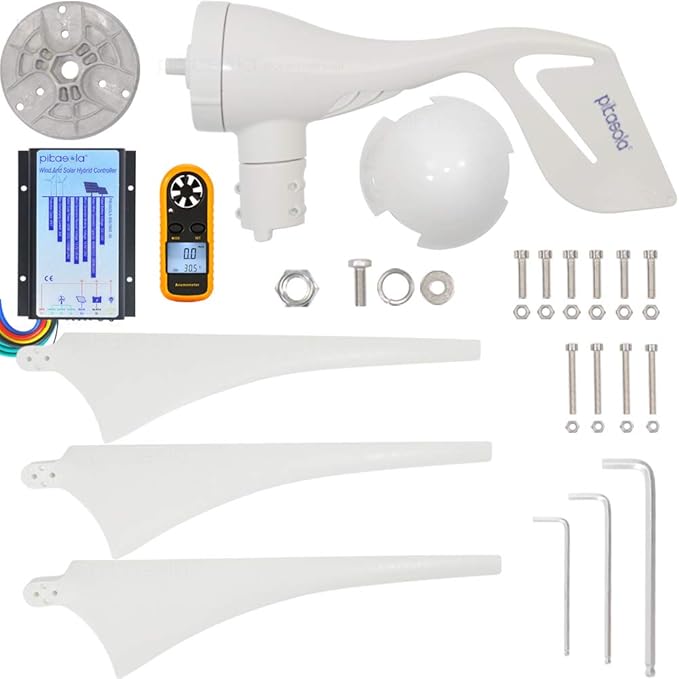

Wind Turbine x 1

Blades x 3

Controller x 1

Nose Cone x 1

Set Screws and Nuts x 1

Installation Notes x 1

Anemometer x 1（no battery）

Note:Without tower tube

(We recommend：steel pipes or iron pipes, diameter :55±2mm)

Rated power:400 W

Maximum power:410 W

Number of blades:3

Rated voltage:12 V

Start-up wind speed:2.5 m/s

Rated wind speed :13 m/s

Working speed:3-25 m/s

Survival wind speed:40 m/s

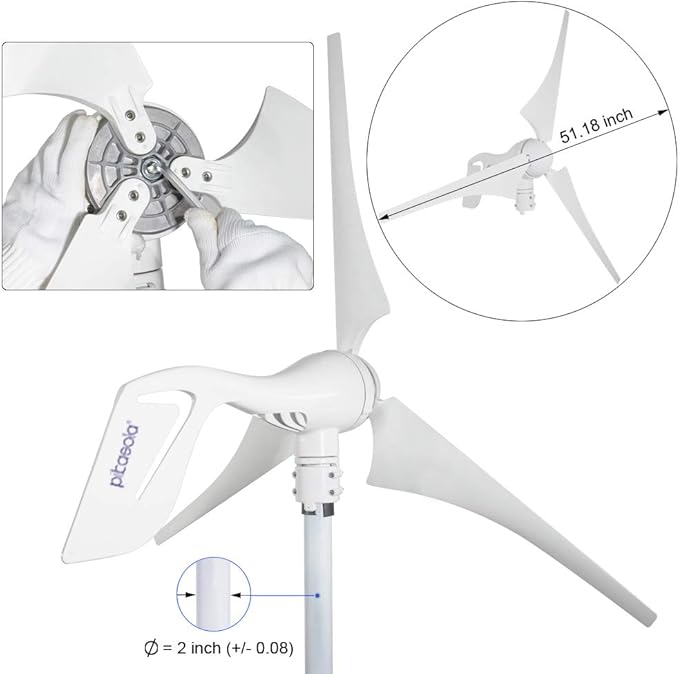

Wind wheel diameter: 51.18 inch

1.Three-phase permanent magnet synchronous motor. Efficient and compact ac generator with high performance NdFeB permanent magnet.

2. A fully integrated voltage regulator that automatically shuts down when the battery is fully charged.

3.The fan is controlled by MPPT intelligent microprocessor, which can effectively adjust current and voltage.

4.The unique magnetic circuit design makes the starting torque very small, which can effectively ensure the wind turbine's breeze starting ability.

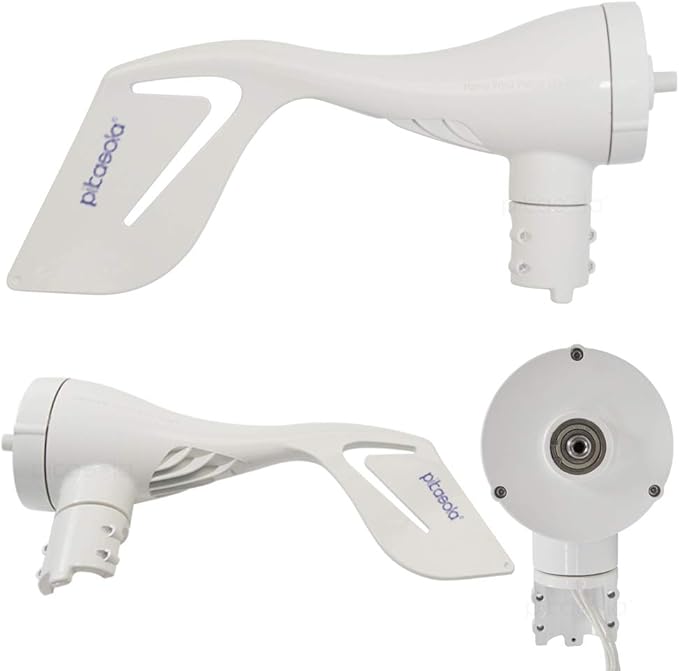

1.The wind turbine is made entirely of high quality aluminum and stainless steel fittings. It is not only lightweight, small in size, but also compact in shape.

2.The blade material is made of high-strength plastic with 30% carbon fiber and anti-UV anti-corrosion material, which is both beautiful and durable.

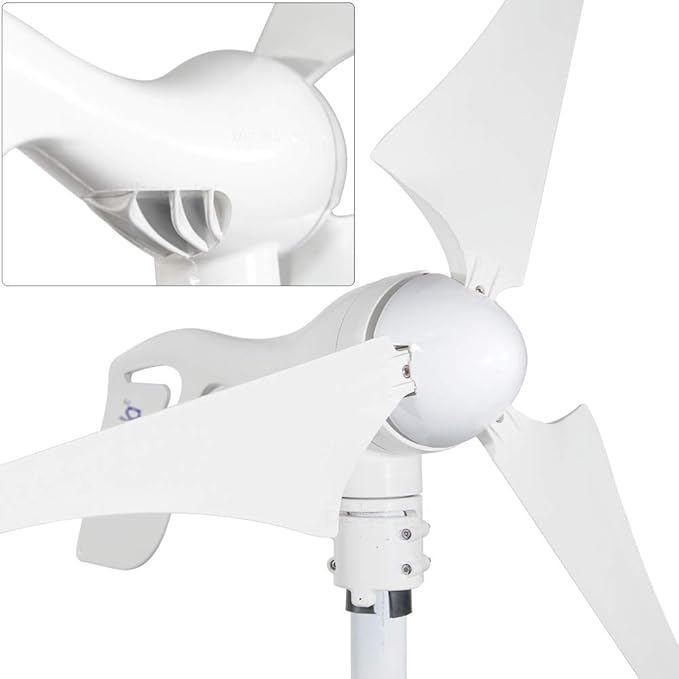

3.The surface of the wind turbine is coated with a special process that provides excellent resistance to oxidation and corrosion under any harsh conditions, as well as excellent corrosion resistance, water resistance and sand resistance.

1． Nesting the black leather cushion inside the reducing joint of the wind turbine then putting the tower inside reducing joint. Connecting the cover of reducing joint by screws and fastening. Tightening the screws by hex key.

2． The three wires of the wind turbine are connected to the transmission cable, each pair of wires is not less than 30 mm, and the tape at the connection end is at 100 mm.

3． Connect the wind turbine's cable to the controller and the battery must be connected to the controller before wiring.

Max Discharging Current：30 A

Wind turbine power：400W(12V)/800W(24V)

Solar Panel power:500W(12V)/1000W(24V)

Wind Generator Braking Voltage:14.5V/29V

Wind Generator Recover Voltage:13.2V/26.4V

Feature:

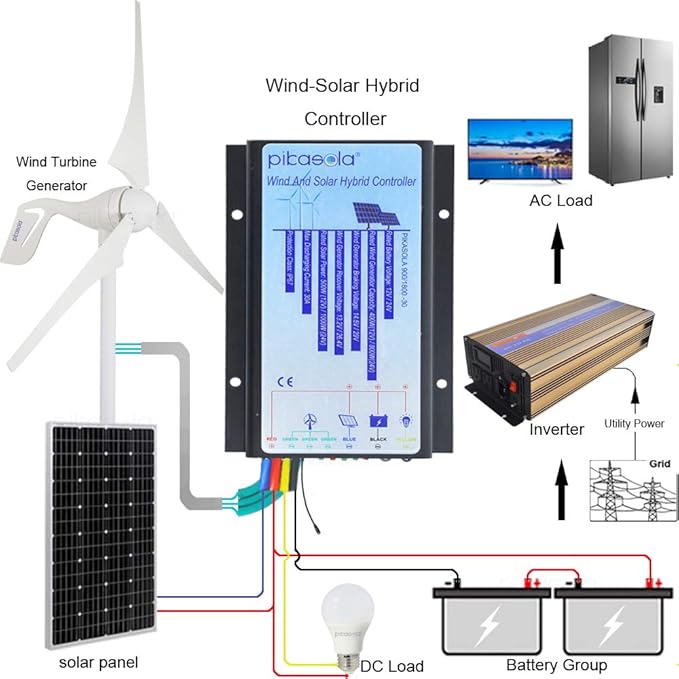

1. Convenient to extend Solar panel with our Hybrid charge controller if you want in latter. Just need one Solar and Wind hybrid controller can use 500W Solar panel + 400W Wind turbine together for 12V battery.

2. Wind Turbine starting with low speed; high wind energy utilization; beautiful appearance; low vibration on operation.

3. Wind Turbine Blade adopt reinforced fiber nylon which more durable and strong ability of Anti-wind. With optimized aerodynamic shape and structural design, has a High wind energy utilization.

4. Our wind turbine adopting patented permanent magnet rotor alternator, with a special kind of stator design, decrease resistance torque of the generators efficiently.

Installation instruction：

1. The wind turbine should be installed where there is strong wind or no tall buildings and obstacles, If installing the wind turbines near the obstacles, the position is better as far as possible from obstructions, or the installation height should be 20Ft higher than the top of obstructions(As show), which can make full use of the wind power.

2. We can make use of the growth effect on the hills (As show). It’s a good place to set up

3. It's should avoid the cliff, the turbulent region.
