Pikasola PV Combiner Box 6 String Solar Combiner Box with 15A LED Fuse Lightning Arreste and 63A Air Circuit BreakerCombiner Box for Solar Panel On/Off Grid System IP65 Water Resistant

- *（6 String）PV Combiner Box has 6 String for solar panel input which can has bigger capacity than 4 string combiner box. Support with Max 1080W in 12V system, 2160W in 24V, 4320W in 48V system. - * (Reliable LED Fuse) Solar Combiner box build in 6psc update LED 15A fuse. The fuse has a led indicator. It will light on when the fuse burns out. Helpful to remind replace fuse. - *(Full protection) This Combiner box also include a 63A circuit breaker and 600V surge lightning protector, extra 2pcs replacement 15A fuse. IP65 Waterproof box design offer good waterproof and dustproof. - *(Easy Install & Wiring) A plug & play and pre-connected cable offers an easy connection for solar panel combiner box. The photovoltaic combiner box can be mounted on any regular surface with provided mounting buckles. And open and close box is easy handle with locker. - *(Wildly Application) The PV combiner box is a perfect device for outdoor. Suitable for photovoltaic on-grid/off-grid solar power generation systems, solar panel system, PV array, RV solar power, solar power lit, home solar panel systems.

Product description

PIKASOLA 6 String Solar PV Combiner Box

Product Details

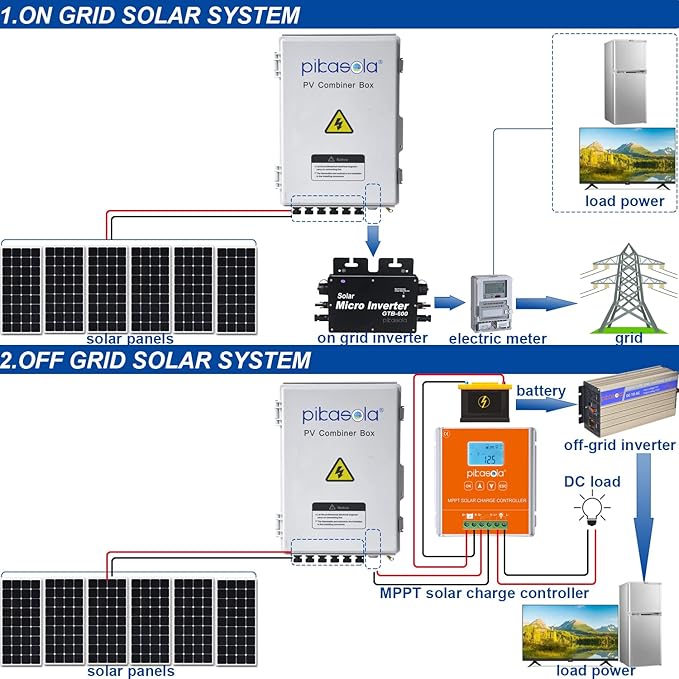

Both On-Grid/Off-Grid solar system can be selected

Solar Combine Box Instruction:

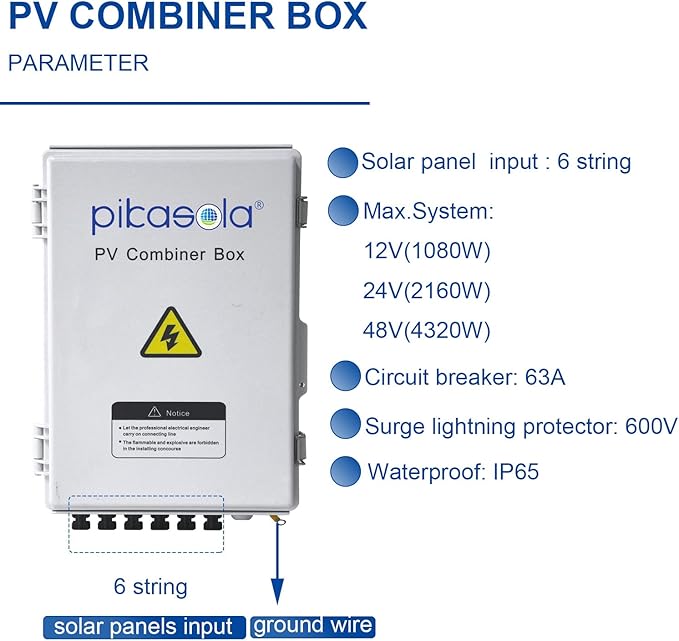

Rated Voltage: 600V

Operation: 15A

Input: 6 strings

Output: 1 string

DC Circuit Breaker: 2P 63A 550Vdc

DC SPD: 2P 20-40KA 600Vdc

DC Fuse: 15A 1000Vdc 10*38mm

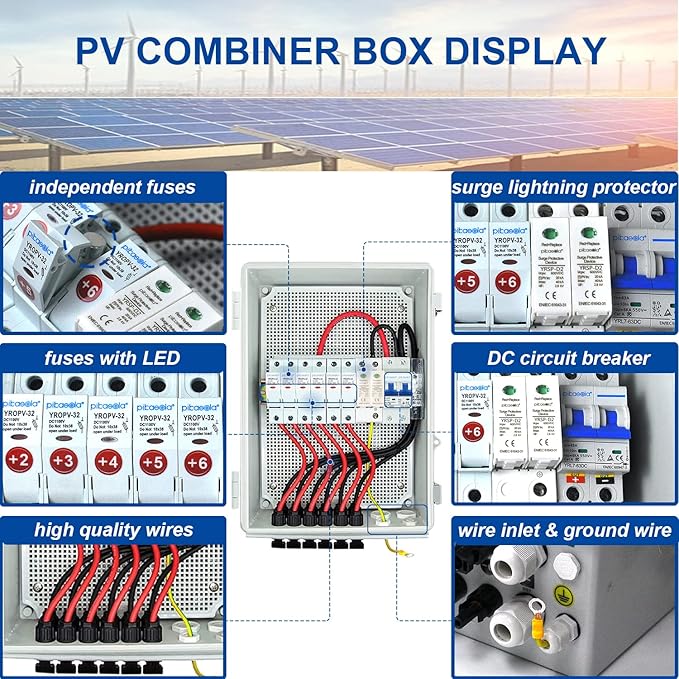

Fuses

6 replaceable 15A independent fuses for over-current protection

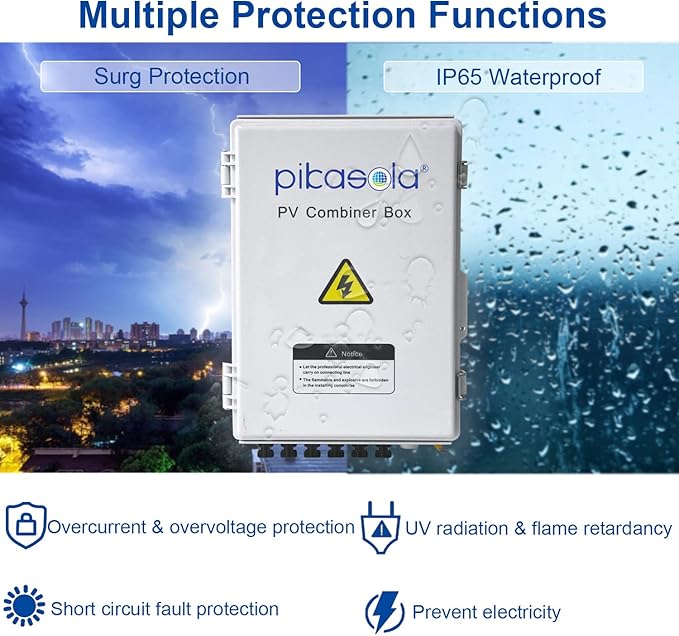

Surge Lightning Protection

600V lightning protection to prevent the damage in storm

Circuit Breaker

63A main breaker to hold the output current

Input Port

6 String for solar panel input which can has bigger capacity than 4 string combiner box.

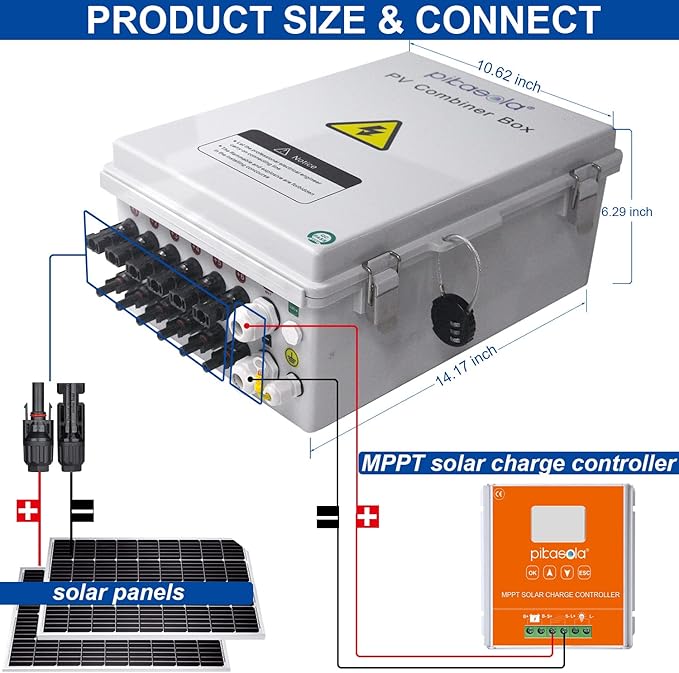

1. Box input: Connect the panel connectors (solar panel output and combiner box input). make sure the negative wire of solar panel output connected to the -input(as the picture instructed); the positive wire of solar panel output connected to the +input (as the picture instructed). Pls don’t reverse positive and negative wire.

2. Box Output: Connect wires to the output terminals of DC circuit breaker(both and as the picture instructed), connect the ground wire to the ground terminal of DC arrester. All the output wires separately pass through the cable glands, make sure all the cable glands properly tight end.

Notice:

1. All connections must be carried out under the state of power failure.

2. Let the professional electrical engineer carry on connecting line.

3. The flammable and explosive are forbidden in the installing concourse.
