Newpowa 5-Pack 35W 12V Monocrystalline Solar Panels 10BB - High-Efficiency PV Modules for Off-Grid Systems RV/Boat/Camper/Trailer/Gate Opener (175W Total)

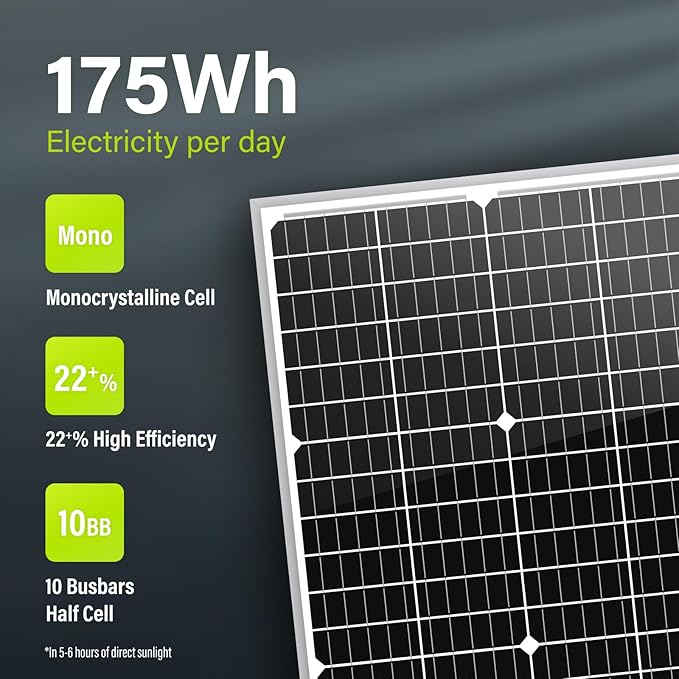

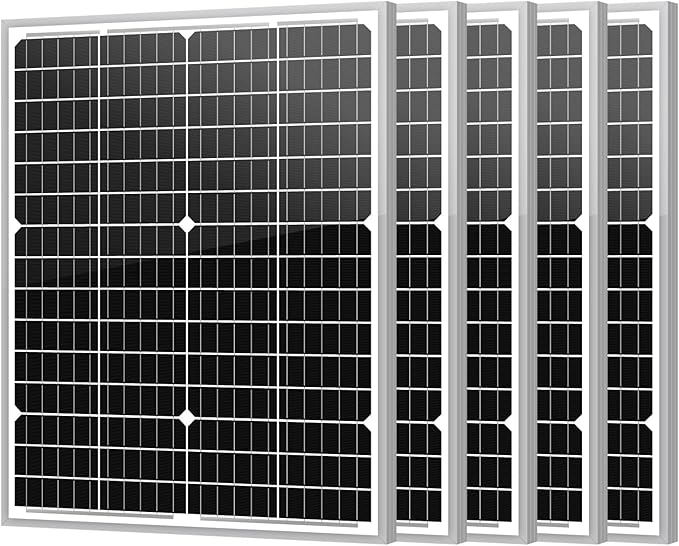

- This listing contains 5 pieces of 35W 12V solar panels. - 【New Design】High-performance 166mm mono cells encapsulated in EVA ensure excellent conversion rate up to 21-23%. Imp: 2.04A Vmp: 17.2V. - 【IP67 Waterproof】Weather proof high efficiency solar panel and waterproof charge controller allows you can use this solar charge kit both inside and outside. - 【Easy Installation】Pre-attached 3ft bare ends wire, pre-drilled mounting holes on the frame allow for easy and quick install. - 【Versatile】Perfect for 12V off-grid applications, such as gate openers, fences, security cameras, lights. Charging the battery of boats, RVs, SUVs, etc. - 【After-sales Service】 With a 2-year material and parts workmanship assurance.10 years of power output is greater than 90%, 25 years of power output is greater than 80%.

Product description

Does a Solar Panel produce full power?

How to test a solar panel?

How does temperature affect solar panel efficiency?

How to install our solar panels using different brackets?

Can I connect different solar panels together?

Does a Solar Panel produce full power?

In most cases, it is normal for a solar panel to not be able to provide its full nominal power.

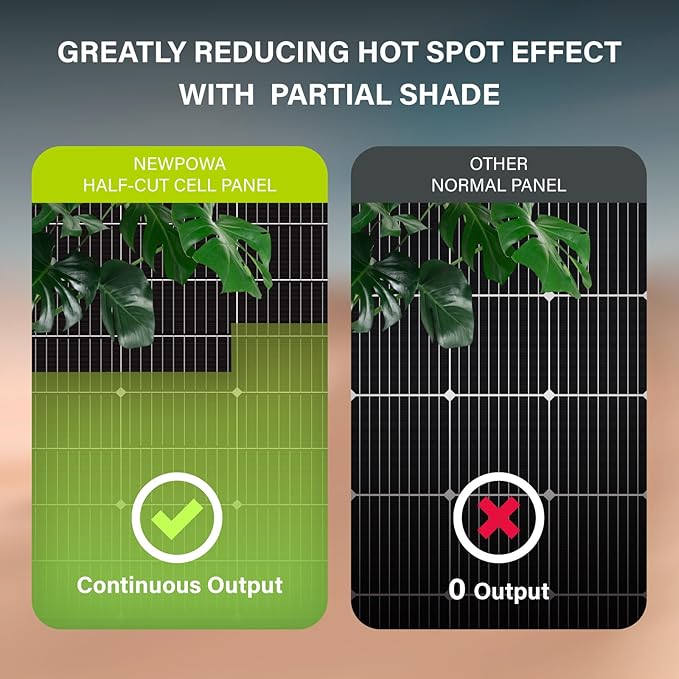

Factors affecting the performance of solar panels: Peak Sun Hours， Sunlight Angle， Operating Temperature， Installation Angle， Panel Shading, Etc...

How to test a solar panel?

The ideal conditions: Noon, clear sky, 25° tilt to the sun, battery is less than 40% SOCC. Disconnect the solar panel from any other loads, using a multimeter to test the panel's current and voltage.

How does temperature affect solar panel efficiency?

Solar Panel Efficiency & Temperature: -Test Temp: 77°F/25°C; -Peak Efficiency Range: 59°F/15°C to 95°F/35°C; -?Temp Impact: Efficiency decreases with temperature rise. ?-Example: Temp coefficient of -0.5% → Power reduces by 0.5% per 50°F/10°C rise.

How to install our solar panels using different brackets?

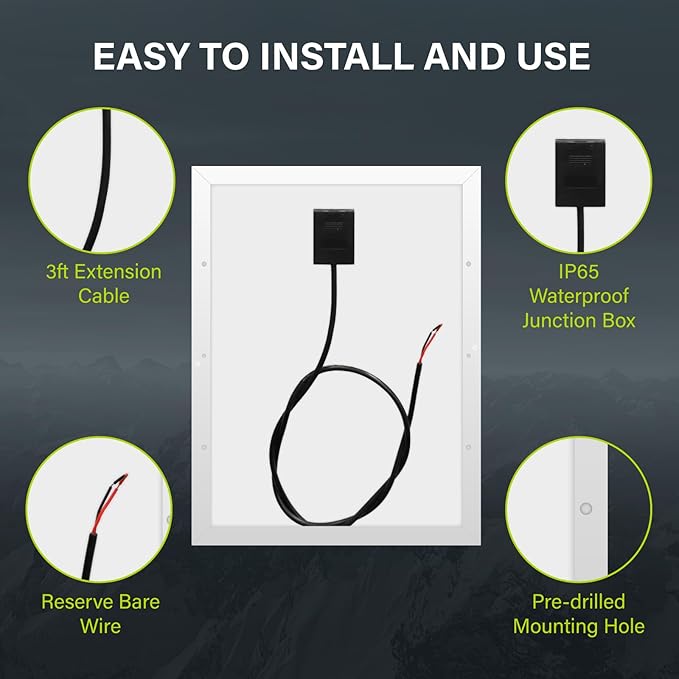

There are mounting holes on the panel frame for easy installation using a variety of brackets. Most compatible with Newpowa's Z-mount, tilt-adjustable mount, and pole/wall mount, making panel mounting suitable for a variety of applications.

Can I connect different solar panels together?

Though mixing different solar panels is not recommended, the mismatch can be achievable as long as each panel’s electrical parameters (voltage, current, wattage) are carefully considered.
