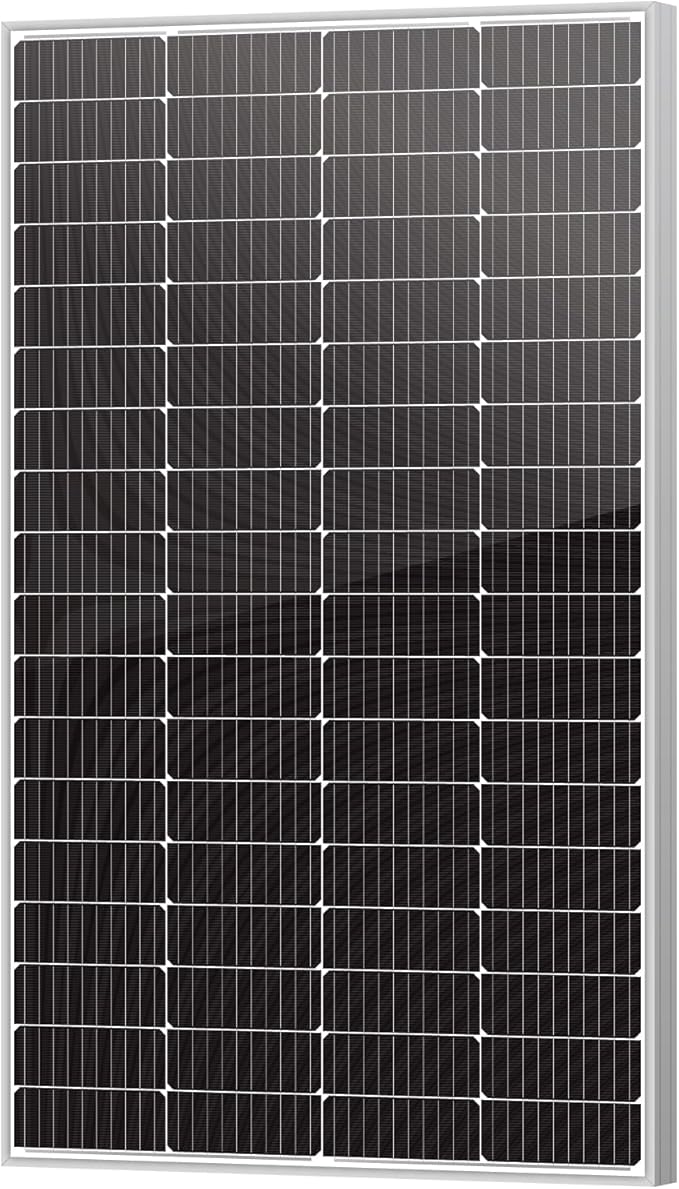

Newpowa 10BB 200W 24V Monocrystalline 200 Watt 24Volt Solar Panel Designed for 24V Charge System Off Grid High Efficiency Mono Module RV Marine Boat Off Grid (200W New)

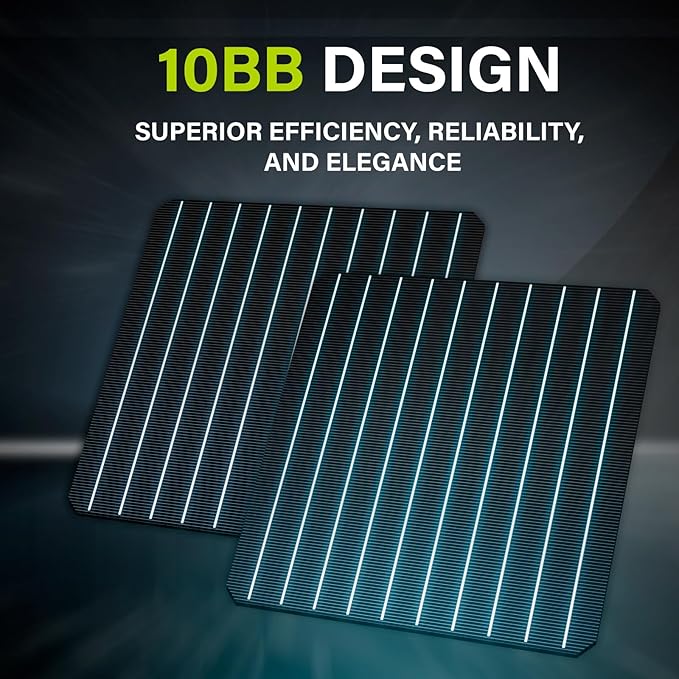

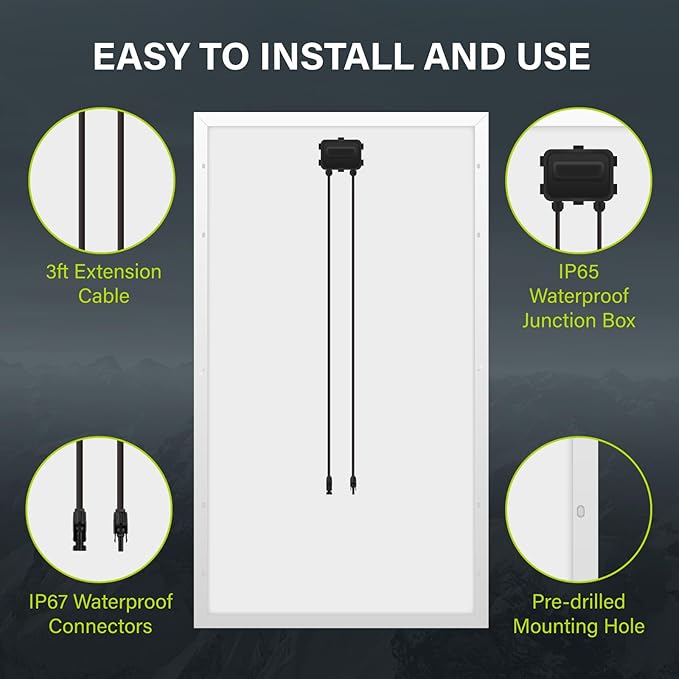

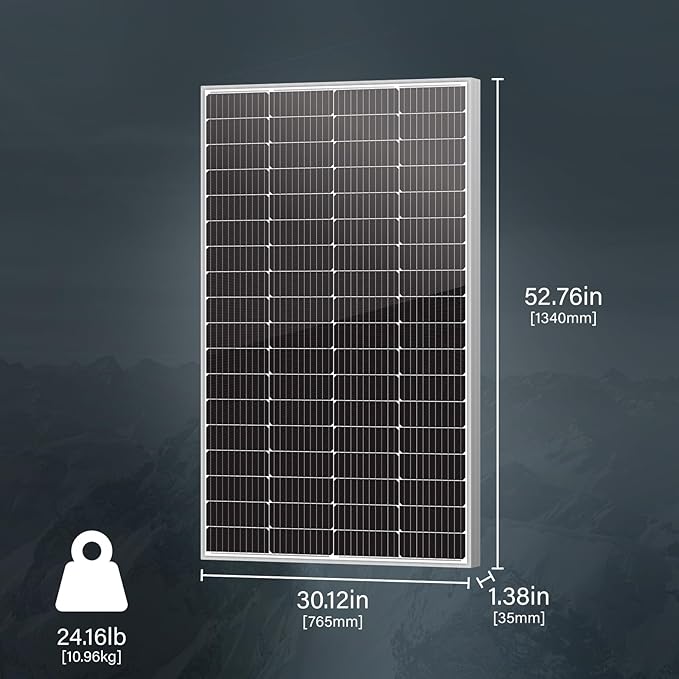

- 【New Design】Using 10 busbars technology which has higher cell efficiency. Compared with 5BB solar panel cells, the 10BB 182mm solar cell has a better and longer lifespan. - 【Dimension】52.76*30.12*1.38inch. High winds (2400PA) and snow loads (5400PA). - 【Maximum power (Pmax)】200W, Voltage at Pmax (Vmp):41.48V, Current at Pmax (Imp): 4.84A. - 【Easy Installation】Diodes are pre-installed in the junction box, with a pair of pre-attached 3ft solar connector cable. - 【After-sales Service】 With a 2-year material and parts workmanship assurance.10 years of power output is greater than 90%, 25 years of power output is greater than 80%.

Product description

FAQ

1: Does a Solar Panel produce full power?

A: In most cases, it is normal for a solar panel to not be able to provide its full nominal power.

Factors affecting the performance of solar panels:

Peak Sun Hours， Sunlight Angle， Operating Temperature， Installation Angle， Panel Shading， Adjacent Buildings Etc...

2: How to test a solar panel?

A: The ideal conditions: Test in the noon, under a clear sky, panels should be at 25 degrees tilted towards the sun, and the battery is at a low state/less than 40% SOC. Disconnect the solar panel from any other loads, using a multimeter to test the panel's current and voltage.

3: How does temperature affect solar panel efficiency?

A: Solar panels are generally tested at about 77°F/25°C and are rated to perform at peak efficiency between 59°F/15°C and 95°F/35°C. Temperature going up or down will change the efficiency of the panels. For example, if the temperature coefficient of power is -0.5%, then the panel maximum power will be reduced by 0.5% for every 50°F/10°C rise.

4: How to install our solar panels using different brackets?

A: There are mounting holes on the panel frame for easy installation using a variety of brackets. Most compatible with Newpowa's Z-mount, tilt-adjustable mount, and pole/wall mount, making panel mounting suitable for a variety of applications.

5: Can I connect different solar panels together?

A: Though mixing different solar panels is not recommended, the mismatch can be achievable as long as each panel’s electrical parameters (voltage, current, wattage) are carefully considered.
