MPPT Solar Charge Controller 60AMP for 12V/24V/36V/48V Auto MAX 160V 2800W Input 150V w/LCD Display for Lead-Acid Lithium Battery -- Parallel Version

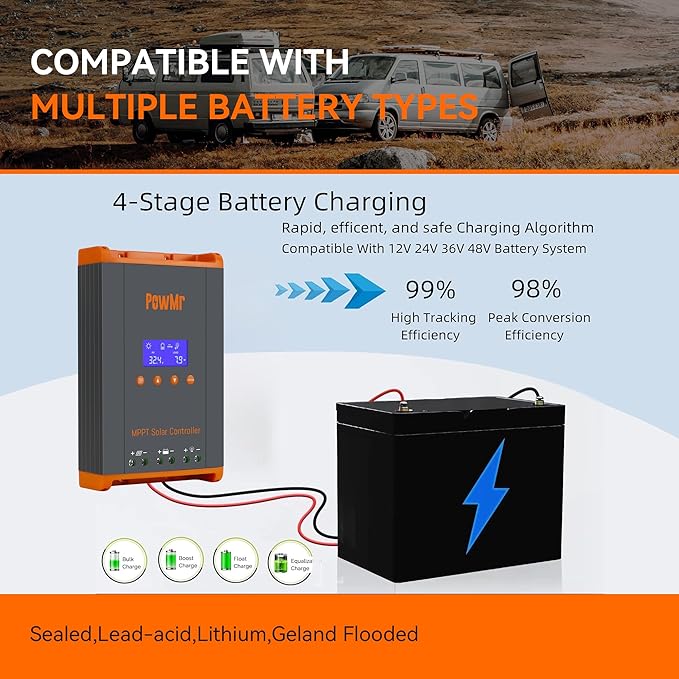

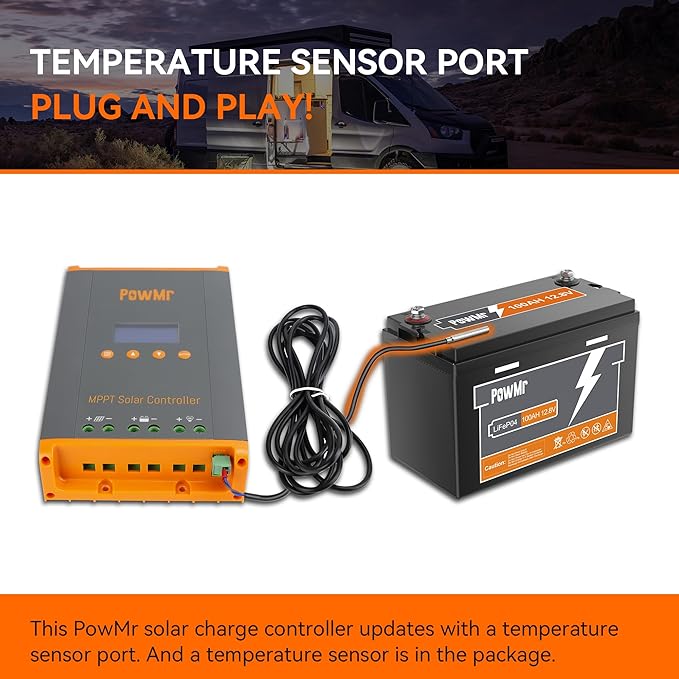

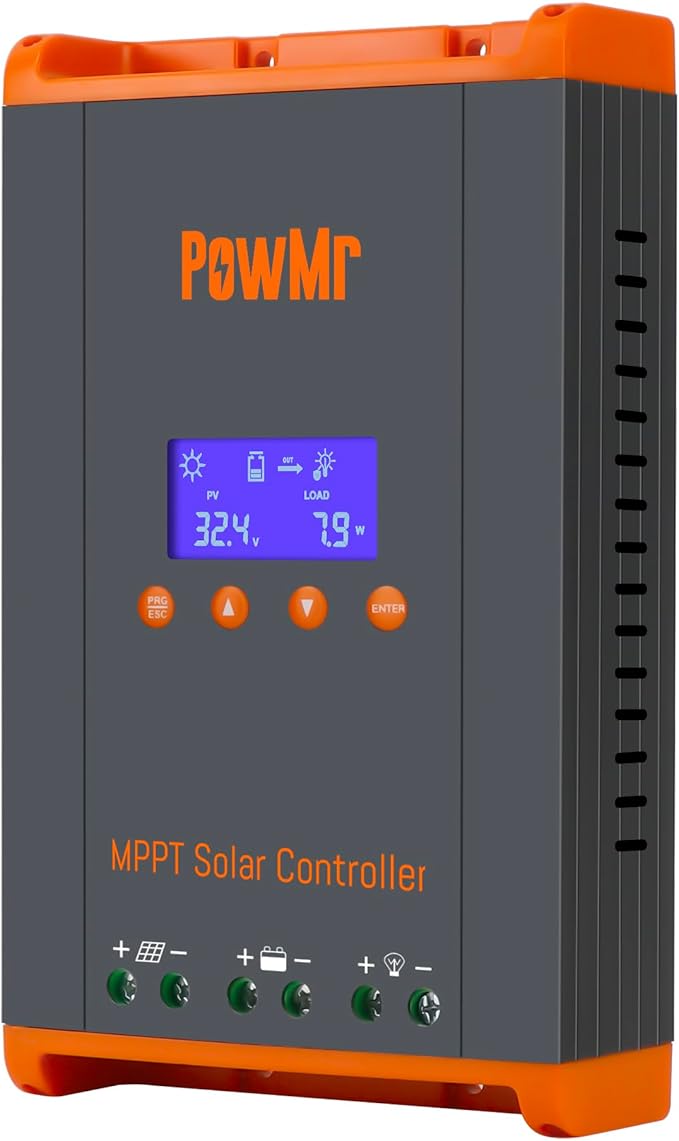

- 【Software Update MPPT Design】This 60A solar charge controller features 100% MPPT technology, achieving max efficiency ≥98.1% and PV utilization ≥99%. Equipped with a high-performance DSP controller, it automatically detects battery voltage (12V/24V/36V/48V). Ensures batteries exceed 12V for activation and have sufficient power for self-detection upon connection. - 【Multiple Battery Adaptation】 Fit for USER(can be set Lithium, Lifepo4, Li(NiCoMn)O2)/Vented/Flooded/Sealed/Gel/NiCd battery. User programmable for absorption voltage/Floating voltage/Low voltage disconnect. /Load Timer. Real-time energy recording. Two connectors for each pos and negs on solar and batteries connectors. copper wires:9AWG - 【Perfect System Protection】Features a backlight LCD displaying PV voltage, output power, battery voltage, charging current, working mode, and temperature. Includes a troubleshooting function to monitor system data, identify faults, and adjust parameters for optimal performance. - 【Updated Bladeless Fan & Plug-and-Play Temperature Sensor】The upgraded bladeless fan system activates at >45℃ and turns off at <40℃, offering quieter and more efficient heat dissipation, ideal for RVs, commercial vehicles, boats, yachts, and solar systems. Additionally, the controller features a plug-and-play temperature sensor port, with a sensor included for effortless installation and optimal performance. - 【Attention】For sealed lead-acid, vented, or gel batteries, no parameter settings are needed?the controller adjusts automatically. However, for lithium batteries, manual parameter adjustment is required due to their voltage instability (e.g., a 12V lithium battery may range from 11.1V to 14.8V). Ensure settings match the battery's actual voltage for optimal performance.
