MPPT Solar Charge Controller 30A 12V 24V Auto Max PV 100V Built-in WiFi Adapter APP Remote Monitor LCD Display Solar Panel Charger Regulator for Gel Sealed Flooded Lifepo4 Lithium BAT

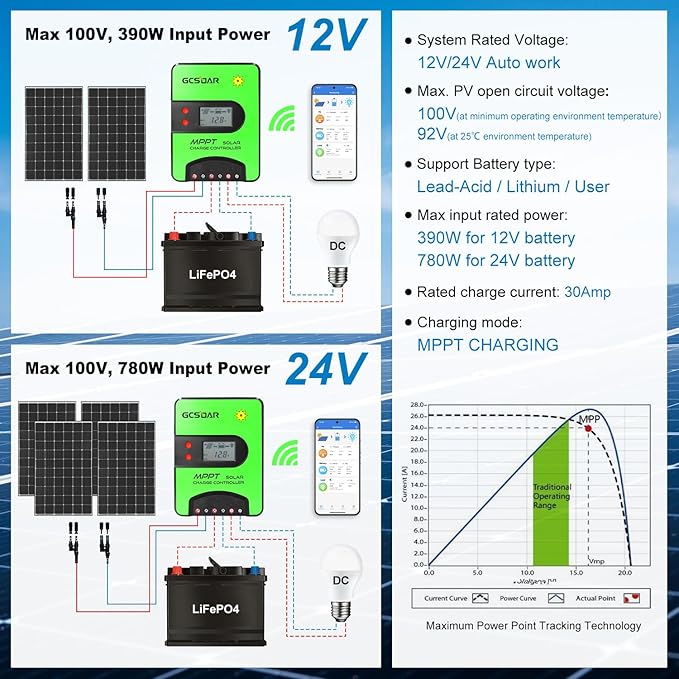

- GCSOAR MPPT Solar Charge Controller 30A, Max PV 100V, Solar panel Max input power 390W charge for 12V battery or 780W charge for 24V battery, 12V/24V Auto Detect and Multi-Cell Adaptation for Gel AGM Sealed Flooded batteries, Lifepo4 Lithium batteries require manual selection to set the battery system voltage to 12V or 24V, while allowing the user to manually customize the mode to adjust the battery parameters - Built in WiFi Module via APP Remote monitor and set parameters Anytime Anywhere : ''Online mode'' suitable for home or other environments that can provide 2.4G router wireless network access, high speed network connection anytime anywhere, not limited by distance when there is a network signal. ''Offline mode'' suitable for RV, Yacht, Boat, Camping etc. environments for short distance effective signal transmission. Download APP for Android or iOS, You could watch video tutorials within the APP to learn how to use it better - Features 4-stage Safely charging: (Bulk, Absorption, Float, and Equalization) of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for Lithium batteries as well as Lithium Reactivation. Intelligent charging method prolong your battery’s life - Die-cast aluminium design ensuring excellent heat dissipation and Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day - Extremely Safe: CE, FCC, IEC, UL and RoHS certificated. Full system protection from program and insulated shell safeguards your solar system. The intelligent self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, overheating, and reverse current. The certificated TD series charge controller with insulated shell prevents you from accident and keep your solar system in safe in high temperature

Product description

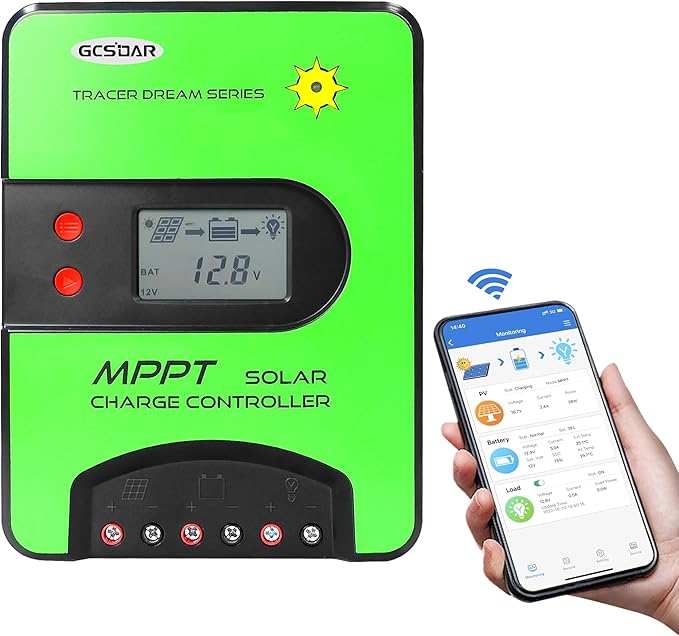

GCSOAR MPPT Solar Charge Controller 30A within WiFi Module APP Remote Monitor

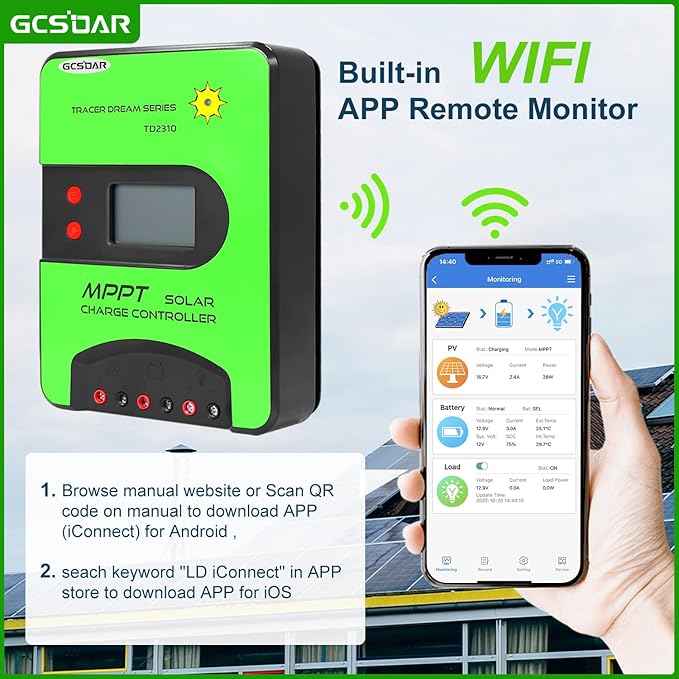

solar charge controller connect APP via 2.4G wifi

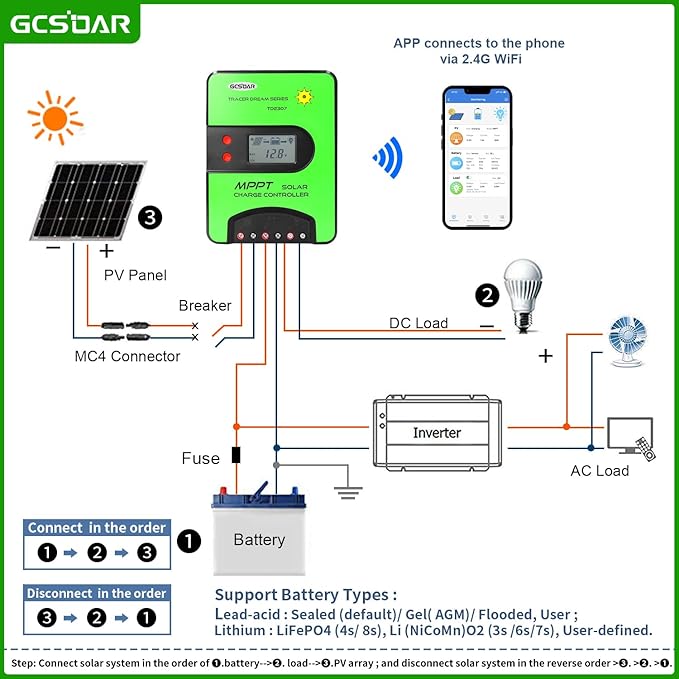

Connect solar system in the order of 1.battery > 2. load > 3.PV array

When Controller Enter Hibernation Mode, We Need to Reactivate the WiFi Module

How to active controller's WiFi module ?

What battery types does this MPPT controller work with?

How to adjust parameters for the 40A MPPT solar charge controller ?

How do I reactivate the WiFi adapter when we can't search WiFi signal or it goes into hibernation ?

GCSOAR MPPT Solar Charge Controller 30A 12V/24V auto, Max PV 100V Solar Panel Charger Regulator LCD Display Built in WiFi Module APP Remote Monitor via 2.4G network for Gel AGM Sealed Flooded Lithium LiFePO4 User battery

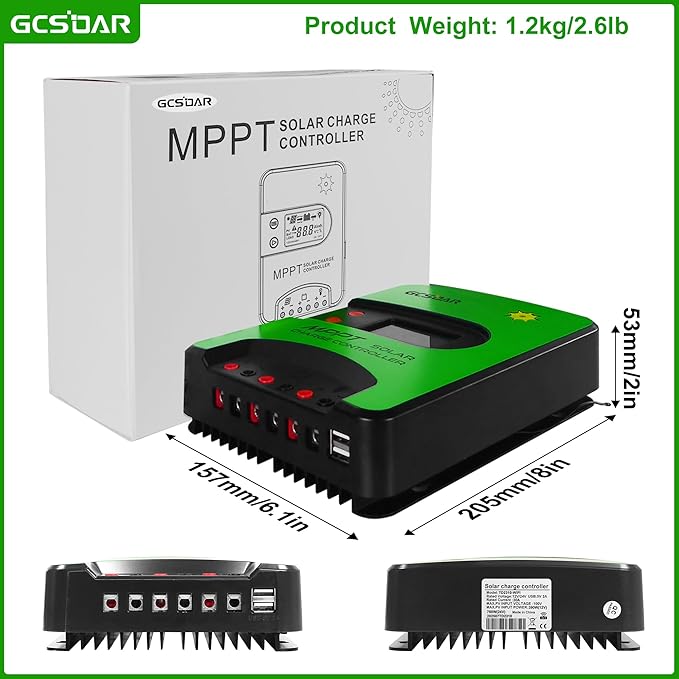

Package List:

How to activate WiFi module when the controller into hibernation mode ?

What battery types does this MPPT controller work with?

Capable with Lead Acid,Sealed, GEL(AGM), Flooded, LiFePO4, Li(NiCoMn)O2 Battery, user mode support custom battery parameters manually to solve the voltage matching common issue of multiple battery.

How to adjust parameters for the 40A MPPT solar charge controller ?

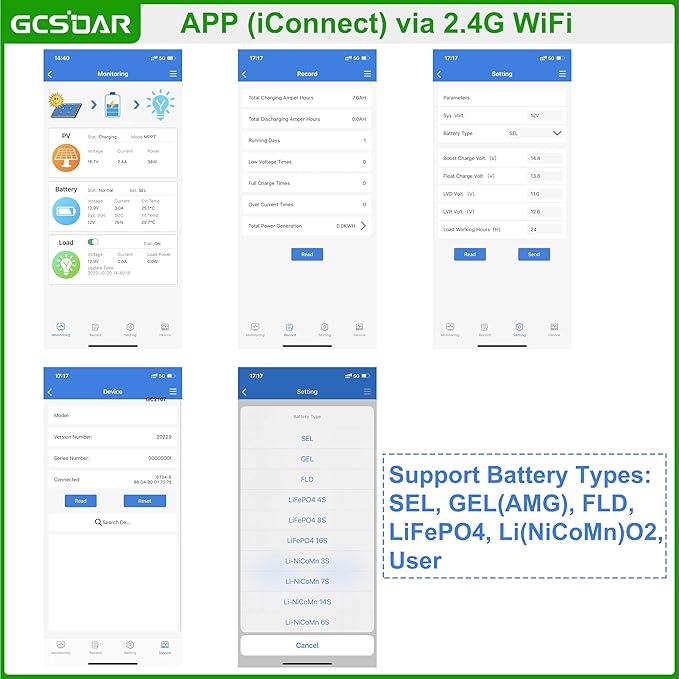

MPPT controller built-in WiFi module supports connecting APP to realize the communication function and parameter setting.

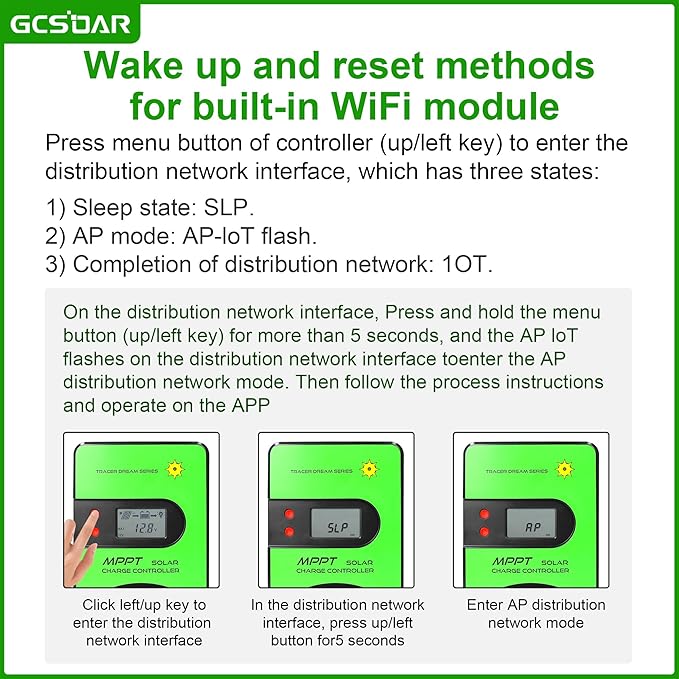

How do I reactivate the WiFi adapter when we can't search WiFi signal or it goes into hibernation ?

If the APP can't search controller WiFi signal "LDsolar", we have to press and hold the menu key into LCD network interface (AP/iOT/SLP), until AP/iOT blinks rapidly means reactivate WiFi module successfully, then APP can search WiFi signal again.
