MPPT Boost Solar Charge Controller 600W 12‑50V Input LCD Display Step Up Solar Charging Controller for 24V 36V 48V 60V 72V Batteries

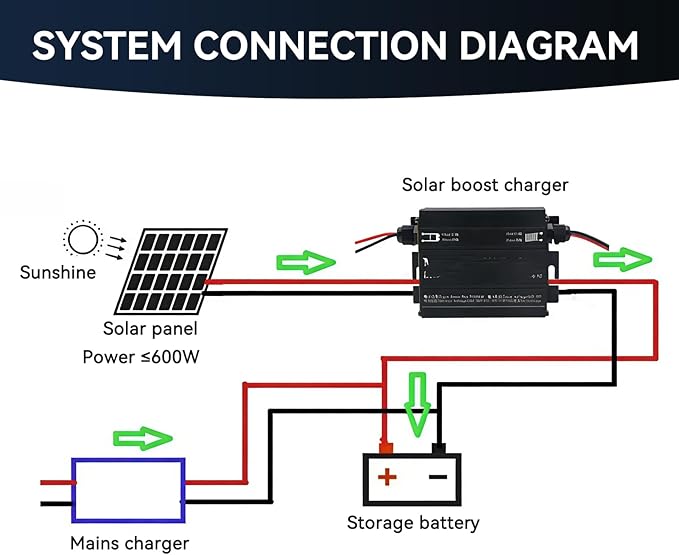

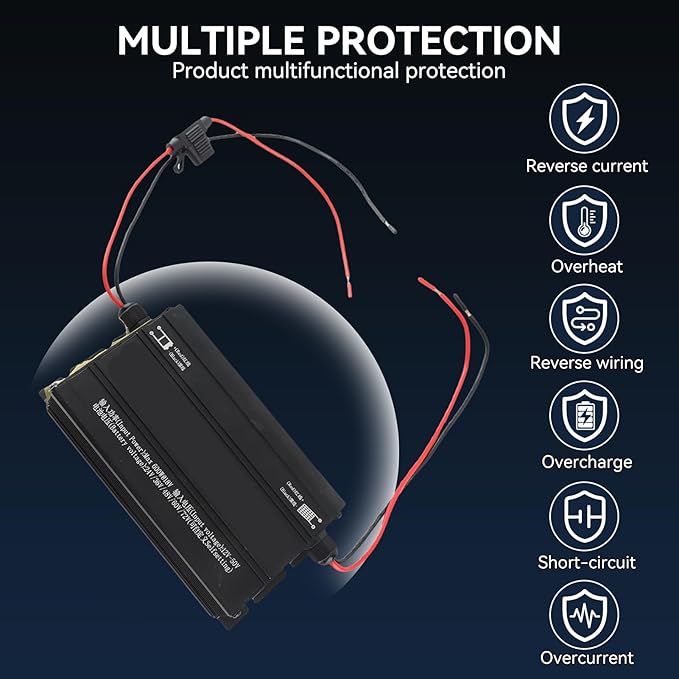

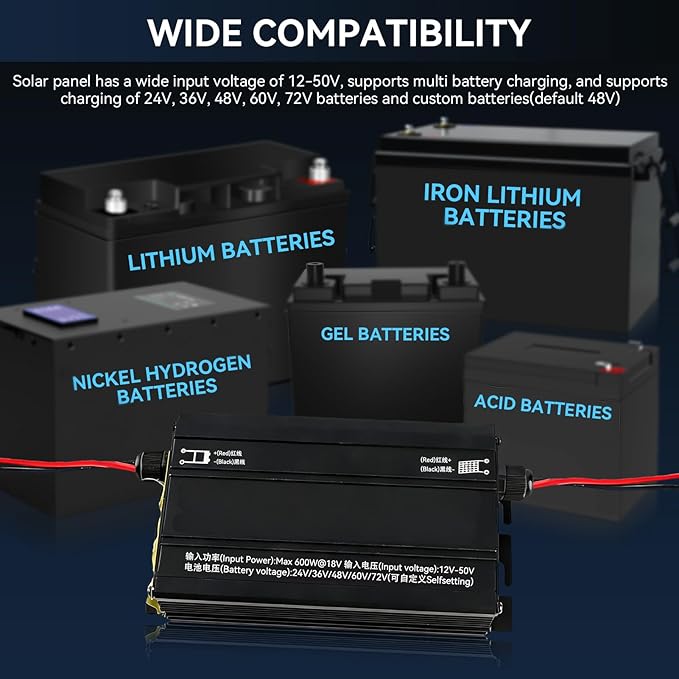

- BOOST CHARGING TECHNOLOGY: MPPT Boost Solar Charge Controller boosts 24V solar panel voltage to charge 36V, 48V, 60V, 72V batteries in golf cart, electric vehicles and solar system kits. No need to add extra solar panels or modify solar panel connections - WIDE BATTERY COMPATIBILITY: Golf cart electric vehicles solar system supports manual setting of battery voltage and charging parameters via buttons. Solar Input Voltage: 12V-50V. Maximum Solar Current: 33A. Maximum Solar Power: 600W at 18V. Suitable for various battery types, including lithium batteries, iron lithium batteries, nickel hydrogen batteries, acid batteries, gel batteries, etc - ADVANCED MPPT TECHNOLOGY: Solar panel controller adopts advanced MPPT maximum power point tracking technology, with maximum tracking efficiency over 99%. Up to 99% charging efficiency. Premium components improve system performance, with maximum conversion efficiency over 97% and ultra-fast tracking speed - MULTIPLE SAFETY PROTECTIONS: MPPT Step Up Solar Charge Controller features multiple protection functions?overcharge protection to protect batteries from damage, reverse protection for both batteries and solar panels, and short circuit protection for safe and convenient use - LCD DIGITAL DISPLAY: Solar Charge Regulator is equipped with an LCD digital display, intuitively showing charging current and voltage for easy tracking of battery charging status. Aluminum alloy metal shell provides better heat dissipation, ensuring stable operation

Product description

Specification:

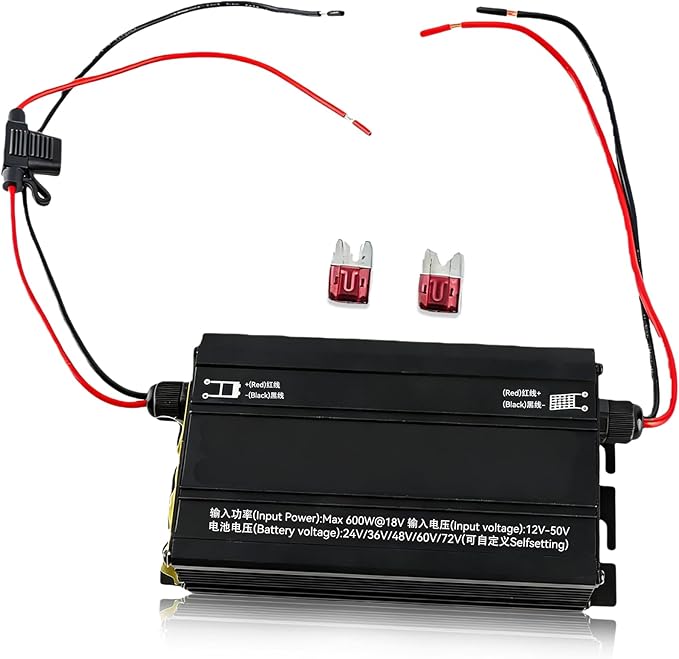

Item Type: MPPT Boost Solar Charge Controller

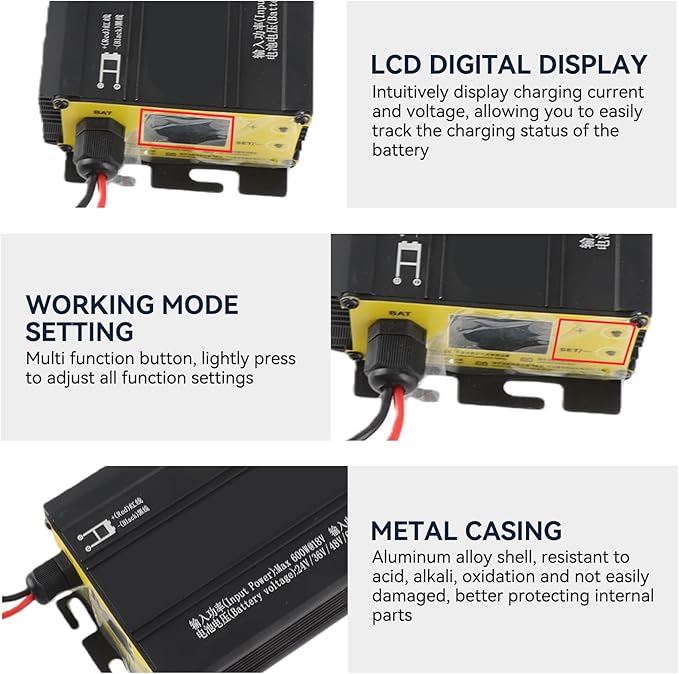

Material: Aluminum Alloy

Solar Input Voltage: 12V-50V

Maximum Solar Current: 33A

Maximum Solar Power: 600W at 18V

Battery Type: 24V, 36V, 48V, 60V, 72V, custom battery voltage (default 48V)

Battery Overcharging Protection Voltage: 28.8V (24V system), 43.2V (36V system), 57.6V (48V system) 72V (60V system), 86.4V (72V

system), custom voltage

No Load Loss: Less than 20mA

Conversion Efficiency: Greater than 97%

MPPT Tracking Efficiency: Greater than 99%

Working Temperature: -20 ℃ to 65 ℃ Protection Level: IP65

Battery Compatibility: In accordance with for EN61000, for EN55022, for EN55024
