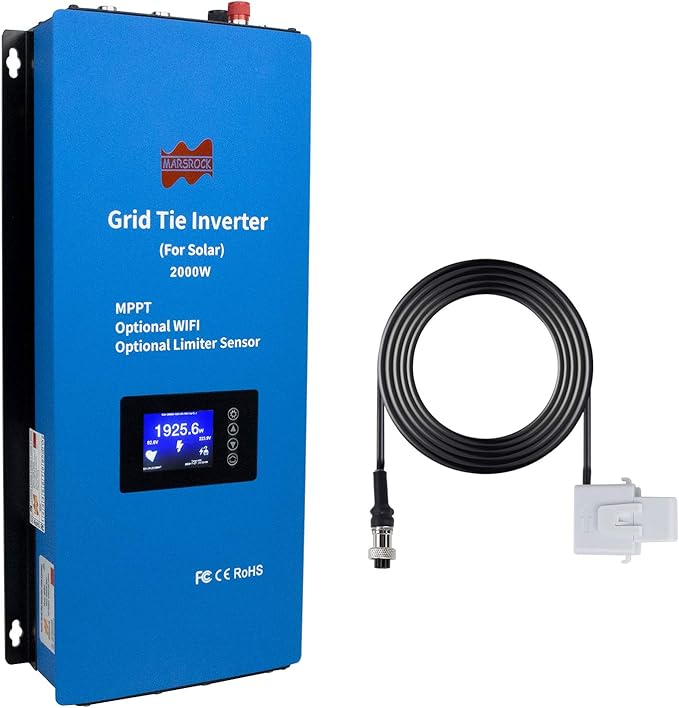

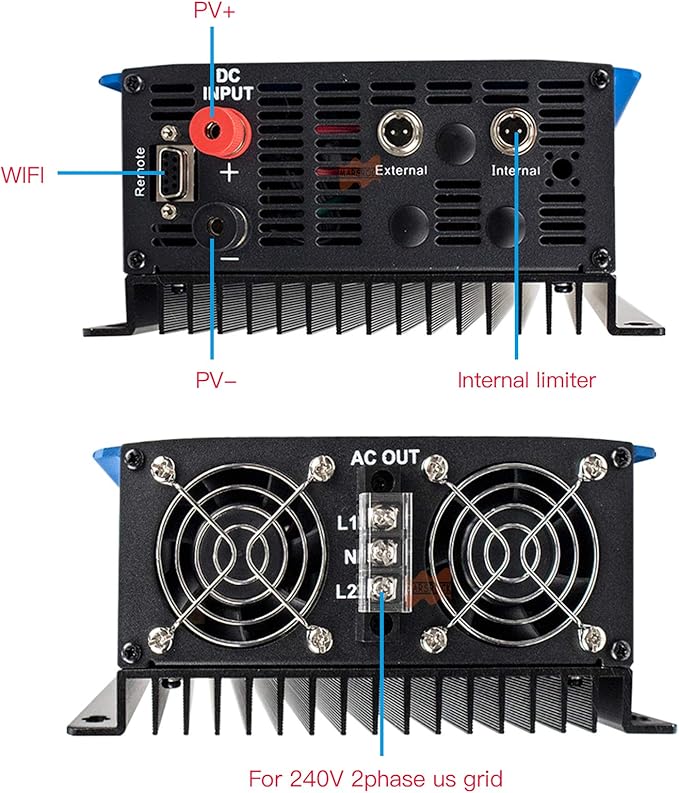

Marsrock Solar 2000W Grid Tie Inverter with Power Limiter LCD Dispay Converts Solar 45-90V DC Input to 240V AC Output Perfectly Suitable for US Standard 2 Phase Grid

- 【System Input Specifications】The Marsrock 2000W DC45-90V grid tie inverter requires a DC input range of 45-90V (with a startup voltage of 49V), and is designed for integration with American 240V systems, but it is not compatible with 110/120V systems. The solar panel connected should have a minimum power rating of 1000W with an open-circuit voltage (Voc) of 76V to 90V. Utilization of solar panels with uniform specifications is mandatory - 【Battery Compatible】This solar grid tie inverter supports battery voltages of 60V or 72V. Usage of a circuit breaker is crucial when deploying battery power. Additionally, the inverter incorporates a battery discharge power mode that strategically adjusts the discharge depth to optimize battery lifespan - 【Enhanced MPPT Technology】Equipped with advanced Maximum Power Point Tracking (MPPT) technology, the inverter achieves an exceptional efficiency rate of up to 99%. It facilitates straightforward installation and direct connection to solar panels, with a tailored AC output for American 240VAC systems. The capability for stacking multiple inverters is supported, enhancing overall power output without restrictions on the number of units that can be interconnected - 【Inverter Limiting Functionality】The inverter serves as a limiter, delivering only the necessary power to the load while preventing energy feedback into the grid. The strategic use of battery power combined with timed discharge functions can mitigate peak loads during times of high demand, consequently reducing electricity expenses - 【Professional Technical Support】Comprehensive technical support is provided to ensure seamless operation of the inverter. Should any issues arise during its use, we encourage immediate contact for prompt and professional assistance

Product description

Marsrock Wind 2000W Grid Tie Inverter with Limiter, 48V DC Input 240V AC Output

Remote Controlle function

Simple app interface

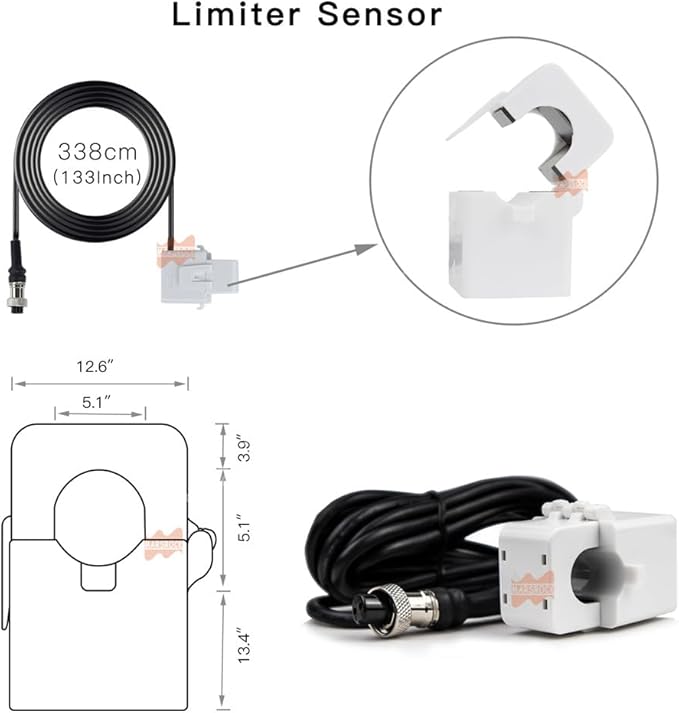

What does the limiter sensor can do in solar grid tie power inverter system?

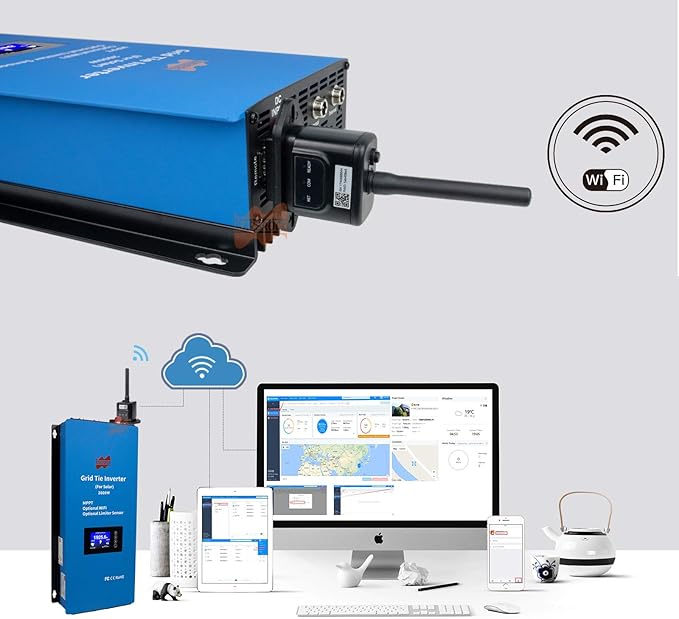

These inverters enable seamless integration with your home network. Users can monitor power generation data via a dedicated app, ensuring convenient management and performance tracking.

Without any complex or difficult to understand interface, it is convenient for you to view real-time data of current, voltage, and power.

For in DIY my own solar power system to cut down electricity bill.

As we know in some countries,Power Meters (the one provided by the electricity provider in the area) are not aware of the direction of power flow. the consumers will be charged for power even if it is given to the grid.

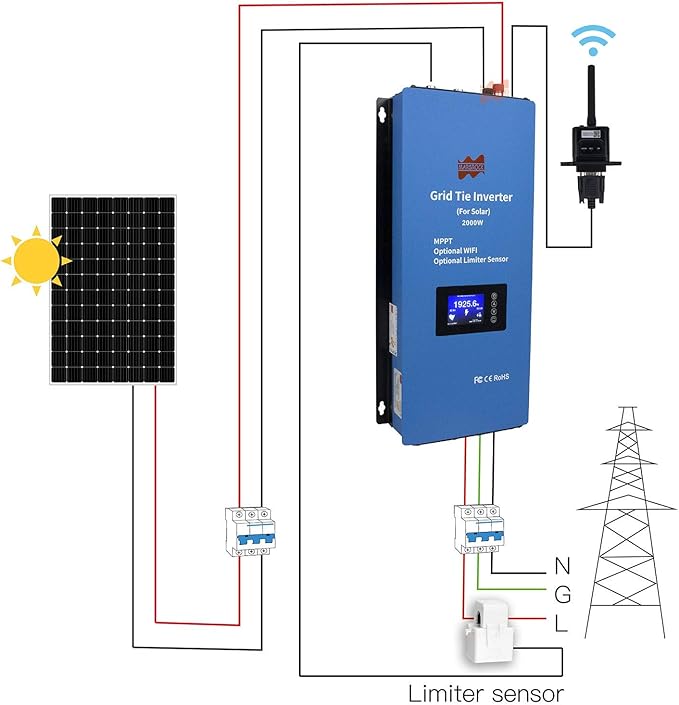

So it is called limiter NOW!!!! It delivers only the power needed by the load and prevents delivering excess power hence avoids excess power in going back to the Grid.

LCD display can display daily power generation, total power generation, real-time grid waveform, real-time solar system voltage and current, real-time power, internal temperature, date and time. Also,this grid connected inverter can be stacked for use to meet your higher standard electricity needs
