Grid Tie Solar Power Inverter 550W APP Control Single Phase Solar Grid Tie Micro Inverter Remote Monitoring and Control Solar Grid Micro Inverter

- 【Rugged Construction】Constructed from excellent aluminum alloy, the solar micro inverter boasts high strength and exceptional durability, ensuring it withstands harsh environmental conditions. Its robust design facilitates excellent heat dissipation, maintaining optimal operating conditions for good power conversion over time. - 【Remote Monitoring And Control】The solar grid tie micro inverter offers advanced remote control capabilities, allowing users to monitoring operational status and adjust power parameters from anywhere, eliminating the need for physical presence. And this flexibility ensures optimal performance and management of energy production in real time. Users can rely on its consistent performance regardless of distance from the power source. - 【Guard Features】The solar grid micro inverter is equipped with built in fuses and protective devices, including reverse input and output connection guard, safeguarding against damage from incorrect wiring. The multi layered guard design ensures peace of mind, allowing users to operate the device confidently without fear of failure. - 【Wide Voltage Support】Designed to accommodate a broad input range, this grid tie solar power inverter supports an output voltage of 90-260v, making it highly versatile and adaptable to various electrical systems. With an impressive ip66 water proof rating, this grid tie inverter power is engineered to endure extreme weather conditions. Its dust tight and water resistant features ensure good performance in outdoor installations. - 【After-Sales Service】Customer satisfaction is our top priority. If you have any questions about our products, please contact us. We will reply you within 24 hours and provide you with a satisfactory solution. If you are not satisfied with the quality of the product, you can tell us.

Product description

Grid Tie Solar Power Inverter, 550W APP Control Single Phase Solar Grid Tie Micro Inverter Solar Panel Inverter Remote Monitoring and Control Solar Grid Micro Inverter

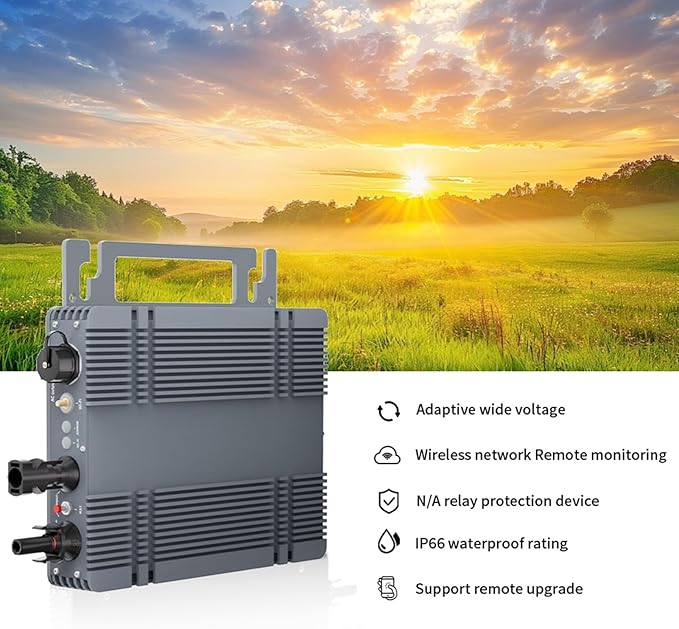

Wide Voltage Support: Designed to accommodate a broad input range, this solar grid tie micro inverter supports an output voltage of 90-260V, making it highly versatile and adaptable to various electrical systems. Users can rely on its consistent performance regardless of distance from the power source, enhancing its utility in diverse settings.

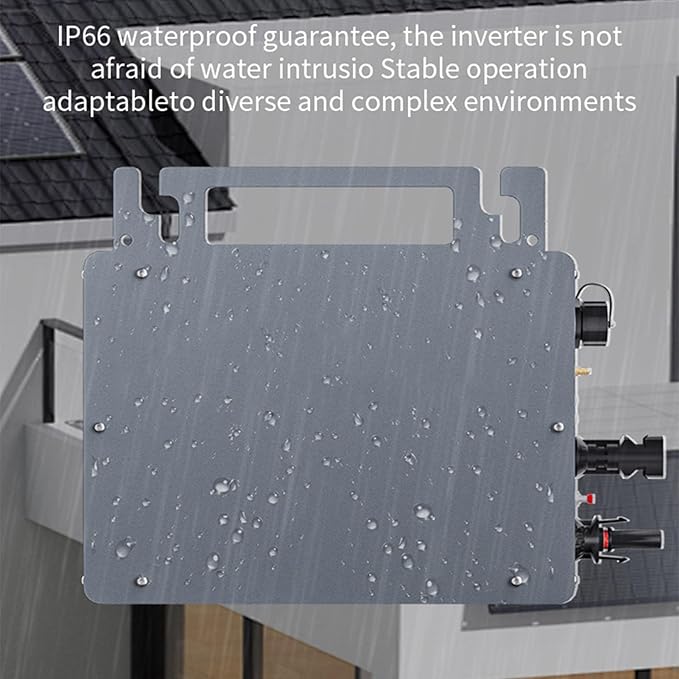

IP66 Water Proof Rating: With an impressive IP66 water proof rating, this solar panel inverter is engineered to endure extreme weather conditions. Its dust tight and water features ensure good performance in outdoor installations, making it a suitable choice for excellent solar energy management regardless of environmental challenges.

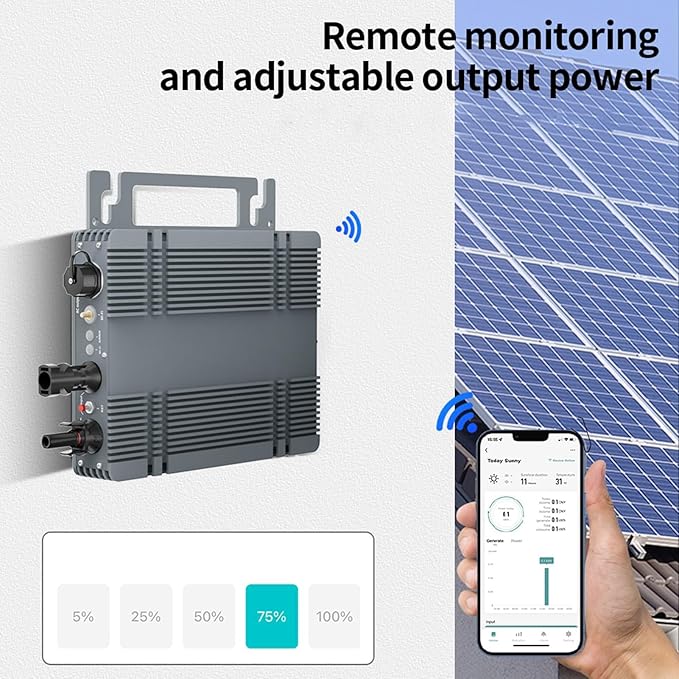

Remote Monitoring And Control: The micro grid tie inverter offers advanced remote control capabilities, allowing users to monitoring operational status and adjust power parameters from anywhere, eliminating the need for physical presence. This flexibility ensures optimal performance and management of energy production in real time.

Spec:

Item Type: Single Phase Solar Grid Tie Micro Inverter

Material: Aluminum Alloy

Input Data (DC, PV):

Input Connector Quantity: 1 SET

MPPT Voltage Range: 22-48V

Operating Voltage Range: 20-50V

Maximum Input Voltage: 50V

Startup Voltage: 22V

Maximum Input Power: 550W

Maximum Input Current: 15A

Output Data (AC):

Single Phase Grid: 90-260V (Self Adaptive)

Rated Output Power: 550W

Maximum Output Power: 550W

Nominal Output Current: 120V AC: 4.6A, 230V AC: 2.4A

Nominal Output Voltage: AC 120V AC 230V (Actual 90-260V Self Adaptive)

Default Output Voltage Range: AC 120V (80-160V), AC 230V (180-270V)

Nominal Output Frequency: 50Hz, 60Hz

Default Output Frequency Range: 50Hz: 47.5Hz-51.5Hz 60Hz: 58Hz-61Hz

Power Factor: >0.99%

Total Harmonic Distortion: THDMaximum Number of Units for Each Branch: 120V AC: 4 Units, 230V AC: 8 Units

Efficiency:

Efficiency: 95%

Nominal MPPT Efficiency: 99.5%

Night Consumption: Mechanical Data:

Operating Temperature Range: -40℃-+65℃

Storage Temperature Range: -40℃-+85℃

Maximum AC Bus Cable Current: 20A

Water Proof Rating: IP66

Cooling Mode: Nature Convection, No fan

Other Features:

Communicating: ( Monitoring)

Transformer Design: Transformer, Electrical Isolation

Integrated Grounding: Device grounding provided by PE in the AC cable. No additional grounding required.

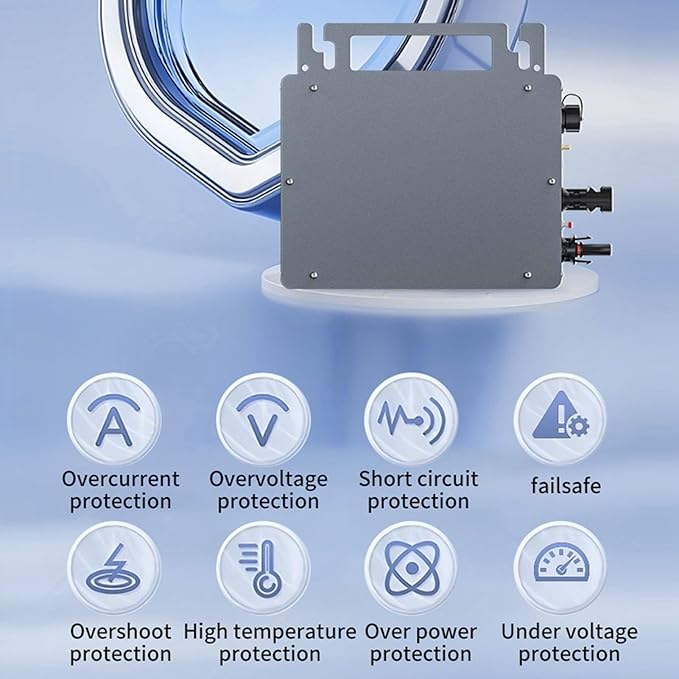

Guard Functions: Island Guard, Voltage Guard, Frequency Guard, Temperature Guard, Current Guard, etc.

Design Compliance: EN IEC61000-3-2:2019+ A1:2021, EN 61000-3-3:2013+ A1:2019+ A2:2021, EN IEC55014-2:2021, EN IEC55014-2:2021

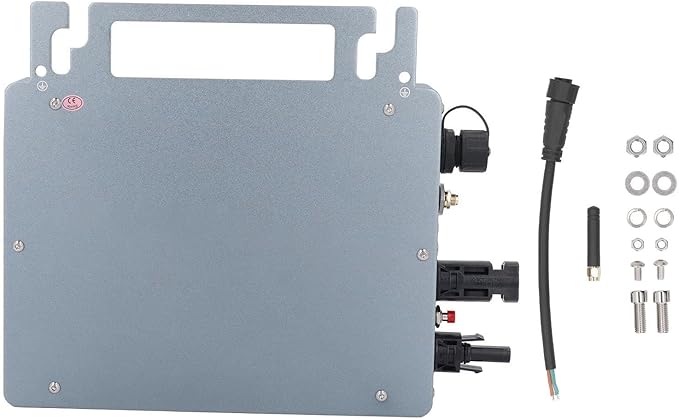

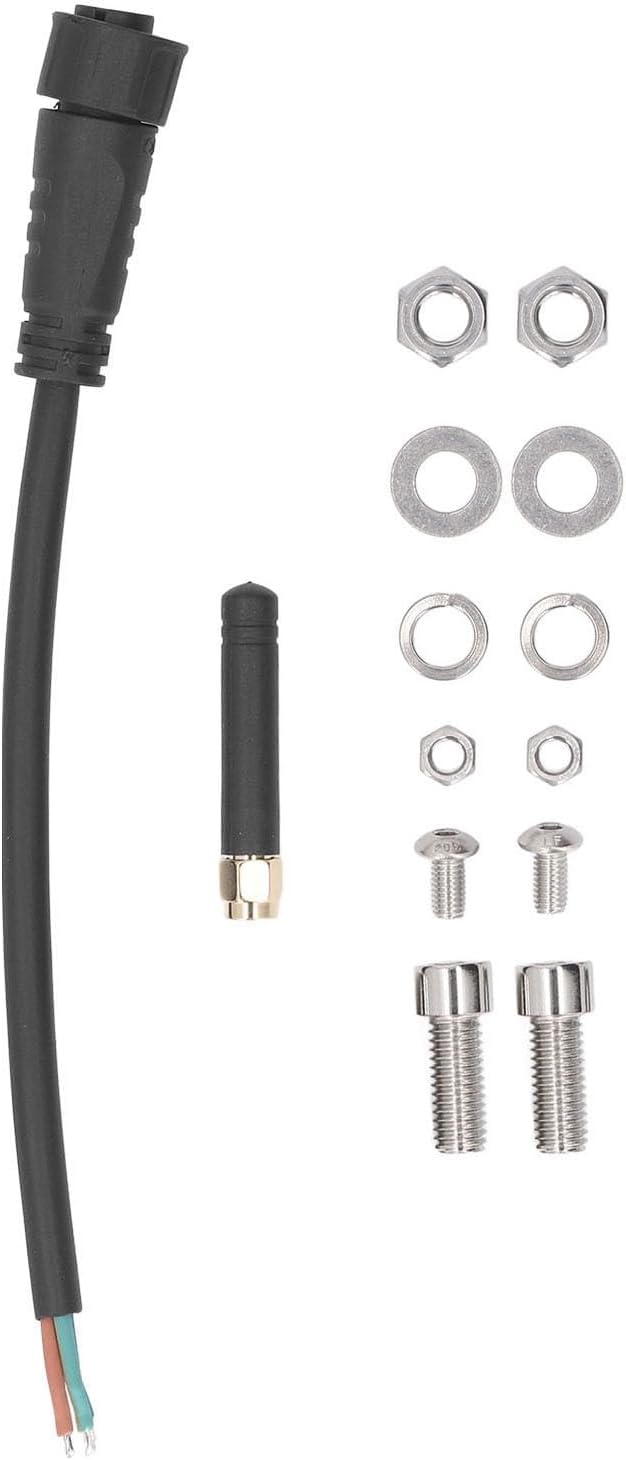

Package List:

1 x Inverter

1 x Output Cable

1 x Antennae

4 x Screws

4 x Washers

4 x Nuts

1 x Manual
