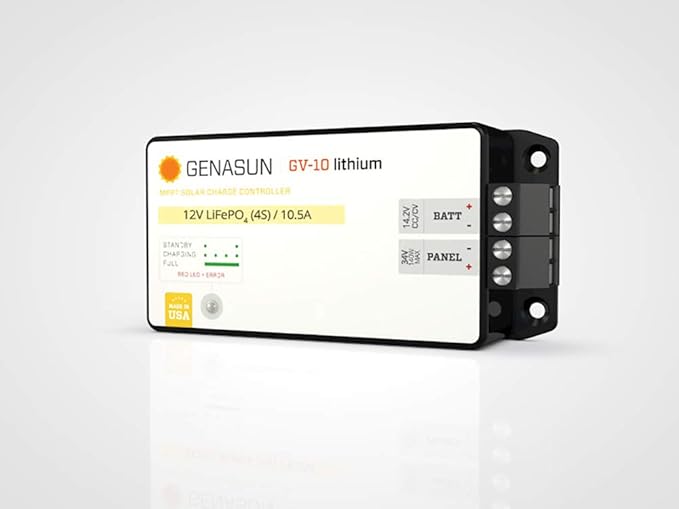

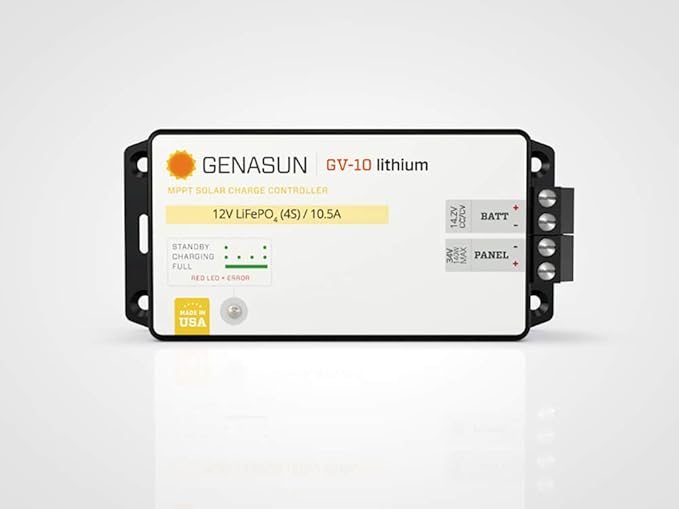

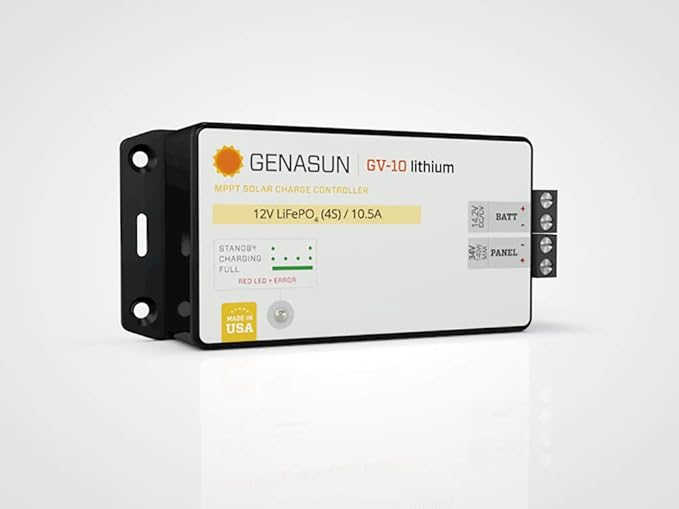

Genasun GV-10-Li-14.2V 10.5 A MPPT Charge Controller for Lithium (4S LiFePO4) Battery

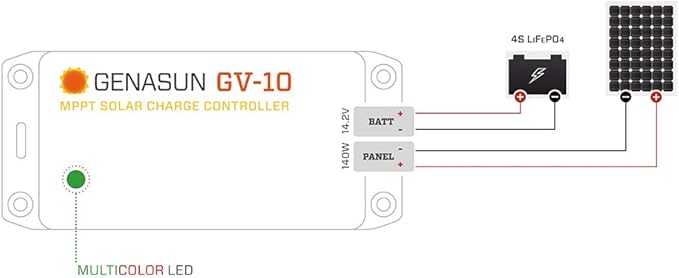

- Max. recommended panel power 140 W, 10.5 A charging current, charge profile CC/CV at 14.2 V for 4S LiFePO4 (3.55 V per cell) - High-Speed MPPT, speed tracking 15 Hz (15 times per sec.) - 98.3% Peak Efficiency and tiny night consumption (0.9 mA) - Advanced electronic protections for reverse panel and battery polarity - 5-Year Warranty, Made in the USA, certified cETLus, Class 1 Div.2, conform to CE, FCC, RoHS

Product description

RFI silence for HAM Radio community,

Check out the entire line of Genasun MPPT solar charge controllers.

Most MPPT solar charge controllers broadcast Radio Frequency noise from the DC/DC conversion circuit. Unfiltered inputs and outputs waste energy and interfere with nearby or attached electronics such as HAM Radio. Genasun worked to eliminated RF emissions from our line of charge controllers.

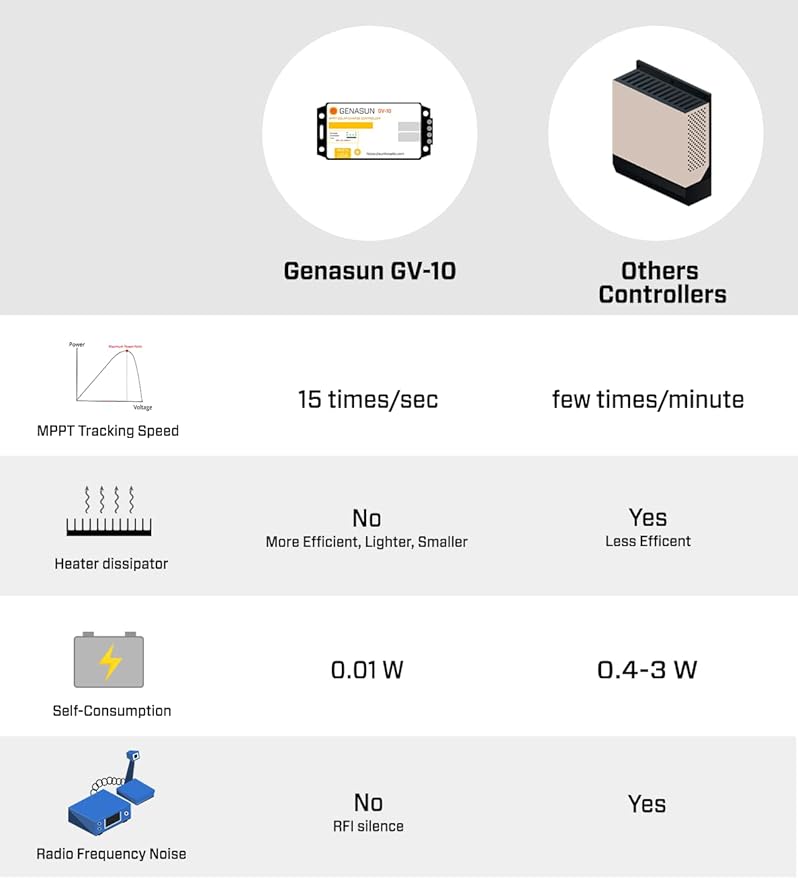

Not all Maximum Power Point Tracking controllers were created equally. Most use a sweep and sleep method that scans the entire voltage range every 30-60 seconds. Traditional controllers are constantly off target during changing cloud conditions ? exactly when power is scarce and is needed the most. Genasun controllers adapt to changing light conditions 15 times every second. They are always on target, capturing every bit of available sunshine.

Most MPPT solar charge controllers broadcast Radio Frequency noise from the DC/DC conversion circuit. Unfiltered inputs and outputs waste energy and interfere with nearby or attached electronics as HAM Radio. Genasun worked to eliminated RF emissions from our line of charge controllers.

A unique high-frequency, patented technology designed to delivery each Watt to the battery without wasting energy into heat. No fans, no aluminum bars, no energy wasted. It means more efficiency, small dimensions, and lightweight.

The Genasun controllers won't drain your battery in stand-by mode or in the night. Only ~0.01 W for self-consumption makes the GVs unique MPPT solar charge controller.

The unique low-power line of MPPT Buck and Boost solar charge controllers designed with a high-frequency, patented technology that allows the Genasun GV controllers to be the smallest, lightest, most efficient, and most RFI-quiet controllers on the market!
