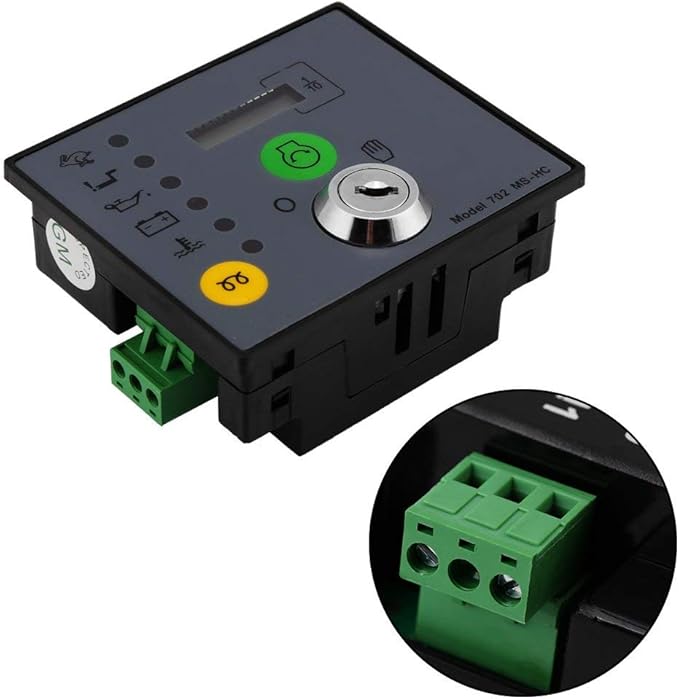

FTVOGUE Manual Start Generator Controller Board Panel DSE702 Module

- The 702 MS-HC is available in manual start versions, offering an excellent range of engine monitoring and features. - The module has been designed to monitor low oil pressure, high engine temperature, over speed and a user defined auxiliary input. - The DSE702 module includes a remote start input. This input allows the module to be started from a pre-defined remote location. - This generator controller is microcomputer control, the generator controller is started and stopped manually, with the function of LED indicating fault information, with LCD running accumulative time - The user turns the key to the palm position, the engine pre-heat button is then pressed for the required time, the start button is then pressed to start the engine, to stop the engine the key needs to be turned to the off position

Product description

Specifications:

Benefits:

Hours counter provides accurate information for monitoring maintenance and periods

Multiple engine parameters are monitored simultaneously.

Manual Mode Operation:

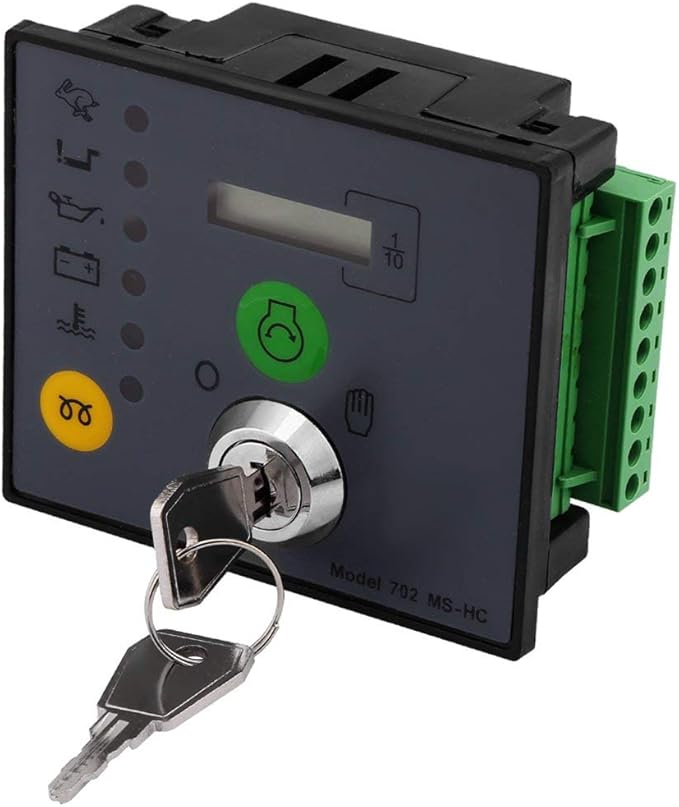

1.The module is started using the on-board key/buttons

2.The user turns the key to the palm position

3. The engine pre-heat button is then pressed for the required time

4. The start button is then pressed to start the engine

5. To stop the engine the key needs to be turned to the off position

Overspeed Protection:

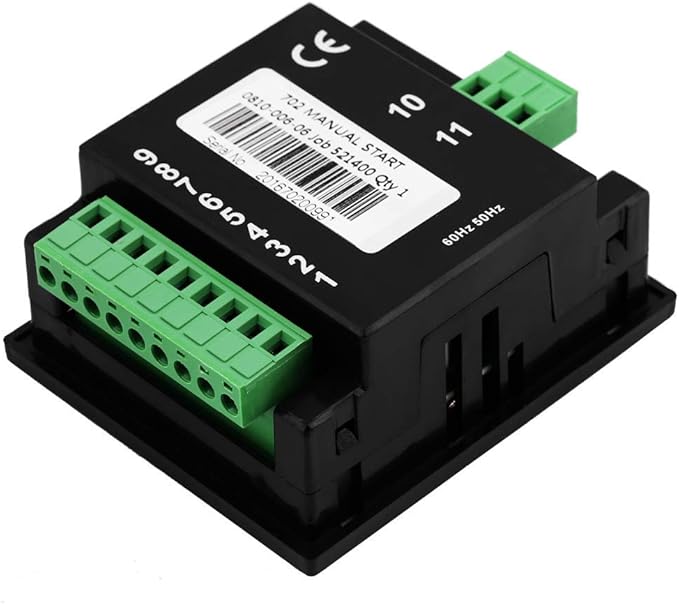

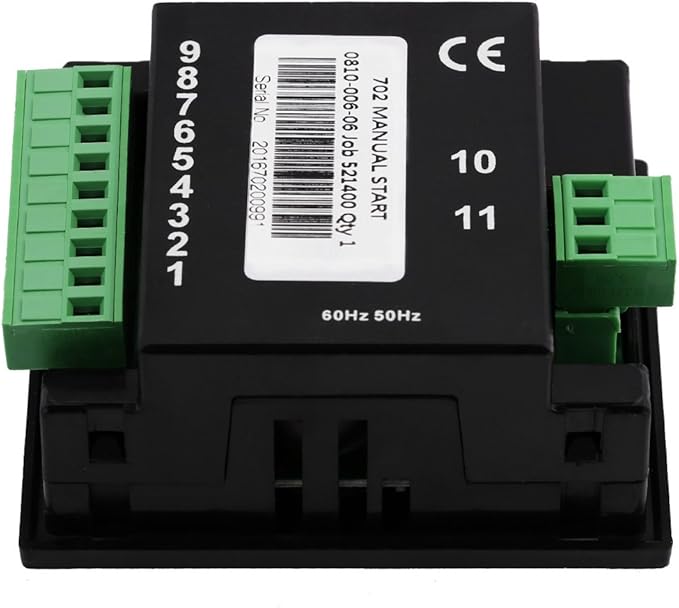

The engine over speed trip setting can be calibrated at the rear of the module for 50Hz or 60Hz nominal operation (57Hz or 68Hz trip respectively).

During engine cranking and for the first 10 seconds after the engine starts running, all alarm conditions are suspended (overspeed is enabled) to allow the engine to reach its optimum running speed.
