FrogBro Solar Panel Tester Photovoltaic Multimeter Upgrade EY800W with Ultra Clear LCD Smart MPPT Open Circuit Voltage Troubleshooting Utility Tool for Solar PV Testing (LCD 800W)

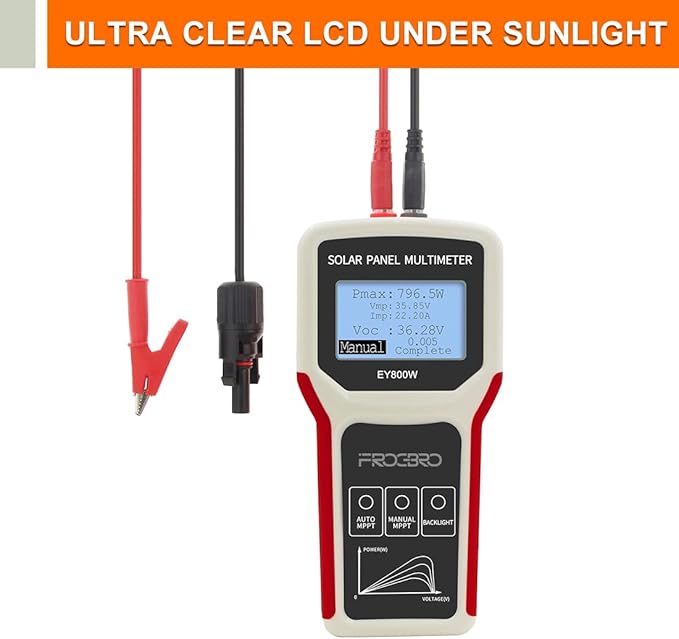

- We firmly believe that quality shapes the future. FROGBRO is dedicated to continuously crafting and refining tools that enhance the convenience of people's work and life. You can confidently purchase our products, and in case of any quality issues, we offer a 12-month replacement service. If you have any inquiries, please feel free to reach out to us. We are more than happy to provide you with answers and assistance at any time. - New Update Tester: All solar panels UNDER 800 WATTS & 60 VOLTS can be measured.Upgrade with big LCD screen can be read clearly under sunlight. And full automatic VOC voltage can be read in any mode. Suitable for portable solar, foldable solar panel, solar PV kit, car/boat solar power, roof solar panel etc.Compact and portable: Our smart MPPT solar panel tester is packed with an EVA package, two kinds of connecting cables to fit different connection request. - Solar Panel Spec Tester: Our solar panel multimeter is built for detecting the voltage, current and power of the solar panel, and judge whether your solar PV is working well. And distinguish the quality difference of different brands of photovoltaic panel through our solar tool. Or to find out the best angle or place for solar panel position. - No Battery Required: Our solar PV tester does not need battery,just connect the cables to solar panel then it can work. It has enough long two MC4 connecting cables, and two Alligator clip cables. - Multi Protection for safety: Our Multimeter solar tester has multi protections like over-voltage protection, over-temperature protection, over-current protection and over rated power protection. Ensure user safe working.（Important, the total panel power should not exceed 800W） - Note: Give the Easiest and Fastest Measurement Tool on How to Place Solar Panels to Get Maximum Power. Please be sure to disconnect the photovoltaic board from other equipment or loads before testing.

Product description

Attentions

Includes

Operation Manual

Please be sure to use this product within the rated voltage and current power range

Please be sure to disconnect the photovoltaic board from other equipment or loads before testing

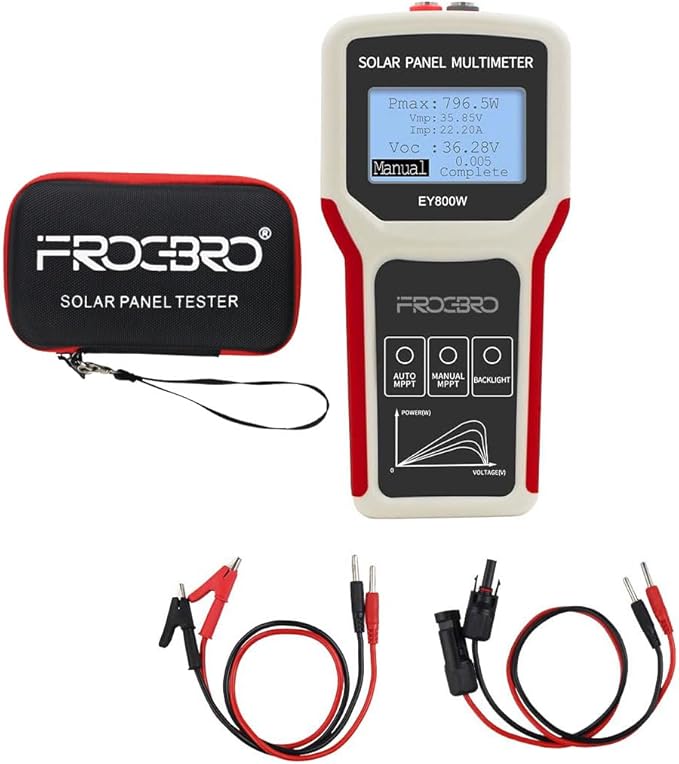

1 x Solar Panel Multimeter

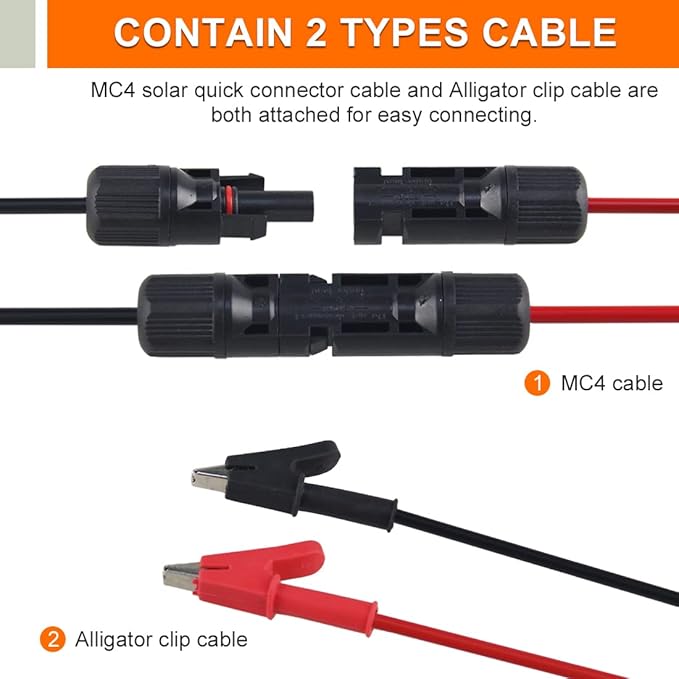

1 x MC-4 Connecting Cable

1 x Alligator Clip Cable

1 x User Manual

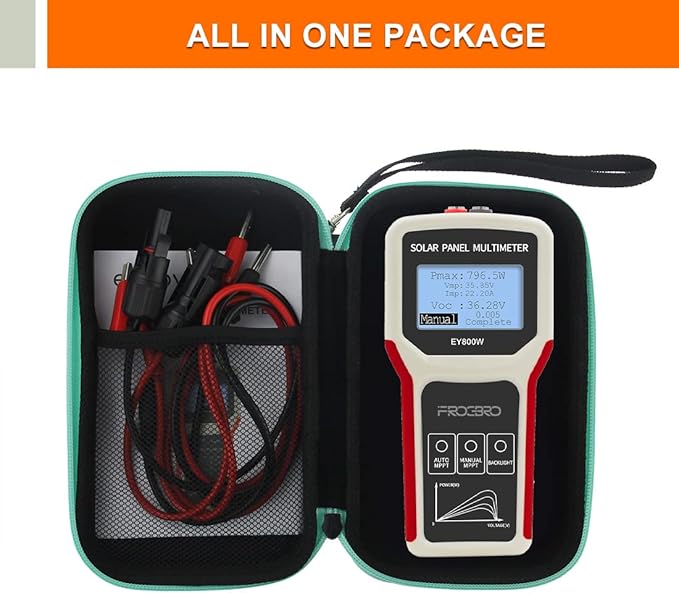

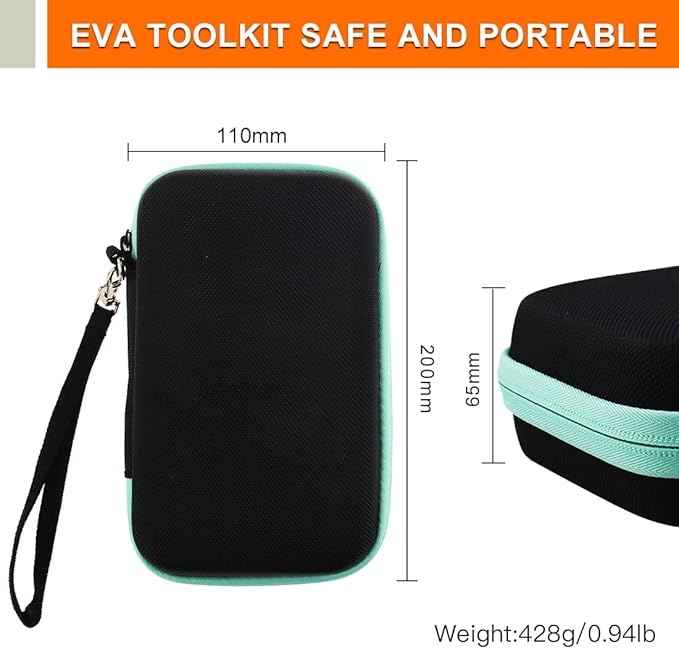

1 x EVA Toolkit

Over 60V, show "overvoltage", please use within 12-60V voltage

Over 60℃, show "over temperature", please cool down before use

Over 35A, show "overcurrent", please use within 35A

When the input positive and negative terminals are reversed, the multimeter will not display

When the rated power is exceeded, "over rated power" is displayed. Please disconnect the solar panel in time and use it within the rated power range.

If there are any quality problems with the product, please feel free to tell us, we will definitely deal with it as soon as possible and give you a satisfactory solution!

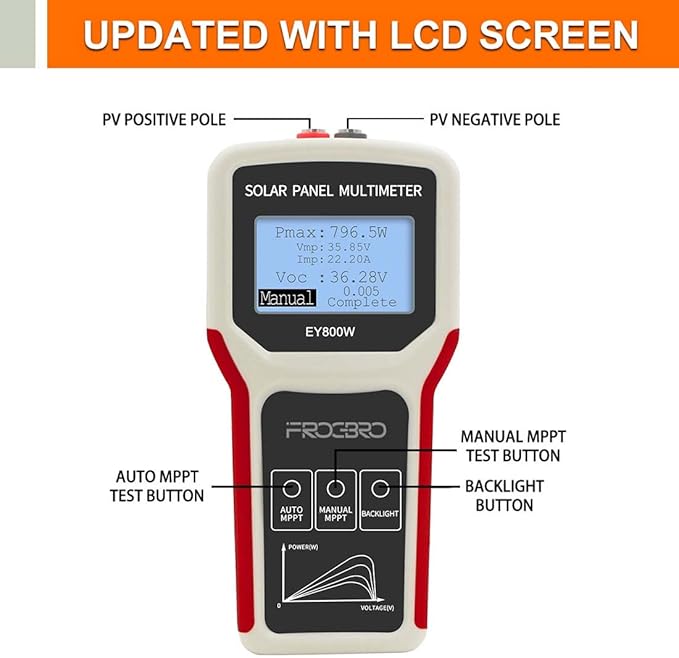

When pressing the [AUTO MPPT] test button, the multimeter automatically adjusts the test interval time according to the current power value and refreshes the digital display.

Example: When the solar panel power is 100W, refresh once every 5S; when the solar panel power is 350W, refresh once every 15S. when the solar panel power is 700W, refresh once every 30S.

When pressing the [manual MPPT] test button, the multimeter starts a scan of the maximum power point and refreshes the digital display, and keep the last test results.

When the multimeter is working, the LCD will display the open-circuit voltage of the solar panel in real time.
