EPEVER MPPT Solar Charge Controller 30A 12V 24V auto IP67 Waterproof Max PV 100V Solar Panel Charger Regulator 390W/780W for Sealed Gel AGM Flooded LiFePO4 Lithium Battery

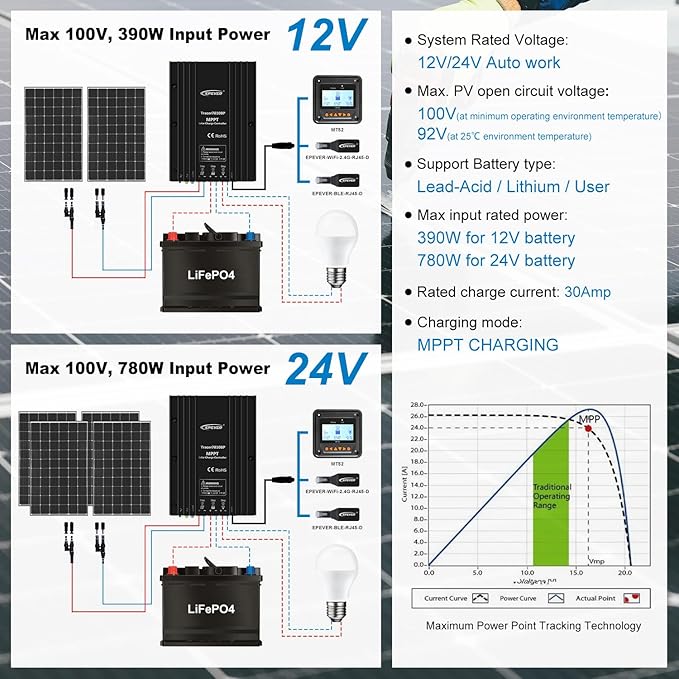

- EPEVER IP67 Waterproof MPPT Solar charge controller 30Amp (Tracer7810BP + RS485 Conversion Cable) 12V/24V Auto identifying battery voltage, Max.PV(Voc) 100V, solar panels Max input 390W charging for 12V battery or 780W charging for 24V battery. - Support battery types: Lead-acid: Sealed, Gel(AGM), Flooded; Lithium: LiFePO4 , Li-NiCoMn; and User-defined. User mode allow to set your own parameters for battery. Lithium battery self-activating and low temperature protection function. Battery temperature compensation function (only for Lead-acid battery), Real-time energy statistics function. - Advanced Maximum Power Point Tracking (MPPT) technology, with tracking efficiency no less than 99%, Ultra-fast tracking speed and guaranteed tracking efficiency , Accurately recognizing and tracking of multiple power points, Maximum conversion efficiency of 98%. Wide MPP operating voltage range. - With RS485 communication interface and Modbus communication protocol. (We have prapared free conversion RS485 cable ) you could monitor and set more details parameters via remote meter MT50 or adapter WiFi/BLE by APP(Solar Guardian) or PC software. LED indicators dynamically status working condition and trobluesshooting. Multiple load control working modes: Manual mode ; Light ON/Off ; Light ON +Timer ; Real-time Control mode. - IP67 waterproof degree, Long lifespan design. Common Negative Grounding design widely used for various applications, e.g. solar RV, household system and industrial field monitoring, traffic signal, solar street light, solar garden lamp, Boat etc.

Product description

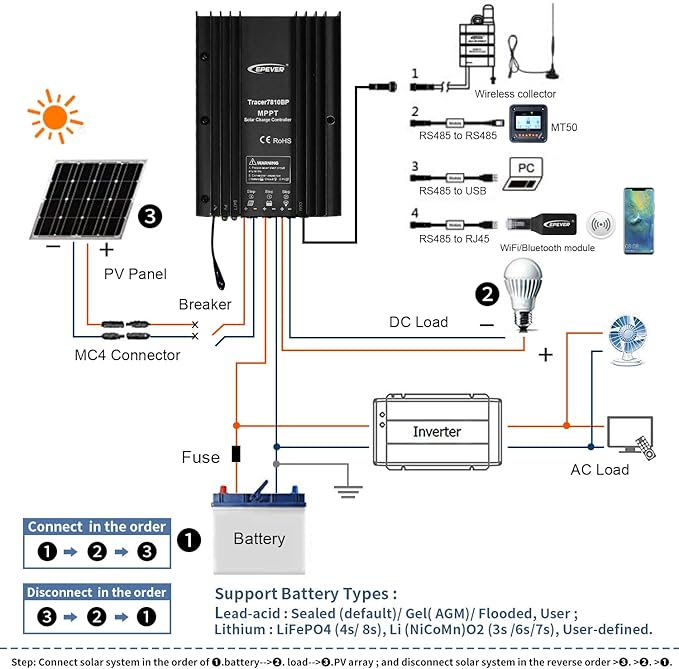

Step: Connect solar system in the order of 1.battery--> 2. load--> 3.PV array ; and disconnect solar system in the reverse order 3. 2. 1.

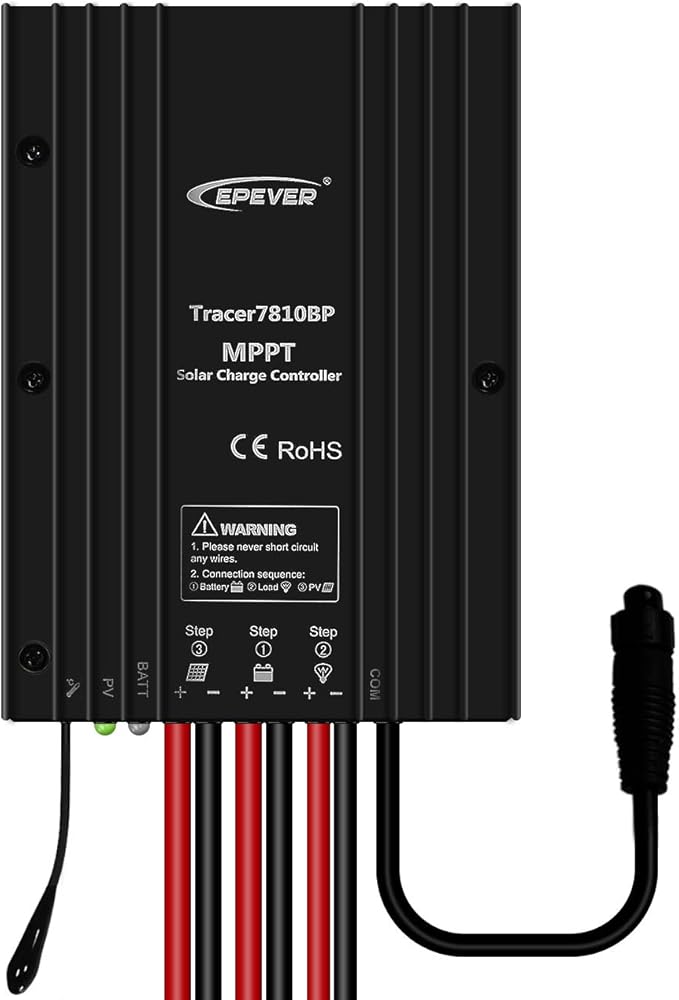

EPEVER 30A MPPT Solar Charge Controller Tracer7810BP IP67 Waterproof, 12V/24VDC auto work, Max PV 100V , Common negative grounding . Suitable for Lead-acid & Lithium batteries & User type

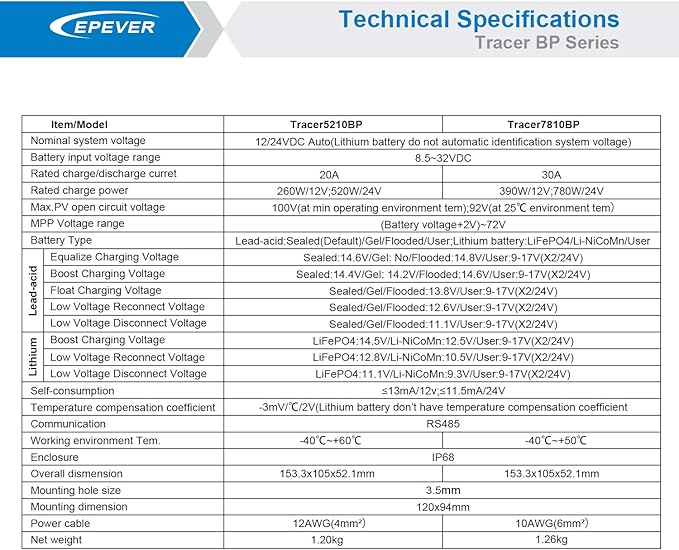

Technical Data:

Package List:

Note :

Our warehouse located in Chicago, Illinois, US. our professional engineer local team supply solar system help for you in time .

1) Manual Mode ;

2) Light ON/OFF(Default) ;

3) Light ON+ Timer ;

4) Real-time Control (Control the load ON/OFF time through setting real-time clock.)

NOTE: In the mode of Light ON/OFF and Light ON/Timer, the Load is turned on after 10Min. delay .

Note : MPPT controller can identify battery system voltage for Lead-Acid battery automatically. When the battery type is Lithium Battery, you need set Li-type voltage manually

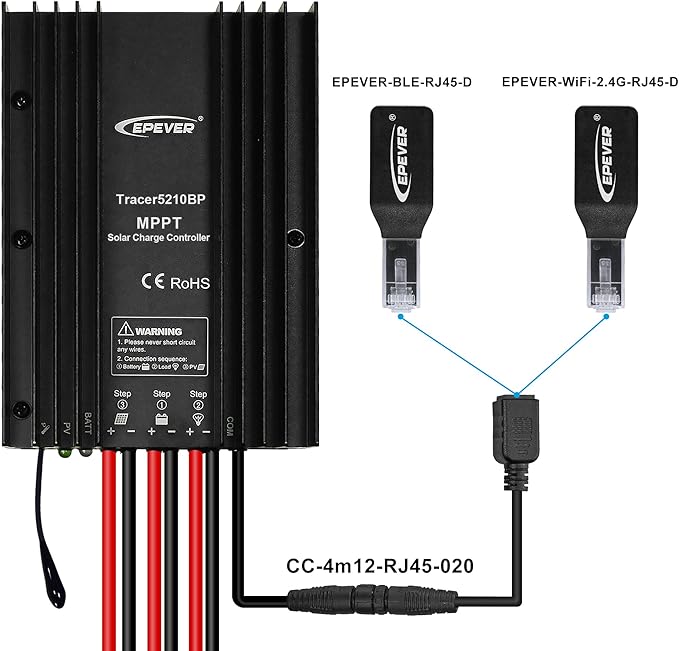

How to monitor and program parameters for Battery？

Note: The following accessories devices are not included in controller box , you could check and purchase accessories separately .
