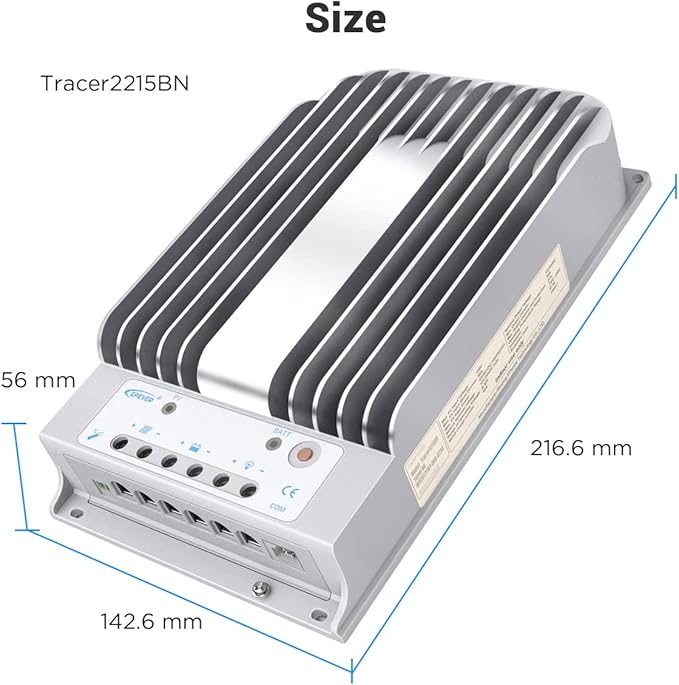

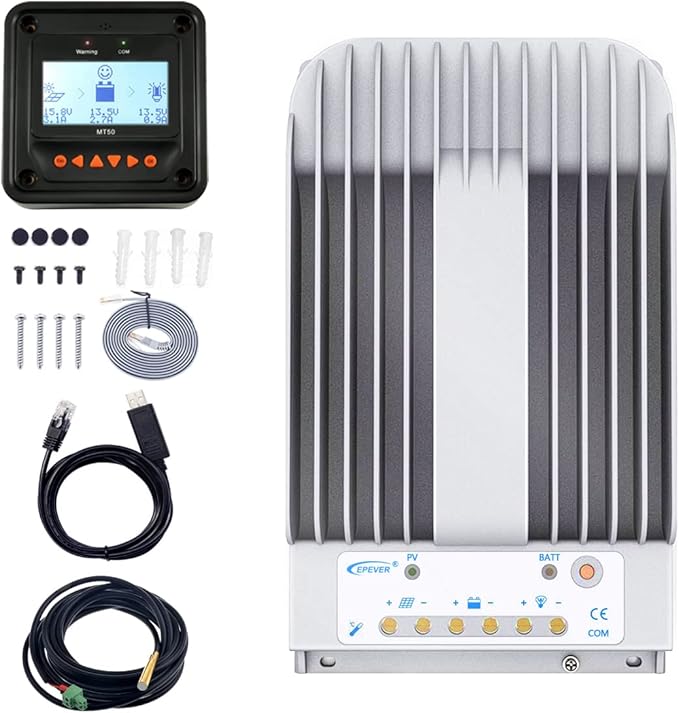

EPEVER MPPT Solar Charge Controller - 20A 12V/24V Auto Solar Panel Charge Controller with Max.PV 150V Remote Meter Temperature Sensor PC Monitoring Cable

- Advanced MPPT (maximum power point tracking) technology, tracking efficiency no less than 99.5%, maximum conversion efficiency of 98%. - Reliable automatic limit function of maximum PV input power, ensuring no overload under any circumstance. Wide MPP operating voltage range. Die-cast aluminum design, ensuring excellent heat dissipation characteristic. - 12/24VDC automatically identifying system voltage, and has multiple load control modes: manual control, light ON/OFF, light ON+Timer and time control, support 4 charging options: Sealed, Gel, Flooded and User. - Solar Panel Charge Regulator with RS485 interface , it can be monitored by cellphone APP(eBox required), PC Software and MT50 remote meter. available to meet various communication requirements in different situations. - Mppt Solar Regulator can be widely used for various applications, e.g. solar RV, household system and industrial field monitoring, etc.

Product description

1）Unplug the RTS, the temperature of battery will be set to a fixed value 25 ºC.

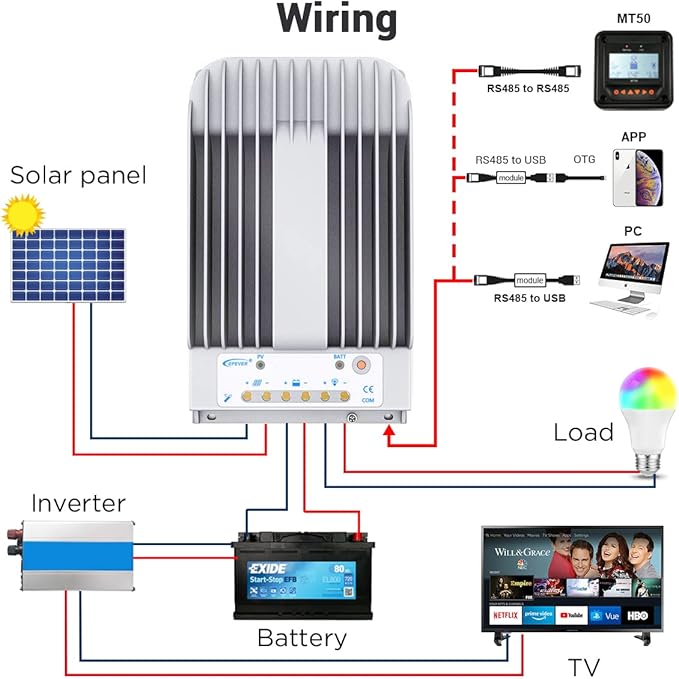

2）Please connect the inverter to the battery rather than to the controller, if the inverter is necessary.

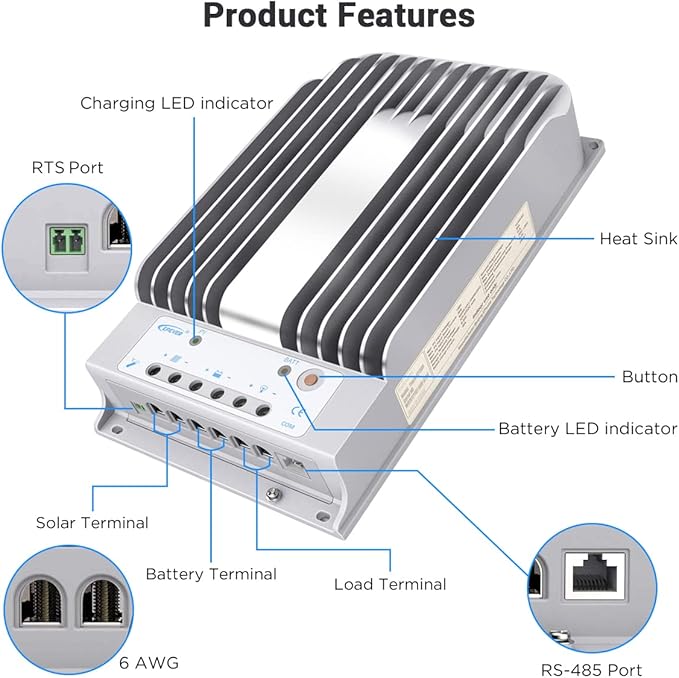

3）The RS-485 port and RTS port is not SELV circuit, it must have isolation between the port and the place where the end user can access directly.

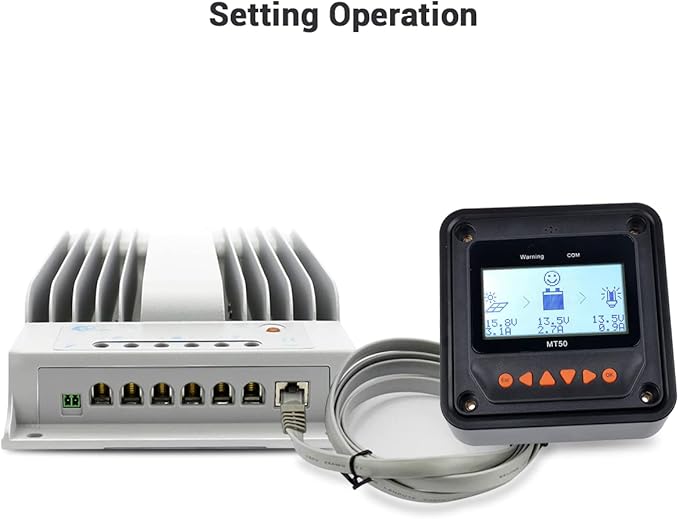

Four methods to configure the controller:
