EPEVER Latest MPPT 40A Solar Charge Controller 12V/24V TRIRON 4210N Intelligent Modular-Designed Regulator with Software Moblie APP - Updated Version of Tracer A/an Series

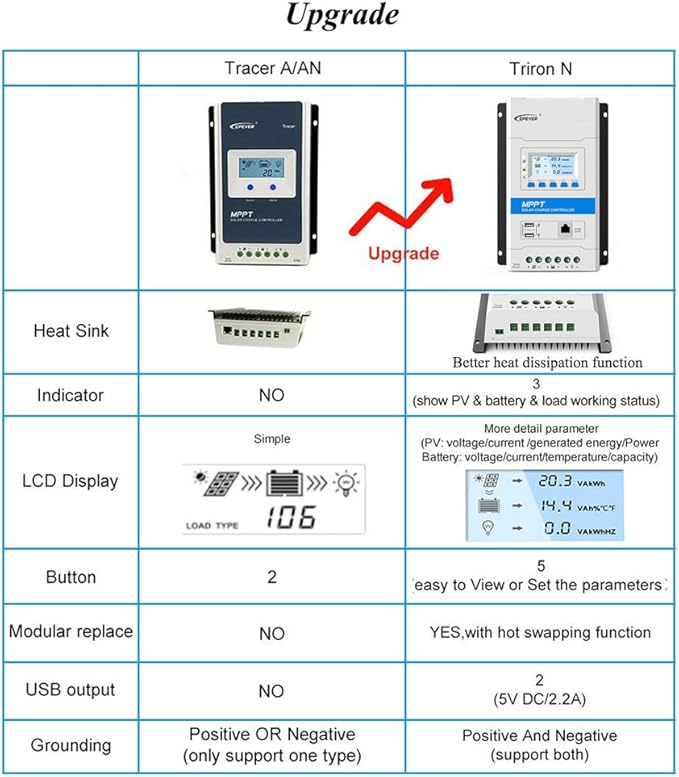

- ?TRIRON N series mppt controller, an update series of Tracer A/AN Series controller, can be integrated with different display and interface modules to meet a variety of functional requirements. Can automatically identify and load the drivers of various modules.Modular design for easy combination and replacement;Advanced MPPT control algorithm to minimize the MPP loss rate and loss time;Advanced MPPT technology, with efficiency no less than 99.5%. - ?Negative groud designed of this modual mppt controller can be widely used for different applications, e.g., communication base stations, household systems, street lighting systems and field monitoring, RV solar system etc. - ?7 battery type selection Sealed(AGM), Gel, Flooded, Lead-acid User, LiFePO4 Lithium, Li(NiCoMn)O2 Lithium, Lithium User(9~34V). Dual 5V DC USB output interface of this mppt controller can charge your electronic devices directly. - ?Master and slave RS485 communication modules design, reading the load or inverter operating data;Control the inverter switch through the relay interface;Provide 5VDC power through the dual USB output interface to charge electronic devices. - ?Three Indicator with different color show your PV/Battery/Load working Status more Intuitive; FIve Button to adjust and browsing system's parameters in more simpler way.

Product description

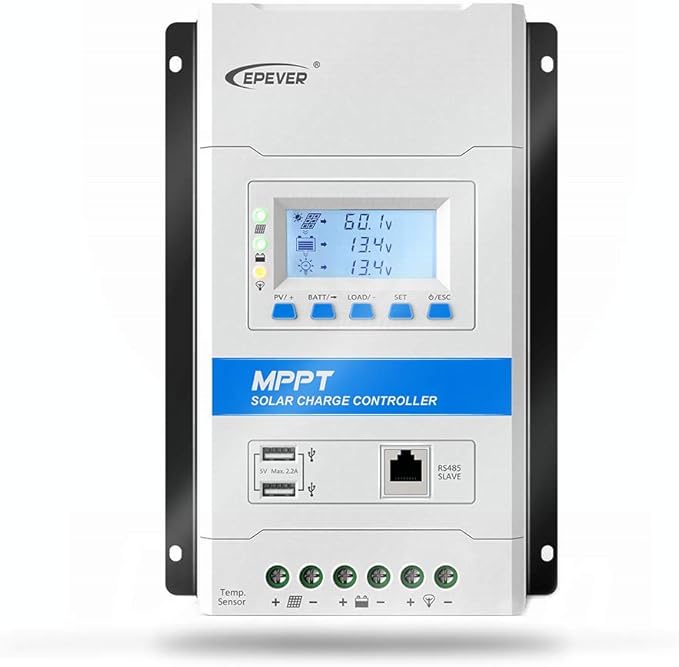

The TRIRON N series controllers are modular-designed MPPT solar controller.

With the advanced MPPT control algorithm, TRIRON N series controllers can minimize the maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum energy from solar modules under any conditions.

With the adaptive three-stage charging mode based on a digital control circuit, TRIRON N series controllers can effectively prolong the life cycle of batteries, significantly improve the system performance and support all-around electronic protection functions, minimize damages to components of the system caused by incorrect installation or system failure at the utmost, and effectively ensure safer and more reliable operation of the solar power supply system for a longer service time.

Power Modules

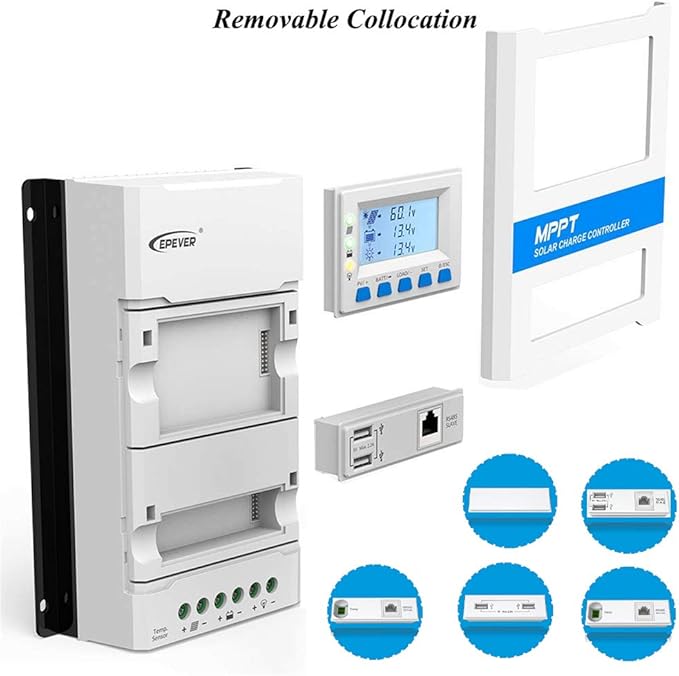

The Power Modules control PV battery charging & load discharging without any without any display or interface modules installed they can operate on their own.

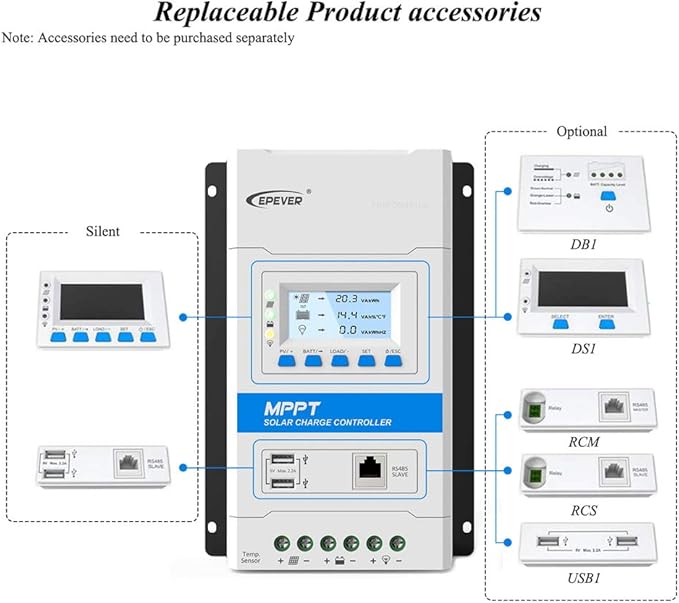

If a display or interface module is installed, it will be powered by the Power module and the appropriate module driver will be loaded.

NOTE: The power module can be operated independently without any other modules.

Indicators: PV & battery & load working status

Load:

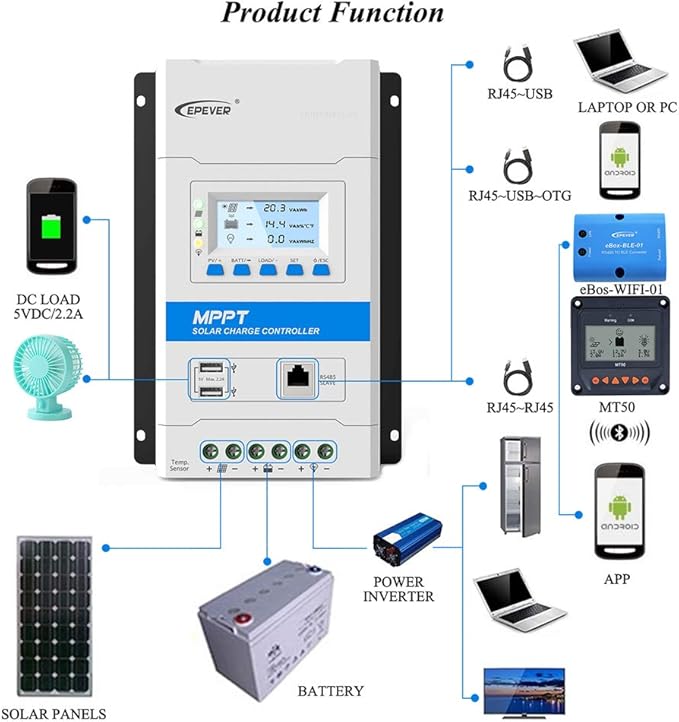

RS485 interface:

Connect to PC or phone.

View or change the controller parameters.

USB interface:

Supplies 5VDC for electronic equipment.

NOTE: USB interface is output when the load is ON.
